Product

>
<

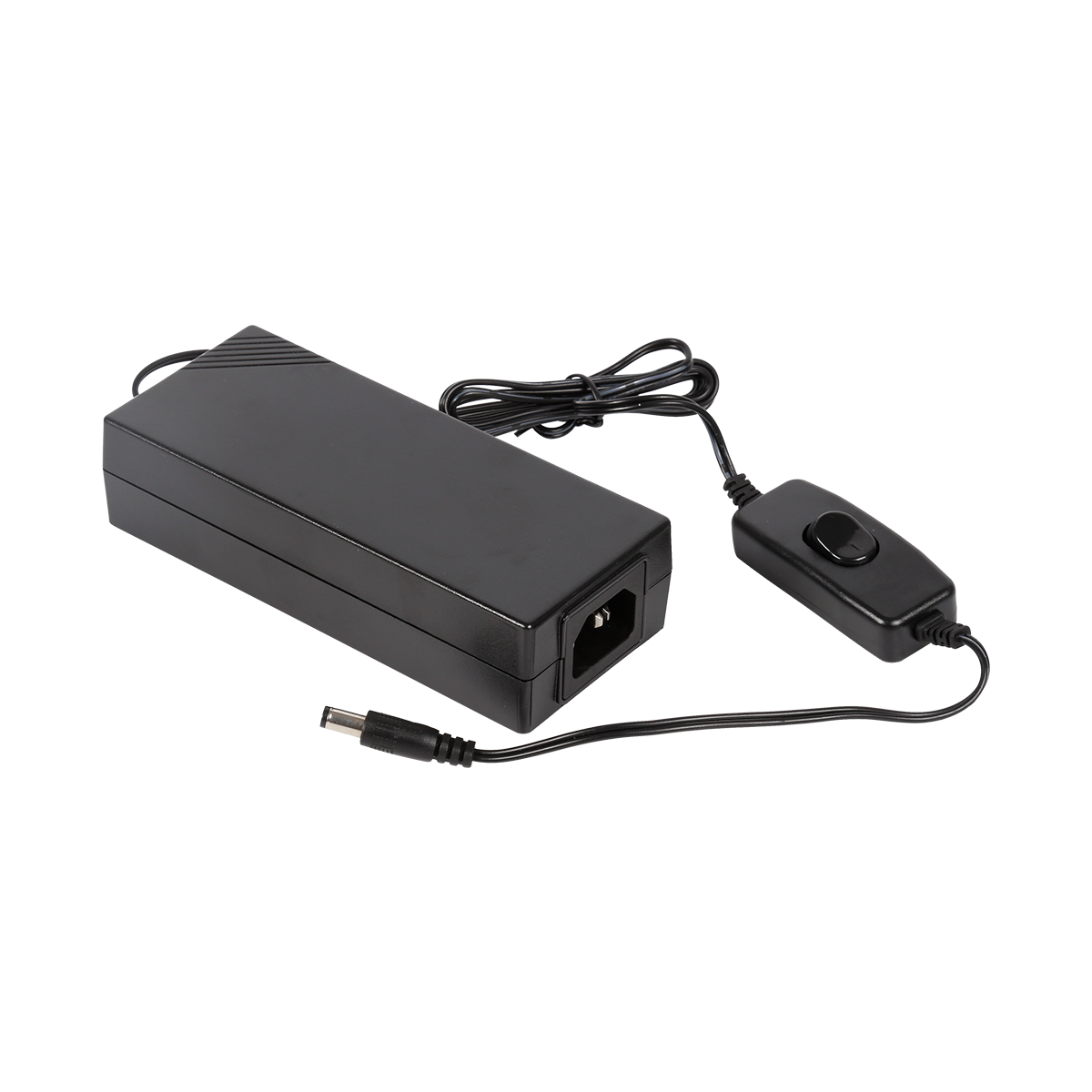

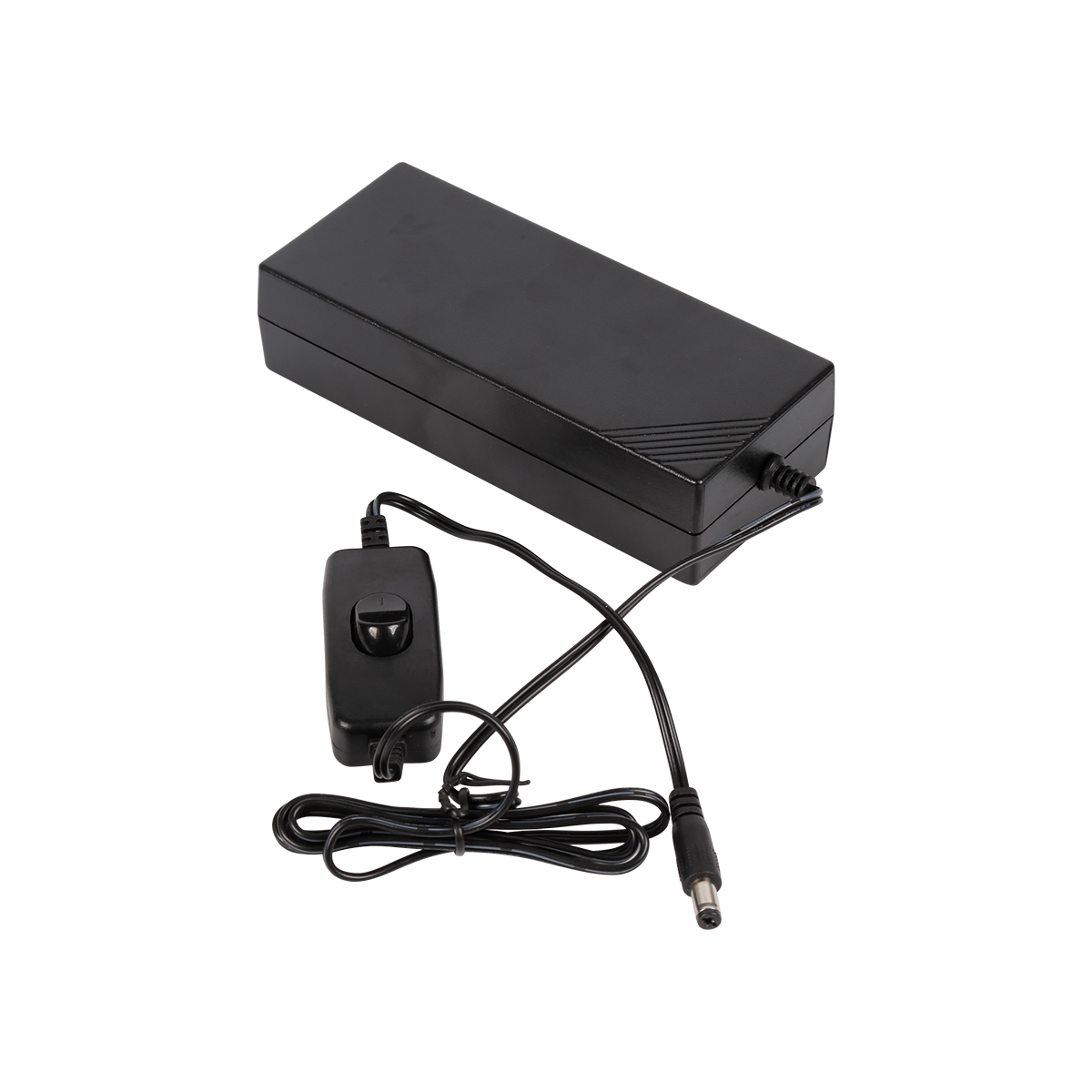

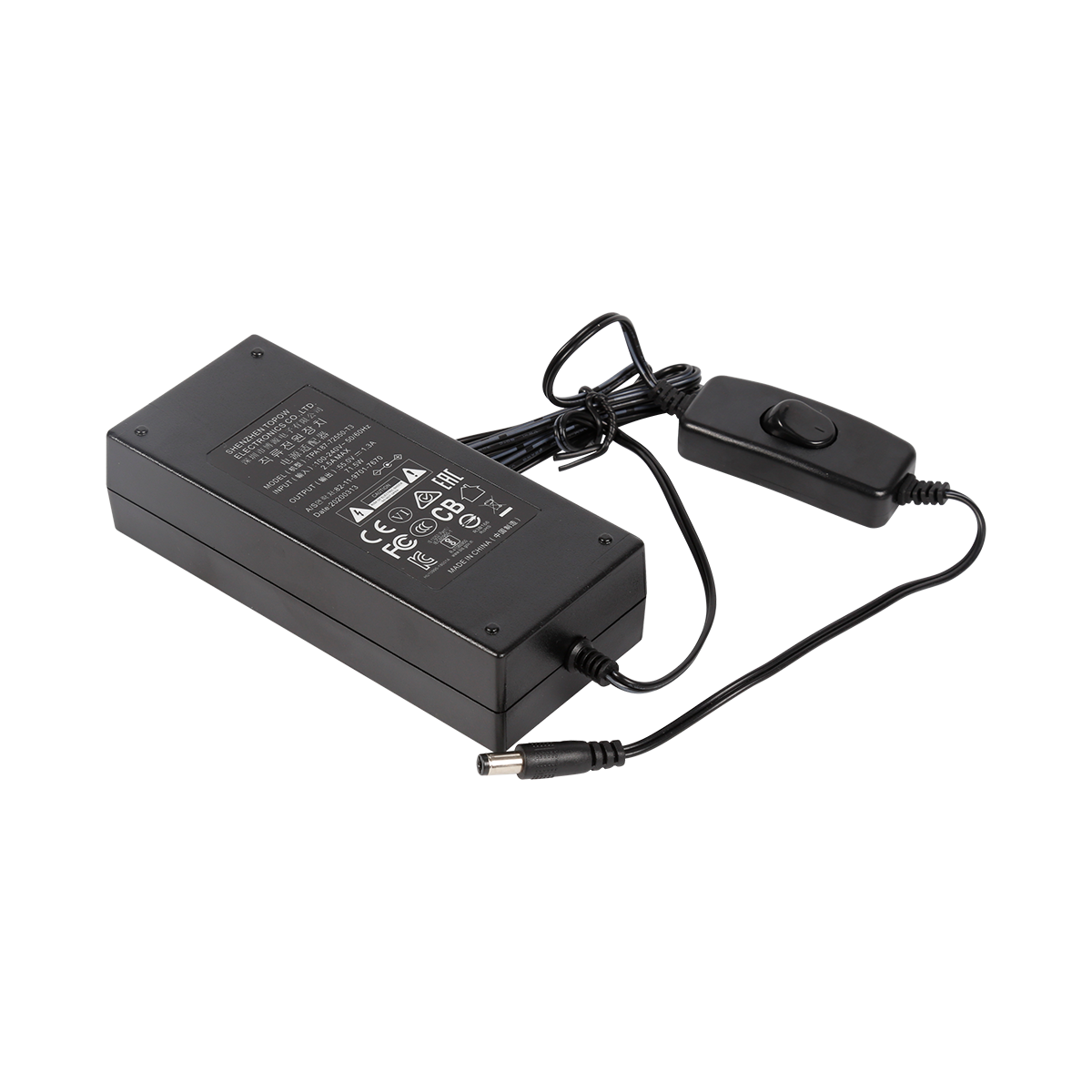

72W desktop

TPA187-72550-T3


Appearance color: black

Pin type: Desktop type, 3PIN seat

Output power: 72W

Input voltage: 90~264V

Input frequency: 47~63Hz

Output voltage: 55V

Output voltage accuracy: 5%

Output current: 1.3A

Mean time between failures: at least 300,000 hours

Protection: over current / over voltage / short circuit

Efficiency: 89%

Inrush current: cold start 60A/220VAC

Working temperature: -0~+40°C

Safety certification: CCC, CB, CE, BIS, BSMI

Packing: 0.28kg/50pcs/12kg

Warranty period: 2 years


Product Detail

General

The specification defines the performance characteristics of a 72 W, SINGLE Output level switching power supply for  IT   . The power supply has designed highly reliable and meet international safety and EMC requirements.


1.0 Input Characteristics

1.1 Input voltage range and frequency


Nominal Voltages

Voltage Variation Range

Nominal Frequency

Frequency Variation Range

100-240VAC

90-264VAC

50-60Hz

47-63Hz


Rated voltage: 100-240VAC

Voltage variation range: 90-264VAC

Rated frequency: 50-60Hz

Frequency change range: 47-63Hz

1.2Input Current

2.5A max

 At AC low line input and DC output full load

At low line AC and full load, the maximum input current is 2.5A

1.3Input protection

5A Fuse

 The power supply shall be protected against power line surges and any abnormal condition.

When the AC input voltage has surges and abnormal conditions, the 5A fuse will protect the power supply

1.4Input surge current

60A max

 At power supply cold start, ambient temperature 25℃240Vac



At 25°C ambient temperature, when the input is 240Vac cold state, the maximum inrush current is 60A

1.5Efficiency

1.5.1 79% min.At nominal input voltage,10%load and measured at end of DC cable

In the case of rated input voltage and 10% load, the efficiency of the DC line end is 79% minimum

1.5.2 Active mode efficiency:

More than 89 %min of average efficiency of 25%,50%,75% and 100% load tested at115Vac and 230Vac.(Warm up after 30 minutes)

  At 115Vac/230Vac input, the average efficiency at 25%, 50%, 75%, and 100% load conditions is at least 89%

Meet EUP2016

1.6No Load Power consumption

0.15Wrms max

 At 230Vac inputoutput no load

In the case of 230Vac input and output no-load, the maximum no-load loss is 0.15W

Meet EUP2016


2.0 Output Characteristics

2.1Turn on delay


3Smax

 At AC nominal inpuoutput full load


Turn on time shall be <3S, the delay time is between AC being applied to output being within regulation

The start-up time from AC input to output reaching voltage regulation is less than 3 seconds

2.2Hold up time

8ms min

 At AC nominal input@ output full load


(1 half cycle)

In the case of rated input and output full load, the minimum holding time is 8mS

2.3DC output regulation

Voltage(V)

Loading(A)

ToleranceRange

Total Regulation

Adjustable voltage

Range(V)


Min

Max




+55

0

1.3

±5%

None

52.25~57.75

*Total regulation involved line regulation load regulation cross regulation---etc.

*The total adjustment rate relates to the cross adjustment rate of linearity and load

*Line regulation is measured from 90Vac to 264vac

*The test condition of linear adjustment rate is 90Vac to 264Vac

*Load regulation is measured all output from min load to max load at 115vac

or 230vac nominal AC input voltage

*The test condition of load regulation is the change from the minimum load to the maximum load under the input of 115Vac/230Vac.

2.4Ripple/noise

Voltage(V)

Ripple/Noise(pk-pk)(mV)

+55.0

600

The ripple is measured from peak to peak with band width limit of 20MHZ

The ripple is obtained by measuring the peak-to-peak value using an oscilloscope bandwidth of 20MHz

(By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic diskcapacitor under DC output full Load, AC nominal input 25℃ambient temperature).

(Test conditions: at full DC output, rated AC input, and an ambient temperature of 25°C, a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor are connected in parallel at the output end)

3.0 Protection

3.1 Output over current protection

The output shall hiccup when the over current applied to the output, and shall be self-recovery when the fault condition is removed.

When the overcurrent occurs, the output will enter the hiccup mode. When the overcurrent condition is removed, the product will automatically return to normal.

Voltage(V)

OCP Current(A)

Power in(W)

OCP method




latch off

current limit

hiccup

+55.0

1.5-2.0

X



3.2 Output over voltage protection

Voltage(V)

OVP range

OVP Method



Latch off

Auto recovery

Voltage limit

+55

X




3.3 Output Short protection

The input power shall decrease when the output is short to GND, the power supply shall not damage, and shall be self-recovery when the fault condition is removed

When the output is short-circuited to ground, the input power of the product is reduced and will not be damaged. When the short-circuit condition is removed, the product will automatically return to normal

3.4 Input over voltage protection

Voltage(V)

OVP Method


Latch off

Auto recovery

Voltage limit

×




Remarks: When the input overvoltage state is released, the product returns to normal operation.

4.0 Leakage current:

Leakage current0.75mA max@240VAC

When the input voltage is 240Vac, the maximum leakage current is 0.75mA

5.0 Safety Approval:

5.1. Authentication type:

CB FCC CSA(CUL&FCC) CCC CE PSE Other

5.2. Product type:

AV IT

6.0 HI-POT

HI-POT---A IEC 320 3pin primary to secondary (FG) 1500Vac 5mA 3S

When 3Pin input, primary to secondary, 1500VAC/5mA/3S.

HI-POT---B IEC 320 2pin primary to secondary 3000Vac 10mA 60S

When 2Pin input, primary to secondary, 3000Vac/10mA/60S.


7.0 EMC Requirements

Test condition: Vin: 220V/50Hz, 110V/60Hz (fit AC range).

Test condition: input 220V 50HZ 110V/60HZ (normal voltage range)

Load:: full load Ambient: temperature 25 ℃ humidity: 55 %RH

Load: full load Ambient temperature: 25 ℃ Humidity: 55 %RH

7.1 Radiation emissions test

Test criteria: FCC PART15, class B. EN55022, class B

7.2 Conducted emissions test

Test criteria: FCC PART15, class B. EN55022, class B

7.3 surge Test

Test criteria: Differential mode 4KV/Common mode 4KV

7.4 EFT test

Test criteria: IEC61000-4-4, Level 3

7.5 ESD test

EN 55024:1998 + A1:2002 +A2:2203, EN 61000-4-2:2001

Contact Discharge: ±6kV Air Discharge: ±8Kv


8.0 Environment

8.1 Operating Ambient Temperature: +0℃ to +40℃

    Operating environment temperature: +0℃ to +40℃.

8.2 Operating Ambient Relative Humidity: 5% to 85%.

    Relative humidity of use environment: 5% to 85%.

8.3 Operating Ambient Altitude 0-5000 meter

    Use environment altitude: 0-5000 meters.

8.4 Storage Ambient Temperature-40℃ to +70℃

    Storage temperature:-40℃ to +70℃.

8.5 Storage Ambient Relative Humidity 5% to 95%

Relative humidity of storage environment: 5% to 95%.


9.0Vibration

Vibration Test Requirement

Non-operating, with packing) Reference to IEC publ. 68-2-6

(Experiment without working in the package, refer to IEC publ.68-2-6 standard for details)

Test conditions

Acceptance Criteria

Frequency

1055Hz

Nominal functional test should be satisfied after the test


Sweep

2hours, For each axis(X,Y,Z)


Displacement

0.35 mm(1055Hz)


Periodicity

5


10.0 M.T.B.F

The MTBF should not be less than 50000 hours.

11.0 Label specification:As Attachment

12.0 Mechanical:As Attachment

13.0 Appearance:  As Attachment

14.0 Package:As Attachment
