30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board

TPT30S54A


Product model: TPT30S54A

Input voltage range: 100~240Vac

Output power: 30W

Output Voltage: 54V

Output Current: 0.5A

Working temperature: -10~+50℃

Size: 135mm*58mm*34mm

Single output efficiency>82%

Output protection: OCP/OSP/OLP

RoHS compliant

IEC 60950/62368

EMI Class B

Leakage current is less than 3.5mA


Product Detail

1. Electrical performance indicators

1.1 FUNCTION CHARACTERISTICS OVERVIEW

1.1.1 Compatible with the IEEE802.3at standard (the signal of the Ethernet port still meets IEEE802.3ab after connecting to the injector);

1.1.2 Data transmission rate: 100/1000 Mbps adaptive;

1.1.3 RJ45 two pairs of network cable output, the maximum power can reach 30W

1.1.4 It can be expanded to support the latest level 5 and secondary event classification for detection and classification of high-power PDs.

1.2 INPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.2.1 Input voltage range: 90Vac to 264Vac

1.2.2 Nominal input Normal voltage range: 100Vac-240Vac frequency 60Hz/50Hz

1.2.3 Full load input current Max input ac current: 0.8Amax at full load condition

1.2.4 Inrush current: MAX80A (Cold start), 230Vac input

1.2.5 Efficiency: 82% at 230Vac, full load condition;

1.2.6 Leakage Current: Less Than 3.5mA,230Vac input

1.2.7 Input Fuse: T3.15A/250Vac

1.3 OUTPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.3.1 Output voltage range

Output Voltage

Min value

Normal value

Max value

Requirements

Vout

52V

54V

56V

Vin=100Vac240Vac

Io=0.55A

1.3.2 OUTPUT CURRENT RANGE

Output Current

Min value

Normal value

Max value

Requirements

Iout

0A

/

0.55A

Vin=100Vac240Vac

1.3.3 LINE REGULATION

Line Regulation

Min value

Normal value

Max value

Requirements

Vout: 54V

/

±3%

/

Vin=100Vac240Vac Io=0.55A

1.3.4 LOAD REGULATION

Load Regulation

Min value

Normal value

Max value

Requirements

Vout: 54V

/

±3%

/

Vin=100Vac~240Vac Io=0.55A

1.3.5 OUTPUT VOLTAGE TOLERANCE

Output voltage tolerance

Min value

Normal value

Max value

Requirements

Vout: 54V

/

/

±3%

Vin=100Vac~240Vac Io=0.55A

1.3.6 OUTPUT RIPPLE & NOISE

Output Voltage

Ripple & Noise (Max.)

Vout: 54V

300mVp-p@25

Note: 1) Measurements shall be made with an oscilloscope with 20MHz bandwidth.

2) Outputs shall be bypassed at the connector with a 0.1Uf ceramic capacitor and a 10Uf electrolytic capacitor to simulate system loading.

1.3.7 Output dynamic response

Voltage regulation

Slew Rate

Test Condition: Load Changing Scope

54V ±3%;

0.2A/us

25% to 50% load and 50% to 75% load

1.3.8 OUTPUT OVERSHOOT

Output Overshoot

Min value

Normal value

Max value

Requirements

Vout: 54V

/

/

±3%

Iout=0A-0.55A

1.3.9 TURN ON TIME

Turn on time

Min value

Normal value

Max value

Requirements

Vout: 54V

/

3S

/

Vin=230Vac

Io=0.55A

1.3.10 OUTPUT HOLD TIME

Output Hold Time

Min value

Normal value

Max value

Requirements

Vout: 54V

/

10mS

/

Vin=100Vac  Io=0.55A

1.3.11 OUTPUT RISE TIME

output Rise time

Min value

Normal value

Max value

Requirements

Vout: 54V

/

30mS

/

Vo=10%-90% Io=0.55A

1.4 Protection function:

1.4.1 OUTPUT OVER CURRENT PROTECTION

Output over current Protection

Requirements

Vout: 54V

Hiccup  Auto-recovery mode

1.4.2 OUTPUT SHORT CIRCUIT PROTECTION.

Output Short Circuit Protection

Comments


Hiccup  Auto-recovery mode

2. Insulation performance

2.1 ISOLATION RESISTANCE

Requirements

Parameter value

Note

500VDC/25/70%RH

100MΩ

I/P-O/P

2.2 ISOLATION WITHSTANDING VOLTAGE

Parameter name

Parameter value

Note

Input To Output

3000Vac/10mA/3S

No breakdown or flashover phenomenon

3. Safety requirements:

 Design in accordance with UL60950 and EN60950 the requirements of the standard.

4. Electromagnetic compatibility EMC

4.1 Electromagnetic Interference EMI

The power supply shall comply with the following Criterion:

1) Conduction Emission: EN55022, CLASS B

2) Radiated Emission: EN55022, CLASS B

3) Harmonics: *GB17625.1/ IEC/EN61000-3-2

4) Voltage flicker Flicker & Fluctuation: *GB17625.2/ IEC/EN 61000-3-3

 4.2 Electromagnetic immunity EMS

The power supply shall comply with the following Criterion:

1) Electrostatic immunity ESD: *GB17626.2-1998/IEC61000-4-2/ EN 61000-4-2

2) Burst anti-interference EFT: *GB17626.4-1998/IEC61000-4-4 3KV /EN 61000-4-4,

3) Lightning surge: *GB17626.5-1998/IEC61000-4-5 /EN 61000-4-5

 4) Voltage drop: *EN 61000-4-11, IEC 1000-4-11:2001.

 5) Radiation immunity RS: *GB17626.3-1998/IEC61000-4-3/ EN 61000-4-3

 6) Conducted immunity CS: *GB17626.6-1998/IEC61000-4-6 /EN61000-4-6

 7) Power frequency magnetic field immunity PMS: *GB17626.8-1998/IEC61000-4-8 /EN61000-4-8

5. Working environment

5.1 Products (E-CAP) life calculation MTBF

Lx=Lo*2^((To-Tx)/10) @ 40℃ 3 Year (Over 27000 hours)

5.2 Ambient temperature

5.2.1 Operating temperature: -10℃ to +40℃.

5.2.2 Storage temperature: -20℃ to +70℃.

5.3 Ambient humidity

5.3.1 Operating: From 10%to90% relative humidity (non-condensing).

5.3.2 Store: From 5 to 95% relative humidity (non-condensing).

5.4 Altitude

5.4.1 Operating: to10,000 ft.

5.4.2 Store: to 20,000ft.

5.5 Cooling method: natural cooling

5.6 Vibration test

10-55Hz, 49.0m/s²(5G), 3minutes period, 60minutes each along X, Y and Z axis.

5.7 Impact test

196.1m/s²(20G),11ms, once each X, Y and Z axis.

6. Connector pin definition

Serial number


symbol

Pin meaning

1

AC

φ3 Green light

AC input indication

2

PORT

φ3 Green light

Power output indication

3

DATA IN

Standard Ethernet interface: data input


4

DATA&POWER OUT

Standard Ethernet interface: data/power output

3/6(-),1/2(+)

5

Power socket

3C certification


7. Diagram

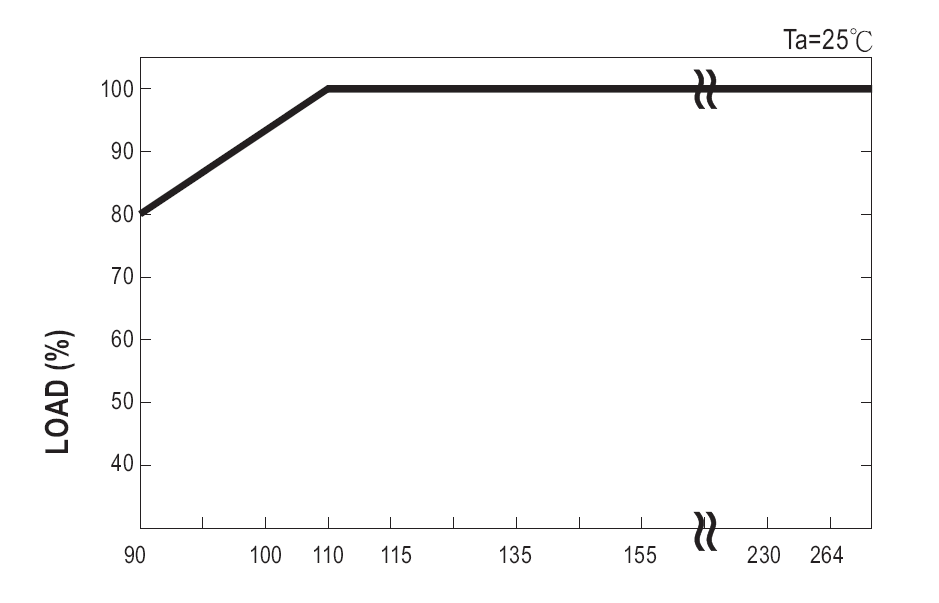

7.1 Drop curve chat
30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board (图1)

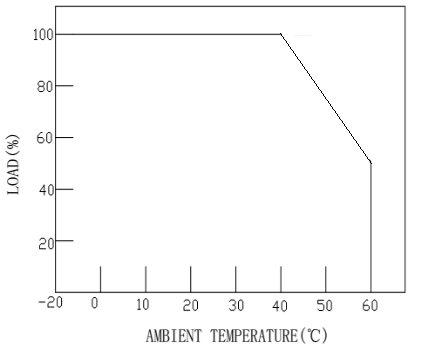

7.2 Temperature graph
30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board (图2)

8. Weight: 215±15g

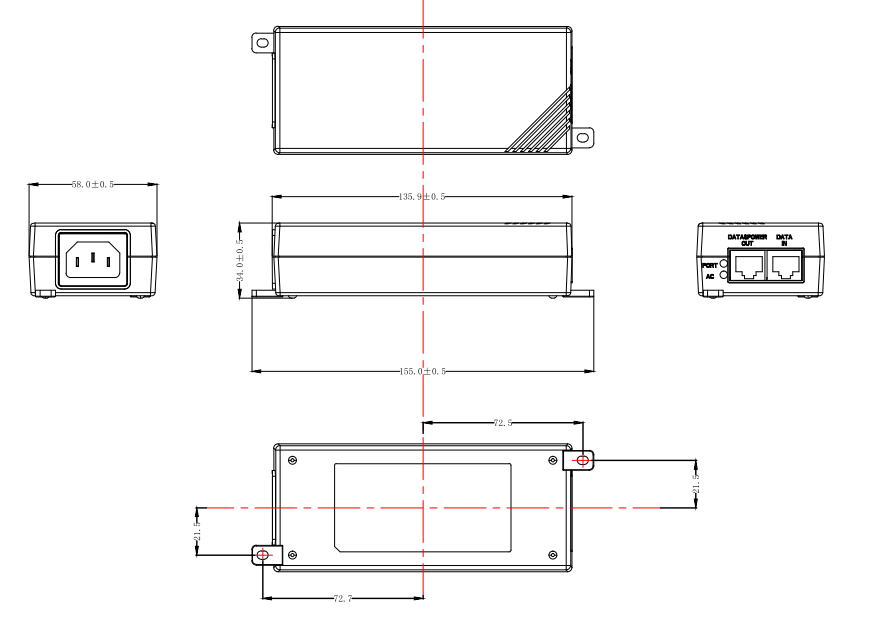

9. Chart(Unit: mm)

30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board (图3)

Note:

Size: 135mm X 58mm X 34.8mm (length L * width W * height H).

Tolerance: ±1.0mm

Material: PC

Fire rating: 94V-0

10.Layout

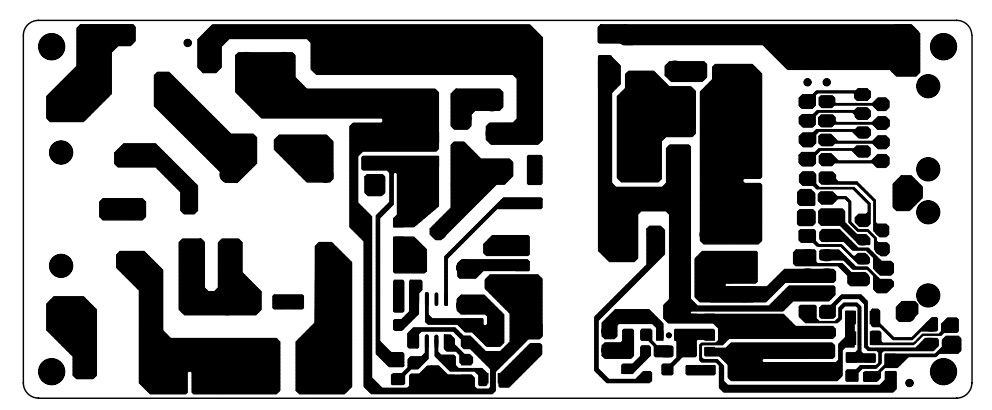

11.1 Bottom Overlayer

30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board (图4)

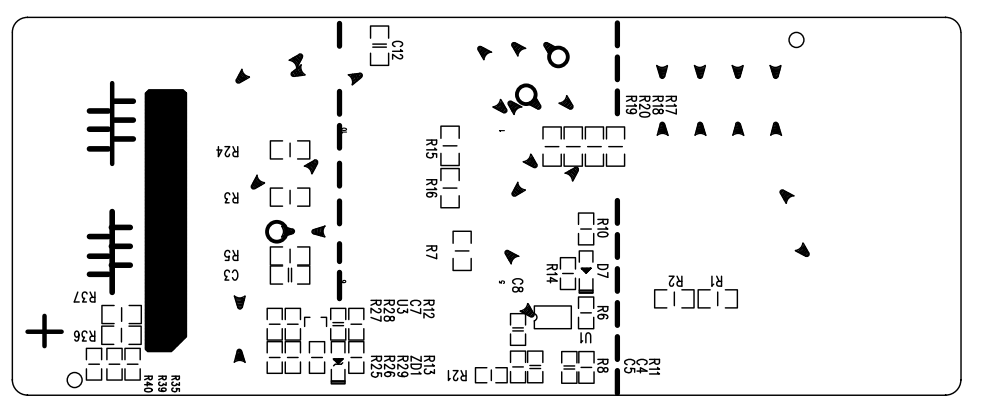

11.2 Top Overlayer
30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board (图5)

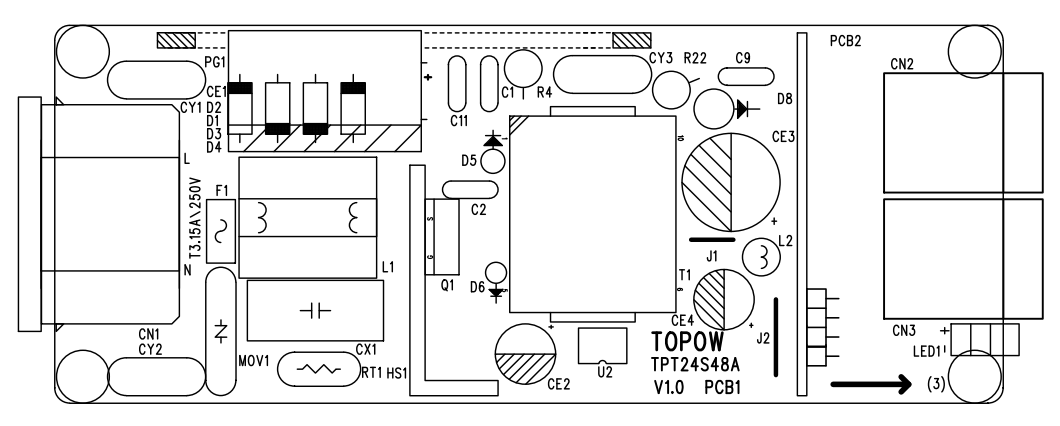

11.3 PCB diagram
30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board (图6)
11. The physical picture of the whole machine

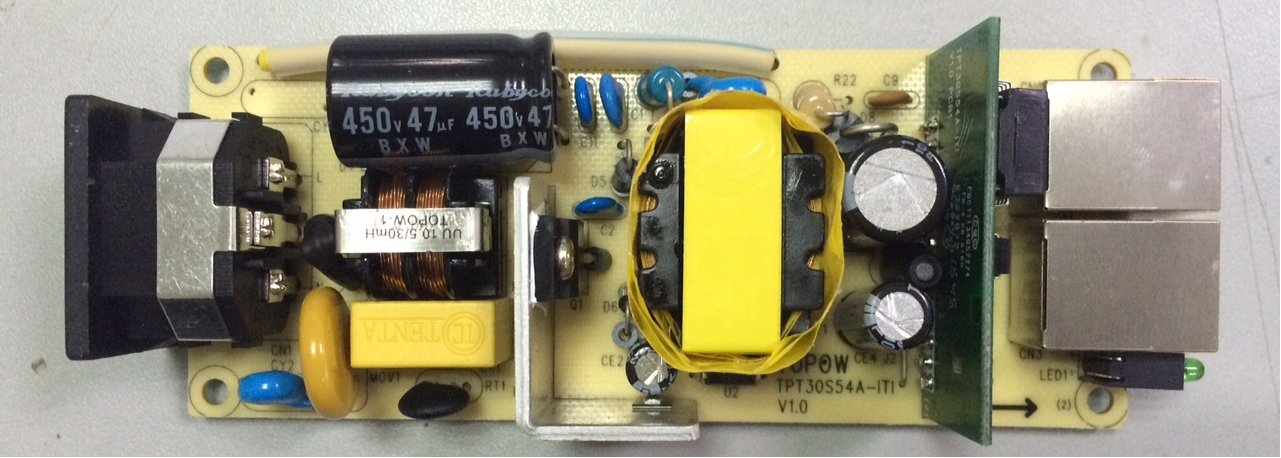

Internal assembly drawing:
30W 54V 0.5A Single Output Metal Pcb Bare Board High Voltage Smps 54V Switching Power Supply Board (图7)
Picture of the whole machine:
