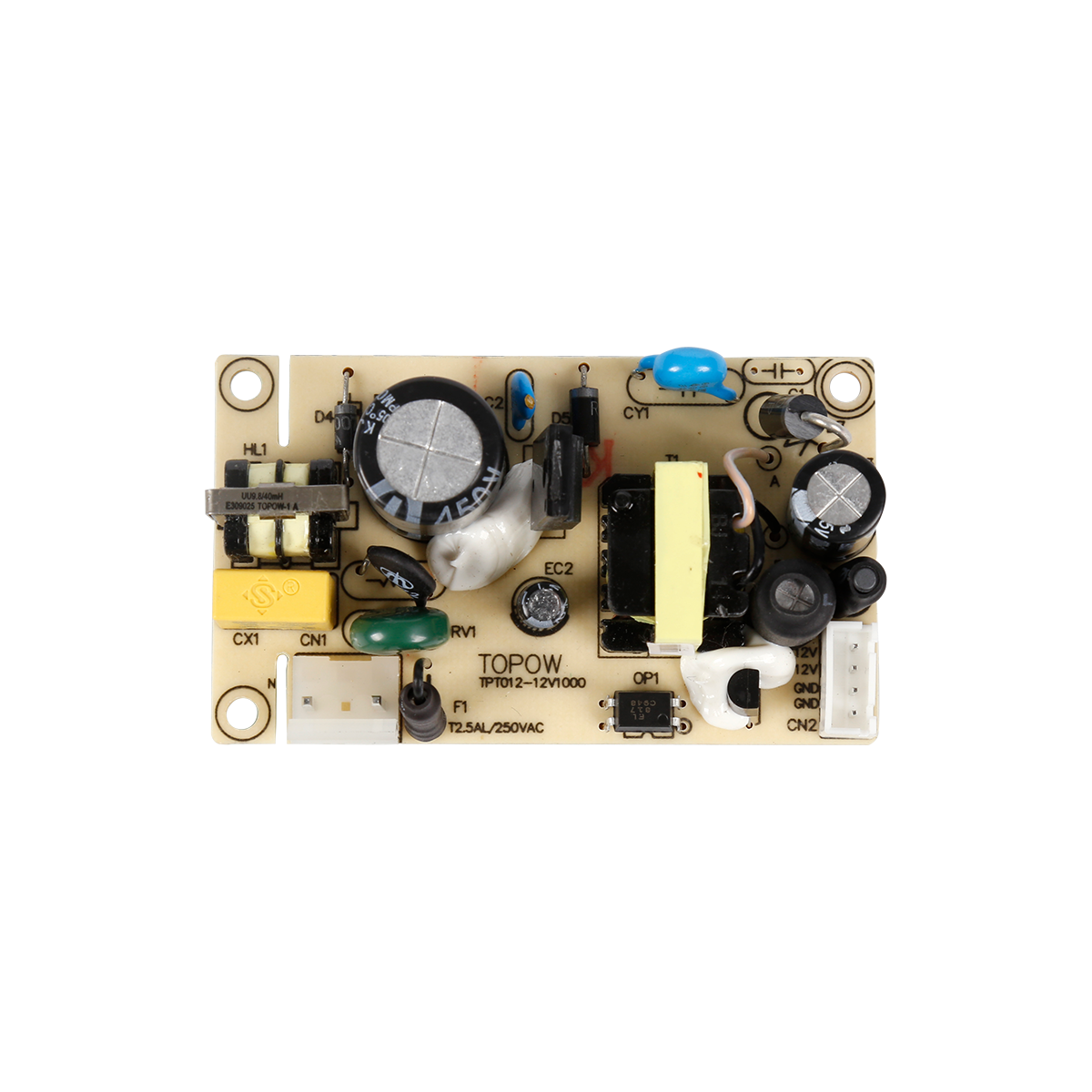

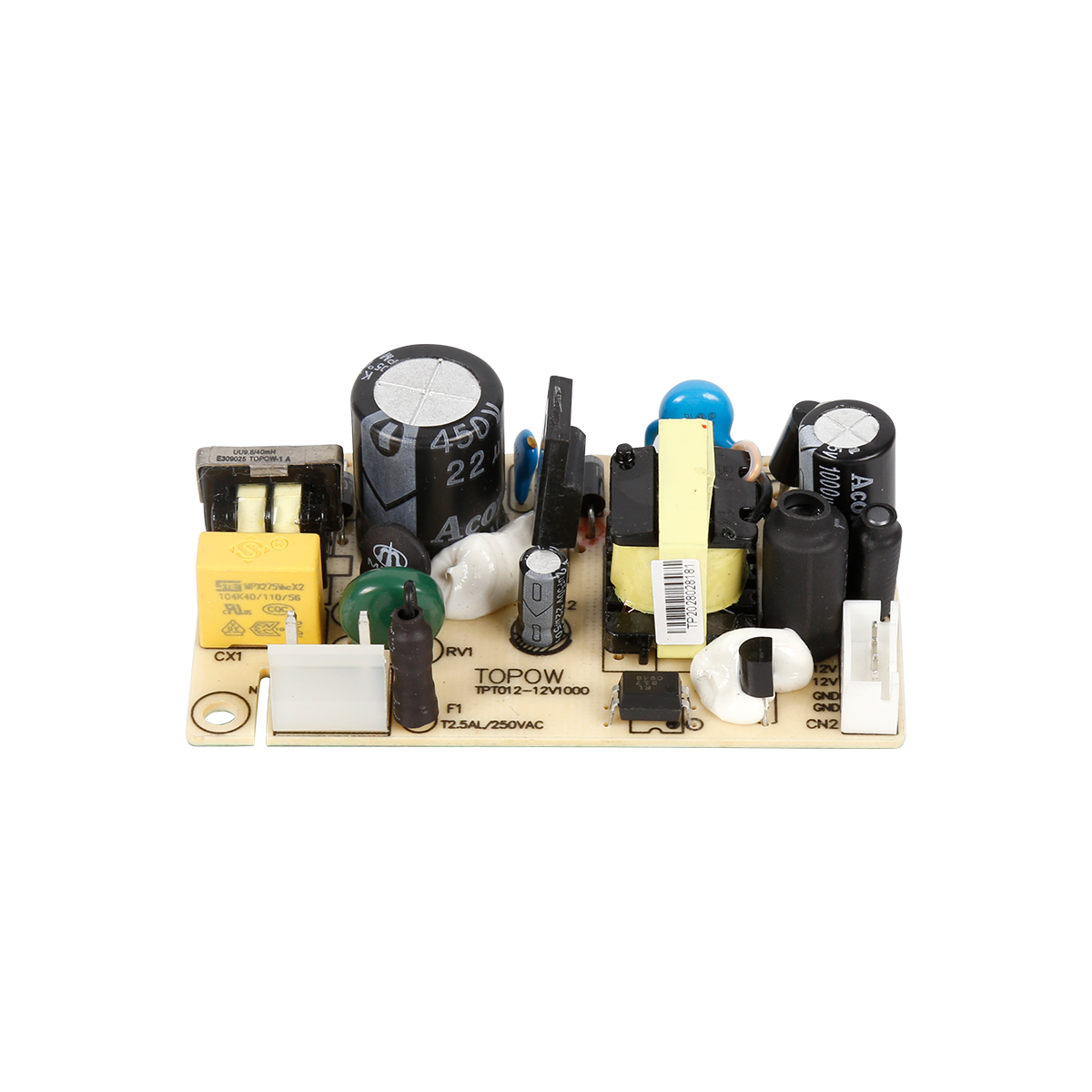

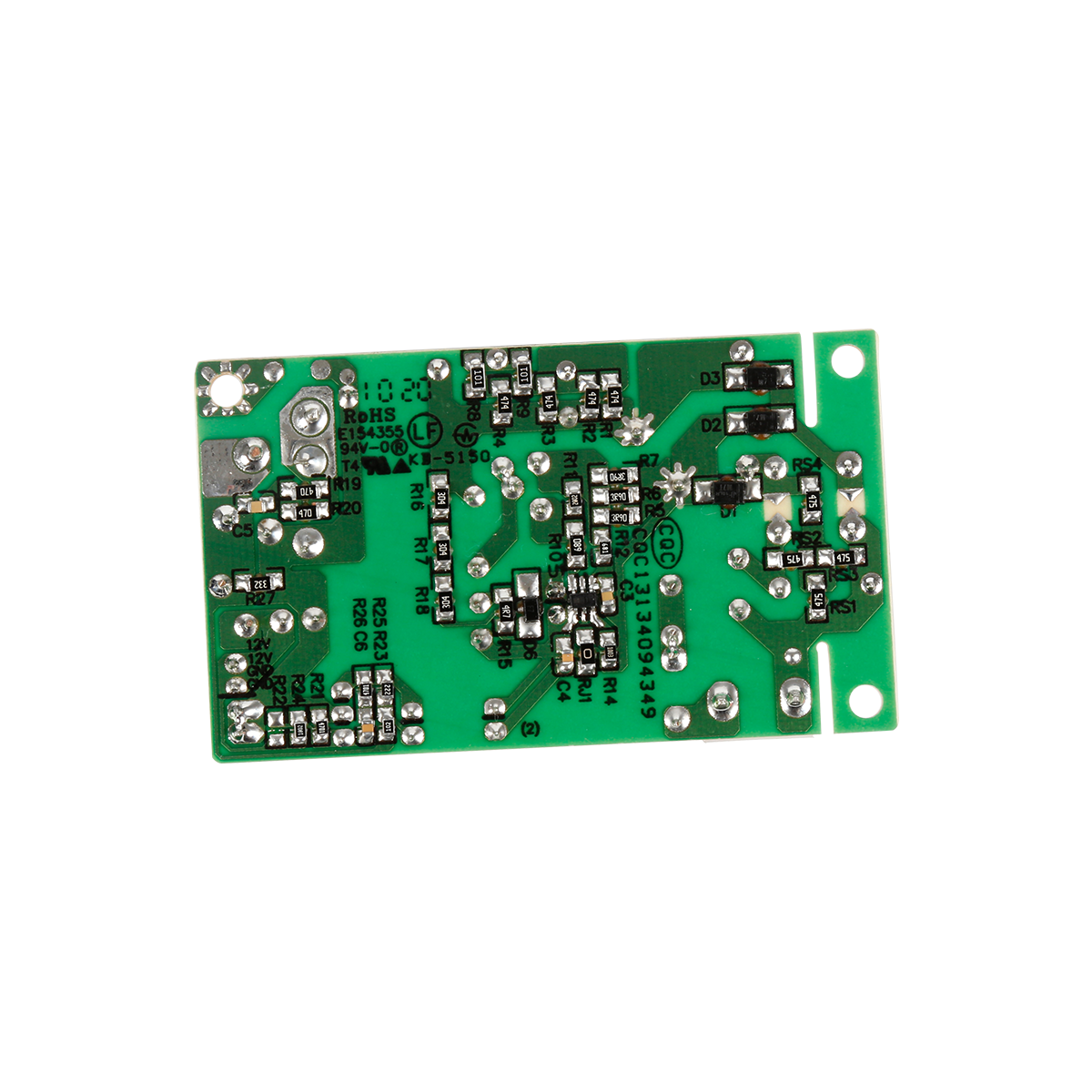

1. Power Supply Overview:

1.1 Table 1 Input Electrical Characteristics Overview

1.1.1 Input voltage range: 90Vac to 264Vac

1.1.2 Normal voltage range :100Vac to 240Vac

1.1.3 Frequency range: 50Hz/60Hz ±5%

1.1.4 Max input ac current: 1.0Amax at full load condition

1.1.5 Inrush current: 15Atyp peak@120Vac; 30Atyp peak@220Vac

1.1.6 Efficiency: 75%min at 100Vac-240Vac;

1.1.7 Leakage Current: Less Than 0.5mA, 230Vac input

1.1.8 Standby Power Loss ≦ 0.5W, 230Vac input(no load)

1.1.9 Input Fuse: T2AL/250Vac

1.2 Output Electrical Characteristics Overview

1.2.1 Table 1 Output Voltage ,Current & Regulation.

1.2.2 Table 2 DC Output Ripple & Noise.

Note: 1) The oscilloscope must be set to a bandwidth of 20 MHz

2) A ceramic capacitor of 0.1 uF and an electrolytic capacitor of 10 uF are connected in parallel at the output power terminal which is more than 10CM away from the power board to simulate the load test.

1.2.3 Output Transient Response.

Table 3. Test condition.

Note: Dynamic response measurements shall be set with a load changing repetition rate of 50Hz to 10kHz.

Note: All of DC output with the full load.

1.2.4 Table 4 DC Output Hold-Up Time.

1.2.5 Table 5 DC Output Overshoot At Turn On & Turn Off.

Note: All of DC output current from Min to Max.

1.2.6 Table 6 DC output voltage rise time

Note: The output voltage shall rise from10% to 90% of output voltage.

1.3  Protection:

1.3.1 Table 8 DC Output Short Circuit Protection.

2. Isolation

2.1 Isolation Resistance

2.2 Isolation Withstanding Voltage

3. Safety

The power supply shall comply with the following Criterion:

1) UL60950

 "Safety of Information Technology Equipment including Electrical Business Equipment,

Third Edition." Underwriters Laboratories, Inc., 2000

2) CSA C22.2 no. 950.(CUL):

"Safety of Information Technology Equipment including Electrical Business Equipment,

Third Edition.” Canadian Standards Association, 2000.3) GB4943-1995

3) TUV EN 60950:

"Safety of Information Technology Equipment including Electrical Business Equipment,"

European Standard, 2000.

4) IEC 60950 CB Report:

"Safety of Information Technology Equipment including Electrical Business Equipment,

International Standards, 1999

5) CE Mark:

EMC of European Standard 89/336/EEC, EN 55022-1998, EN55024-1998 and Low

voltage Device of IEC 60950-1999.

4. EMC (Electromagnetic Compatibility)

4.1 EMI (Electromagnetic Interference)

The power supply shall comply with the following Criterion:

1) Conduction Emission:

*EN55022, CLASS B

*GB9254, CLASS B

*FCC PART15 CLASS B

2) Radiated Emission:

*EN55022, CLASS B

*GB9254, CLASS B

*FCC PART15 CLASS B

4.2 EMS (Electromagnetic Immunity)

The power supply shall comply with the following Criterion:

1) ESD (electrostatic immunity)

*GB17626.2-1998/IEC61000-4-2/ EN 61000-4-2,

2) EFT (Pulse Group Anti-interference)

*GB17626.4-1998/IEC61000-4-4 3KV /EN 61000-4-4,

3) Surge

*GB17626.5-1998/IEC61000-4-5 /EN 61000-4-5,

4) Voltage Dips:

   *EN 61000-4-11, IEC 1000-4-11:2001.

5. Environmental Requirement

5.1 Temperature

* Operating: 0℃ to +50℃

* Store: -45℃ to +85℃

5.2 Humidity

* Operating: From 10%to90% relative humidity (non-condensing).

* Store: From 5 to 95% relative humidity (non-condensing).

5.3 Altitude

* Operating: to10,000 ft.

* Store: to 20,000ft.

5.4 Cooling Method

* Ventilation cooling.

5.5 Vibration Testing

* 10-55Hz, 49.0m/s²(5G), 3minutes period, 60minutes each along X, Y and Z axis.

5.6 Impact Testing

* 196.1m/s²(20G),11ms, once each X, Y and Z axis.

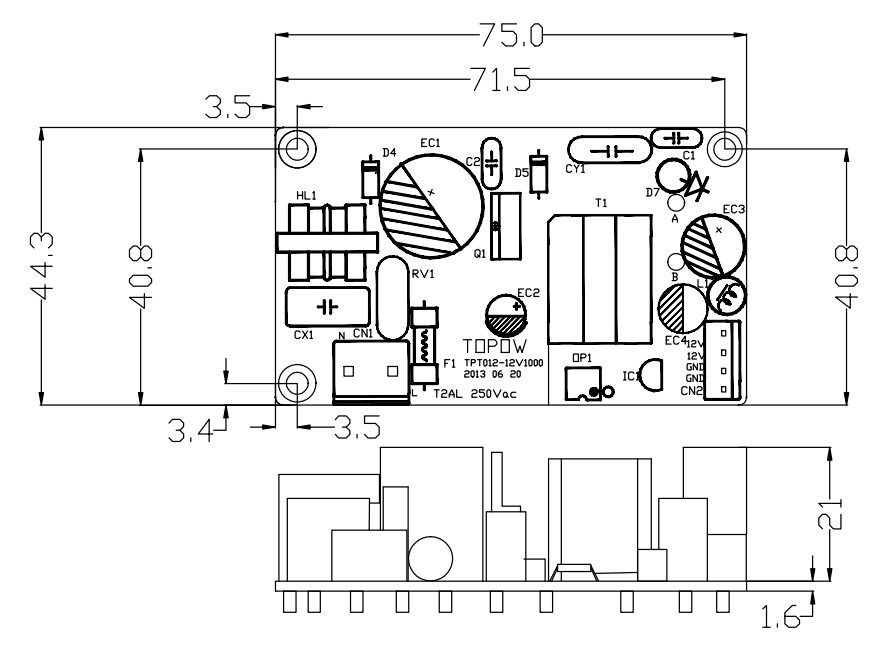

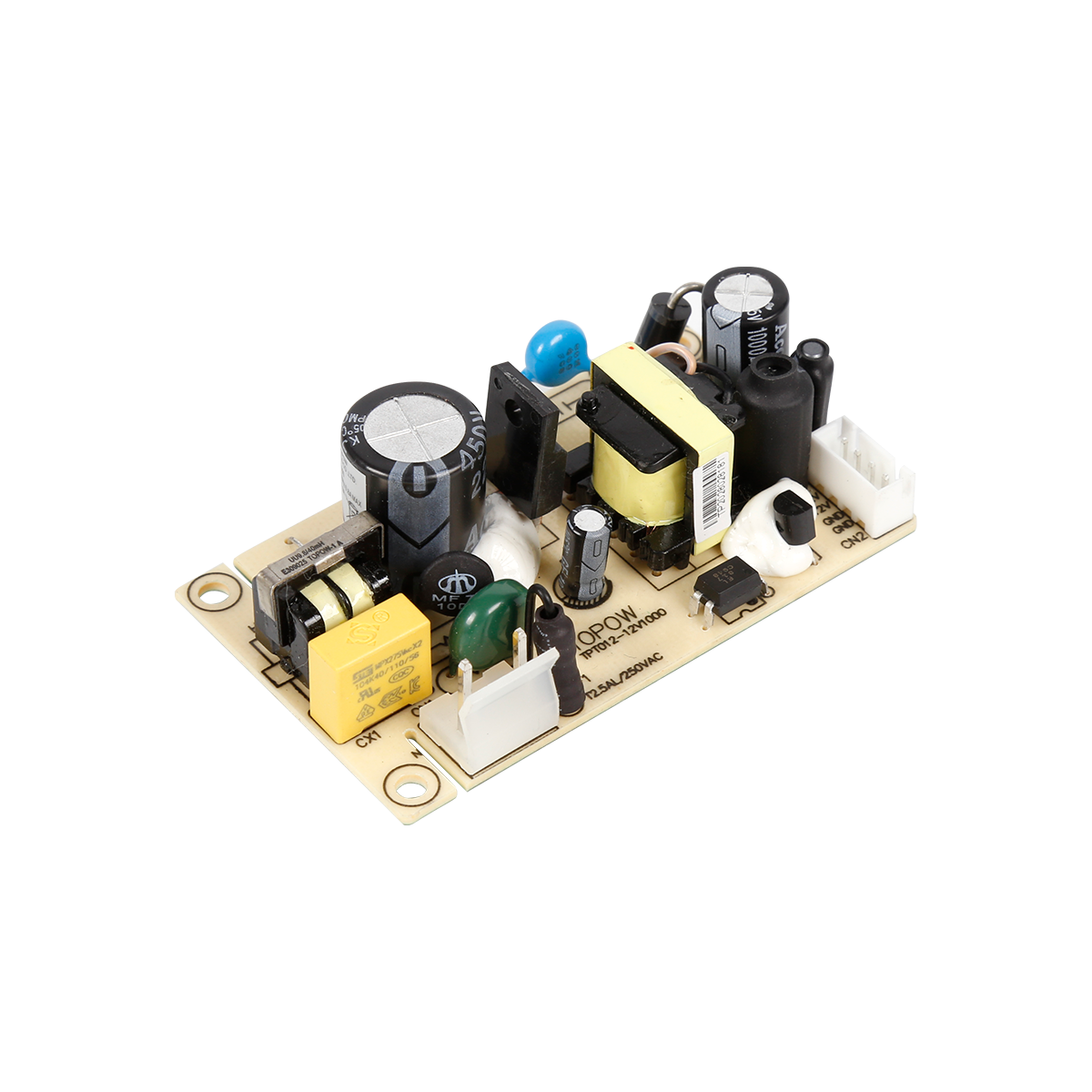

6. Dimension

* 75mm X 44.25mm X 23mm (length L * width W * height H).

7. Weight:

8. Pin Connection

Table 9 Pin-CN1 AC.Connection And Function TYPE: Vertical 3.96.0MM*3PIN hollow

Table10 Pin-CN2 Connection And Function TYPE: 2.5MM*4PIN

9. Power Supply Mounting

10. Packing
