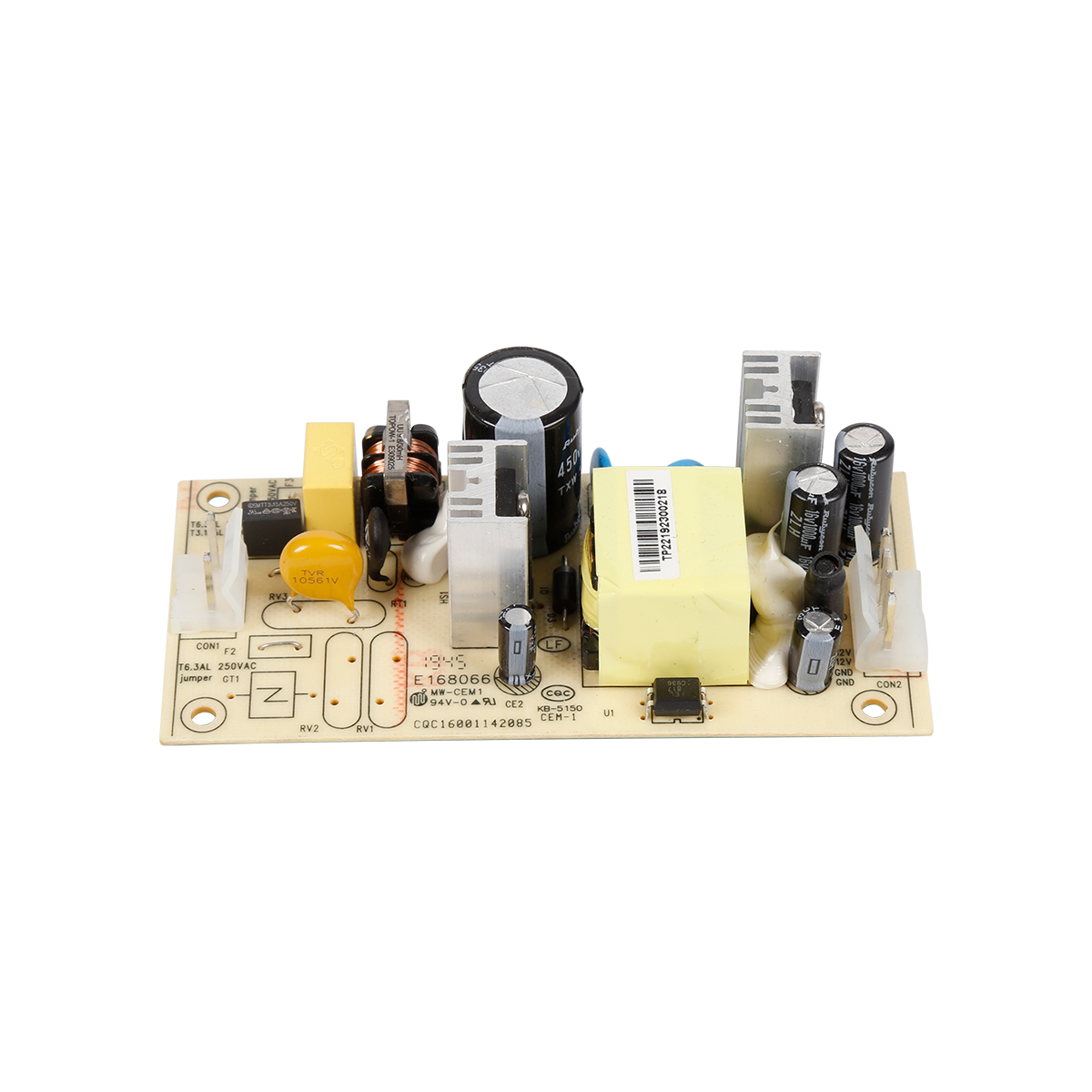

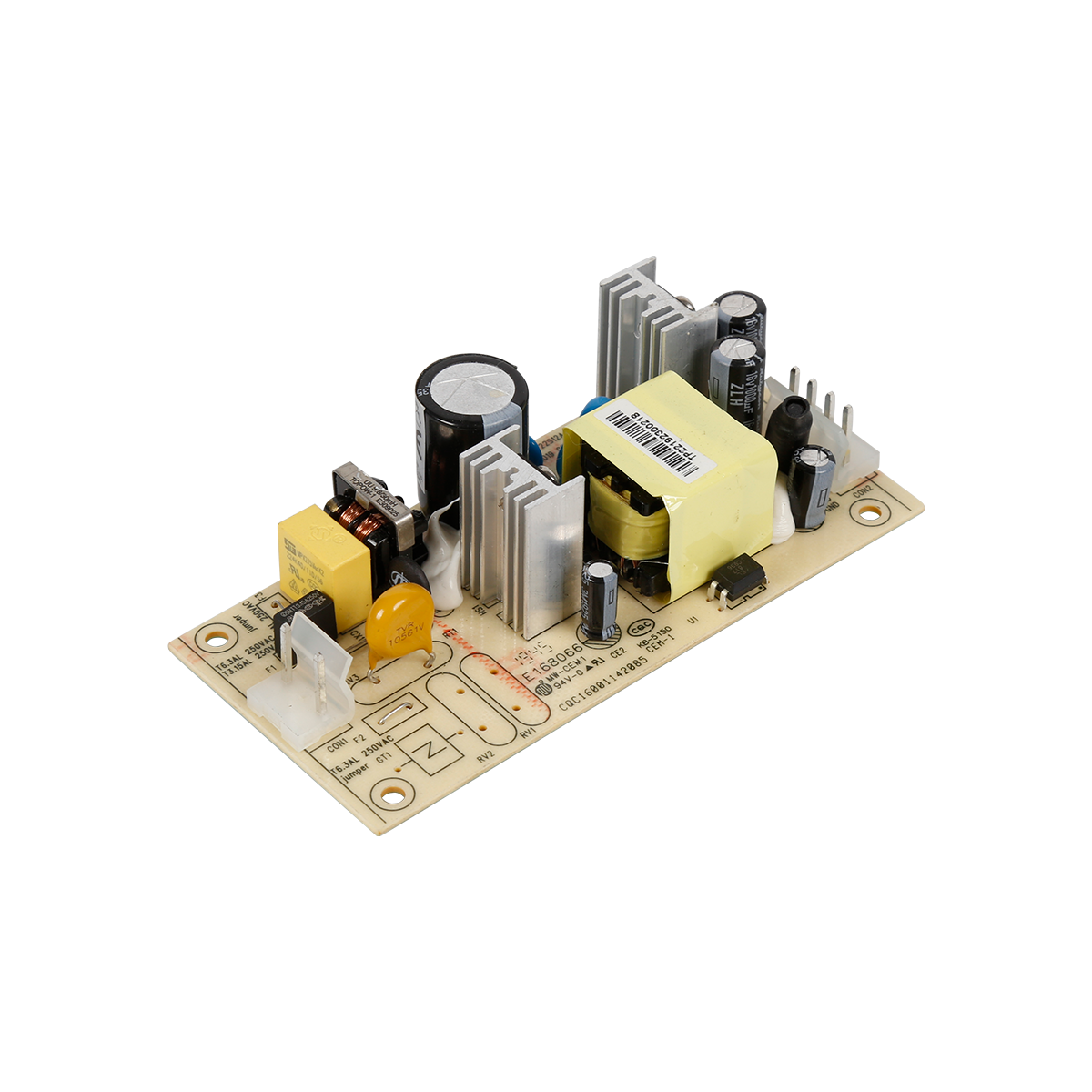

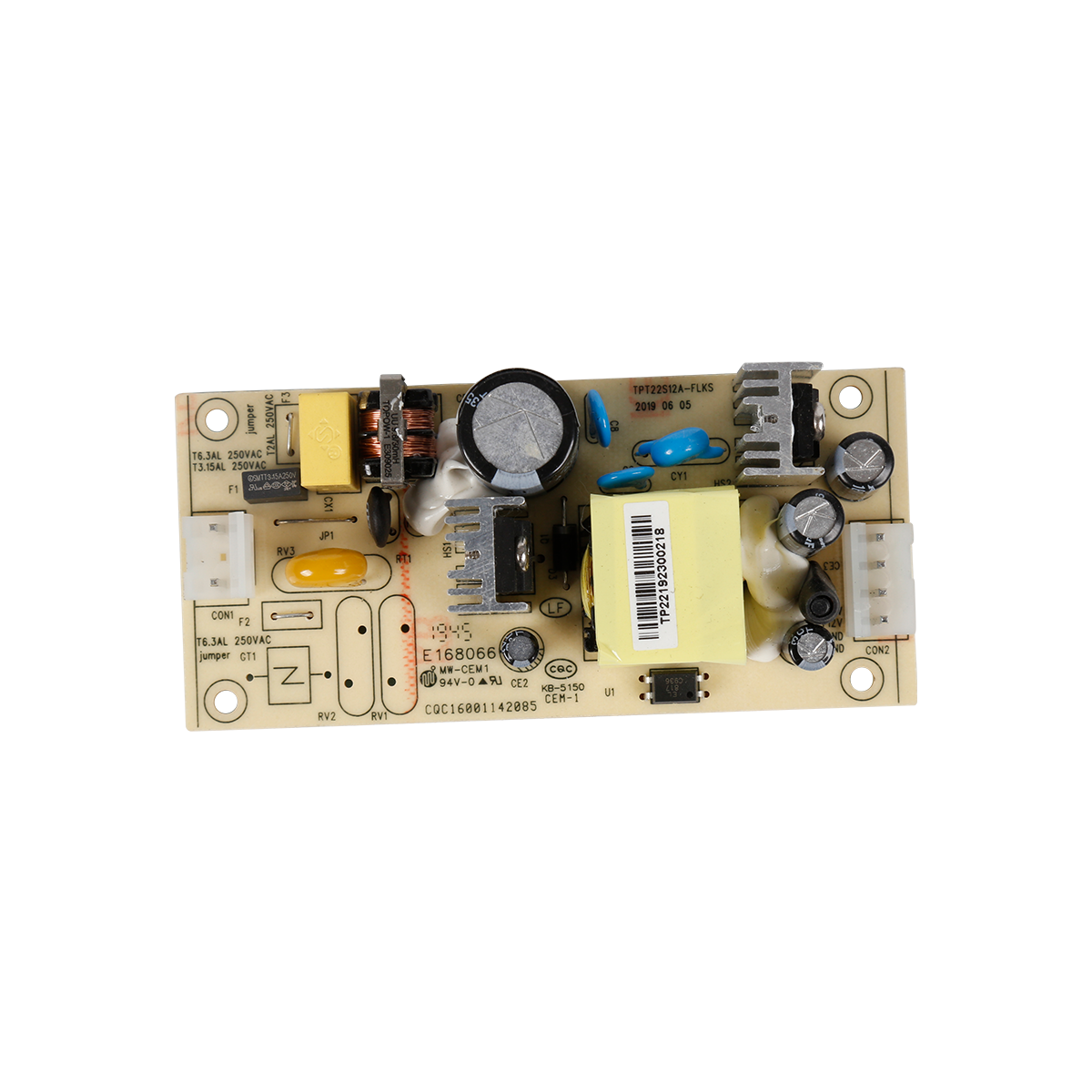

Precision 12V1.8A Switching Power Supply Module bare board 12v22w Switching power supply board

Adapter: 3~10W Wall-Mounted (Level VI) 12W Wall-Mounted (Level VI) 18W Wall-Mounted (Level VI) 24W Wall-Mounted (Level VI) 30-36W Wall-Mounted (Level VI) Desktop (Level VI)

Accumulator: S Series S450 Energy Storage Mobile Power Supply S Series S900 Energy Storage Mobile Power Supply S Series S1000 Energy Storage Mobile Power Supply

TPQ106-030C1-CH 30W PD charger with type C port

S series S1000 energy storage mobile power supply

S series S900 energy storage mobile power supply

Structure Type: Bare Board

Output Power: 22W

Input Voltage: 90~264VAC

Input Frequency: 47~63Hz

Output Voltage: 12V

Output Voltage Accuracy: 0.05

Output Current: 1.8A

MTBF: At least 100,000 hours

Protection: OCP, SCP

Efficiency: >85%

Inrush Current: Cold start 230VAC/80A (MAX)

Working Temperature: -10~+40°C

Warranty Period: 2 Years
