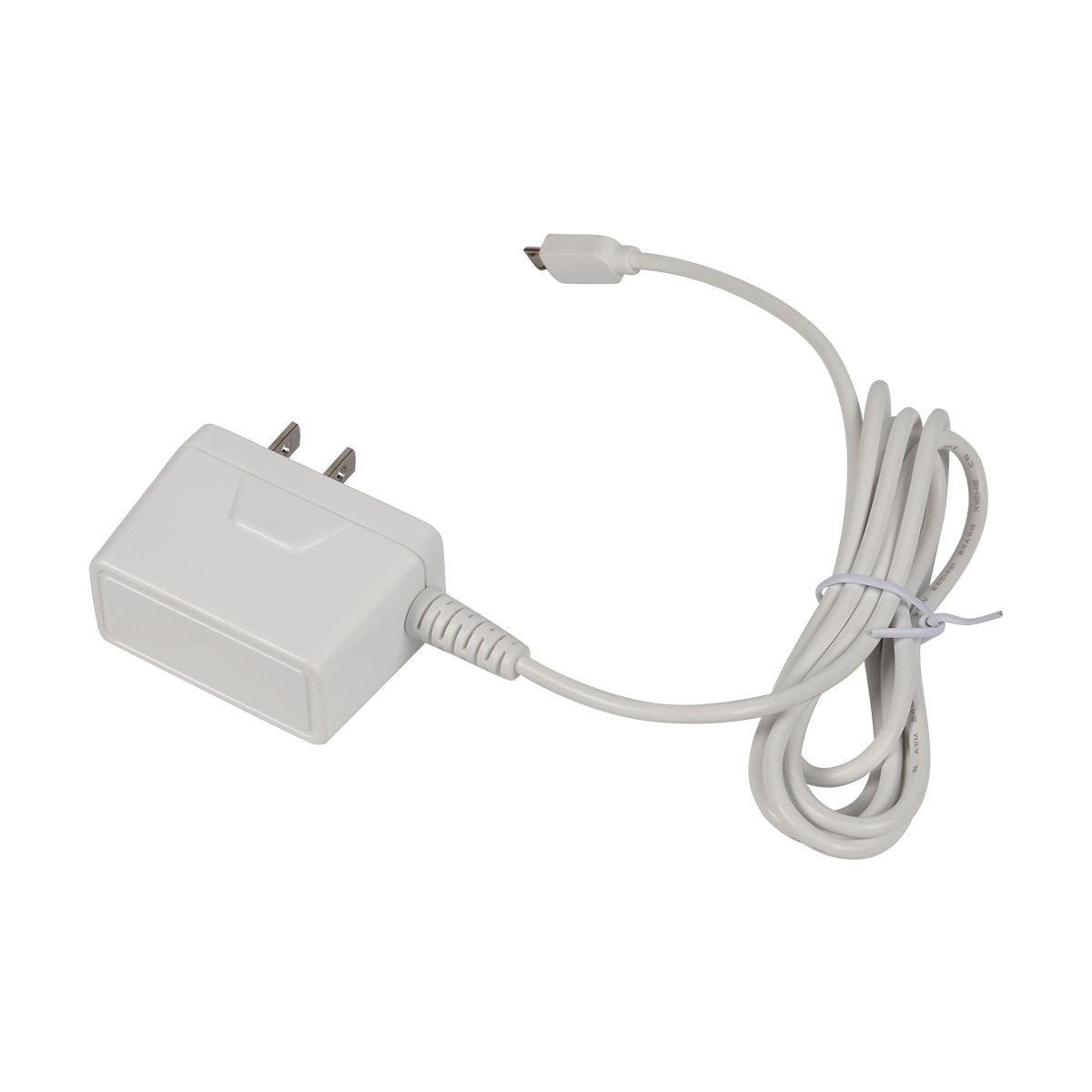

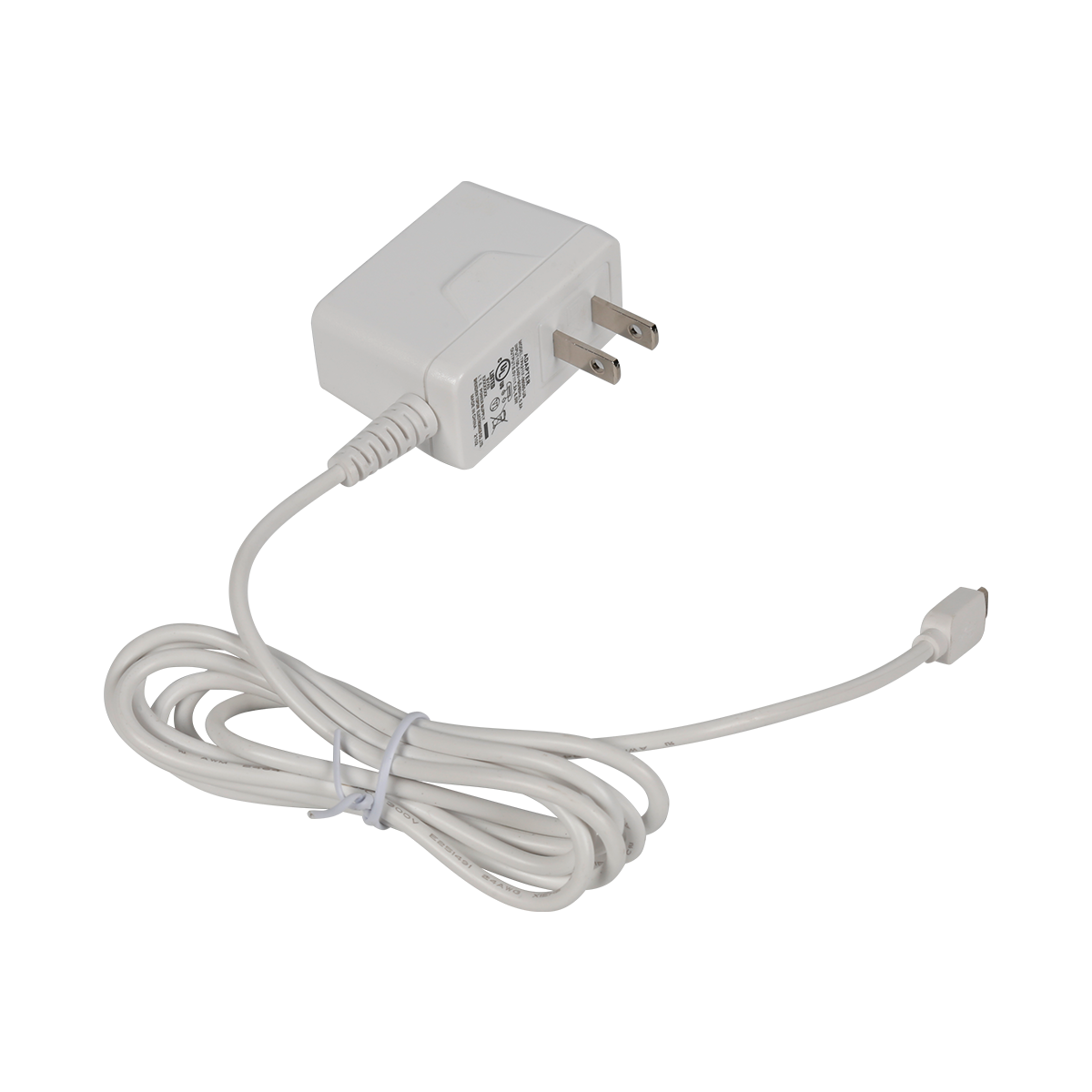

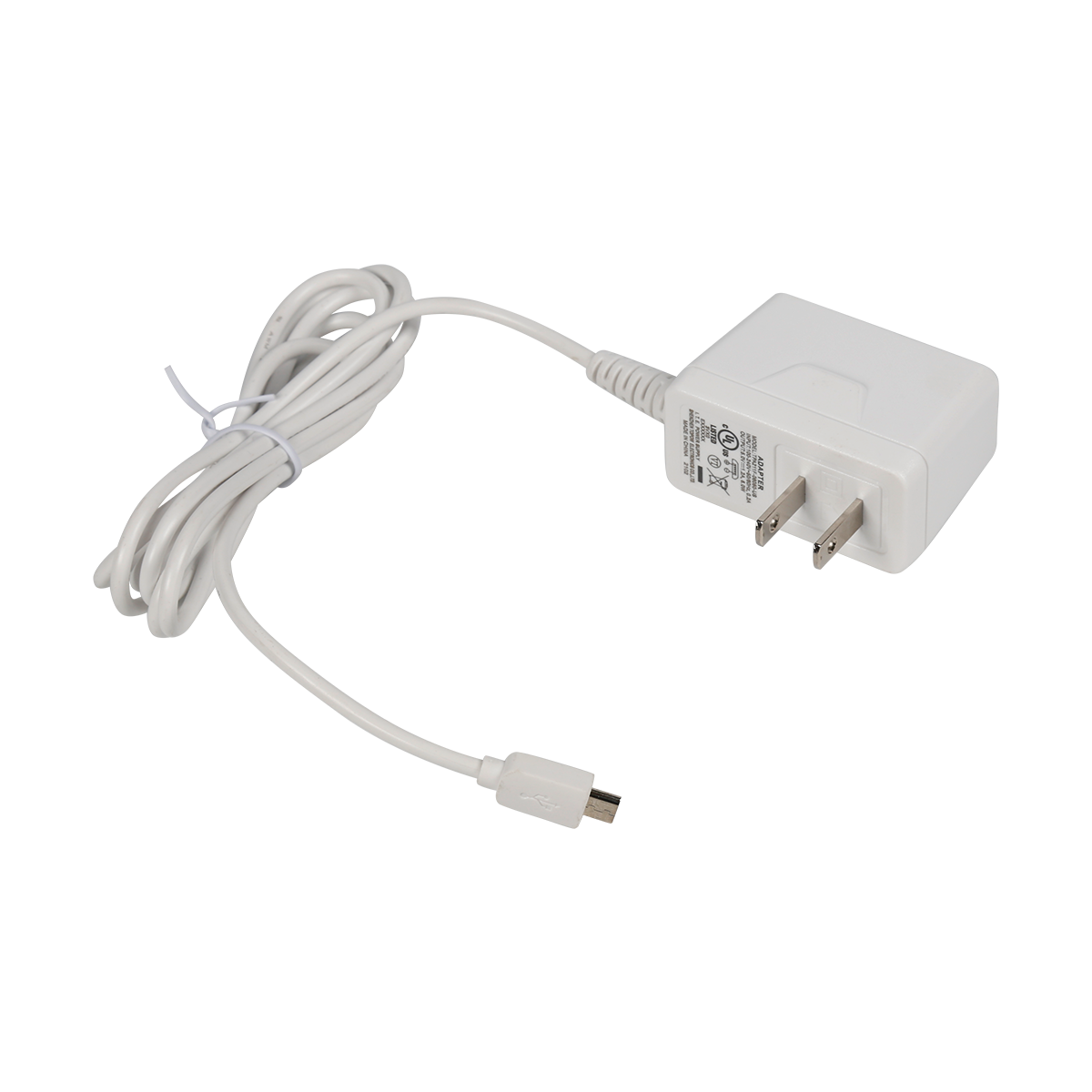

Color: White
Plug Type: Vertical, US version
Output Power: 6W
Input Voltage: 90~264VAC
Input Frequency: 47~63Hz
Output Voltage: 12Vdc
Output Voltage Accuracy: ±5%
Output Current: 0.5A
MTBF: At least 100,000 hours
Protection: OVP/OCP/SCP
Average Efficiency: 79.03%
Inrush Current: Cold start 30A/220VAC
Working Temperature: 0~+40°C
Packing: 0.086kg/80pcs/8kg
Warranty Period: 2 Years
General
The specification detail the electrical, mechanical, environmental and safety specifications of a 6 W, SINGLE Output level switching power supply for AV+IT.
This specification defines the performance, structure, environment, safety regulations and other requirements of a 6W, single output, AV+TI switching power supply.
1. Input characteristic
Table1 Input characteristic
Num | Item | Unit | Min value | Typical value | Max value | Remarks |
1.1 | Range of rated input voltage | Vac | 100 | 220 | 240 | |
1.2 | Range of maximum input voltage | Vac | 90 | 264 | ||
1.3 | Frequency of rated input voltage | Hz | 47 | 50/60 | 63 | |
1.4 | Current of rated input voltage | A | 0.6 | |||
1.5 | Inrush current | A | 40 | 25℃Cold boot at ambient temperature cold start@25℃ | ||
1.6 | No-Load Input Power Dissipation | W | 0.1 | |||
1.7 | Power Factor | / | / | / | / |
2. Output characteristics
Table 2 Output characteristics
Num | Item | Unit | Min value | Typical value | Max value | Remarks |
2.1 | Output voltage | V | 11.40 | 12.0 | 12.60 | |
2.2 | Rated output current | A | / | 0.5 | / | |
2.3 | Constant/Over current | A | / | / | / | |
2.4 | Ripple & Noise | mV | 200mV | Note1 Note2 | ||
2.5 | Average efficiency | % | 79.03 | |||
2.6 | Output load transient response | % | ±5% |
2.7 | Output overshoot/ undershoot | % | ±5 | |||
2.8 | Rise time | ms | 30 | Note3 | ||
2.9 | Power-on output delay | s | / | / | 3 | |
2.10 | Capacitance Load | uF | / | / | / | |
2.11 | Hold up time | ms | 10 | @230Vac/50Hz |
Note1:
Input 115Vac/60Hz-230Vac/50Hz, output full load, environment 25℃.
Input 115Vac/60Hz-230Vac/50Hz,output Full Load.Ambient25℃
Note2:
The ripple is obtained by measuring the peak-to-peak value using an oscilloscope with a bandwidth of 20MHz. When the DC output is fully loaded, AC rated input, and an ambient temperature of 25℃, the output terminal is connected in parallel with a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor.
The ripple is measured from peak to peak with band width limit of 20MHZ, By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic disk capacitor under DC output full Load, AC nominal input 25℃ambient temperature
Note3:
The output voltage rises from 10% to 90%, rated load.
Output voltage is increased from 10% to 90%, rated load.
3. Protection Function
Table3 Protection function
Num | Item | Unit | Yes/No | Minimum value | Typical value | Maximum value | Recover characteristic |
3.1 | Short circuit protection | A | Yes | Hiccups protected mode ,Don't damage | |||
3.2 | Over current protection | A | Yes | 1.0 | Hiccups protected mode ,Don't damage | ||
3.3 | Over voltage protection | V | Yes | 10 | |||
4. Environment Requirement
Table 4 Environment parameters
Num | Item | Unit | Minimum value | Typical value | Maximum value | Remarks |
4.1 | Ambient temperature | ℃ | 0 | 40 | 40 | |
4.2 | Storage temperature | ℃ | -10 | 25 | 60 | |
4.3 | Relative humidity | % | 5 | 95 | No condensation | |
4.4 | Altitude | M | 5,000 | working |
5. Security Test And Safety Certification
Table 6.1 Security test requirements
Num | Item | Rating | Standards（or test condition） | ||
6.1 | Hi-pot | 3750Vac | 5mA/60S primary to secondary,5mA/60S | ||
6.2 | Insulation Resistance | ≥100M | 500V 500VDC | ||
6.3 | Leakage Current | ≤0.25mA | 240V 240VAC | ||
Table 6.2 Safety design and certification | |||||
Region or country shall apply | Safety standards | Designed to meet | certified | ||
UL/CB/CE/SAA | UL/62368 | Yes | Yes | ||
EN 62368-1.2nd | Yes | Yes | |||
IEC-62368-1 | Yes | Yes | |||
AS/NZS62368-1 | Yes | ||||
6. EMC Requirements
Table 7 EMC requirements
Num | Item | Rating | Standards |
Power | |||
7.1 | conducted interference | CLASS B | EN55032、FCC part15 |
7.2 | radiated interference | CLASS B | EN55032、FCC part15 |
7.3 | 雷击SURGE | Differential : ±1kV common：±2kV CLASS B | ITU-T K.21 |
7.4 | EFT | ±0.5kV；Class B, 2min ±0.5kV；Class B, 2min | IEC61000-4-4 |
7.5 | ESD | Class B Contact discharge：±6kV Air discharge：±8kV | IEC61000-4-2 |
The EMC performance criterion of the whole machine with test:
Criterion A: Normal performance within the scope of technical requirements;
Criterion B: Some functions can be temporarily deteriorated or lost, and can be self-recovered; the product or the power supply cannot restart;
Criterion C: Automatic reset with short-term functional interruption is allowed, and long-term functional interruption or manual reset is not allowed;
Criterion R: No damage to any device other than the protection device is allowed, and the test piece can recover its performance after replacing the damaged protection device;
7. Requirement of environment protection
Table 8 Requirement of environment protection
No. | Define | parameter | Remarks |
8.1 | Recyclable and Environmental requirement | Meet 2002/95/EC; No cadmium, hydride and fluoride; polymer substances must be marked; no organic compounds can be emitted; no asbestos; packaging must be recyclable. Meet RoHS6 and Reach directives | |
8.2 | Odor requirement | No odor and the smell of adverse health |
8. Special Requirement
Table 9 Special Requirement
No. | Define | parameter | Remarks |
9.1 | Y Capacitor | Y |
9. Mechanical Structural Requirement
10.1 Appearance drawing: Attachment
10.2 Label drawing: Attachment
10.3 Output wire drawing: Attachment
