General

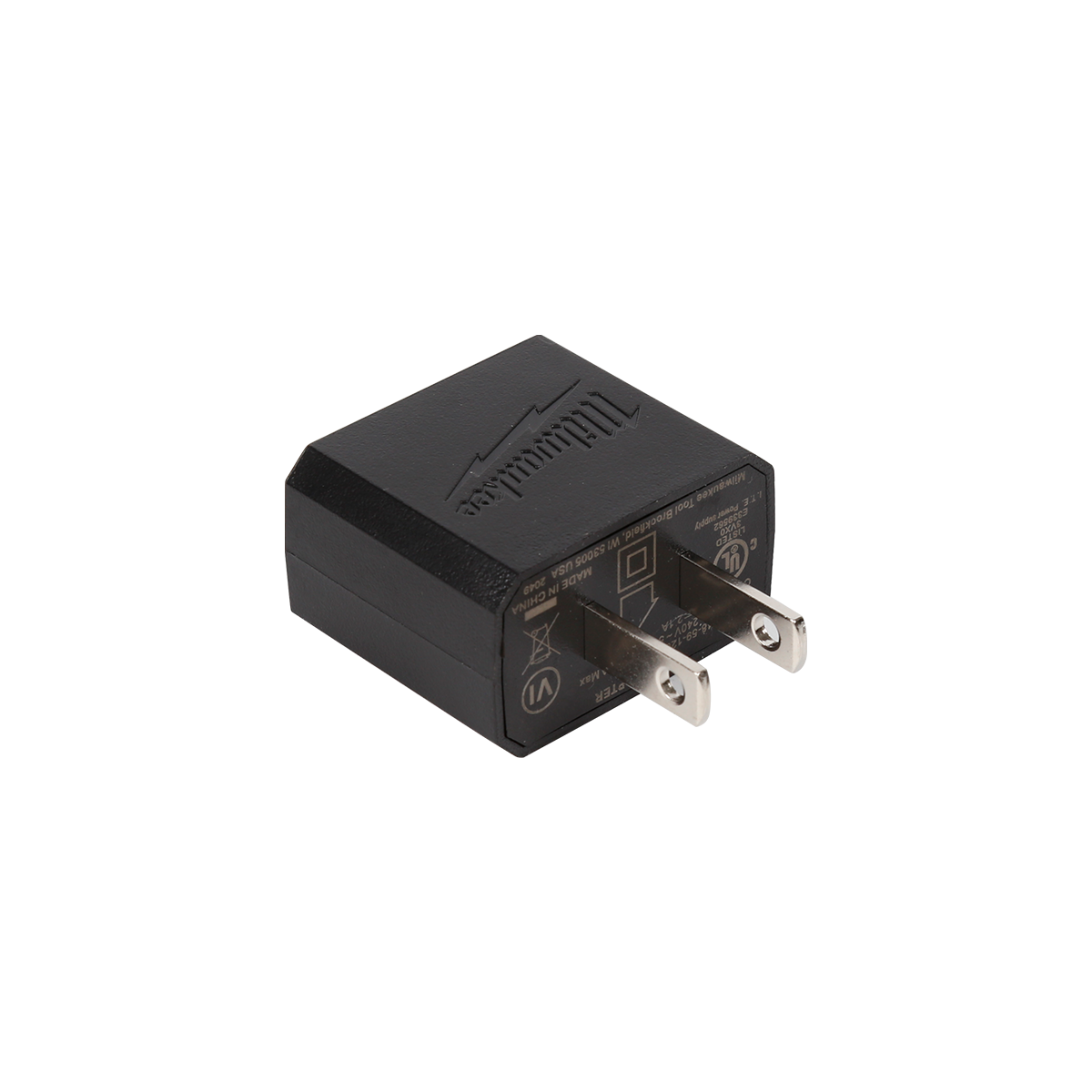

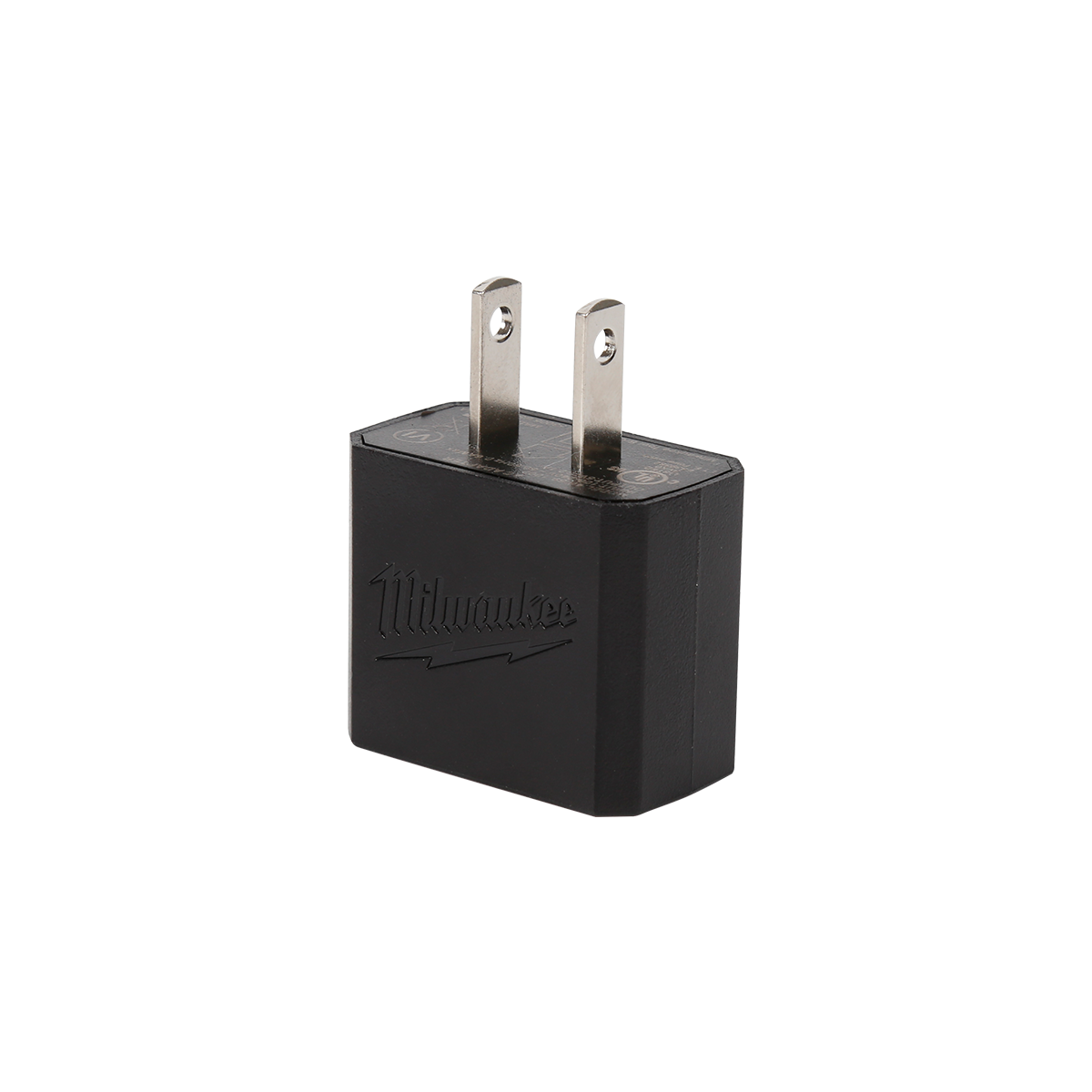

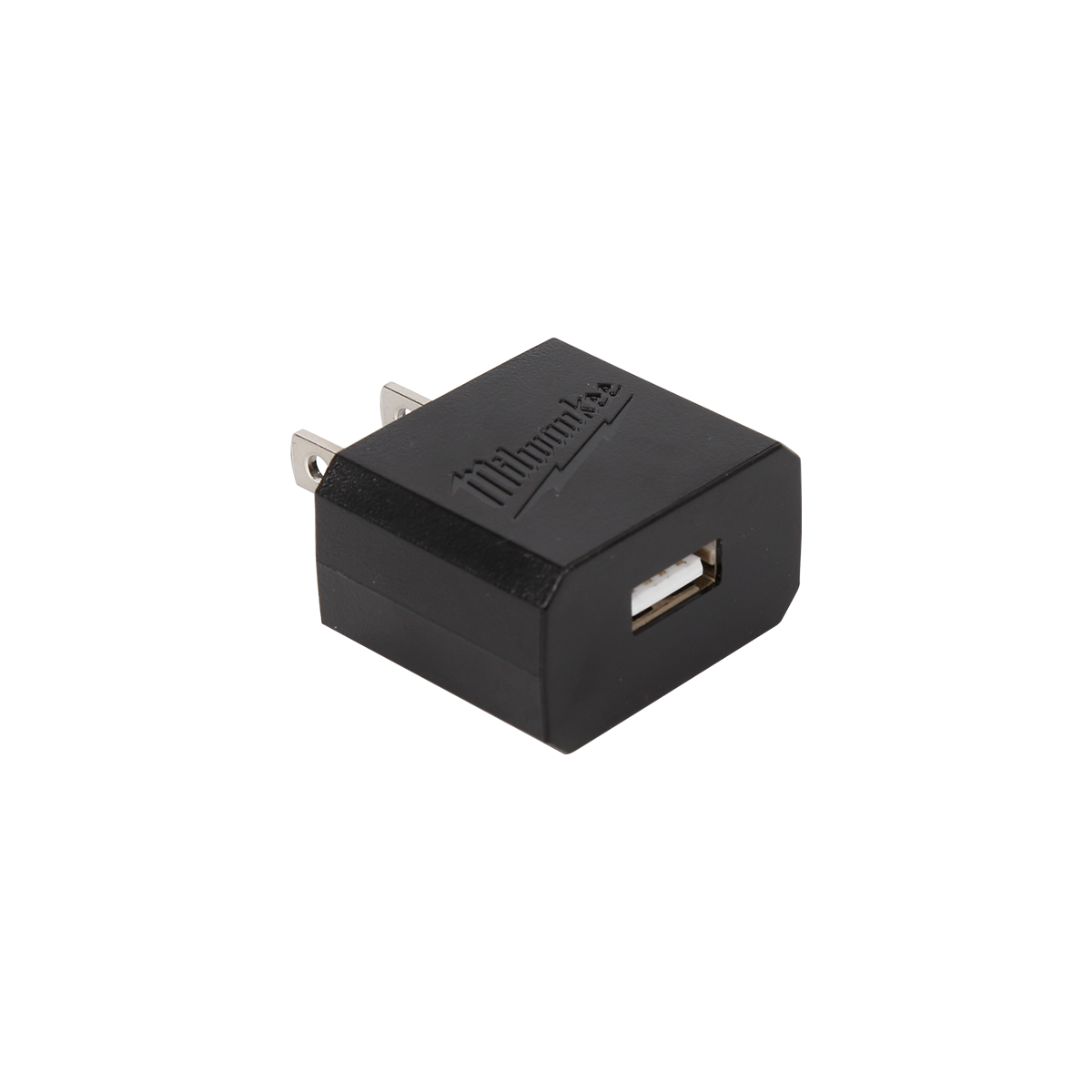

The specification defines the performance characteristics of a 10.5 W, SINGLE Output level switching power supply, The power supply has designed highly reliable and meet international safety and radiation requirements.

1.0 Input Characteristics

1.1Input voltage range and frequency

Rated voltage: 100-240VAC

Voltage variation range: 90-264VAC

Rated frequency: 50-60Hz

Frequency change range: 47-63Hz

1.2 Input Current

At low line AC and full load, the maximum input current is 0.6A

1.3 Input protection

When the AC input voltage has surges and abnormal conditions, the 2.2ohm wire-wound fuse resistor will protect the power supply

1.4 Input surge current

At 25°C ambient temperature, when the input is 230Vac cold state, the maximum inrush current is 50A

1.5 Efficiency

1.5.1 / %min. At nominal input voltage,maximum load and measured at end of DC cable

Under the rated input voltage and full load, the efficiency of the DC line end is /% minimum

1.5.2 Active mode efficiency:

More than 79.04% min of average efficiency of 25%,50%,75% and 100% load tested at115Vac and 230Vac.(Warm up after 30 minutes)

At 115Vac/230Vac input, the average efficiency under 25%, 50%, 75%, and 100% load conditions is at least 79.04%

(Record data after 30 minutes of aging)

1.6 No Load Power consumption

In the case of rated input AC and output no-load, the maximum no-load loss is 0.1W

1.7 Hold up time

Under the condition of rated input AC and output full load, the minimum holding time is 10ms.

2.0 Output Characteristics

2.1 Turn on delay

In the case of 230VAC voltage input and output at full load, the maximum power-on delay time is 3S

＊Test on delay is measured from 0 voltage output to the main output regulation.

2.2 DC output regulation

＊Total regulation involved line regulation load regulation cross regulation---etc.

＊Line regulation is measured from 90Vac to 132Vac or 185vac to 264vac

＊Load regulation is measured all output from min load to max load at 115vac

or 230vac nominal AC input voltage

＊The total adjustment rate relates to the cross adjustment rate of linearity and load

＊The test condition of linear adjustment rate is 90Vac to 132Vac or 185Vac to 264Vac

＊The test condition of load regulation is the change from the minimum load to the maximum load under the input of 115Vac/230Vac.

2.3 Ripple/noise

＊The ripple is measured from peak to peak with band width limit of 20MHz

(By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic disk capacitor under DC output full Load, 90-264Vac input 25℃ambient temperature).

*Ripple is obtained by measuring the peak-to-peak value using the oscilloscope bandwidth of 20MHz.

(Test conditions: at full DC output, 90-264Vac input, and 25°C ambient temperature, a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor are connected in parallel at the output)

3.0 Protection

3.1 Short protection / Over current protection

The power supply will self-protect any output to ground, And auto recovery when

abnormal circuit faults remove.

＊An output short circuit is defined as any output impedance of less than 0.1 ohms.

＊When the effective value of output impedance is less than 0.1 ohm, it is defined as output short circuit

3.2 Over voltage protection

Test methods: Short FB Pin to GND

4Leakage current:

Leakage current 0.25 mA max@240VAC

When the input voltage is 240Vac, the maximum leakage current is 0.25Ma

5.0 Safety meet of

5.1 EMI/EMS standards EMI/EMS STANDARDS

5.1.1 EMI EN55032 EN55035 EMS EN55020

5.1.2 EN61000-4-2 ESD immunity requirements

5.1.2.1 Air discharge +/- 8KV (B)

5.1.2.2 Contact discharge +/- 6KV (B)

5.2 EN61000-4-3 radiated disturbance field strength RS

3V/m (r.m.s) 80-1000Mz 80%AM (1KHz) sine-wave (A)

5.3 EN61000-4-4 Electrical Fast Transient Burst BURST

5.3.1 AC input port AC-input coupling 0.5KV (A)

5.3.2 AC input port AC-input coupling 1KV (B)

5.4 EN61000-4-5 Surge immunity test SCR

5.4.1 Common mode/differential mode: +/- 2KV / +/- 1KV

5.5 Induced radio frequency fields conducted disturbances immunity test

3V 0.15-80 MHz 80%AM (1KHz) (A)

6 HI-POT

HI-POT---A IEC 320 3pin primary to secondary (FG) 1500Vac 5mA 3S

HI-POT---B IEC 320 2pin primary to secondary 3000Vac 5mA 60S

When 3Pin input, primary to secondary, 1500VAC/5mA/3S.

When 2Pin input, primary to secondary, 3000Vac/5mA/60S.

7 Environment

TEMPERATURE AND HUMIDITY

OPERATING TEMPERATURE 0 DEGREES C TO 40 DEGREES C.

OPERATING HUMIDITY 5% TO 90% RH.(RELATIVE HUMIDITY).

BURN-IN TEMPERATURE 40 DEGREES C TO 45 DEGREES C (The finished product needs 100% aging, full aging test, 4 hours)

STORAGE TEMPERATURE -20 DEGREES C TO 70 DEGREES C.

STORAGE HUMIDITY 5% TO 90% RH. (RELATIVE HUMIDITY).

Working temperature: 0℃-40℃

Working humidity: 5%-90% (relative humidity)

Aging temperature: 40℃-45℃ (the finished product needs 80% aging, the aging test is fully loaded, 4 hours)

Storage temperature: -20℃-70℃

Storage humidity: 5%-90% (relative humidity)

8 Vibration

SWEEP AND RESONANCE SEARCH

FREQUENCY DURATION AXIS AMPLITUDE

10~55Hz 30 MINUTES X,Y,Z 1G

9 M.T.B.F

Shall be 30000 power on hours on greater under 25 degrees C of ambient temperature MTBF

Under evaluated under.

＊M.T.B.F 30000 hours will be affected if the product won’t be used for a long time.

10 Drop Test

The wall-inserting drop height is 1.0 meters, and 6 products are dropped once, and 6 different surfaces are dropped;

1.0M for wallmount type, Each product falls once, the same type of product needs to drop on a different surface 6 times, 6 products fall once respectively with a different surface.

The test table is a 13mm thick board with a height of 19-20mm from the ground

The horizontal surface consists of hardwood at least 13mm thick, mounted on two layers of plywood each 19mm to 20mm thick, all supported on a concrete or equivalent non-resilient floor.

11 Salty Fog Test for Metal Part

 Experiment condition, Salty water thickness: 5%, Equipment Temperature: 35～40℃ ,put the charger (unpacking) in the test equipment for 8h, after 8h recovery at 25℃ checking the appearance, the metal parts have no erode and rust.

12 Label specification: As Attachment

13 Mechanical: As Attachment

14 Appearance: As Attachment

15 Package: As Attachment
