General

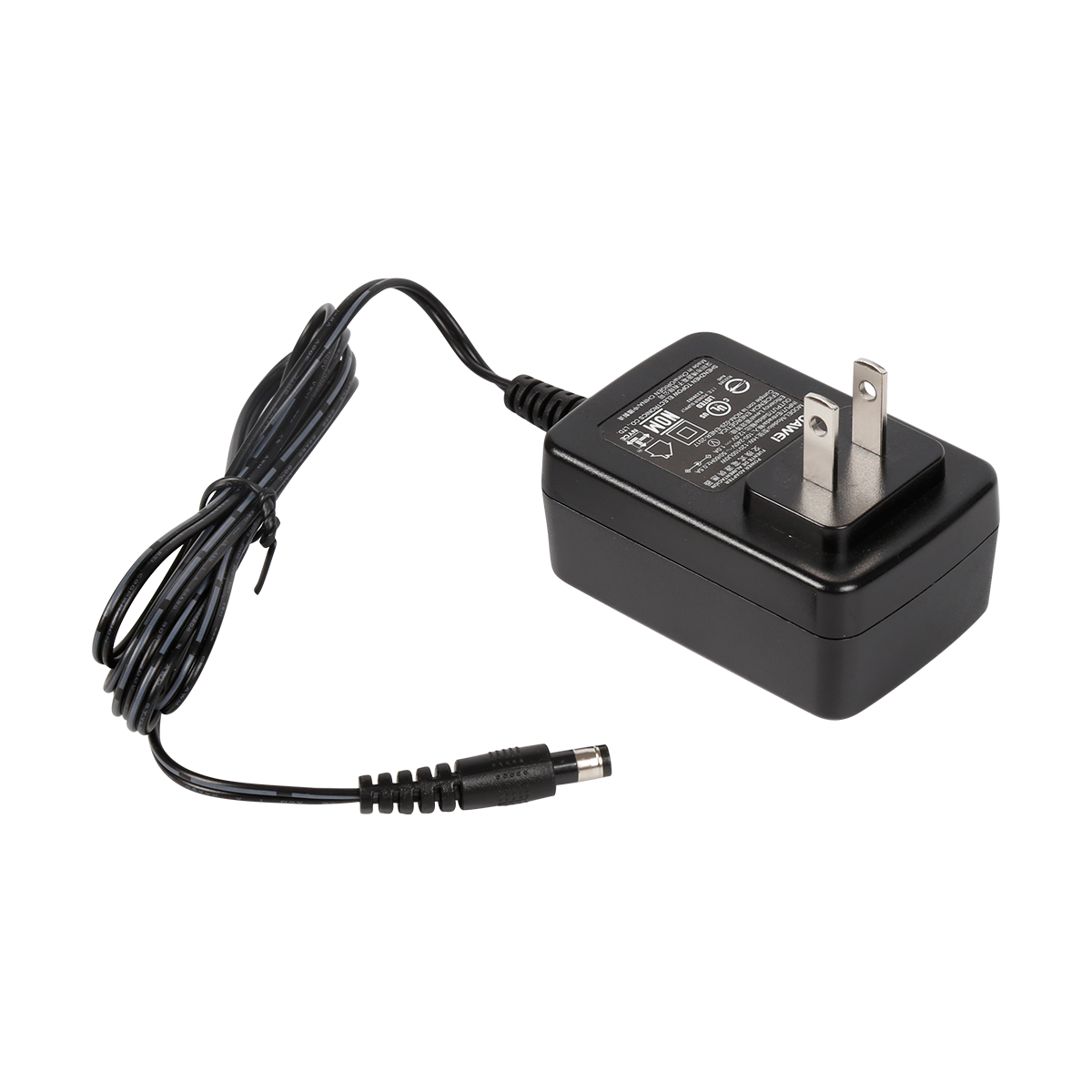

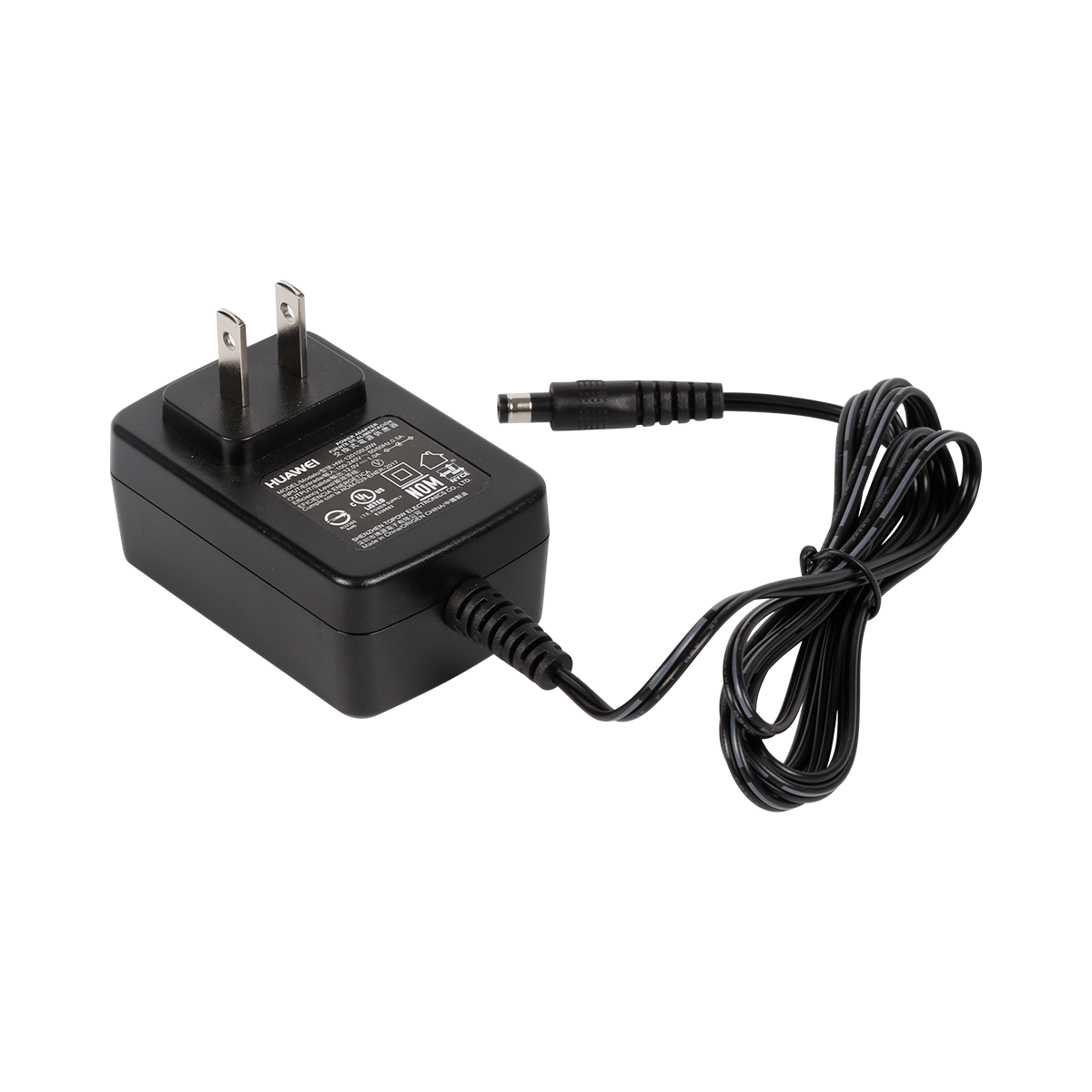

The specification defines the performance characteristics of a 12 W, SINGLE Output level switching power supply for. The power supply has designed highly reliable and meet international safety and radiation requirements.

1.0Input Characteristics

1.1 Input voltage range and frequency

Rated voltage: 100-240VAC

Voltage variation range: 90-264VAC

Rated frequency: 50-60Hz

Frequency change range: 45-66Hz

1.2Input Current

At low line AC and full load, the maximum input current is 0.5A

1.3Input protection

When the AC input voltage has surges and abnormal conditions, the 5A fuse will protect the power supply

1.4Input surge current

At 25°C ambient temperature, when the input is 220Vac cold state, the maximum surge current is 60A

1.5Efficiency

1.5.1 min.At nominal input voltage,maximum load and measured at end of DC cable

Under the rated input voltage and full load, the efficiency of the DC terminal is minimum

1.5.2 Active mode efficiency:

More than 77.9 %min of average efficiency of 25%,50%,75% and 100% load tested at 115Vac&230Vac.(Warm up after 30 minutes)

115Vac&230Vac input, the average efficiency under test 25%, 50%, 75%, 100% load conditions is at least 77.9%

Iuput power less than 0.5W, when output load is 0.25W at Rated Input Voltage.

At rated input voltage, the output load is 0.25W, and the input power is less than 0.5W

Meet Energy Star level Ⅴ

1.6No Load Power consumption

In the case of rated input AC and output no-load, the maximum no-load loss is 0.3W

Meet Energy Star level Ⅴ

2.0Output Characteristics

2.1Turn on delay

In the case of AC low voltage input and output full load, the boot delay time is up to 3S

＊Test on delay is measured from 0 voltage output to the main output regulation.

2.2DC output regulation

＊Total regulation involved line regulation load regulation cross regulation---etc.

＊Line regulation is measured from 90vac to 264vac

＊Load regulation is measured all output from min load to max load at 115Vac&

230Vac nominal AC input voltage

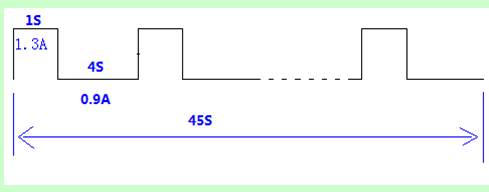

＊A dynamic load state is the instantaneous current 1.3 A, every time last 45S,

1.3A reach 20% duty cycle with 1S, 0.9A reach 80% duty cycle with 4S, the current rate 1 A/us, refer to the below waveform

＊The total adjustment rate relates to the cross adjustment rate of linearity and load

＊The test condition of linear adjustment rate is 90Vac to 264Vac

＊The test condition of load regulation is the change from the minimum load to the maximum load in the case of 115Vac&230Vac input.

＊The instantaneous load in the ringing state is 1.3A, the total time of each ringing state is 45S, the duty ratio of 1.3A is 20%, each time is about 1S, the current change rate is 1A/us, please refer to the waveform below

2.3Ripple/noise

＊The ripple is measured from peak to peak with band width limit of 20MHZ

(By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic diskcapacitor under DC output full Load, AC nominal input 25℃ambient temperature).

＊Ripple is obtained by measuring the peak-to-peak value using an oscilloscope bandwidth of 20MHz

(Test conditions: at full DC output, rated AC input, and an ambient temperature of 25°C, a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor are connected in parallel at the output end)

3.0 Protection

3.1 Short protection / Over current protection

The power supply will self-protect any output to ground, And auto recovery when

abnormal circuit faults remove.

The power supply can automatically resume normal operation when the short circuit is removed

＊An output short circuit is defined as any output impedance of less than 0.1 ohms.

＊When the effective value of output impedance is less than 0.1 ohm, it is defined as output short circuit

3.2Over voltage protection

Test methods：Short U2 Pin 1 and Pin 2

4.0 Leakage current：

Leakage current  0.25  mA max@240VAC

当输入电压为240Vac时，最大漏电流为0.25mA

5.0  Safety meet of EN60950-1

5.1：AC port: CE Class B, the development phase monomer satisfies 6dB and above; The batch meets 4DB and above, the reference standard EN55032, ungrounded, full load range.

5.2：RE CLASS B monomers meet the excess of 6dB; The batch meets 4DB and above, the reference standard EN55032, ungrounded, full load range.

5.3：Differential mode: + -4kV impedance 2ohm common mode: + - 6kv, impedance 2ohm waveform 1.2/50us, criterion B; Reference standard ITU - T k. 21. Note: the output light/load (unit testing acceptance of racing, a male child, carrying case), the output end of the grounding and grounding of not to test, need to consider different certification body, 10% of the instrument deviation criterion B description: the EUT in interference in the process of applying, and, after the completion of interference on the dc output voltage change are within the specification stated accuracy, time within 1 ms instantaneous change is negligible, cooperate with the machine off electric reset the machine is not allowed to happen.

5.4：EFT rapid transient, pulse group, criterion B plus or minus 2kV, reference standard IEC 61000-4-4.

5.5：4-11 IEC61000 -

Drop to zero, the duration of the 10 ms, at 0 °, 45 °, 90 °, 135 °, 180 °, 225 °, 270 °, 315 ° falling in each phase, satisfy the criterion of B;

Drop to 0, duration of 20ms, in 0, 45, 90, 135, 180, 225, 270, 315, all phases satisfy the criterion B; (input 230V)

UT fell to 70%, the duration of the 500 ms, at 0 °, 45 °, 90 °, 135 °, 180 °, 225 °, 270 °, 315 ° phase B meet the criterion;

Drop to 0%UT, duration 5000ms, at 0, 45, 90, 135, 180, 225, 270, 315, all phases meet the criterion C;

Note: only for high pressure input.

5.6：ESD electrostatic disturbance criterion B contact discharge: + 8Kv air discharge: + 15kV reference IEC 61000-4-2.

5.7：CS conduction disturbance LEVEL 3; The criterion of A; The 10V reference iec61000-4-6 requires the use of oscilloscope to monitor the output voltage, which can have burrs, but cannot have instantaneous and long interference, and the waveform needs to be reflected in the test report.

5.8：RS radiation resistance Level 3; The criterion of A; The 10V/m field strength reference iec61000-4-3 requires the use of oscilloscope to monitor the output voltage, which can have burrs, but cannot have instantaneous and long interference, and the waveform needs to be reflected in the test report.

5.9：Class A product voltage fluctuation and scintillation limit reference iec61000-3-3.

5.10：The harmonic current limit of class A products is referred to iec61000-3-2.

5.11：Safety

CE certification and CB report must get the EN60950-1/IEC60950-1, CE/CU certification and CB report

must get the EN62368-1/IEC62368-1

6.0HI-POT AND Insulation Resistance

HI-POT: Primary to secondary 3000Vac/10mA/60S.

IR: primary to secondary ≥100M ohm at 500Vdc

7.0Environment

TEMPERATURE AND HUMIDITY

OPERATING TEMPERATURE -5 DEGREES C TO 45 DEGREES C.

OPERATING HUMIDITY 5% TO 95% RH.(RELATIVE HUMIDITY).

STORAGE TEMPERATURE -40 DEGREES C TO 70 DEGREES C.

STORAGE HUMIDITY 5% TO 95% RH. (RELATIVE HUMIDITY).

Working temperature: -5℃-45℃

Working humidity: 5%-95% (relative humidity)

Storage temperature: -40℃-70℃

Storage humidity: 5%-95% (relative humidity)

8.0Vibration

SWEEP AND RESONANCE SEARCH

FREQUENCY DURATION AXIS AMPLITUDE

10~55Hz 30 MINUTES X,Y,Z 1G

9.0M.T.B.F

Shall be 60000power on hours on greater under 25 degrees C of ambient temperatureMTBF

Underevaluated under.

＊M.T.B.F. 60000 hours will be affected if the product won’t be used for a long time.

10.0 Label specification: As Attachment

11.0 Mechanical: As Attachment

12.0 Appearance: As Attachment

13.0 Package: As Attachment

14.0 SCH&PCB: As Attachment

15.0 Bill of materials: As Attachment
