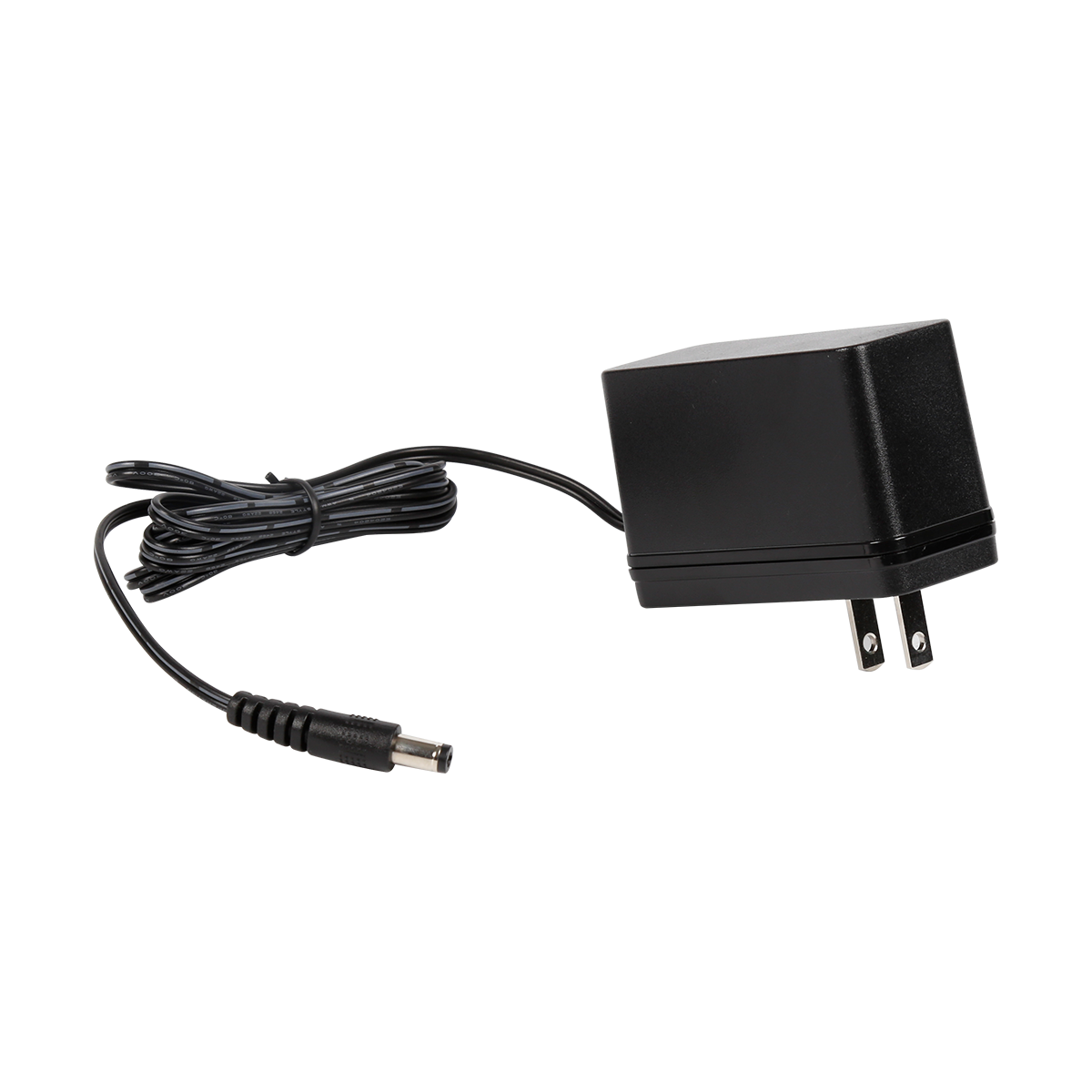

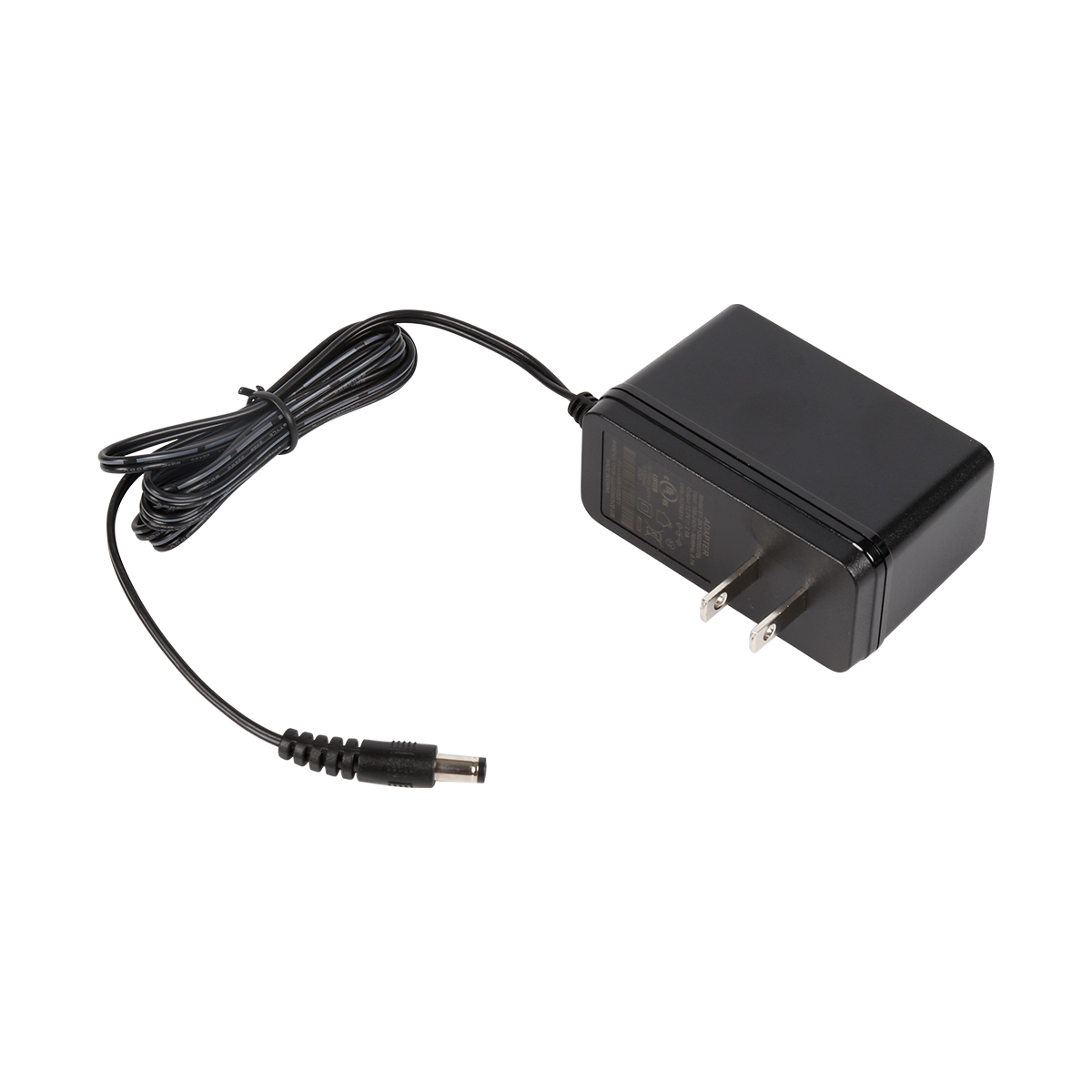

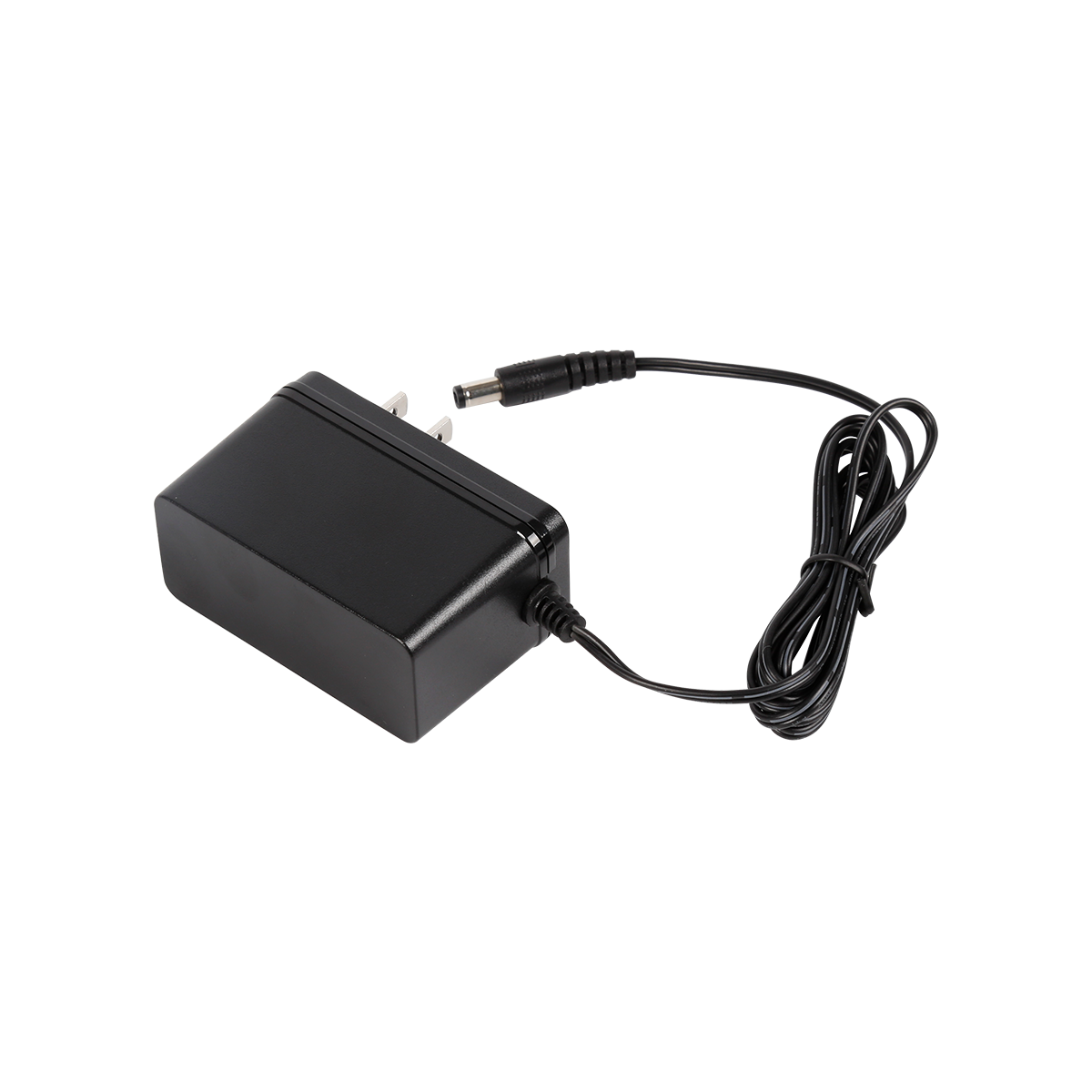

24W U.S. regulations

TPA289-24120-US

Color: Black

Plug Type: Wall-mounted vertical, American version

Output Power: 24W

Input Voltage: 90~264Vac

Input Frequency: 47~63Hz

Output Voltage: 12V

Output Voltage Accuracy: ±5%

Output Current: 2A

MTBF: At least 100,000 hours

Protection: OCP, OVP

Efficiency: >87%

Inrush Current: Cold start 230VAC/30A

Working Temperature: -10~+45°C

Safety Certification: UL

Packing: 0.124kg/100pcs/14kg

Warranty Period: 2 Years


Product Detail

General

The specification detail the electrical, mechanical, environmental and safety specifications of a 24 W, SINGLE Output level switching power supply for IT+AV.

This specification defines the performance, structure, environment, safety regulations and other requirements of a 24W, single output, IT+AV switching power supply.


1. Input characteristics

Table 1 Input characteristics table


Num

Item

Unit

Min value

Typical value

Max value

Remarks

1.1

Range of rated input voltage

Vac

100

220

240


1.2

Range of maximum input voltage

Vac

90


264


1.3

Frequency of rated input voltage

Hz

47

50/60

63


1.4

 Current of rated input voltage

A



0.7


1.5

Inrush current

A



50

cold start@25℃

1.6

No-Load Input Power Dissipation

W



0.1

ERP Level 6 Energy Efficiency

1.7

Power Factor

/

/

/

/




2. Output characteristics

Table 2 Output characteristic table


Num

Item

Unit

Min value

Typical value

  Max value

Remarks

2.1

 Output voltage

V

11.4

12

12.6


2.2

 Rated output current

A



2


2.3

 Constant/Over current

A

/

/

/


2.4

Ripple & Noise

mV



120

Heat engine test Note1



2.5

 Average efficiency

%

86.21



ERP Level 6 Energy Efficiency

2.6

Output load transient response

%



±5%


2.7

Output overshoot/ undershoot

%



±5


2.8

Rise time

ms



30

Note2

2.9

Turn on time

S



3

@230V

2.10

Capacitance Load

uF



2000




Note1:

Test input voltage 100V/60Hz~240Vac/50Hz, Test input voltage 100V/60Hz~240Vac/50Hz.

The ripple is obtained by measuring the peak-to-peak value using an oscilloscope with a bandwidth of 20MHz. When the DC output is fully loaded, AC rated input, and an ambient temperature of 25℃, the output terminal is connected in parallel with a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor.

The ripple is measured from peak to peak with band width limit of 20MHZ, By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic disk capacitor under DC output full Load, AC nominal input 25℃ambient temperature

Note2:

The output voltage rises from 10% to 90%, rated load.

Output voltage is increased from 10% to 90%, rated load.


3. Protective function

Table 3 Protection function table


Num

Item

Unit

Yes/No

Minimum value

Typical value

Maximum value

Recover characteristic

3.1

 Short circuit protection

A

Yes




Hiccups protected mode ,Don't damage

3.2

Over current protection

A

Yes

2.3


3.5

Hiccups protected mode ,Don't damage

3.3

Over voltage protection

V

Yes



18


3.4

other









4. Environmental requirements

Table 4 Environmental parameter table


Num

Item

Unit

Minimum value

Typical value

Maximum value

Remarks

4.1

Operating temperature

-10

25

40


4.2

Storage temperature

-20

25

70


4.3

Relative humidity

%

5


95

No condensation

4.4

Altitude

M



5,000

working



5. Reliability requirements

Table 5 Reliability requirement table

Num

Item

specification

Remarks

5.1

MTBF

100000Hours

25℃ environment

5.2

Vibration

10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth:3.5mm) for 1Hour for each of the perpendicular axes X,Y,Z,there should not be damaged on the appearance,and can work normally.


5.3

Drop

1 corner,3edges,6surfaces each once.Height:80cm,on the wooden board,the plug can be bend,and scratch,but the structure should not be damaged,no noise when sway and can work normally.


5.4

Corrosion of gas

Putting the sample in the salt 5% with 24hours,and the electronic test is OK after the test



6. Safety testing and safety certification

Table 6.1 Safety test requirement table

Num

Item

Grade (judgment condition)

Rating

Standardsor test condition

6.1

Hi-pot

3000Vac

primary to secondary,5mA/60S

6.2

Insulation  Resistance

≥100M

500VDC

6.3

Leakage Current

≤0.25mA

240VAC

Table 6.2 Safety design and certification

Region or country shall apply

Safety standards

Designed to meet

certified

Chian

IT certification GB4943

YES

YES

Chian

AV certification GB8898

YES

YES

Europe

CE certification EN62368

YES

YES

Mexico

NOM certification NOM-001-SCFI-1993

YES

YES

USA

UL certification UL62368-1

YES

YES

CB

CB certification IEC62368

YES

YES


7. EMC requirements

Table 7 EMC requirements table

Num

 Item

Rating

 Standards



Power


7.1

conducted interference

CLASS B:

EN55032

7.2

radiated interference

CLASS B

EN55032

7.3

SURGE

Differential : ±4 kV common±4 kV

IEC61000-4-5

7.4

EFT

±0.5kVClass A,  ±1kVClass B,

IEC61000-4-4

7.5

ESD

Class B

Contact discharge±6kV

Air discharge±8kV

IEC61000-4-2


8. Environmental requirements

Table 8 Environmental protection requirements

 No.

Define

parameter

 Remarks

8.1

Recyclable and Environmental requirement

Meet 2002/95/EC;

No cadmium, hydride and fluoride; polymer substances must be marked; no organic compounds can be emitted; no asbestos; packaging must be recyclable.

Meet RoHS6 and Reach directives



8.2

Odor requirement

No odor and the smell of adverse health
