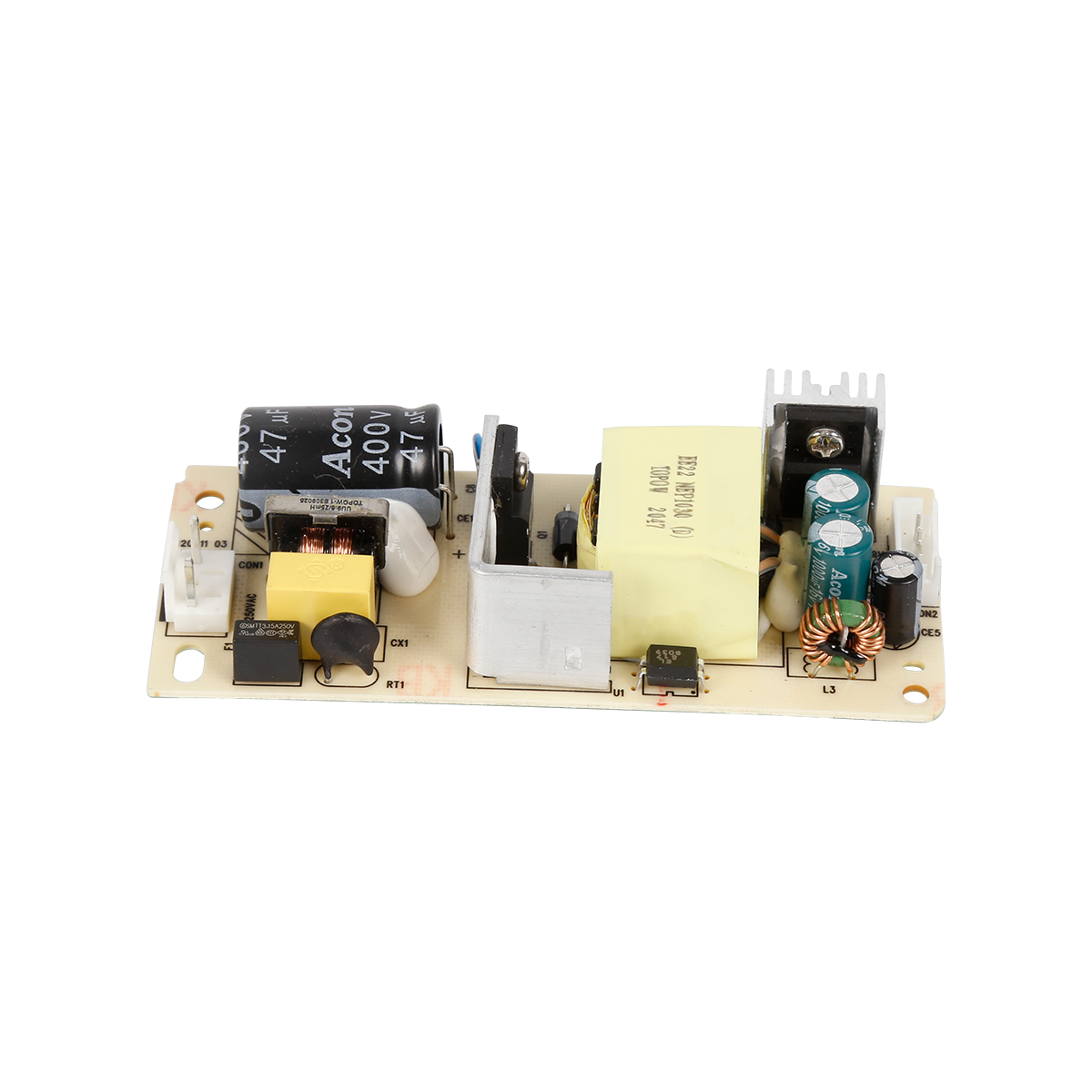

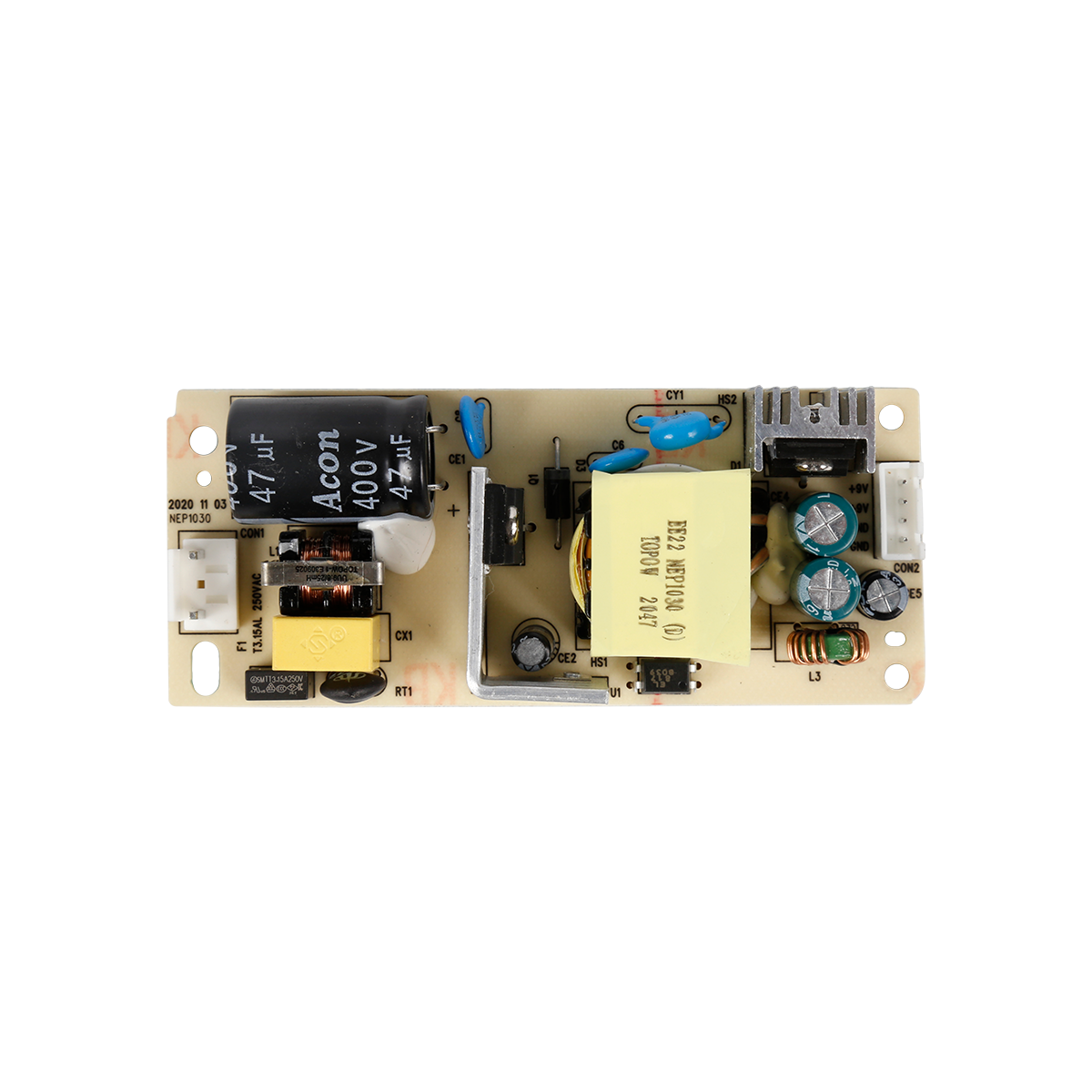

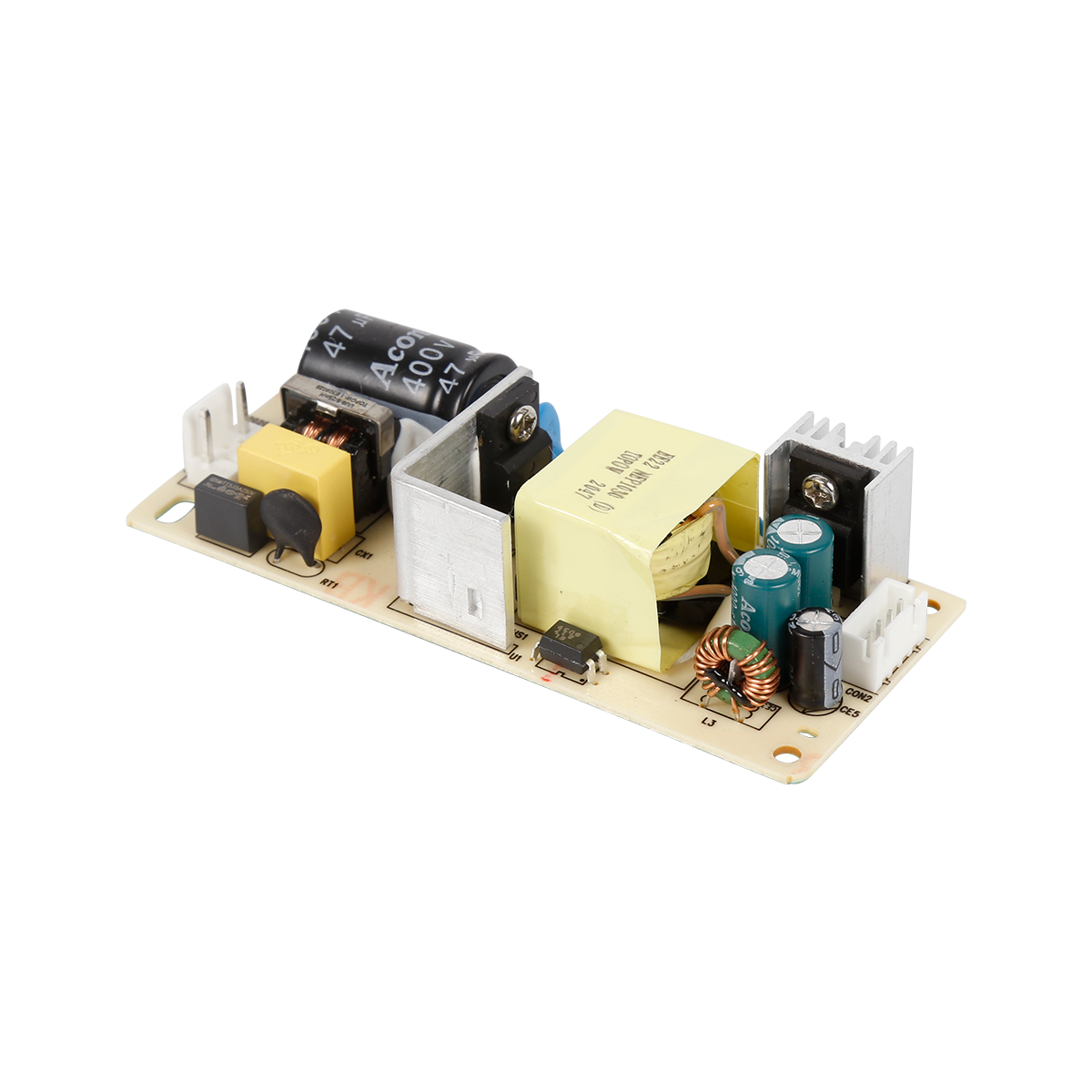

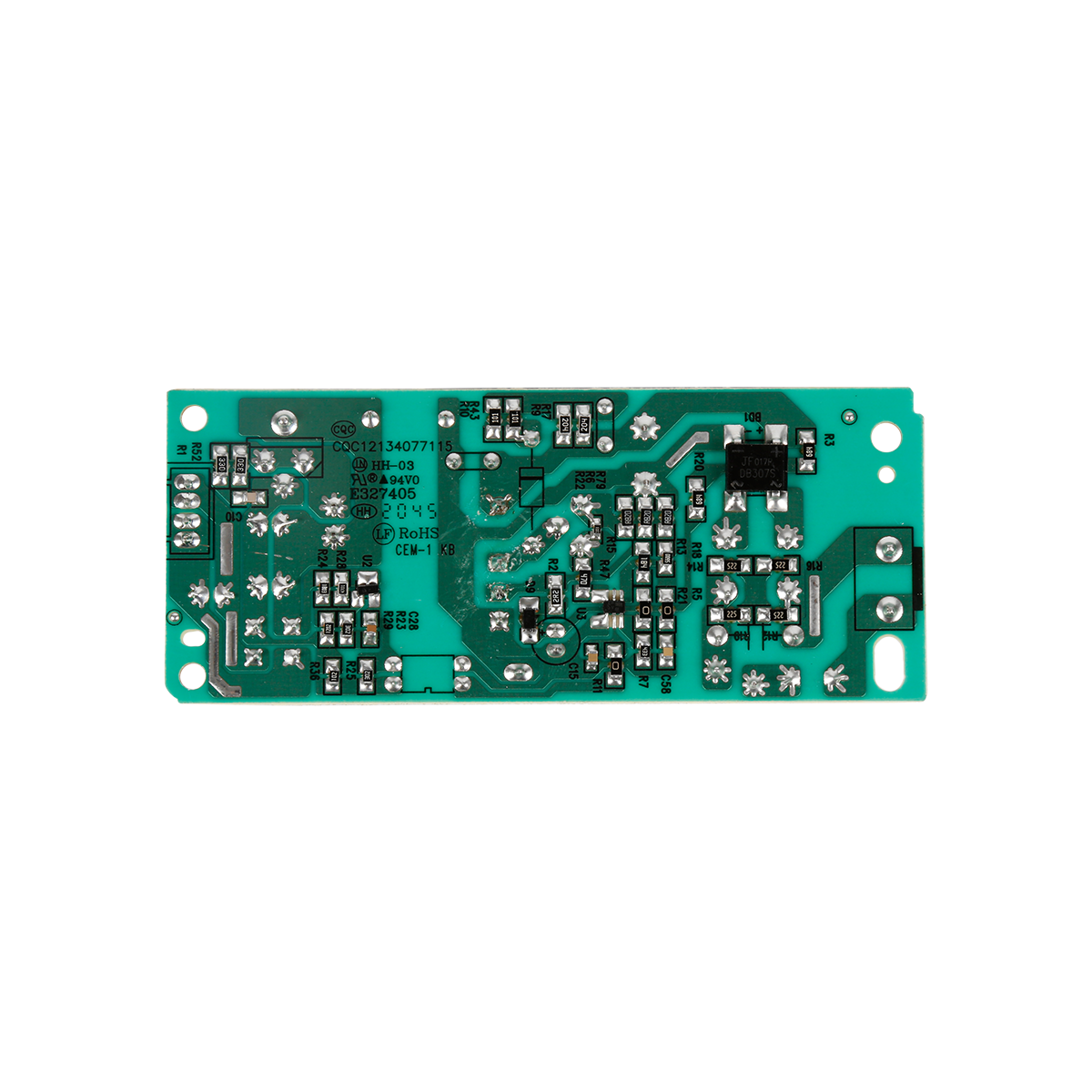

27W single power supply

NEP1030



<Description>:

1. This specification defines performance and characteristics. This specification defines worldwide safety requirements and manufactures process test requirements.

This specification describes the characteristics and specifications of the power board, and incorporates the requirements of safety regulations and production testing.

2. Production design concept. Product design principle

3. Provide overload latch protection during (a) specified power threshold requirements or (b) short circuit conditions.

Automatic protection of power supply in case of overheating and short circuit

4. At 25°C, the mean time between failures is 50,000 hours with an MTBF and an annual field failure rate of 0.5%.

Product reliability MTBF: 50K hours; at 25°C, 5% loss per year.

5. The DC output voltage must be a safety extra low voltage (SELV) and limited power

DC output is within the safe voltage and power range


Product Detail

One. power supply overview

1. Input characteristics :

(1) Input voltage

Input voltage range : 90--264Vac

Nominal voltage range: <Rated input voltage range>: 100--240Vac

(2) Input frequency :

Nominal frequency <rated frequency>: 50 / 60Hz.

Change frequency <adjustment frequency>: 47 / 63Hz

(3) Maximum input current :

1Arms max at any input voltage and rated value. DC output rated load

When the input AC voltage is the lower limit voltage of the rated value and the load is fully loaded, the maximum input AC current is 1A.

(4) Surge current :

Maximum 40 ampere cold start with 230Vac input under rated load and 25℃ environment.

When the output is rated load, the ambient temperature is 25°C, and the maximum surge current is less than 40A when inputting 230Vac cold state.

(5) AC leakage current :

Maximum 0.25 mA under 230Vac input.

When the input voltage is 230Vac, the maximum leakage current is 0.25mA.


Two
. Output characteristics :

(1) Output power <AC input 115V / 230V, output power>;

Minimum voltage, maximum load, peak load

9V 0A 3A 4A

Note: The continuous working time cannot exceed 3 minutes when outputting the average power.

(2) Combined load/line regulation rate <load characteristic/regulation rate>:

Voltage line regulation rate load regulation rate

9V±3%±5%

(3) Ripple and noise :

Voltage ripple and noise (maximum)

9V <200MV

When measuring with Max, the ripple and noise are as follows. The bandwidth is 20MHz, and the behavior is 47uF/0.1uF, cross-connected at the test point.

Test conditions: Under normal operation of any load, use a spectrum bandwidth of 20MHz to connect to the output terminal of the charger, and at the same time the output terminal is connected in parallel with a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor.

(4)  rise time:

Output voltage 115V/230Vac & full load

9V 150 ms

(5) Hold time :

Output voltage 115V/230Vac & full load

9V 5 ms

 (6) Efficiency :

The lowest 78% of input and output maximum load at 115V/230Vac.

When inputting 115V/230Vac and outputting maximum load, minimum 78%

 (7) Overshoot:

Up to 10% when the power is turned on or off.

When the power is turned on or off, the maximum is 10%.

(8) Short-circuit protection

Under normal load, the short circuit output (9V) circuit will not damage the power supply. After eliminating the short circuit, the power supply should be able to work normally

When the output is short-circuited under normal load, the power supply is damaged; when the short-circuit is removed, the power supply resumes work.

Two safety (safety specifications)

1. Insulation resistance :

Input to output: DC500V 50MQ min (room temperature)

Input to FG: DC500V 50MQ minutes (at room temperature)

Output to FG: non-isolated

2. Insulation withstand voltage :

Input to output: 3000Vac 50Hz 1 minute≤5mA

Input to FG: DC500V 50MQ minutes (at room temperature)

Output to FG: non-isolated

3. Safety standard:

GB8898-2011; UL / IEC / EN 62368

4. EMC standard

GB / T13837-2012; GB17625.1-2012; EN 55032 / EN 55035


Three
environmental requirements :

1. Temperature <ambient temperature>:

Working temperature : -10℃-40℃.

Storage temperature (-20℃ to 85℃)

2. Relative humidity <ambient humidity>:

Work: relative humidity from 10% to 90% (non-condensing)

Not working: Relative humidity is 5% to 95% (non-condensing)

3. Altitude

Operating <under working conditions>: to 10,000 feet

Not working <under non-working conditions>: to 20,000 feet

4. Cooling method:

Convection air <natural cooling>

5. Aging

All power supplies shall be subjected to aging test at 40C±5°C in a temperature-controlled environment.

All power supplies must be able to withstand aging in an environment of 40C±5℃

The aging standards should follow the following <aging standards are as follows>:

Temperature condition : 40C±5℃

Load condition : normal load

Aging time : 4 hours

6. Vibration :

(1) Operation: IEC 721-3-3 3M3

Test standard: International Electrotechnical and Electronics Commission

5~9Hz, A = 1.5mm acceleration: 9~200Hz, acceleration 5m/s2

(2) Transportation <Transport>:

Operation: IEC 721-3-2

2M25-9Hz, A = 3.5mm

9~200Hz, acceleration: acceleration = 5m / S2

200~500Hz, acceleration: acceleration = 15m / S2

(3) Axis, 10 cycles per axis.

No permanent damage will occur during the test.

No permanent damage can occur during the test.

After turning on/off the power, the product must be restored to its original state

After the power is turned on and off, the prototype can be restored to its original condition.


Four
 .mechanical <structural parameters>:

1. Dimensions: Length: 100 * Width: 41.5 * Height: 26 mm

Dimensions: Length: 100 * Width: 41.5 * Height: 26 mm

2. Input connector <input socket>:

The input connector is CON1 (3.96MM 3PIN hollow)

3. Output-jack <output socket>:

This output connector is CON2 2.54MM 4PIN

4. Shell <structure>: open frame <open structure>


Five
: SCH:

27W单电源(图1)
