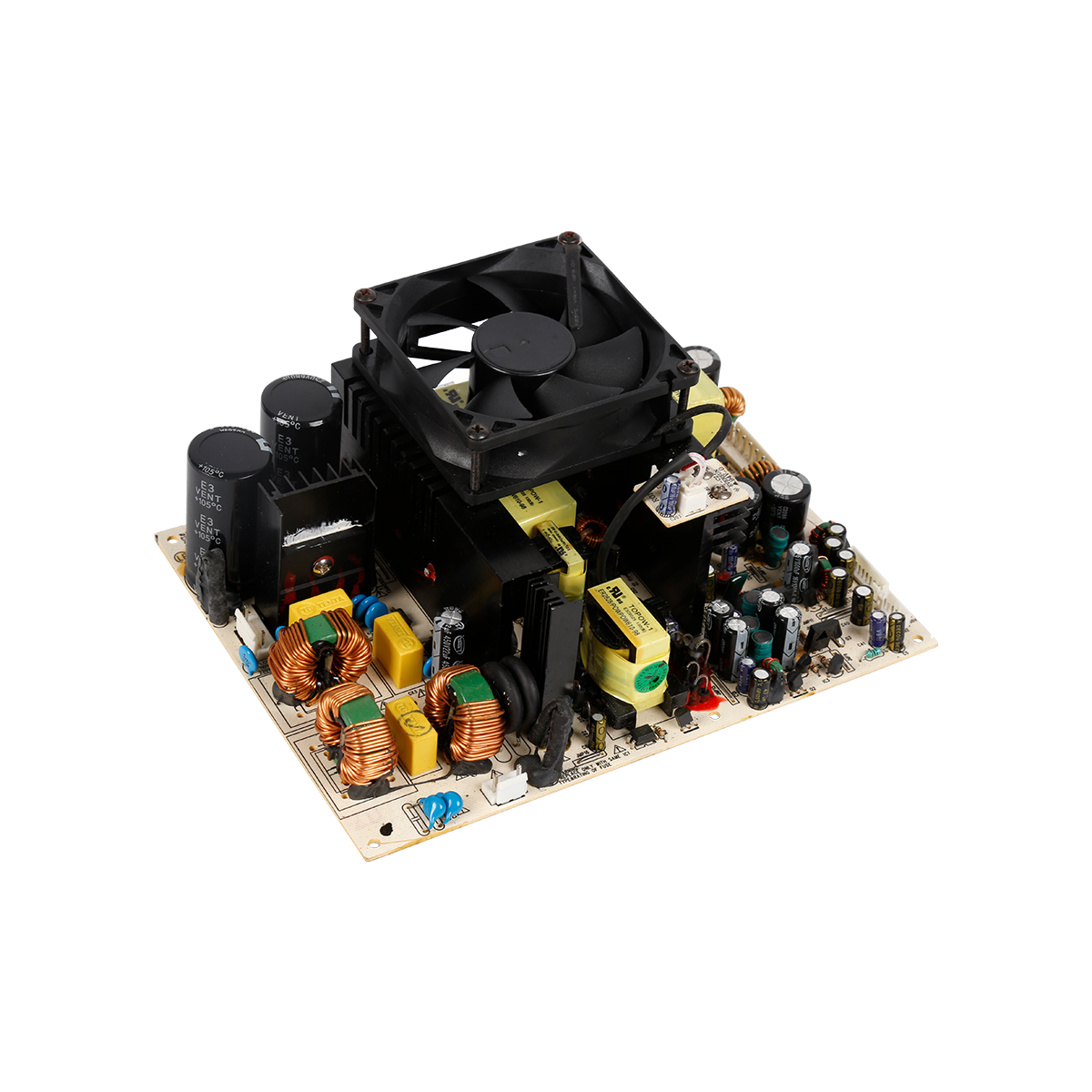

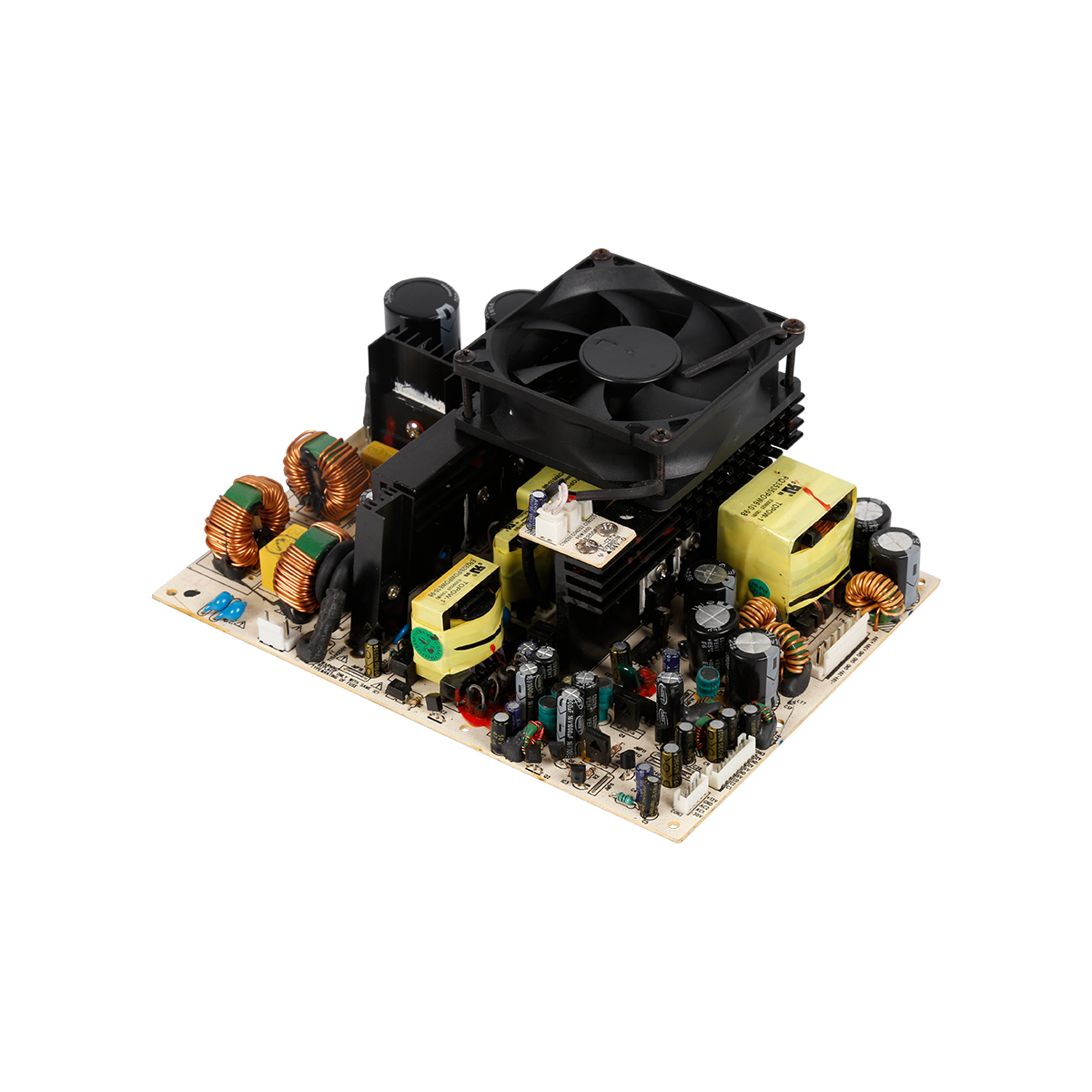

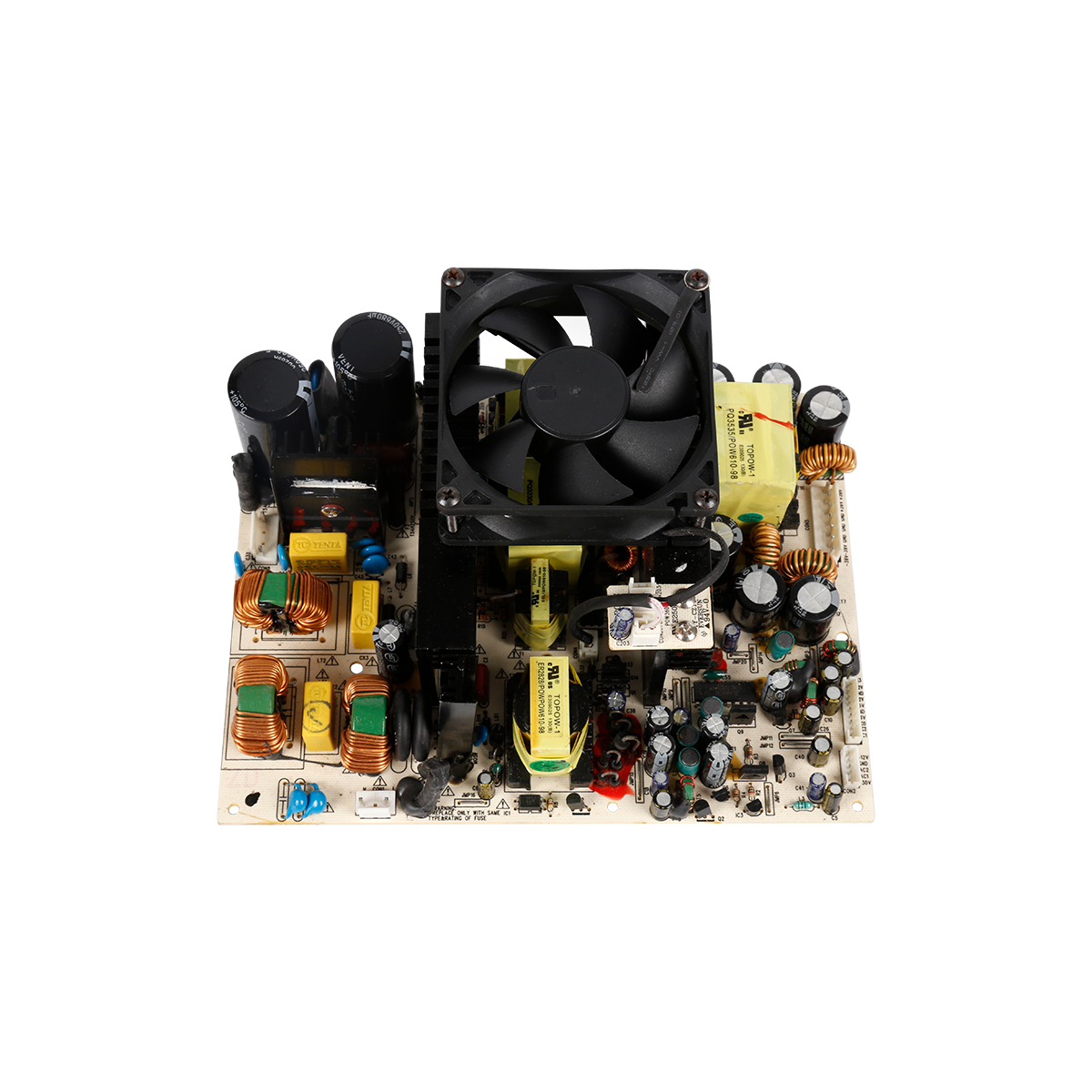

Power supply overview

1. Input characteristics：

(1) Input voltage

 Input voltage range : 180Vac-264Vac (CON8: OFF)

Nominal voltage range: : 200Vac-240Vac (CON8: OFF)

Input voltage range : 90Vac-132Vac (CON8: ON)

Rated voltage range: <Rated input voltage range>: 100Vac-120Vac (CON8: ON)

(2) Input frequency :

Nominal frequency <rated frequency>: 50 / 60Hz.

Change frequency <adjustment frequency>: 47 / 63Hz

(3) Maximum input current ：

Maximum 10Arms under any input voltage and rated value. DC output rated load

When the input AC voltage is the lower limit voltage of the rated value and the load is fully loaded, the maximum input AC current is 10A.

(4) Surge current ：

A maximum of 80 amps is used for cold start with 240Vac input under rated load and 25°C environment.

When the output is rated load, the ambient temperature is 25°C, and the input 240Vac cold start, the maximum surge current is less than 80A.

(5) AC leakage current ：

Maximum 0.25 mA under 240Vac input.

When the input voltage is 240Vac, the maximum leakage current is 0.25mA.

2. Output characteristics：

(1) Output power：

Minimum voltage, maximum load, peak load

M5V 0.02A 0.05A 0.08A

D5V 0.3A 0.5A 1A

+ 12V 0.1A 0.2A 0.5A

-12V 0.1A 0.2 A 0.3A

-30V 0.01A 0.05A 0.08A

AC3.3V 0.1A 0.2A 0.3A

+ 39.5V 2A 10A 13.5A

-39.5V 2A 10A 13.5A

 Note: The continuous working time cannot exceed 1 minute when outputting the average power.

(2) Combined load/line regulation rate <load characteristic/regulation rate>:

Voltage line regulation rate load regulation rate

M5V±3%±5%

D5V±3%±5%

+ 12V±5%±10%

-12V±5%±10%

-30V±5%±10%

AC3.3V±5%±10%

+ 39.5V±3%±5%

-39.5V±3%±5%

(3) Ripple and noise：

Voltage ripple and noise (maximum)

M5V 60mVp-p

D5V 60mVp-p

+ 12V 120mVp-p

-12V 120mVp-p

-30V 250mVp-p

+39.5V 400mVp-p

-39.5V 400mVp-p

When measuring with Max, the ripple and noise are as follows. The bandwidth is 20MHz, and the behavior is 47uF/0.1uF, cross-connected at the test point.

Test conditions: Under normal working conditions of any load, use an oscilloscope with a bandwidth of 20MHz to connect to the output of the charger,

At the same time, the output terminal is connected in parallel with a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor.

(4) rise time：

Output voltage 120Vac & full load 220Vac & full load

M5V 150ms 15ms

D5V 150 ms 15 ms
+ 12V 150ms 150ms

-12V 150 milliseconds 15 milliseconds

-30V 150 milliseconds 150 milliseconds

AC3.3V 150 milliseconds 150 milliseconds

+ 39.5V 300ms 500ms

-39.5V 300 milliseconds 500 milliseconds

(5) Hold time：

Output voltage 180Vac & full load 240Vac & full load

M5V 10ms 15ms

D5V 10 milliseconds 15 milliseconds

+ 12V 10 milliseconds 15 milliseconds

-12V 10 milliseconds 15 milliseconds

-30V 10 milliseconds 15 milliseconds

AC3.3V 10 milliseconds 15 milliseconds

+ 39.5V 10 milliseconds 15 milliseconds

-39.5V 10 milliseconds 15 milliseconds

(6) Efficiency ：

The lowest 85% is the maximum load at 180Vac input and output.

When inputting 180Vac and outputting maximum load, the minimum is 85%

The lowest 86% is the maximum load at 240Vac input and output.

When inputting 240Vac and outputting maximum load, the minimum is 86%

 (7) Overshoot：

Up to 10% when the power is turned on or off.

When the power is turned on or off, the maximum is 10%

(8) Standby (standby function)

 In standby, the power supply will cut off D6V. + 12V.-12V, -30V, AC3.3V + 40V -40V

When the STB is clicked, the power supply will turn off D6V. + 12V.-12V, -30V, AC3.3V + 40V -40V

(9) Protection function

In the event of a short circuit, the power supply will enter the protection state. And automatically resume work when the short circuit is removed from the power supply

When any output terminal power supply is short-circuited, it will enter the protection state, and the circuit will resume normal operation after the short-circuit is removed.

(10) Fan control Fan control

 When the volume is 8DB, the fan starts and the speed is low. When the power output of the power amplifier is 7±3V, the fan works normally.

The fan starts and runs at low speed when the volume is 8; when the power amplifier output is 7±3V, the fan runs normally

(11) Working frequency

Power supply oscillation frequency: 53±0.5KHZ

The power supply oscillation frequency is 53±0.5KHZ

3. safety

1. Insulation resistance <insulation resistance>:

Input to output: DC500V 50MQ min (room temperature)

Input to FG: DC500V 50MQ minutes (at room temperature)

Output to FG: non-isolated

2. Insulation withstand voltage :

Input to output: 3000Vac 50Hz 1 minute≤5mA

Input to FG: DC500V 50MQ minutes (at room temperature)

Output to FG: non-isolated

3. Safety standard :

4. Environmental requirements :

1. Temperature :

Working temperature:: -10℃-40℃.

Storage temperature (-20℃ to 85℃)

2. Relative humidity :

Work: relative humidity from 10% to 90% (non-condensing)

Not working: Relative humidity is 5% to 95% (non-condensing)

3. Altitude

Running <under working conditions>: to 10,

(2) Transportation <Transport>:

Operation: IEC 721-3-2

2M25-9Hz, A = 3.5mm

9~200Hz, acceleration: acceleration = 5m / S2

200~500Hz, acceleration: acceleration = 15m / S2

(3) Axis, 10 cycles per axis.

No permanent damage will occur during the test.

No permanent damage can occur during the test.

After turning on/off the power, the product must be restored to its original state

After the power is turned on and off, the prototype can be restored to its original condition.

5. Mechanical <structural parameters>:

1. Size: L200 * W150 * H75mm

Dimensions: L200 * W150 * H75mm

2. Input connector <input socket>:

The input connector is 2-pin with a pitch of 7.92mm

3. Output jack :

Pin connection <connector definition>

(1) CON2

The output jack is 5-pin with 2.0mm spacing

No: 1 2 3 4 5

Pin connection: -30V AC1 AC2 GND + 12V

(1) CON3

The output jack is 9-pin, with a spacing of 2.0mm

Number: 1 2 3 4 5 6 7 8 9

Pin connection: PTC1 PTC2 ECO M5V GND D5V -12V GND + 12V

(2) CON5

The output jack is 7pin with a pitch of 3.96mm

No: 1 2 3 4 5 6 7

Pin connection: -39V -39V GND GND GND + 39V + 39V

4. Shell <structure>: open frame <open structure>

six. Power installation <outline drawing>:

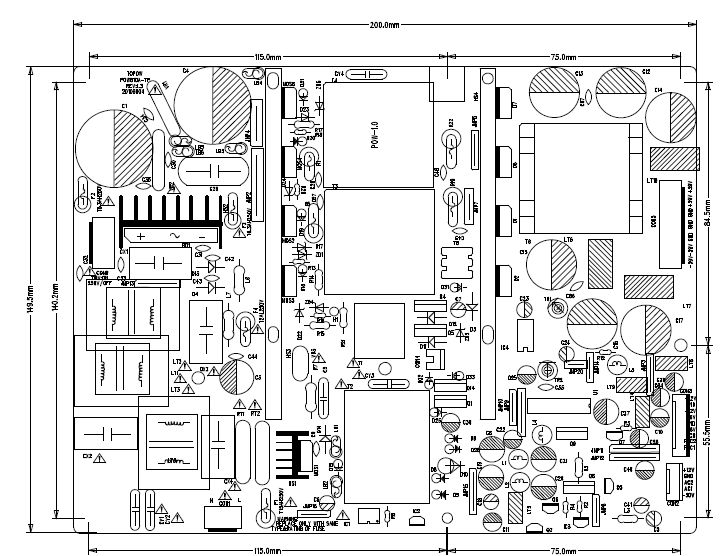

800W single power supply (Figure 1)
