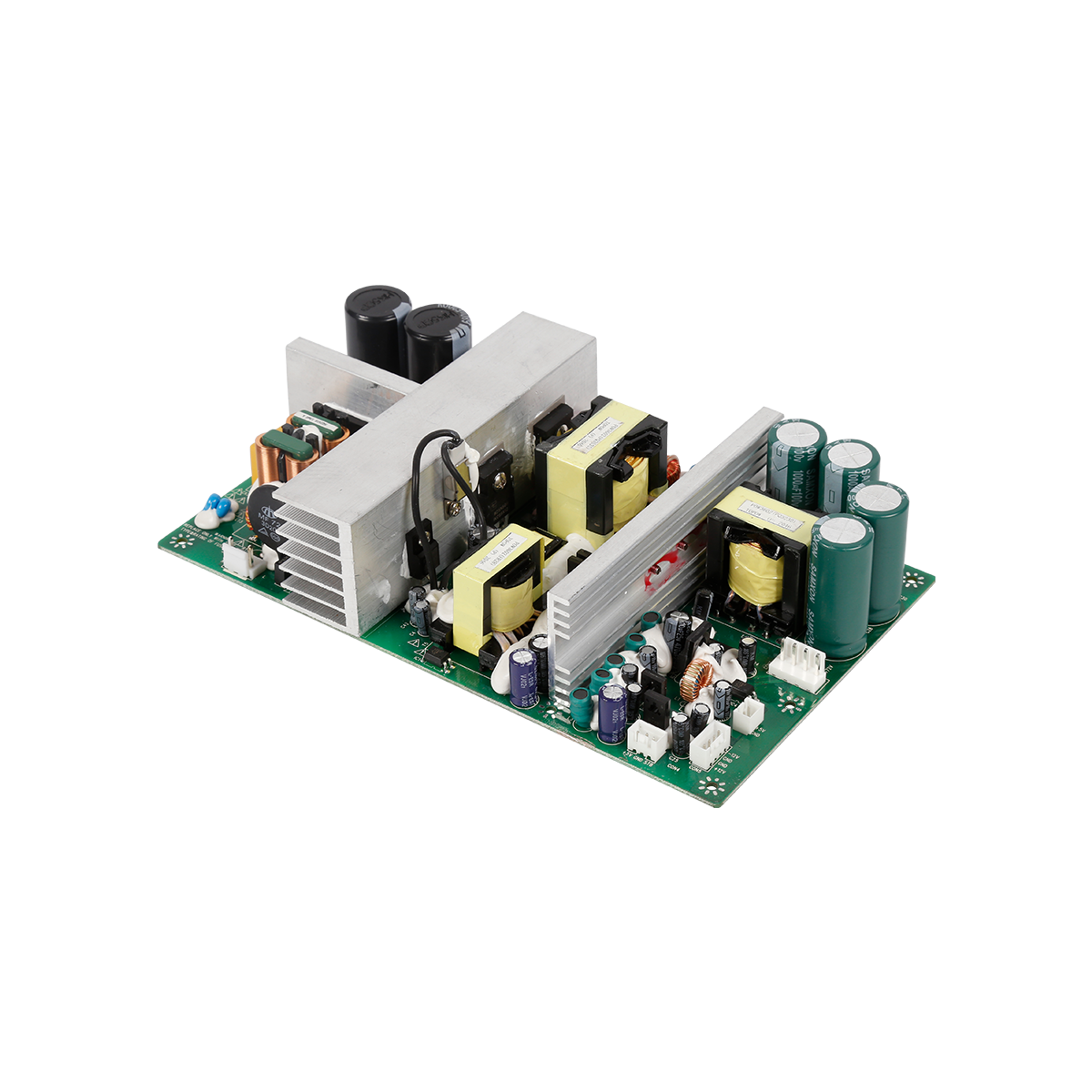

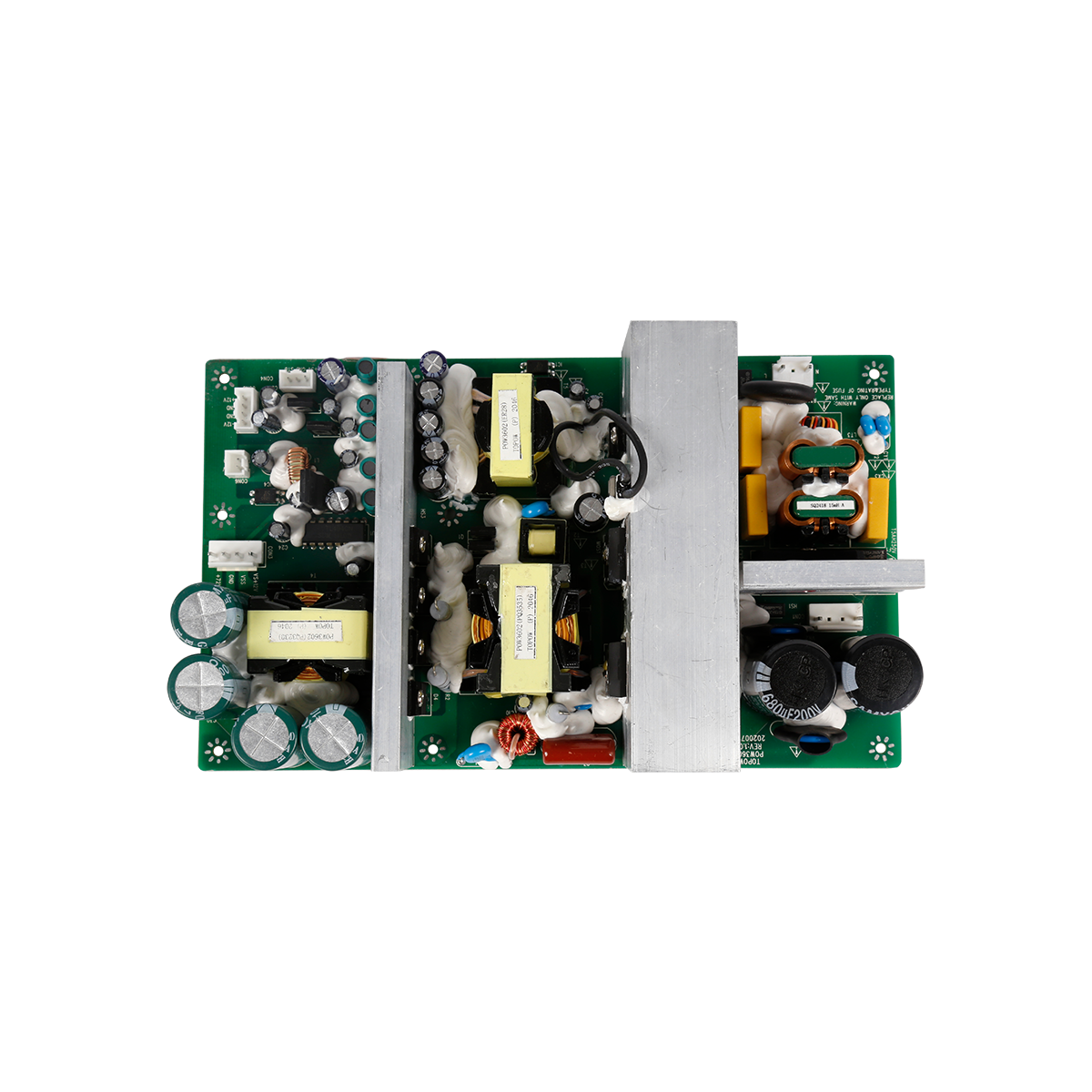

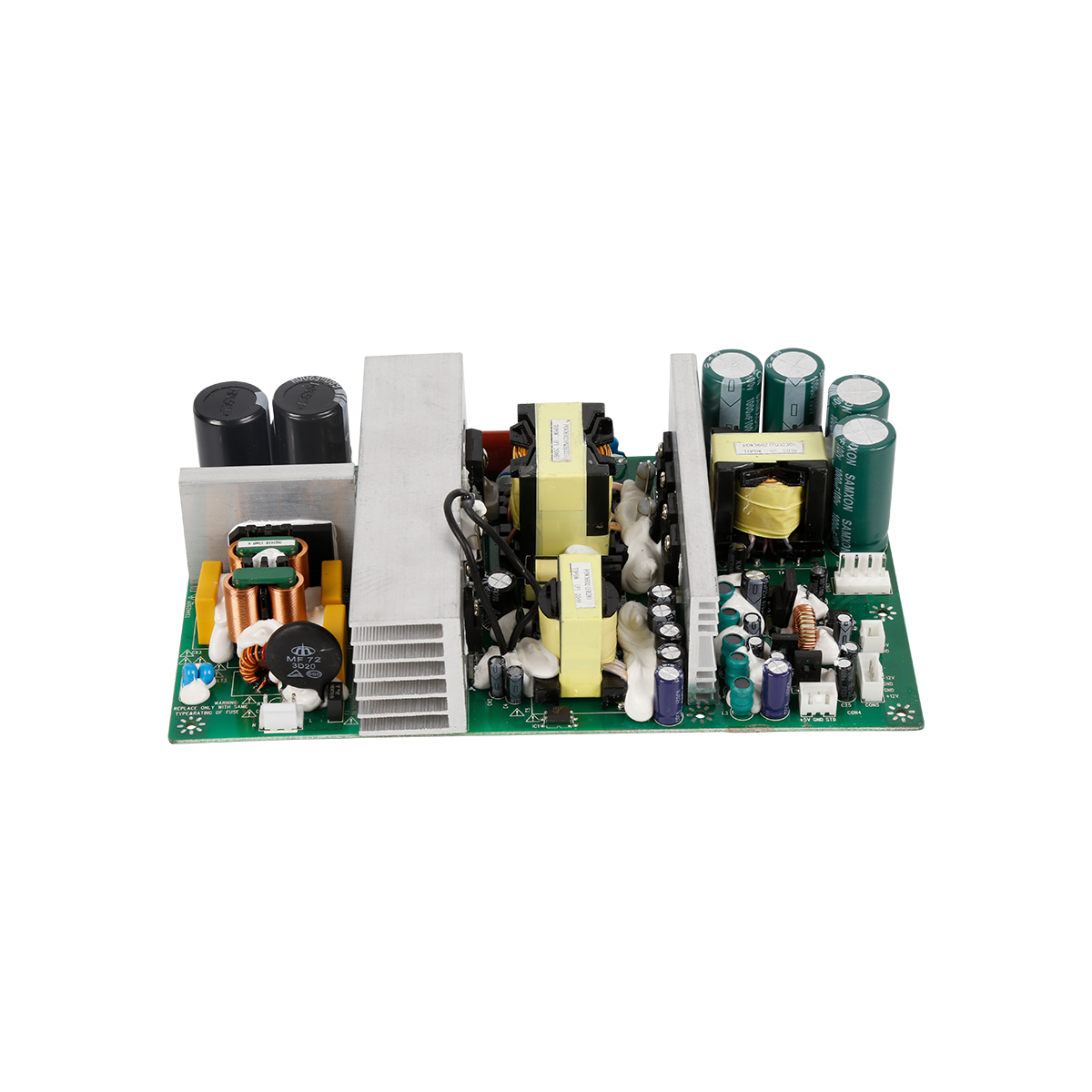

One ：Power supply overview

1. Input characteristics :

(1) Input voltage

Input voltage range <input voltage range>: 200Vac-240Vac (CON7: OFF)

Nominal voltage range: <rated input voltage range>: 180Vac-264Vac (CON7: OFF)
input voltage range : 100Vac-132Vac (CON7: ON)

Nominal voltage range: <Rated input voltage range>: 110Vac-120Vac (CON7: ON)

(2) Input frequency ：

Nominal frequency <rated frequency>: 50 / 60Hz.

Change frequency <adjustment frequency>: 47 / 63Hz

(3) Maximum input current：

Maximum 20Arms under any input voltage and rated value. DC output rated load

When the input AC voltage is the lower limit voltage of the rated value and the load is fully loaded, the maximum input AC current is 20A.

(4) Surge current：

Maximum 80 Ampere Cold start with 240Vac input under rated load and 25℃ environment.

When the output is rated load, the ambient temperature is 25°C, and the input 240Vac cold start, the maximum surge current is less than 80A.

(5) AC leakage current：

Maximum 0.25 mA under 240Vac input.

When the input voltage is 240Vac, the maximum leakage current is 0.25mA.

2. Output characteristics ：

(1) Output power：

Minimum voltage Maximum load Peak load

5V 0.12A 0.15A 0.2A

u5V 0A 0.5A 0.6A
+ 12V 0. 05A 0.1A 0.2A

-12V 0.05A 0.1 A 0.2A

+ 72V 2A 4A 5.5A

-72V 2A 4A 5.5A

VS12V 0.15A 0.2A 0.25A

Note: The continuous working time cannot exceed 1 minute when outputting the average power.

(2) Combined load/line regulation rate ：

Voltage line regulation rate load regulation rate

5V±3%±5%

U5V±3%±5%

+ 12V±5%±10%

-12V±5%±10%

+ 72V±5%±10%

-72V±5%±10%

VS12V±5%±10%

(3) Ripple and noise :

Voltage ripple and noise (maximum)

5V 60mVp-p

U5V 60mVp-p

+ 12V 120mVp-p

-12V 120mVp-p

+ 72V 800mVp-p

-72V 800mVp-p

VS12V 120mVp-p

When measuring with Max, the ripple and noise are as follows. The bandwidth is 20MHz, and the behavior is 47uF/0.1uF, cross-connected at the test point.

Test conditions: Under normal working conditions of any load, use an oscilloscope with a bandwidth of 20MHz to connect to the output of the charger,

At the same time, the output terminal is connected in parallel with a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor.

(4) rise time：

Output voltage 120Vac & full load 220Vac & full load

5V 150 milliseconds 15 milliseconds

U5V 150ms 15ms

+ 12V 150ms 150ms

-12V 150 milliseconds 15 milliseconds

+ 72V 300ms 500ms

-72V 300 milliseconds 500 milliseconds

VS12V 300 ms 300 ms

(5) Hold time ：

Output voltage 180Vac & full load 240Vac & full load

5V 10 milliseconds 15 milliseconds

U5V 10 milliseconds 15 milliseconds

+ 12V 10 milliseconds 15 milliseconds
-12V 10 milliseconds 15 milliseconds

+ 72V 10ms 15ms

-72V 10 milliseconds 15 milliseconds

VS12V 10 milliseconds 15 milliseconds

(6) Efficiency ：

The minimum 85% is the maximum load at 180Vac input and output.

When inputting 180Vac and outputting maximum load, the minimum is 85%

The lowest 86% is the maximum load at 240Vac input and output.

When inputting 240Vac and outputting maximum load, the minimum is 86%

(7) Overshoot ：

Up to 10% when turning the power on or off.

When the power is turned on or off, the maximum is 10%

(8) Standby (standby function)
When in standby, the power will be cut off. +12V.-12V, +72V -72V VS12V 58V

When the STB is clicked, the power supply will turn off D5V. +12V.-12V, +72V -72V -58V

Two ：(safety specifications)

1. Insulation resistance ：

Input to output: DC500V 50MQ min (room temperature)

Input to FG: DC500V 50MQ minutes (at room temperature)

Output to FG: non-isolated

2. Insulation withstand voltage：

Input to output: 3000Vac 50Hz 1 minute≤5mA

Input to FG: DC500V 50MQ minutes (at room temperature)

Output to FG: non-isolated

3. Safety standard：

Three：Environmental requirements :

1. Temperature <ambient temperature>:

Working temperature : -10℃-40℃.

Storage temperature (-20℃ to 85℃)

2. Relative humidity <ambient humidity>:

Work: relative humidity from 10% to 90% (non-condensing)

Not working: Relative humidity is 5% to 95% (non-condensing)

3. Altitude

Operating <under working conditions>: to 10,000 feet

Not working <under non-working conditions>: to 20,000 feet

4. Cooling method：

Convection air <natural cooling>

5. Vibration ：

(1) Operation: IEC 721-3-3 3M3

Test standard: International Electrotechnical and Electronics Commission

5~9Hz, A = 1.5mm acceleration: 9~200Hz, acceleration 5m/s2

(2) Transportation：

Operation: IEC 721-3-2

2M25-9Hz, A = 3.5mm

9~200Hz, acceleration: acceleration = 5m / S2

200~500Hz, acceleration: acceleration = 15m / S2

(3) Axis, 10 cycles per axis.

No permanent damage will occur during the test.

No permanent damage can occur during the test.

After turning on/off the power, the product must be restored to its original state

After the power is turned on and off, the prototype can be restored to its original condition.

Four：Mechanical <structural parameters>:

1. Size: L210 * W125 * H45mm

Dimensions: L210 * W125 * H45mm

2. Input connector <input socket>:

The input connector is 2-pin with a pitch of 7.92mm

3. Output jack <output socket>:

Pin connection <connector definition>

(1) CON3

The output jack is 4-pin with a pitch of 3.96mm

No: 1 2 3 4

Pin connection: + 72V GND -72V VS + 12V

(2) CON4

The output jack is 3-pin with a pitch of 2.54mm

No: 1 2 3

Pin connection: + 5V GND STB

(3) CON5,

The output jack is 4-pin with a pitch of 2.54mm

No: 1 2 3 4

Pin connection: + 12V GND GND -12V

(2) CON6

The output jack is 2-pin with 2.0mm spacing

No: 1 2

Pin connection: GND U5V

4. Shell <structure>: open frame <open structure>

Fives.
Power installation <outline drawing>:
