Product

>
<

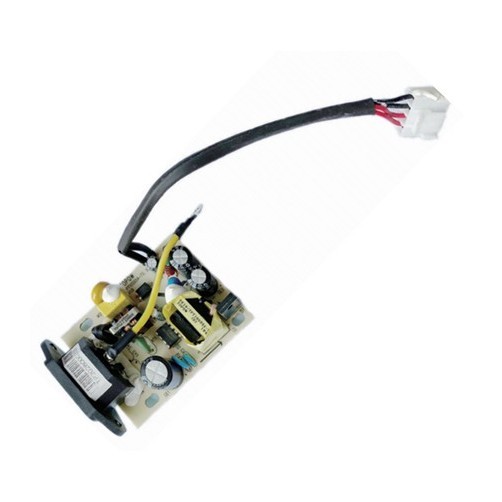

10W Open Frame Power Supply

TPT10S05A

Model Number: TPT10S05A

Input voltage range: 100~240Vac

Output: 5V2A

Working Temperature: -10 to +50°C

Size: 73mm*50mm*28mm

Single Output

Efficiency:>73%

Output Protection: OCP/OSP/OLP

RoHS Compliant

lEC 60950/62368

EMI Class B

Leakage Current: Less than 3.5mA

Product Detail

1. POWER SUPPLY OVERVIEW:

1.1 INPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.1.1 Input voltage range: 90Vac to 264Vac

1.1.2 Nominal input Normal voltage range: 100Vac-240Vac

1.1.3 Standby power Loss: ≤0.3W at 115Vac And 230Vac No load

1.1.3 Full load input current Max input ac current:0.5Amax at full load condition

1.1.4 Inrush current: MAX60A (Cold start), 230Vac input

1.1.5 Efficiency: 73% min at 115Vac/60Hz or 230Vac/50Hz, full load condition;

1.1.6 Leakage Current: Less Than 3.5mA,230Vac input

1.1.7 Input Fuse: T2A/250Vac

1.2 OUTPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.2.1 OUTPUT VOLTAGE RANGE

Output Voltage

Min value

Normal value

Max value

Requirements

Vout

4.75V

5V

5.25V

Vin=100Vac240Vac

Io=2A

1.2.2 OUTPUT CURRENT RANGE

Output Current

Min value

Normal value

Max value

Requirements

Iout

0A

/

2A

Vin=100Vac240Vac

1.2.3 LINE REGULATION

Line Regulation

Min value

Normal value

Max value

Requirements

Vout: 5V

/

±2%

/

Vin=100Vac240Vac Io=2A

1.2.4 LOAD REGULATION

Load Regulation

Min value

Normal value

Max value

Requirements

Vout: 5V

/

±5%

/

Vin=100Vac~240Vac Io=2A

1.2.5 OUTPUT VOLTAGE TOLERANCE

Output voltage tolerance

Min value

Normal value

Max value

Requirements

Vout: 5V

/

/

±5%

Vin=100Vac~240Vac Io=2A

1.2.6 OUTPUT RIPPLE & NOISE

Output Voltage

Ripple & Noise (Max.)

Vout: 5V

80mVp-p@25

Note: 1) Measurements shall be made with an oscilloscope with 20MHz bandwidth.

2) Outputs shall be bypassed at the connector with a 0.1Uf ceramic capacitor and a 10Uf electrolytic capacitor to simulate system loading.

1.2.7 OUTPUT TRANSIENT RESPONSE

Voltage regulation

Slew Rate

Test Condition: Load Changing Scope

5V ±5%;

0.2A/us

25% to 50% load and 50% to 75% load

1.2.8 OUTPUT OVERSHOOT


Output Overshoot

Min value

Normal value

Max value

Requirements

Vout: 5V

/

/

±5%

Iout=0A-2A

1.2.9 TURN ON TIME



Turn on time

Min value

Normal value

Max value

Requirements

Vout: 5V

/

/

3S

Vin=100Vac and 240Vac Io=2A

1.2.10 OUTPUT HOLD TIME



Output Hold Time

Min value

Normal value

Max value

Requirements

Vout: 5V

/

10mS

/

Vin=115Vac and 230Vac

 Io=2A

1.2.11 OUTPUT RISE TIME



output Rise time

Min value

Normal value

Max value

Requirements

Vout: 5V

/

20mS

/

Vo=10%-90% Io=2A


1.3 Protection function PROTECTION:

1.3.1 OUTPUT OVER CURRENT PROTECTION

Output over current Protection

Min value

Normal value

Max value

Requirements

Vout: 5V

2.5A

/

4A

Hiccup  Auto-recovery mode

1.3.2 OUTPUT SHORT CIRCUIT PROTECTION.

Output Short Circuit Protection

Comments


Hiccup  Auto-recovery mode

1.3.3 OVER TEMPERATURE PROTECTION


Over temperature protection

Temperature range

Comments


/

/


2. Insulation performance ISOLATION

2.1 ISOLATION RESISTANCE

Requirements

Parameter value

Note

500VDC/25/70%RH

50MΩ

I/P-O/P,I/P-FG,O/P-FG

2.2 ISOLATION WITHSTANDING VOLTAGE

Parameter name

Parameter value

Note

Input To Output

3000Vac/10mA/1min

No breakdown or flashover phenomenon

Input To PG

1500Vac/10mA/1min

No breakdown or flashover phenomenon

Output To PG

500Vac/10mA/1min

No breakdown or flashover phenomenon

3. Safety requirements:

The design meets the requirements of UL60950 and CB60950 standards.

 Design in accordance with UL60950 and CB60950 the requirements of the standard.

4. Electromagnetic compatibility EMC

4.1 Electromagnetic Interference EMI

The electromagnetic interference of the power supply meets the following rules:

1) Conduction Emission: EN55022, CLASS B

2) Radiated Emission: EN55022, CLASS B

3) Harmonics: *GB17625.1/ IEC/EN61000-3-2

4) Voltage flicker Flicker & Fluctuation: *GB17625.2/ IEC/EN 61000-3-3

4.2 Electromagnetic immunity EMS

The electromagnetic immunity of the power supply meets the following rules:

1) Electrostatic immunity ESD: *GB17626.2-1998/IEC61000-4-2/ EN 61000-4-2

2) Burst anti-interference EFT: *GB17626.4-1998/IEC61000-4-4 3KV /EN 61000-4-4,

3) Lightning surge: *GB17626.5-1998/IEC61000-4-5 /EN 61000-4-5

Differential mode: 1KV Common mode: 2KV.

4) Voltage Dips: *EN 61000-4-11, IEC 1000-4-11:2001.

5) Radiation immunity RS: *GB17626.3-1998/IEC61000-4-3/ EN 61000-4-3

6) Conducted immunity CS: *GB17626.6-1998/IEC61000-4-6 /EN61000-4-6

7) Power frequency magnetic field immunity PMS: *GB17626.8-1998/IEC61000-4-8 /EN61000-4-8

5. Working environment

5.1 Products (E-CAP) life calculation MTBF

Lx=Lo*2^((To-Tx)/10) @ 40℃ 5 Year (Over 44000 hours)

5.2 Ambient temperature

5.2.1 Operating temperature: 0℃ to +40℃.

5.2.2 Storage temperature: -10℃ to +60℃.

5.3 Ambient humidity

5.3.1 Operating: From 10%to90% relative humidity (non-condensing).

5.3.2 Store: From 5 to 95% relative humidity (non-condensing).

5.4 Altitude

5.4.1 Operating: to10,000 ft.

5.4.2 Store: to 20,000ft.

5.5 Cooling method:

      Natural cooling.

5.6 Vibration test

      10-55Hz, 49.0m/s²(5G), 3minutes period, 60minutes each along X, Y and Z axis.

5.7 Impact test

196.1m/s²(20G),11ms, once each X, Y and Z axis.

6. Connector pin definition

6.1.Pin-CON1 AC Connection And Function TYPE:DB-14-1P-33

NO

Pin Connection

Function

1

L

L-INPUT

2

N

N-INPUT

3

PE

PE

6.2.Pin-CON2 Connection And Function TYPE: 3.96MM*2PIN

NO

Pin Connection

Function

1

V+

+5V

2

V-

GND

7. Block schematic diagram

8. Curve chart

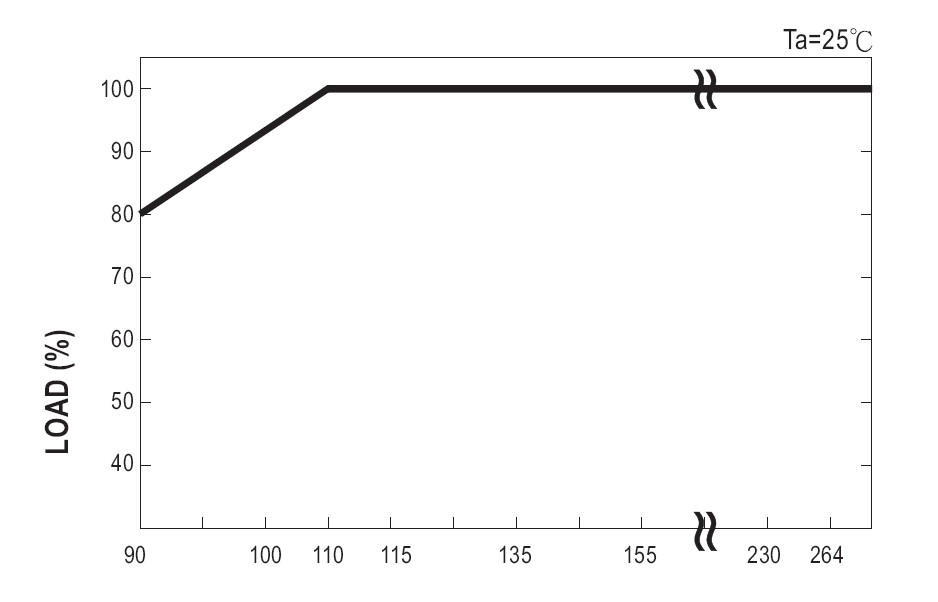

8.1 Derating curve

10W Open Frame Power Supply(图1)

9. Weight:

10. Chart(Unit: mm)

10.1 Wire dtawing (wire drawing)

10.1.1 DC Output figure

10.2 Dimension: 73mm X 50mm (length L * width W *).

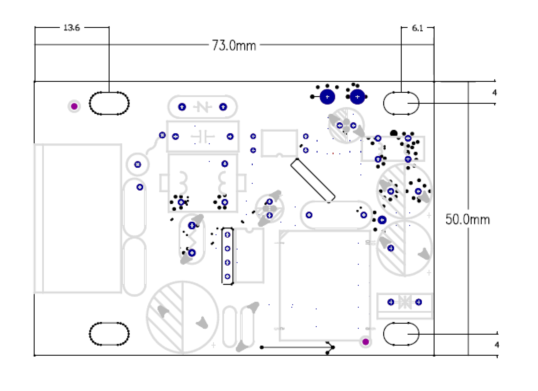

10.3 Overlayout and Outline dimensions (Tolerance: ±0.5mm)

10W Open Frame Power Supply(图2)
