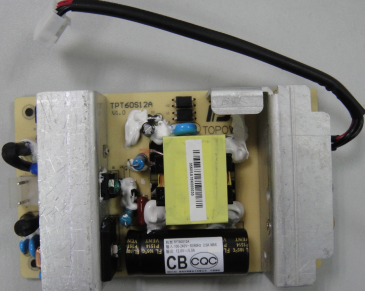

60W bare board power supply

TPT60S12A


Product model: TPT60S12A

Input voltage range: 100~240Vac

Output voltage and current: 12V/6A

Working temperature: -40~+50℃

Size: 127mm*76.2mm*28mm

Double output efficiency>85%

Output protection: OVP/OSP/OCP/OLP

RoHS compliant

IEC 60950/62368

EMI Class B

Leakage current is less than 3.5mA

Surge: common mode 6KV, differential mode 6KV


Product Detail

General rules:

This product is an AC to DC power supply with a total power of 60W, which complies with CQC, CB (TUV RH) and EU RoHS directives.

1. Input characteristics

1.1 Input voltage, current, frequency range

Allow input

MIN

NOM

MAX

Voltage

90

100-240

300

Current



2

Frequency

47

50

63


The product should meet the requirement of 318Vac AC input without damage.

1.2 Steady-state current

       When the AC input voltage is 110V, the input current is less than or equal to 2A.

       When the AC input voltage is 220V, the input current is ≤1A.

1.3 Inrush current (cold start)

Within the input conditions listed in section 1.1 and the operating environment range listed in the section, the surge current should be less than the specifications of the key components

(Such as rectifier bridge, fuse). Repeated switching of the power supply will not cause damage to the power supply or blown fuse (meet standard requirements:

ETSI300132-3).

1.4 Input overcurrent protection

When the input overcurrent is caused by an abnormal load or power supply, the AC side fuse will operate.

2. Output characteristics

2.1 Output voltage range


Nominal value

Vmin

Vnom

Vmax

Error

+12V

11.4

12.0

12.6

±5%

2.2 Output current range


DC output channel

Output current (A)


MIN

NOM

MAX

PEAK

+12V

0A

/

5A



In a fixed load (any value between 0~5.0A), the input power grid changes between 90~300Vac: linear adjustment rate: ≤±2%

In the fixed power grid (any value between 90~300Vac), the output load 0~5.0A change: load adjustment rate: ≤±3%

2.3 Output ripple and noise

The output voltage

Maximum ripple and noise (mVp-p)

Vout: 12V

120mV (ambient temperature 0℃-55℃)


240mV (ambient temperature -25℃-0℃)

Note: 1) The oscilloscope must be set to a bandwidth of 20 MHz

2) A ceramic capacitor of 0.1 Uf and an electrolytic capacitor of 10 Uf are connected in parallel at the output power terminal which is more than 10CM away from the power board to simulate the load test.

2.4 Power efficiency

When the input is 220Vac/50Hz, the rated output load is 2.5 to 5.0A, and the efficiency is ≥85%.

2.5 Overshoot

The DC output voltage overshoot caused when switching AC power should be less than 5% of the normal output, and no reverse polarity voltage will be generated.

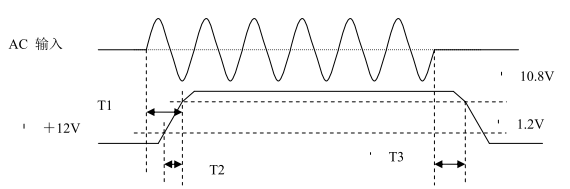

2.6 Timing

Power start time (from AC input to 90% of DC time)

T1≤3S

Voltage rise time (from 10% to 90% of output voltage)

T2≤200mS

Power-down sustaining time (rated input, and output rated load)

T3≥10mS

60W bare board power supply(图1)


2.7 Dynamic load response

Test conditions: 25%~50%~25% or 50%~75%~50% load change, current change rate 0.1A/us, cycle 4ms

Note: 1. The output is externally connected with a 1000µF capacitive load;

2. The output voltage should meet the requirements of 2.1.

2.8 Capacitive load

The rated output of the power supply is connected with a 1000µF capacitor, which should be able to boot and work normally.

3. Environment

3.1 Temperature

Operating environment temperature: -25℃~55℃ (First turn on the machine at -25℃, then lower the temperature to -40℃, the power supply can work normally)

3.2 Humidity

Use environment humidity: 5%~85%

Storage environment humidity: 5%~95% (non-condensing state) 5.3 Humidity

3.3 Altitude

Working environment height: ≤5000 meters

Storage environment height: ≤15250 meters

Project

unit

Minimum

Typical value

Max

Remarks

Operating temperature

  -25


  55

Fully loaded

Storage temperature

  -40


    85

The power is not on

Low temperature limit

Start temperature

-40




HALT low temperature

Step limit

-25



Low temperature requires full power grid (90V~300V) to start at -25℃. High temperature requirements 110 ℃ full load full power grid range. The high and low temperature experiment step and hold time are carried out according to the requirements of Huawei HALT experiment.

HALT high temperature

Step limit



110




Relative humidity



%

5


95

No power on, no condensation



5


85

No condensation during normal operation



Altitude



m



-60




5000

The power supply works for a long time, the maximum temperature of the sea level specification is 55℃, and the maximum temperature of the specification decreases by 0.33℃ for every 100m increase in altitude.


4. Output protection function

4.1 Overpower (overcurrent) protection

After power supply over power protection (equivalent to output over current protection), the power supply is in hiccup protection mode, over current protection point

6A~9A; After the power supply performs over-voltage protection, the power supply has no output and is locked, and the power supply cannot be damaged. Overpressure point

13.5~16.5V.

4.2 Short circuit protection

When the output terminal of the power supply is short-circuited to the ground, the power supply can be automatically protected; after the short-circuit is removed, the power supply can be automatically restored.

5. Electromagnetic compatibility

ITEM

INDEX REQUIREMENTS

SDANDARD

Conducted interference(CE)

levelB(≥6db)

CISPR 22

Radiation interference(RE)

levelB(≥6db)

CISPR 22

AC port(CS)

0.15~80MHz:10V【80%AM(1kHz)】;(Criterion A)

IEC61000-4-6

Radiation immunity(RS)

80~1000MHz:10V/m【80%AM(1kHz)】;

1400~2700MHz:10V/m【80%AM(1kHz) 】

IEC61000-4-3

Whole machine port ESD

Contact discharge: 6kV (Class B);Air discharge: 8kV (Class B);

Contact discharge: 8kV (R level); air discharge: 15kV (R level)

IEC61000-4-2

AC port EFT/B

Index: 2kV (criterion B)

IEC61000-4-4

AC port DIP

Drop to 0%, time 10ms; 0%, time 20ms; drop to 70%, time 500ms; drop to 0%, time 5000ms; (criterion B/B/B/C);

IEC61000-4-11

AC current harmonics

Rated voltage class A

IEC61000-3-2

AC voltage fluctuation

Pst value is not greater than 1;

IEC61000-3-3

Flashing

Plt value is not greater than 0.65;

The relative voltage change dc does not exceed 3.3%;

The maximum relative voltage change dmax does not exceed 4%;

During the voltage change, the time when the d(t) value exceeds 3.3% is not more than 500ms。


 Surge

Differential mode 6kV, 2 ohms; Common mode 6kV; 2 ohms, 1.2/50 (8/20) us mixed wave;

Criterion ITU-A

ITU-T K.44

Electric shock

Differential mode ±3KA; common mode ±5KA, 8/20us waveform

ITU-T K.44

6. Security

Authentication type

Scope of application

standard

CB

CB member states

IEC60950-1

CQC

China

GB4943



ITEM

GRADE

STANDARD

(TEST CONDITIONS)

Input to output

3000Vac

Lasts for 1 minute, no breakdown, no flashover phenomenon,

Leakage current <10mA (output is not grounded)

Input to earth

1500Vac

Lasts for 1 minute, no breakdown, no flashover phenomenon,

Leakage current <10mA, remove GDT

Insulating resistance

10MΩ

Under normal temperature and pressure, the relative humidity is 90℅, and the test voltage is DC 500V, the insulation resistance of the AC part and DC part of the main circuit of the rectifier to the ground, and the insulation resistance of the AC part to the DC part are not less than 10MΩ.

 Leak current

Class I:≦3.5mA

Input 264VAC/50Hz.


7. Reliability

MTBF: 250,000 hours, working at an ambient temperature of 25°C and the rated power grid and load.

E-CAP: 10 years, working at an ambient temperature of 40℃ and rated power grid and load.

8. Special requirements

8.1 The material of the PCB board is CEM-1 single-sided board.

8.2 The input large capacitor (bit number C1) adopts 450V withstand voltage.

8.3 AC input terminal: AC input is an AC standard 2PIN terminal, and it is required to be located on the power board.

8.4 DC output: DC output cable is required to be welded directly on the power board, and the other end is a DC power connector.

8.5 DFX requirements:

a. ICT test: ICT verification device open circuit and short circuit, the test includes short circuit, open circuit; parts

b. Power-on test: rated input, test above half load, repeated power-on and power-off 4 times, monitoring of equipment with display function

The output voltage;

c. Aging test: rated input, load above 80%, 50°-/+5, according to our new product aging specification;

d. MTBF test: MTBF is tested according to our company's 250,000-hour demand;

e. 220/110VAC power supply withstand voltage test:

Pressure test

Test conditions: L+N short-connected pair secondary (including output and signal terminals) test withstand voltage 3kv; L+N short-connected pair

Protected area 1.5kv.

①: During the test, the withstand voltage equipment does not alarm;

②: The gas discharge tube must be disconnected when the leakage current does not exceed 10mA;

f. ATE test: ATE, the conventional performance test of a single unit needs to be fully covered

g. ORT test: ORT, 168 hours, 1/1000 sampling, temperature and aging are the same

h. Lightning strike sampling test: Lightning strikes, 3PCS each time, once every 3 months, test according to the required indicators;

i. Surge sampling test: Surge sampling test, 3PCS each time, once every 3 months, test according to the required indicators;

j. The power supply products need to be affixed with barcodes, which can be traced;

9. Appearance and structure

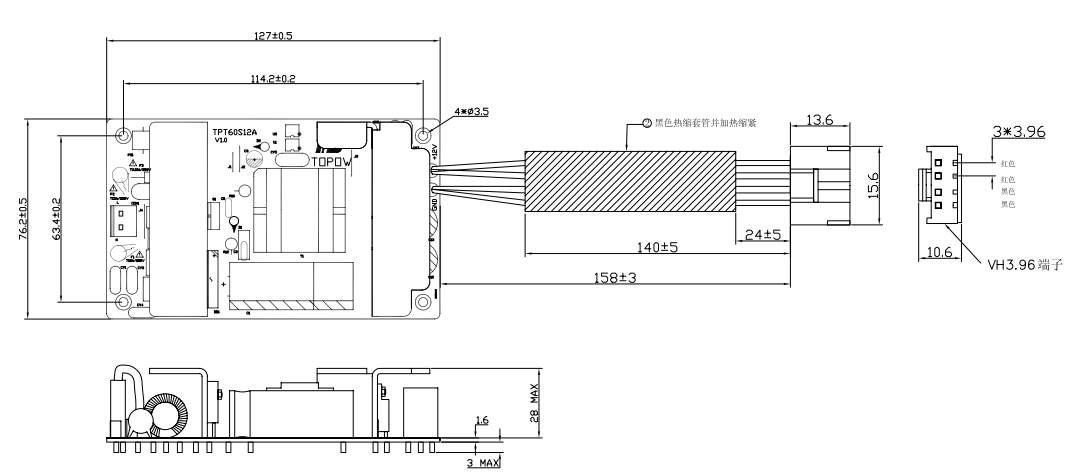

9.1 Power supply size

127mm (length) * 76.2mm (width), the tolerance is ±0.5mm; the height of tin surface pins and SMD components is controlled within 3.0

Inside, the height of all components on the PCB board (including the PCB board) is limited to 28mm.

60W bare board power supply(图2)

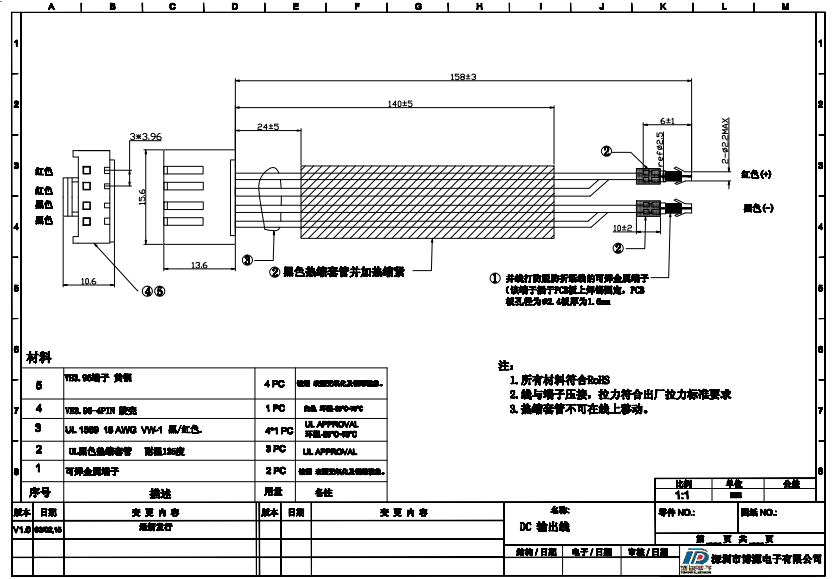

9.2 Output wiring diagram
60W bare board power supply(图3)

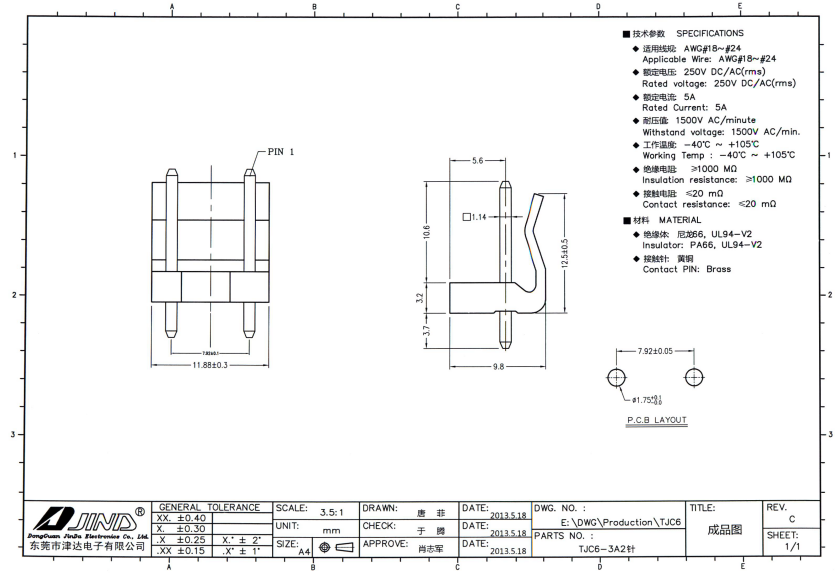

9.3 Input terminal block
60W bare board power supply(图4)

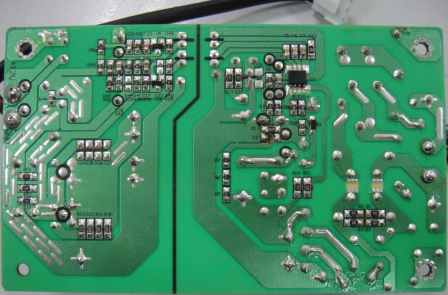

9.4 Appearance of main power supply components

The following is the possible appearance of the power supply (schematic diagram), the main components may be used alternately. Note that the dispensing process is subject to the actual product.

60W bare board power supply(图5)60W bare board power supply(图6)

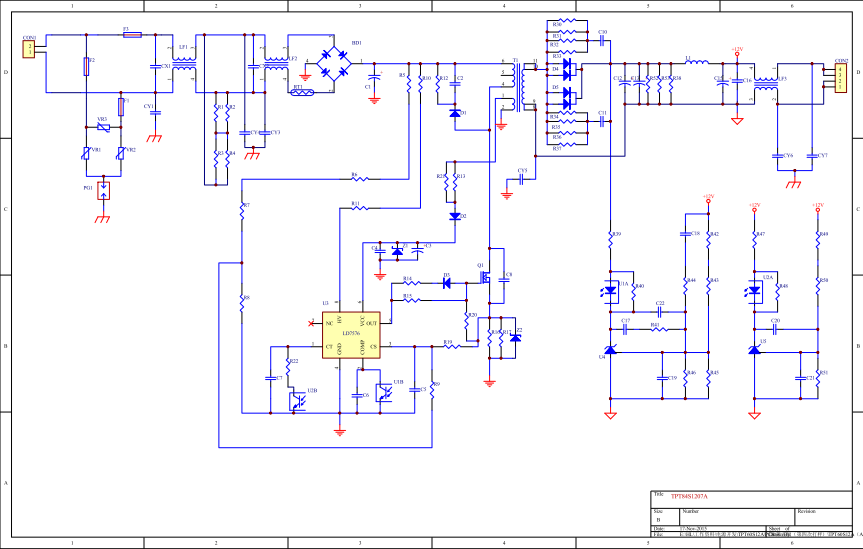

10. Circuit diagram
60W bare board power supply(图7)

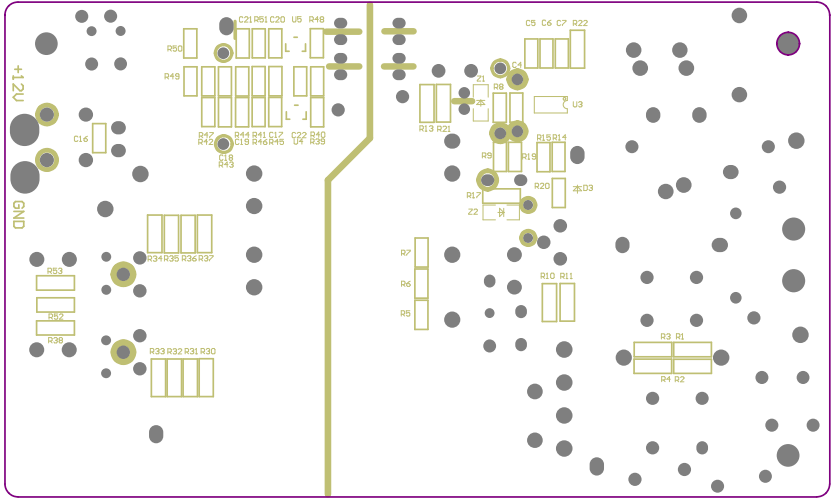

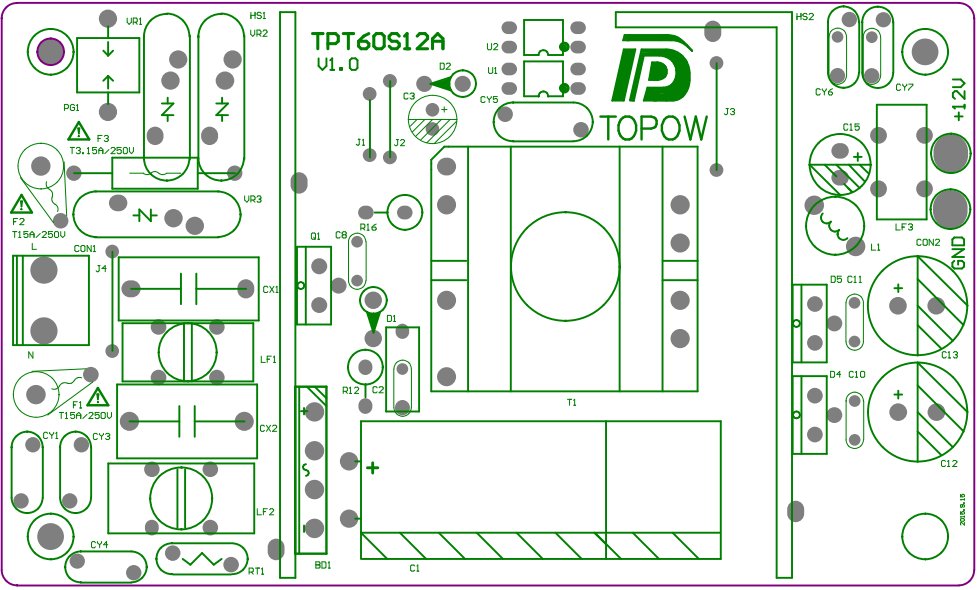

11. PCB Layout
60W bare board power supply(图8)
60W bare board power supply(图9)

12. Packing diagram

12.1 Net weight of power supply: 223 grams. (Excluding packaging materials, weight deviation ±10%)

12.2 Packing drawing

13. Barcode label description
14. Safety certificate (no safety regulations for the time being)
