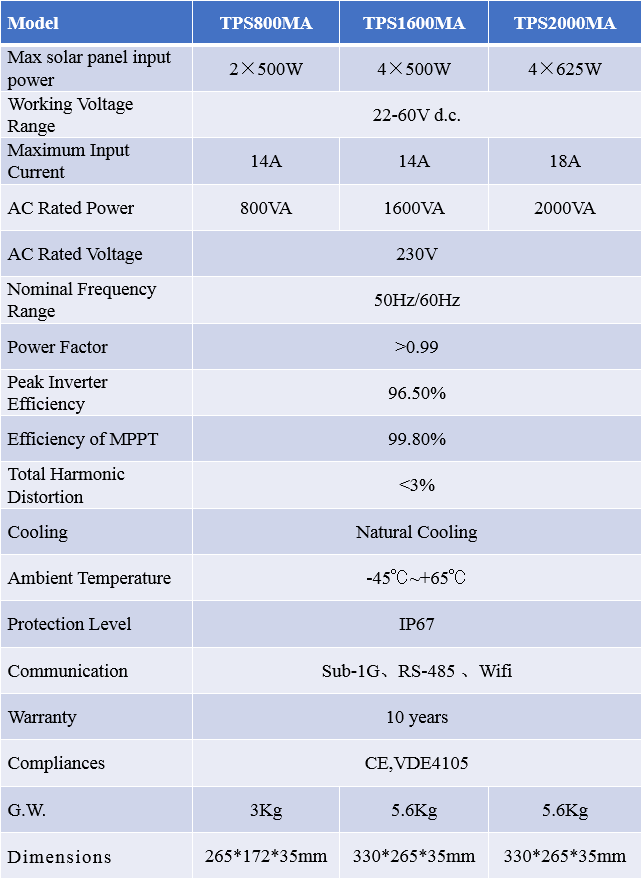

Model | TPS800MA | TPS1600MA | TPS2000MA |
Max solar panel input power | 2×500W | 4×500W | 4×625W |
Working Voltage Range | 22-60V d.c. | ||
Maximum Input Current | 14A | 14A | 18A |
AC Rated Power | 800VA | 1600VA | 2000VA |
AC Rated Voltage | 230V | ||
Nominal Frequency Range | 50Hz/60Hz | ||
Power Factor | >0.99 | ||
Peak Inverter Efficiency | 96.50% | ||
Efficiency of MPPT | 99.80% | ||
Total Harmonic Distortion | <3% | ||
Cooling | Natural Cooling | ||
Ambient Temperature | -45℃~+65℃ | ||
Protection Level | IP67 | ||
Communication | Sub-1G、RS-485 、Wifi | ||
Warranty | 10 years | ||
Compliances | CE,VDE4105 | ||
G.W. | 3Kg | 5.6Kg | 5.6Kg |
Dimensions | 265*172*35mm | 330*265*35mm | 330*265*35mm |
Model | TPS800MA | TPS1600MA | TPS2000MA |
Max solar panel input power | 2×500W | 4×500W | 4×625W |
Working Voltage Range | 22-60V d.c. | ||
Maximum Input Current | 14A | 14A | 18A |
AC Rated Power | 800VA | 1600VA | 2000VA |
AC Rated Voltage | 230V | ||
Nominal Frequency Range | 50Hz/60Hz | ||
Power Factor | >0.99 | ||
Peak Inverter Efficiency | 96.50% | ||
Efficiency of MPPT | 99.80% | ||
Total Harmonic Distortion | <3% | ||
Cooling | Natural Cooling | ||
Ambient Temperature | -45℃~+65℃ | ||
Protection Level | IP67 | ||
Communication | Sub-1G、RS-485 、Wifi | ||
Warranty | 10 years | ||
Compliances | CE,VDE4105 | ||
G.W. | 3Kg | 5.6Kg | 5.6Kg |
Dimensions | 265*172*35mm | 330*265*35mm | 330*265*35mm |
