24W 264V DC 48V Transformer Laptop SMPS POE Power supply 48 Volt 0.5 Amp desktop power adapter

Model TPT24S48A-MC

Color: Black

Plug Type: Desktop, 3PIN

Output Power: 24W

Input Voltage: 90~264VAC

Input Frequency: 47~63Hz

Output Voltage: 48V

Output Voltage Accuracy: 0.05

Output Current: 0.5A

MTBF: At least 100,000 hours

Protection: OCP, SCP

Efficiency: >82%

Inrush Current: Cold start 230VAC/80A (MAX)

Working Temperature: -10~+50°C

Safety Certification: CE, FCC

Packing: 0.21kg, 60pcs/14.8kg

Warranty Period: 2 Years

Enquiry video

Product Detail

1. POWER SUPPLY OVERVIEW:

1.1 FUNCTION CHARACTERISTICS OVERVIEW

1.1.1 Compatible with the IEEE802.3at standard (the signal of the Ethernet port still meets IEEE802.3ab after connecting to the injector);

1.1.2 Data transmission rate: 100/1000 Mbps adaptive;

1.1.3 RJ45 two pairs of network cable output, the maximum power can reach 24W

1.2 INPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.2.1 Input voltage range: 90Vac to 264Vac

1.2.2 Nominal input Normal voltage range: 100Vac-240Vac frequency 60Hz/50Hz

1.2.3 Full load input current Max input ac current: 0.8Amax at full load condition

1.2.4 Inrush current: MAX80A (Cold start), 230Vac input

1.2.5 Efficiency: 82% at 230Vac, full load condition;

1.2.6 Leakage Current: Less Than 3.5mA,230Vac input

1.2.7 Input Fuse: T3.15A/250Vac

1.3 OUTPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.3.1 OUTPUT VOLTAGE RANGE

Output Voltage

Min value

Normal value

Max value

Requirements

Vout

46.56V

48V

49.44V

V_in=100Vac～240Vac

Io=0.5A

1.3.2 OUTPUT CURRENT RANGE

Output Current	Min value	Normal value	Max value	Requirements
Iout	0A	/	0.5A	V_in=100Vac～240Vac

1.3.3 LINE REGULATION

Line Regulation	Min value	Normal value	Max value	Requirements
Vout: 48V	/	±3%	/	V_in=100Vac～240Vac Io=0.5A

1.3.4 LOAD REGULATION

Load Regulation	Min value	Normal value	Max value	Requirements
Vout: 48V	/	±3%	/	Vin=100Vac~240Vac Io=0.5A

1.3.5 OUTPUT VOLTAGE TOLERANCE

Output voltage tolerance	Min value	Normal value	Max value	Requirements
Vout: 48V	/	/	±3%	Vin=100Vac~240Vac Io=0.5A

1.3.6 OUTPUT RIPPLE & NOISE

Output Voltage	Ripple & Noise (Max.)
Vout: 48V	300mVp-p@25℃

Note: 1) The oscilloscope must be set to a bandwidth of 20 MHz

2) A ceramic capacitor of 0.1 Uf and an electrolytic capacitor of 10 Uf are connected in parallel at the output power terminal which is more than 10CM away from the power board to simulate the load test.

Note: 1) Measurements shall be made with an oscilloscope with 20MHz bandwidth.

2) Outputs shall be bypassed at the connector with a 0.1Uf ceramic capacitor and a 10Uf electrolytic capacitor to simulate system loading.

1.3.7 OUTPUT TRANSIENT RESPONSE

Voltage regulation	Slew Rate	Test Condition: Load Changing Scope
48V ±3%;	0.2A/us	25% to 50% load and 50% to 75% load

1.3.8 OUTPUT OVERSHOOT

Output Overshoot	Min value	Normal value	Max value	Requirements
Vout: 48V	/	/	±3%	Iout=0A-0.5A

1.3.9 TURN ON TIME

Turn on time

Min value

Normal value

Max value

Requirements

Vout: 48V

Vin=230Vac

Io=0.5A

1.3.10 OUTPUT HOLD TIME

Output Hold Time	Min value	Normal value	Max value	Requirements
Vout: 48V	/	10mS	/	Vin=100Vac Io=0.5A

1.3.11 OUTPUT RISE TIME

output Rise time	Min value	Normal value	Max value	Requirements
Vout: 48V	/	30mS	/	Vo=10%-90% Io=0.5A

1.4 Protection function PROTECTION:

1.4.1 OUTPUT OVER CURRENT PROTECTION

Output over current Protection	Min value	Normal value	Max value	Requirements
Vout: 48V	0.6A	/	1.1A	Hiccup Auto-recovery mode

1.4.2 OUTPUT SHORT CIRCUIT PROTECTION.

Output Short Circuit Protection	Comments
	Hiccup Auto-recovery mode

2. Insulation performance ISOLATION

2.1 ISOLATION RESISTANCE

Requirements	Parameter value	Note
500VDC/25℃/70%RH	≥100MΩ	I/P-O/P

2.2 ISOLATION WITHSTANDING VOLTAGE

Parameter name	Parameter value	Note
Input To Output	3000Vac/10mA/3S	No breakdown or flashover phenomenon

3. Safety requirements SAFETY:

The design meets the requirements of UL60950 and EN60950 standards.

Design in accordance with UL60950 and EN60950 the requirements of the standard.

4. Electromagnetic compatibility EMC

4.1 Electromagnetic interference EMI

The electromagnetic interference of the power supply meets the following rules:

The power supply shall comply with the following Criterion:

1) Conduction Emission: EN55022, CLASS B

2) Radiated Emission: EN55022, CLASS B

3) Harmonics: *GB17625.1/ IEC/EN61000-3-2

4) Voltage flicker Flicker & Fluctuation: *GB17625.2/ IEC/EN 61000-3-3

4.2 Electromagnetic immunity EMS

The electromagnetic immunity of the power supply meets the following rules:

The power supply shall comply with the following Criterion:

1) Electrostatic immunity ESD: *GB17626.2-1998/IEC61000-4-2/ EN 61000-4-2

2) Burst anti-interference EFT: *GB17626.4-1998/IEC61000-4-4 3KV /EN 61000-4-4,

3) Lightning surge Surge: *GB17626.5-1998/IEC61000-4-5 /EN 61000-4-5

4) Voltage Dips: *EN 61000-4-11, IEC 1000-4-11:2001.

5) Radiation immunity RS: *GB17626.3-1998/IEC61000-4-3/ EN 61000-4-3

6) Conducted immunity CS: *GB17626.6-1998/IEC61000-4-6 /EN61000-4-6

7) Power frequency magnetic field immunity PMS: *GB17626.8-1998/IEC61000-4-8 /EN61000-4-8

5. Working environment ENVIRONMENTAL REQUIREMENT

5.1 Products (E-CAP) life calculation MTBF

Lx=Lo*2^((To-Tx)/10) @ 50℃ 5 Year (Over 44000 hours)

5.2 Ambient temperature

5.2.1 Operating temperature Operating: -10℃ to +50℃.

5.2.2 Storage temperature Store: -20℃ to +70℃.

5.3 Humidity

5.3.1 Operating: From 10%to90% relative humidity (non-condensing).

5.3.2 Store: From 5 to 95% relative humidity (non-condensing).

5.4 Altitude

5.4.1 Operating: to10,000 ft.

5.4.2 Store: to 20,000ft.

5.5 Cooling Method:

Natural cooling Ventilation cooling.

5.6 Vibration Testing

10-55Hz, 49.0m/s²(5G), 3minutes period, 60minutes each along X, Y and Z axis.

5.7 Impact Testing

196.1m/s²(20G),11ms, once each X, Y and Z axis.

6. Connector pin definition PIN CONNECTION

Serial number		symbol	Pin meaning
1	AC	φ3 Green light	AC input indication
2	PORT	φ3 Green light	Power output indication
3	DATA IN	Standard Ethernet interface: data input
4	DATA&POWER OUT	Standard Ethernet interface: data/power output	3/6(+),1/2(-)
5	Power socket	3C certification

7. Diagram

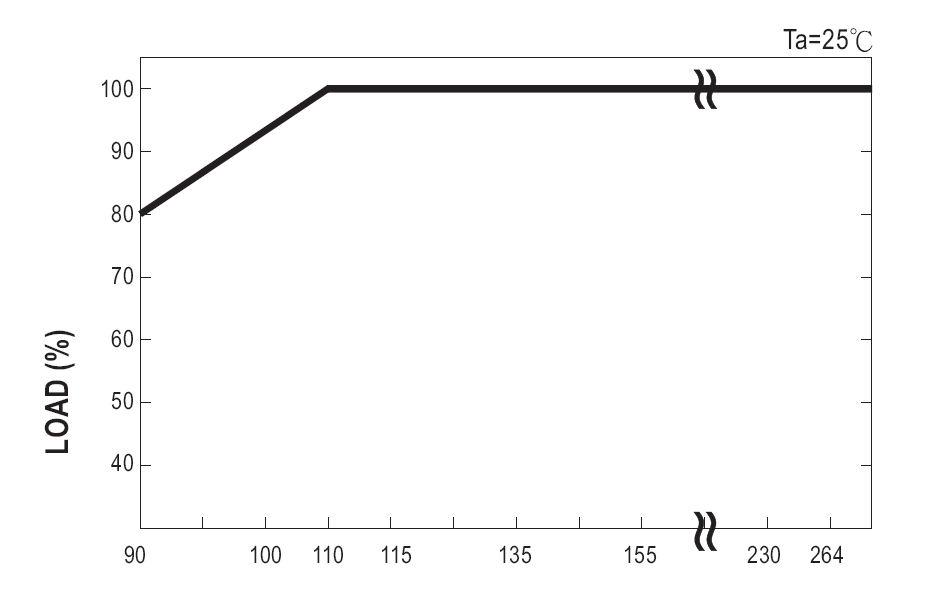

8.1 Drop curve chat

24W 264V DC 48V Transformer Laptop SMPS POE Power supply 48 Volt 0.5 Amp desktop power adapter(图1)

8. Weight: Net weight: 221g

9. Chart(Unit: mm)

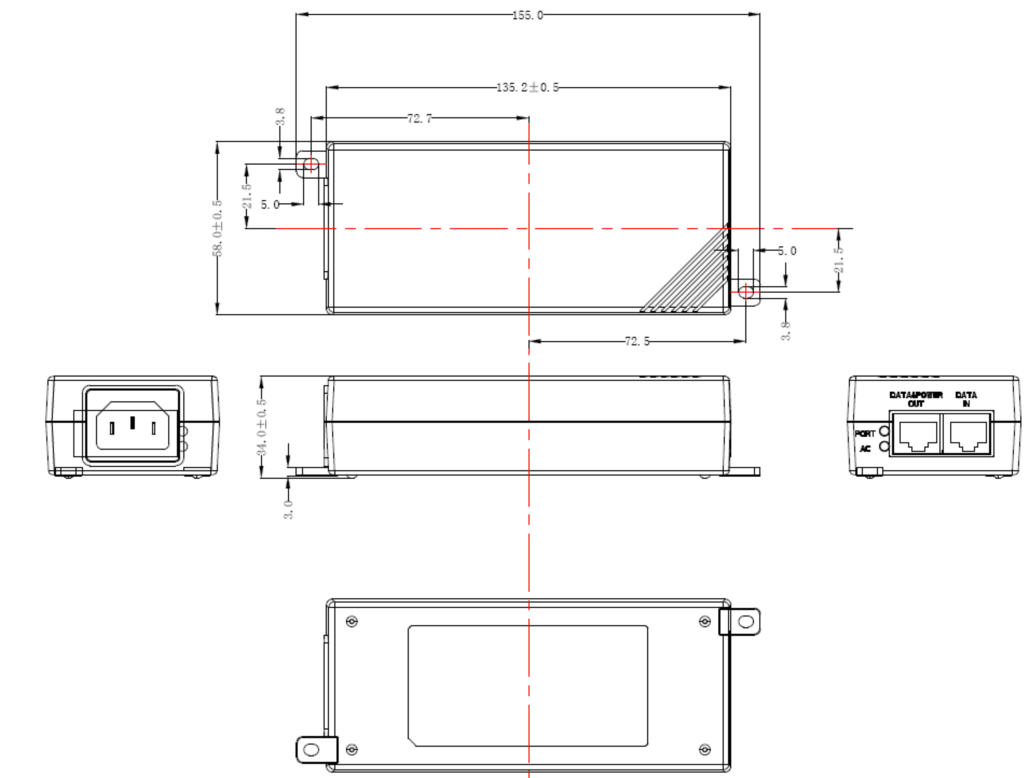

10.1 Dimensions

24W 264V DC 48V Transformer Laptop SMPS POE Power supply 48 Volt 0.5 Amp desktop power adapter(图2)

Note:

Size: 135.2mm X 58mm X 34mm (length L * width W * height H).

Tolerance: ±0.5mm

Material: PC

Fire rating: 94V-0

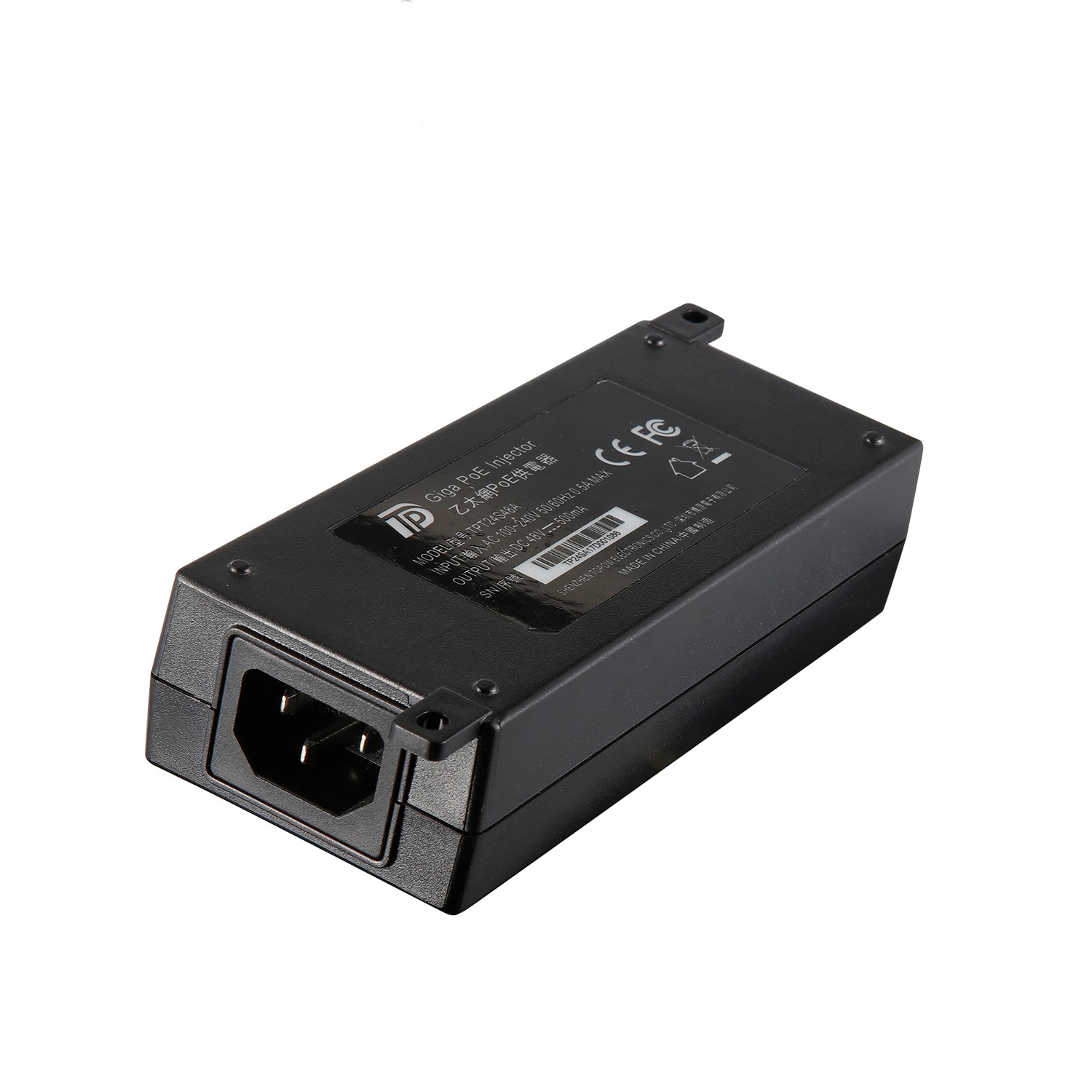

10. The physical picture of the whole machine

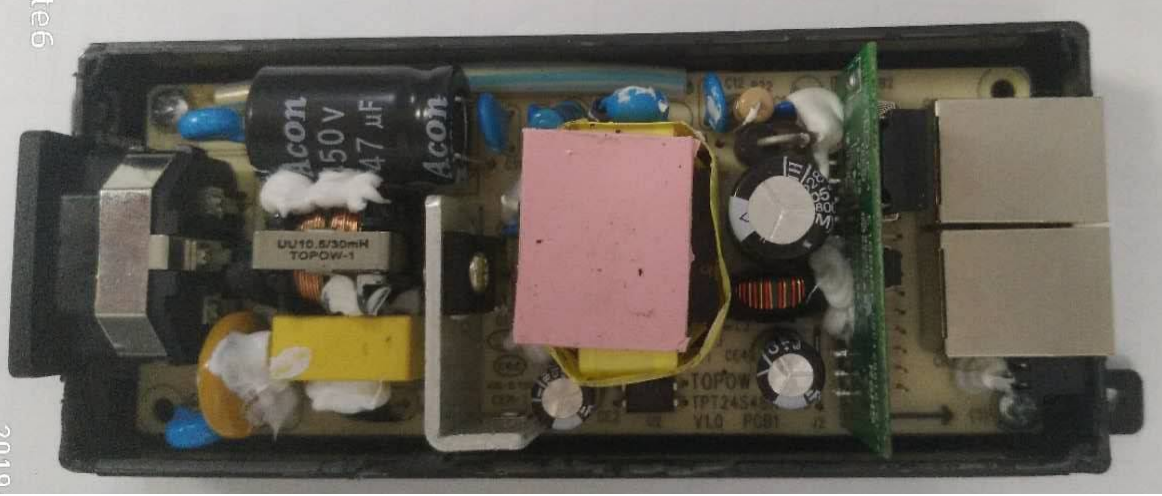

1. Internal assembly drawing:

24W 264V DC 48V Transformer Laptop SMPS POE Power supply 48 Volt 0.5 Amp desktop power adapter(图3)

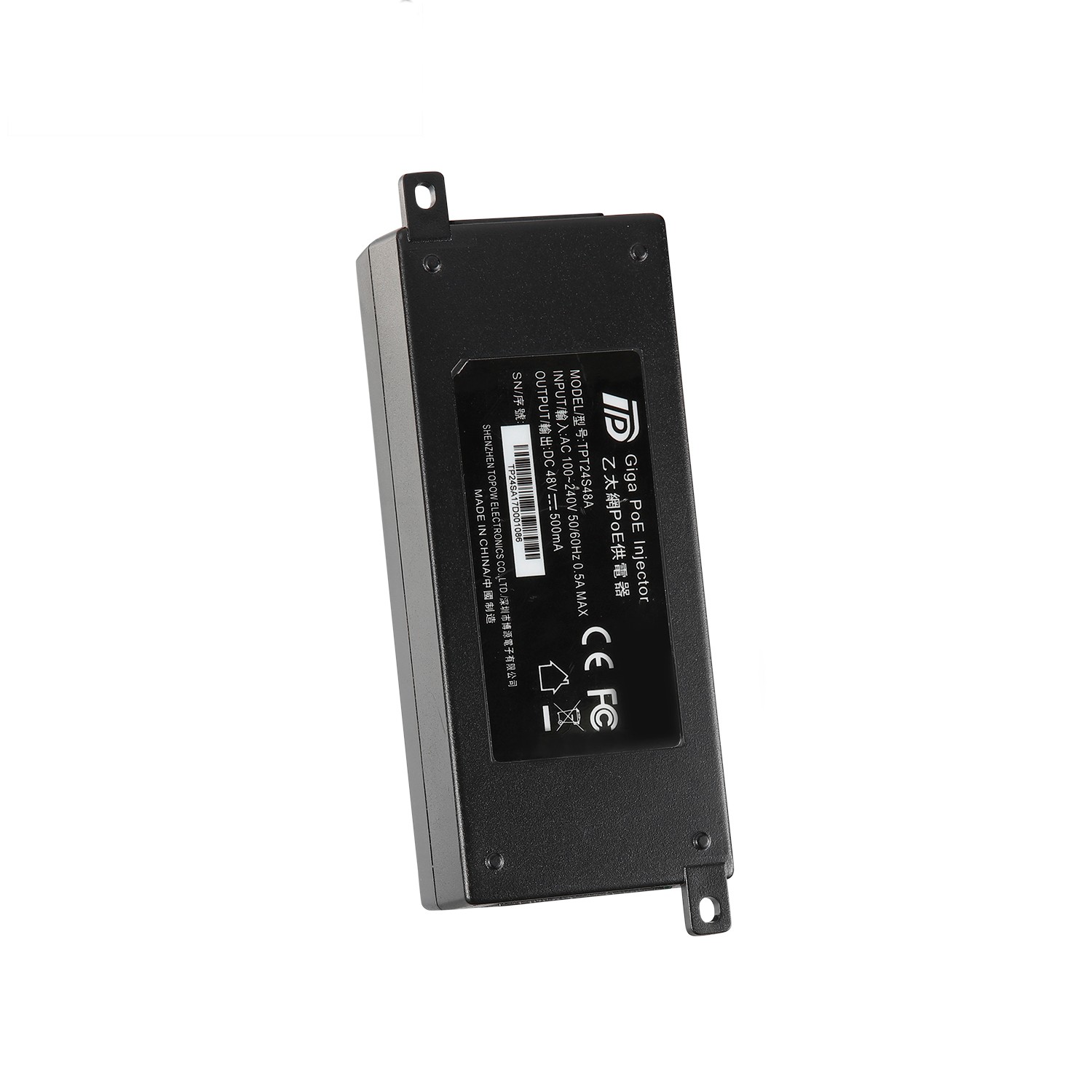

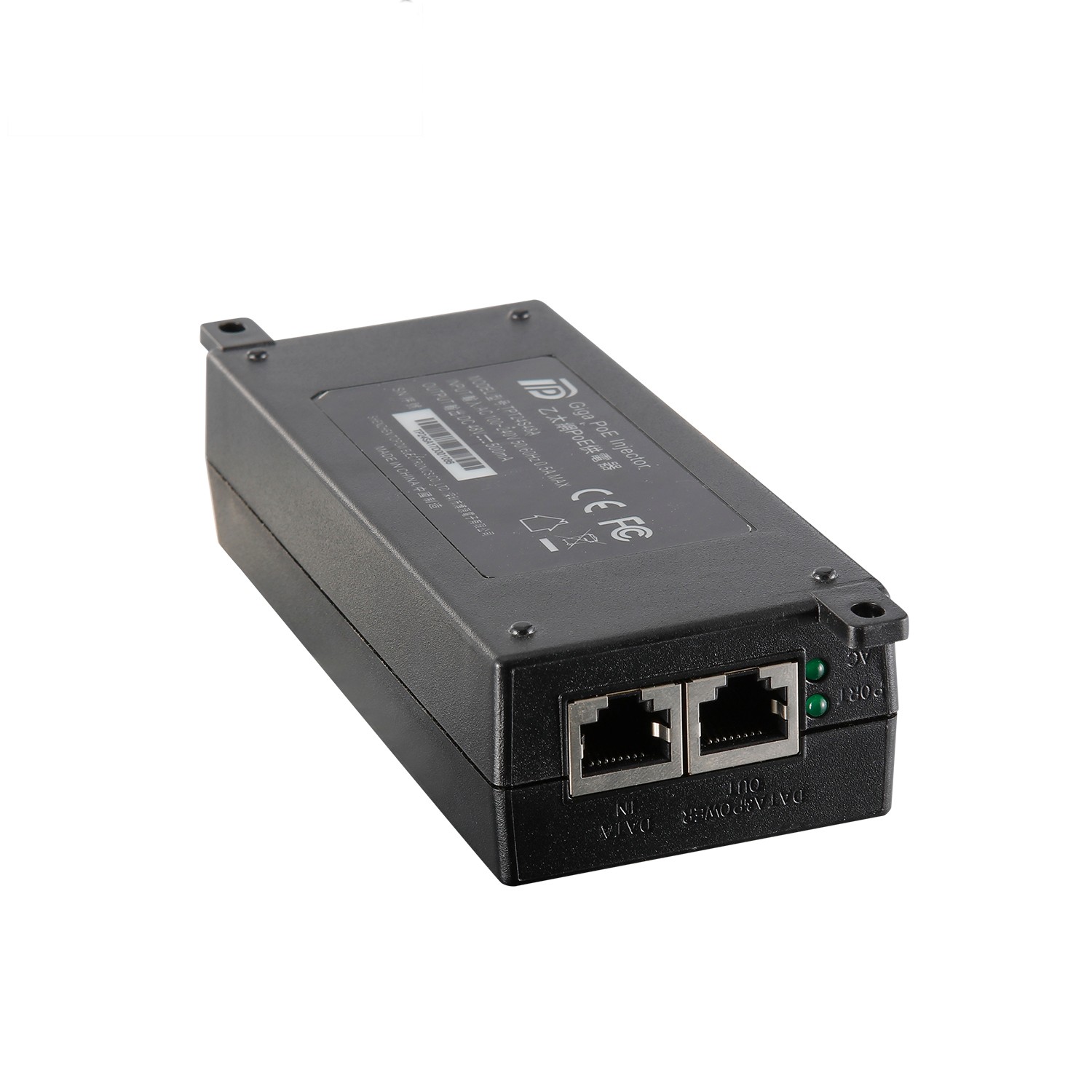

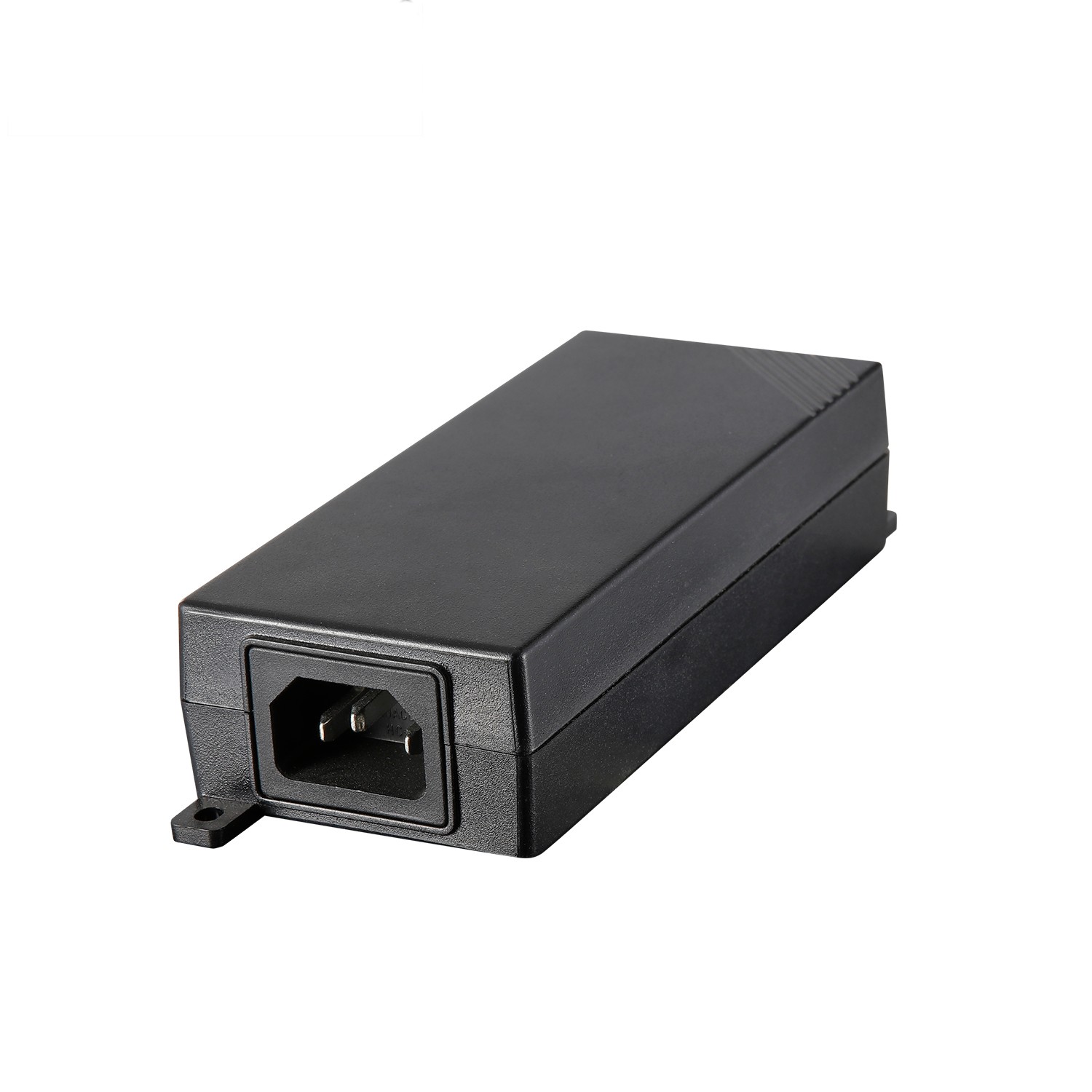

2. Machine diagram:

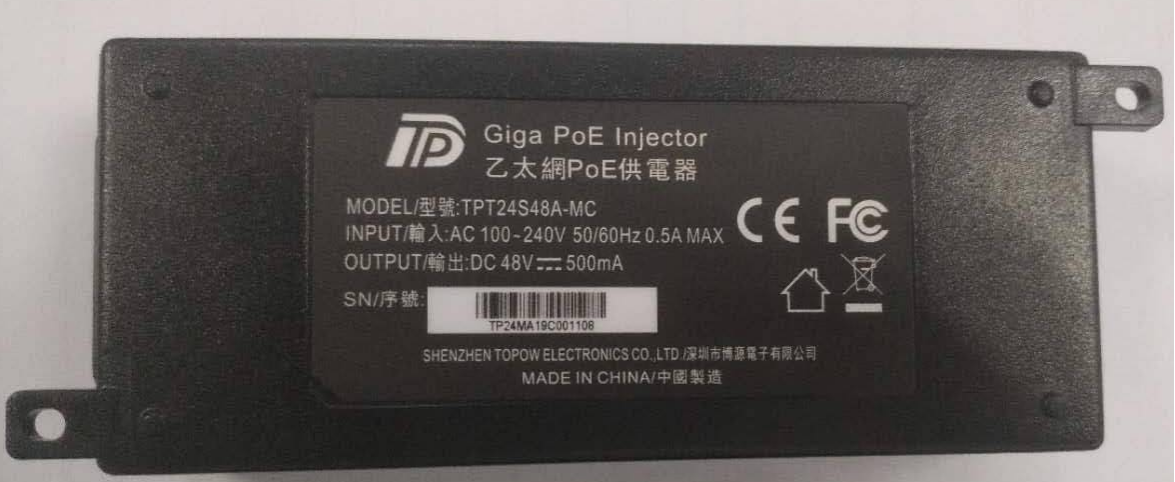

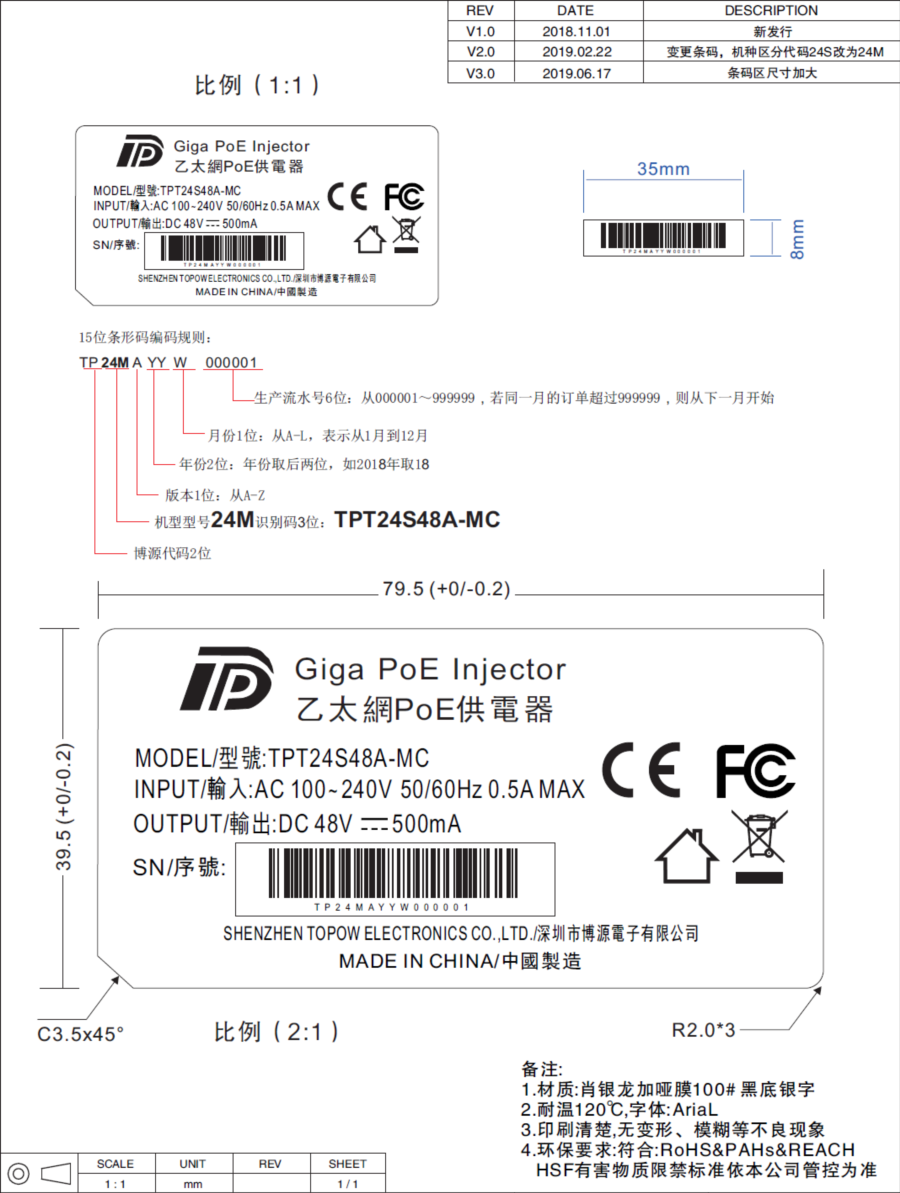

3. Finished product label

11. Packaging

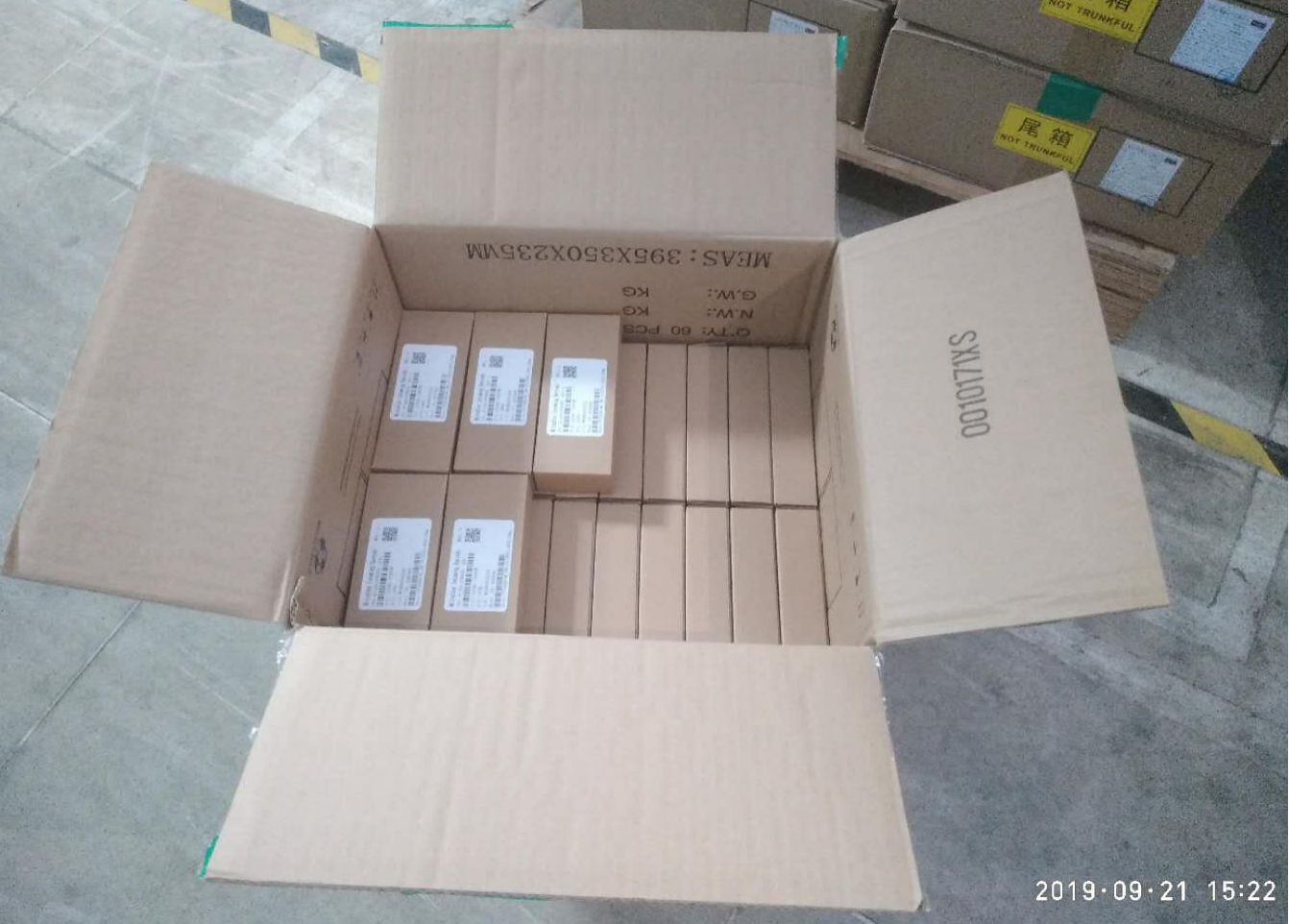

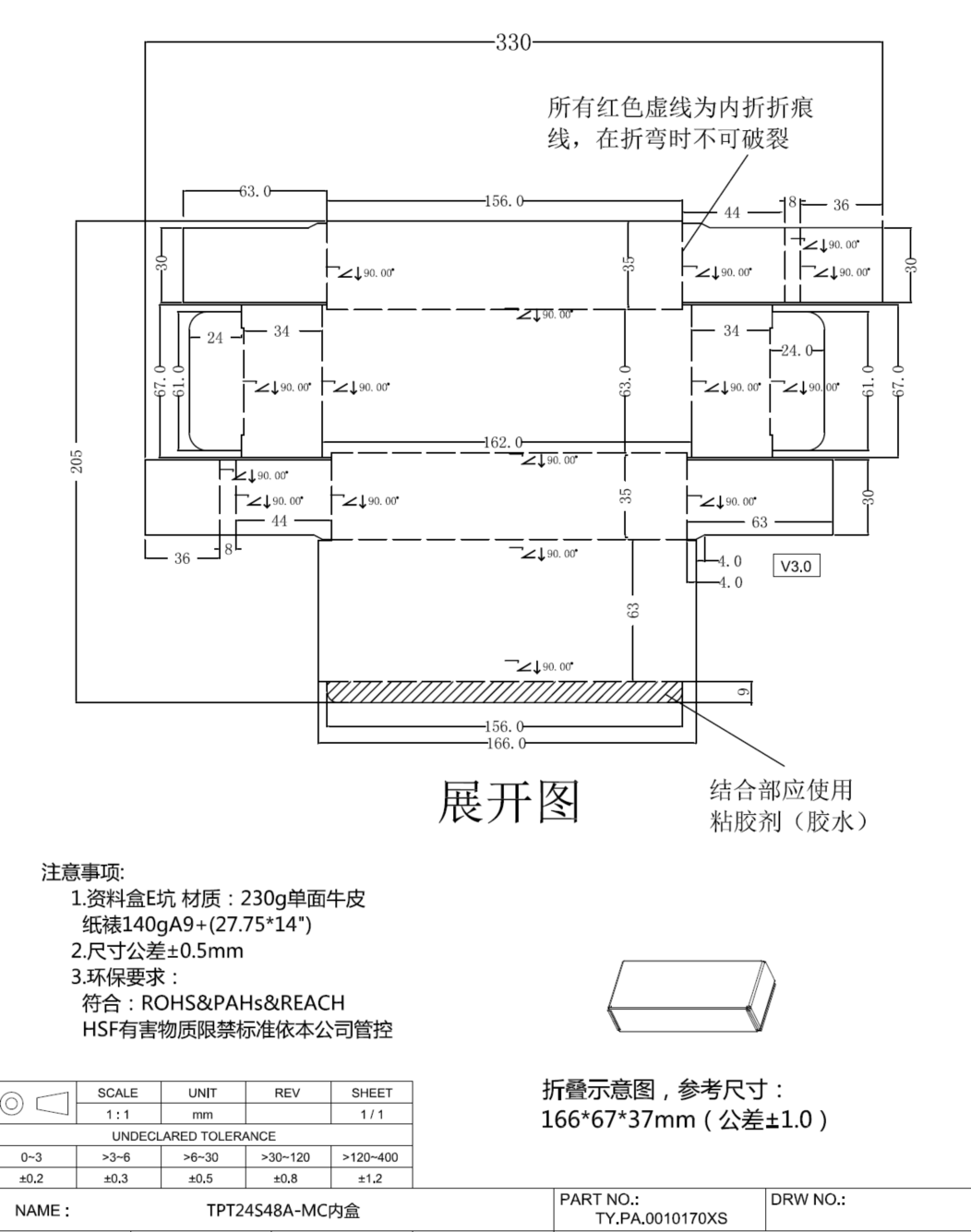

1. Inner packing box

24W 264V DC 48V Transformer Laptop SMPS POE Power supply 48 Volt 0.5 Amp desktop power adapter(图6)

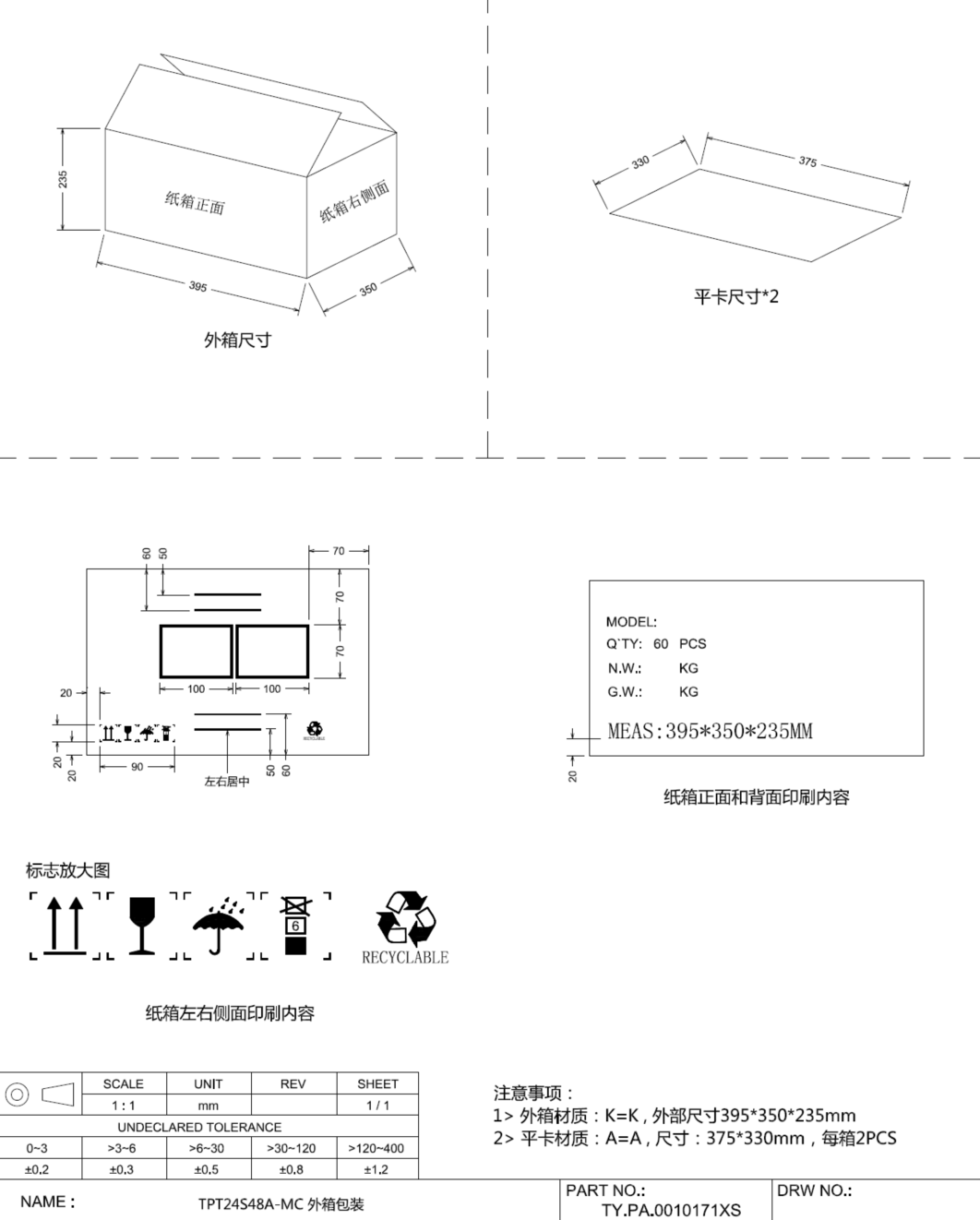

2. Outer packaging

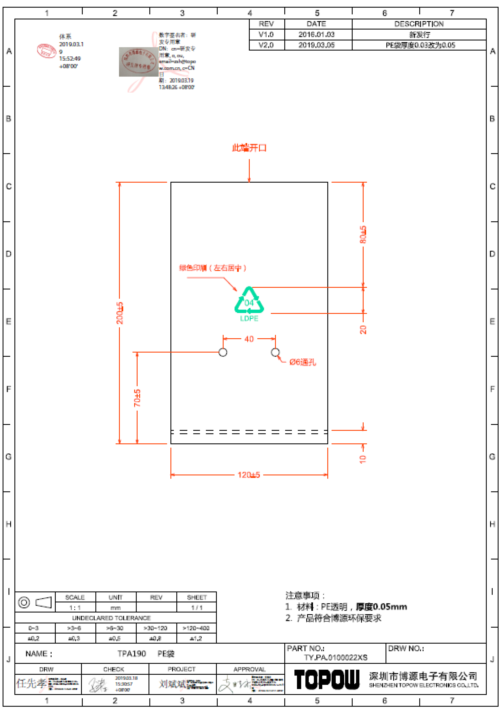

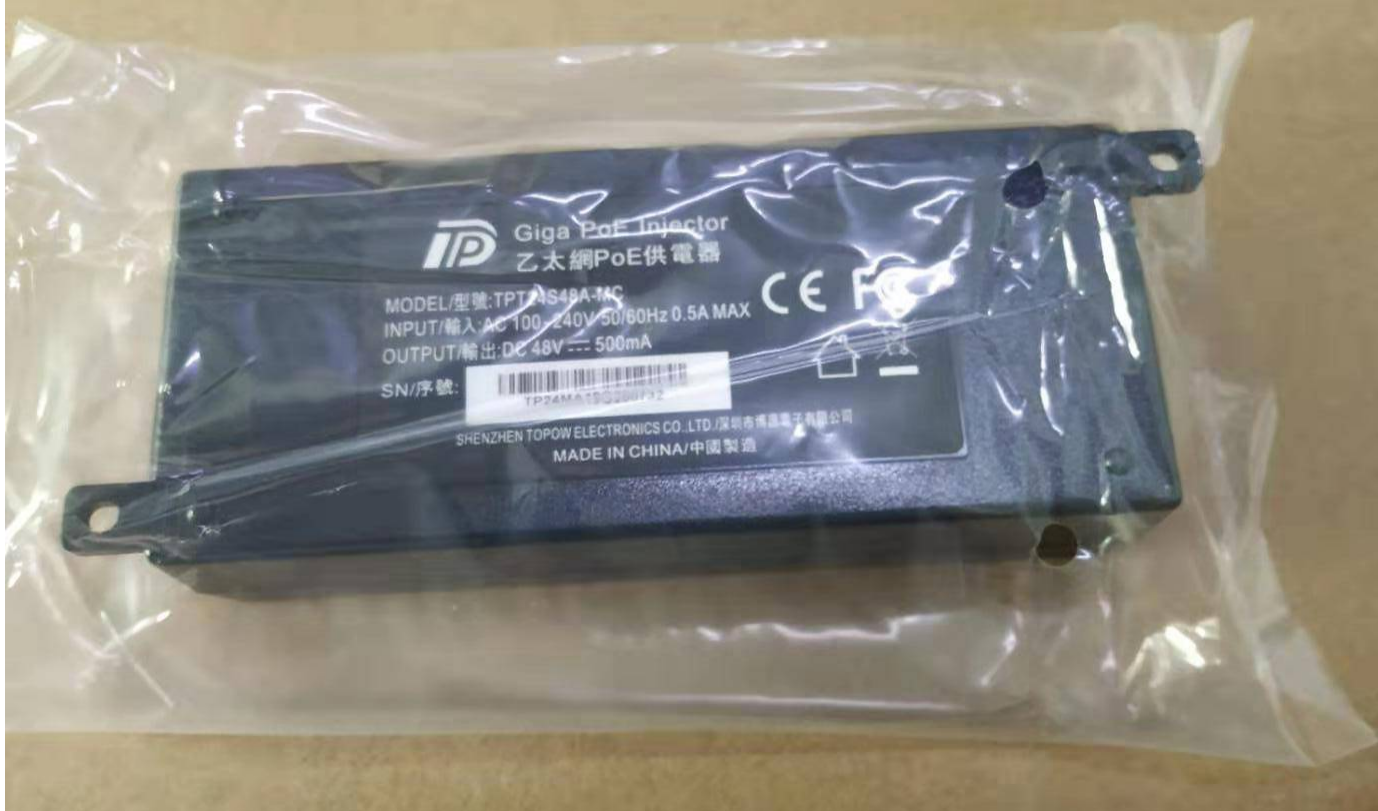

3.PE plastic bag

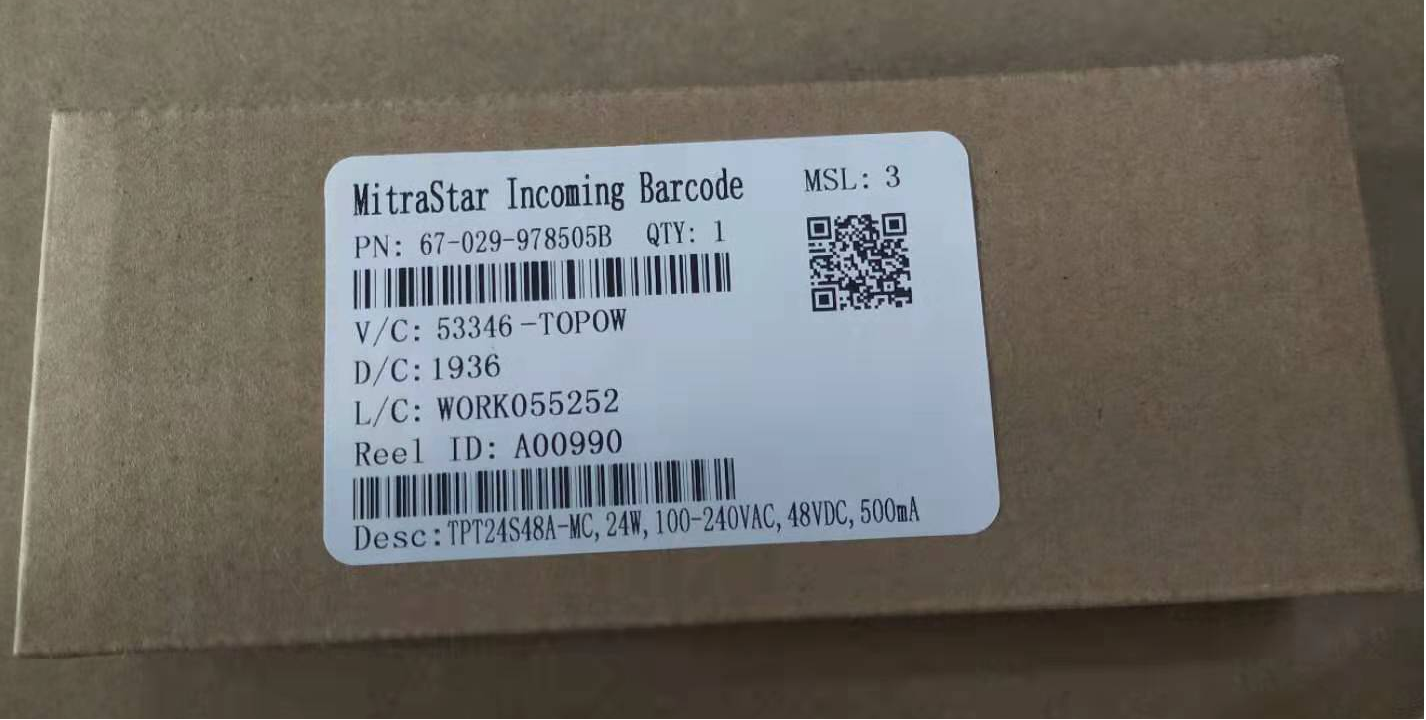

12. Packaging pictures

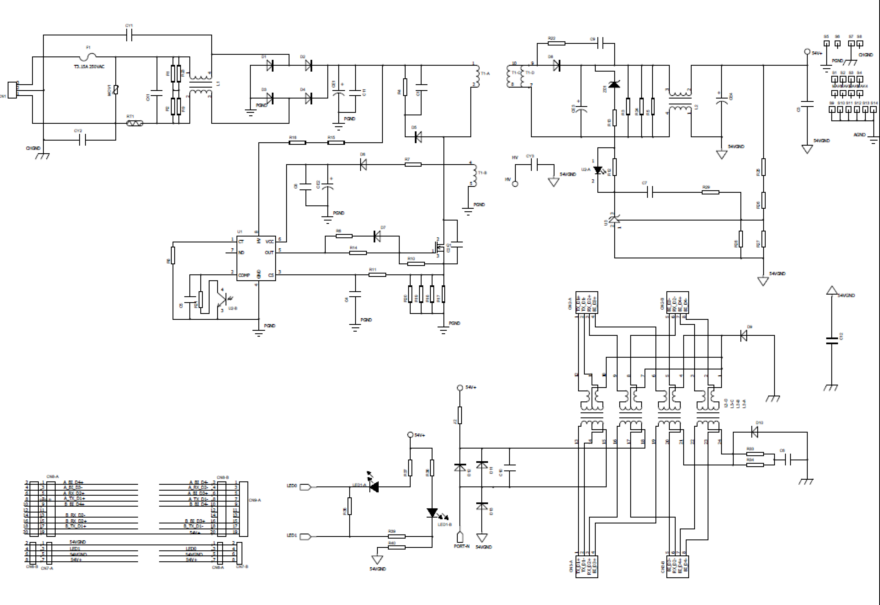

13. Schematic

14.BOM list
