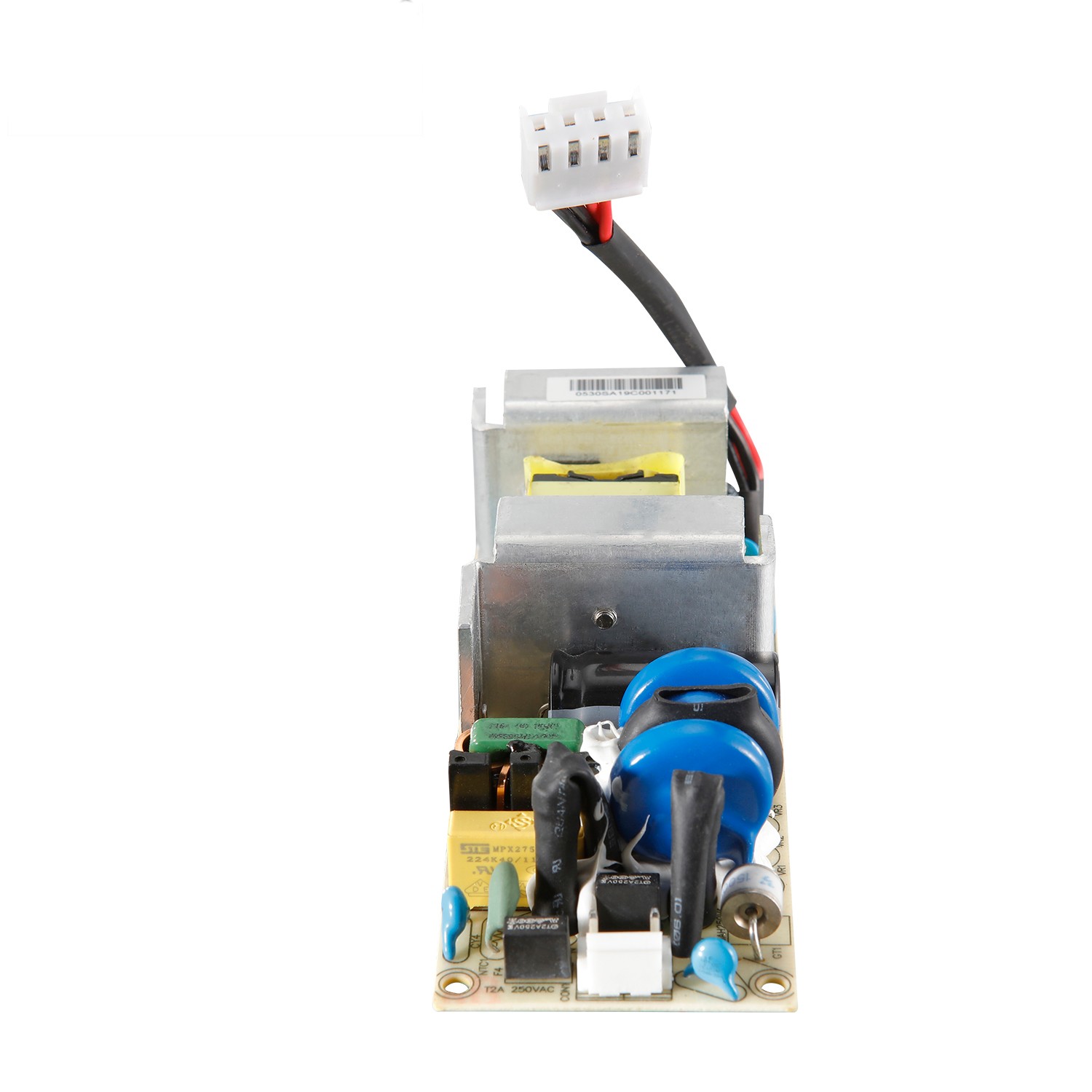

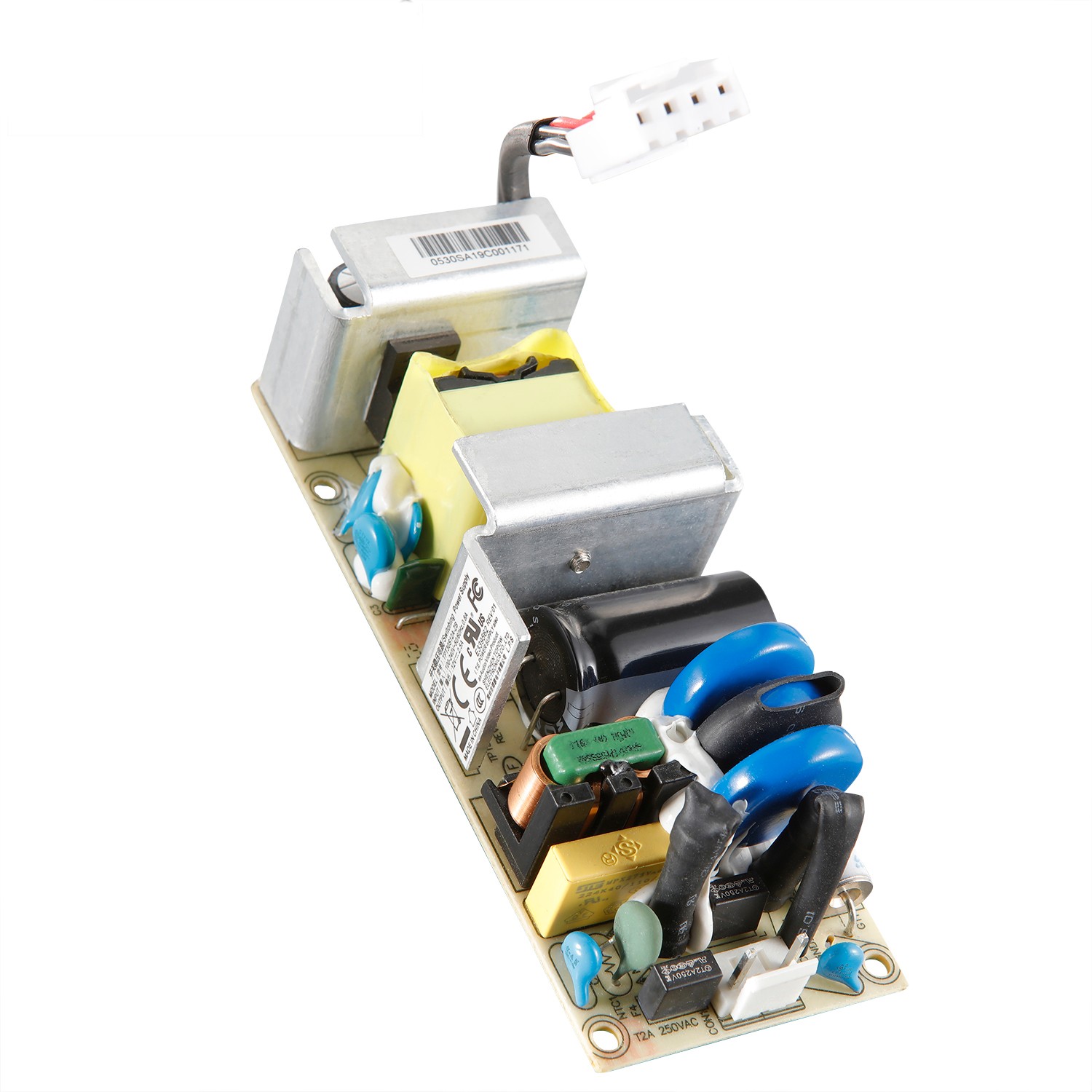

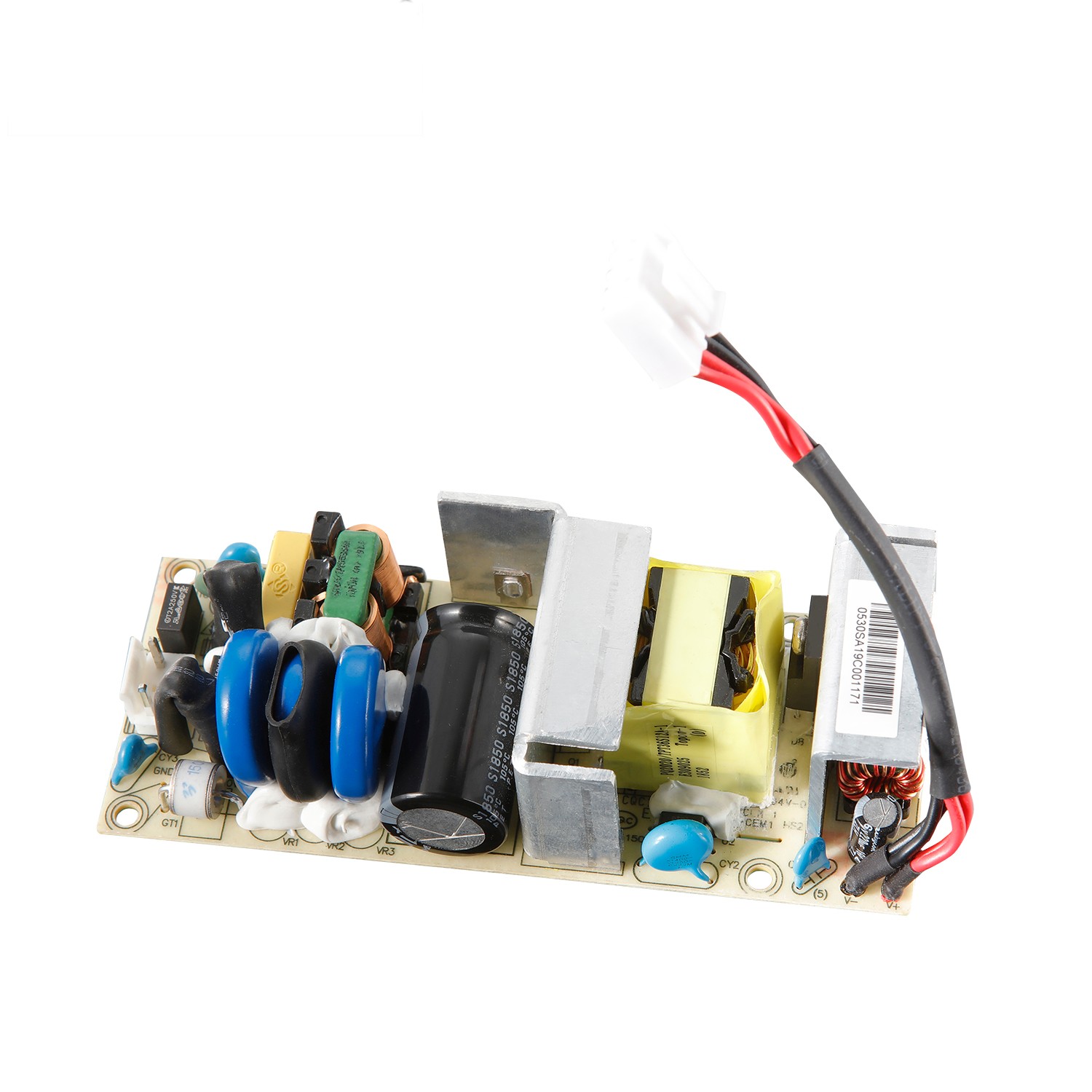

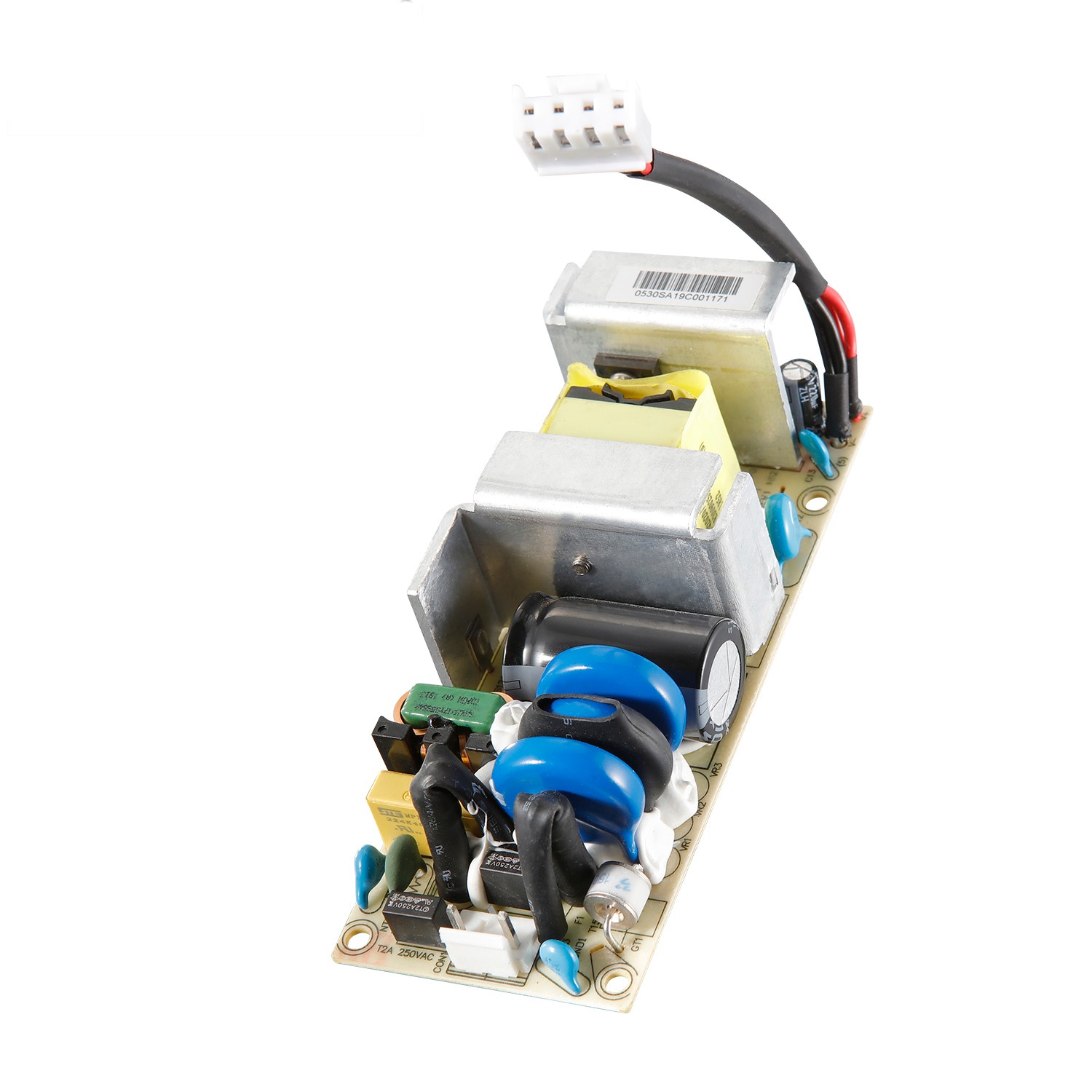

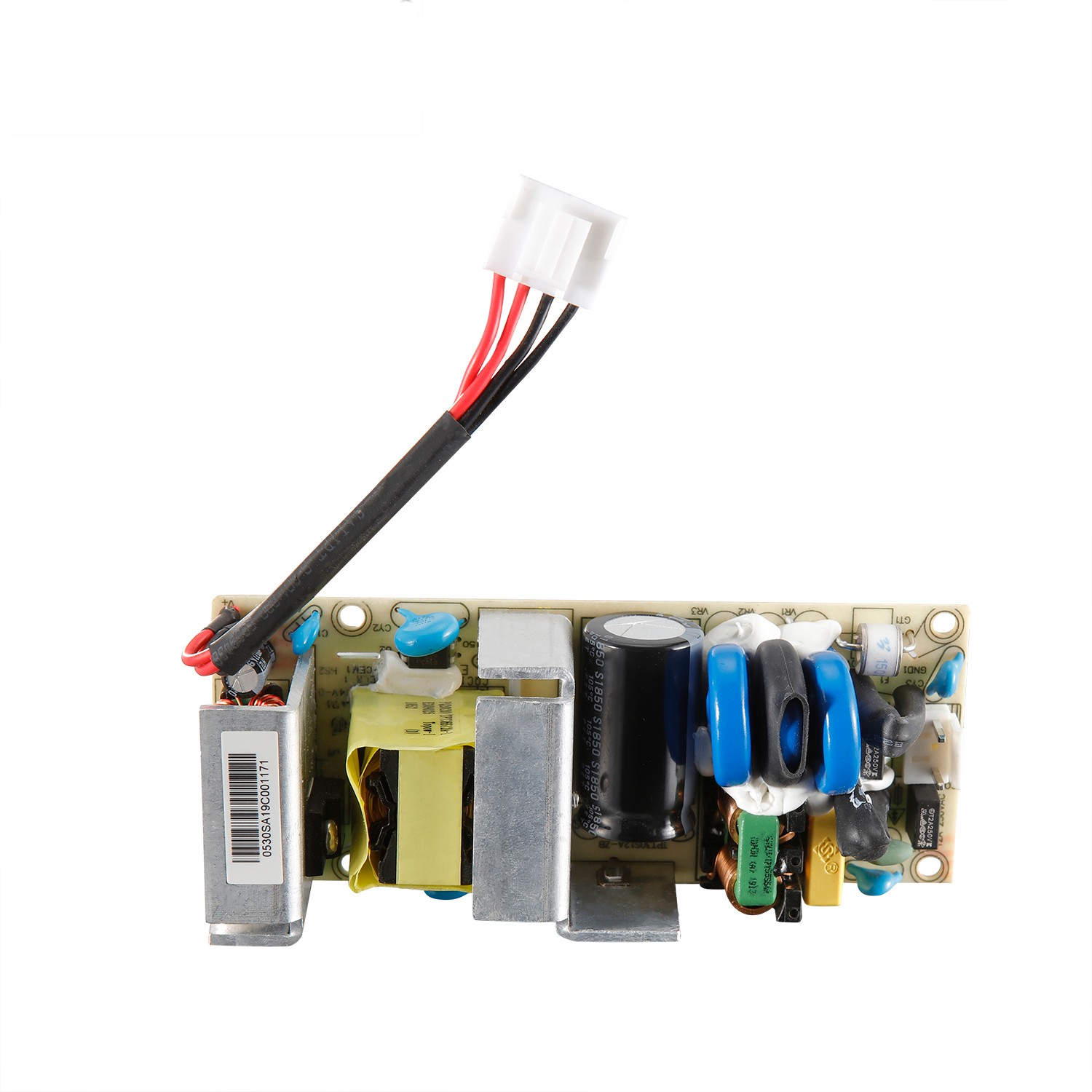

Pin Type: VH3.96 hollow
Output Power: 30W
Output Type (single or multiple?): Single
Input Voltage: 90~264VAC
Input Frequency: 47~63Hz
Output Voltage: 12V
Output Voltage Accuracy: 5%
Output Current: 2.5A
MTBF: At least 200,000 hours
Protection: OCP,OVP
Efficiency: >86%
Inrush Current: 60A/220VAC
Working Temperature: -25~+70°C
Safety Certification: CCC, FCC, UL, CB, CE
Packing: 0.15kg, 40pcs/7kg
Warranty Period: 2 Years
General rules:
This product is AC to DC power supply, 90~300V AC input, single output +12V, total output power 30W, meets the requirements of safety regulations IEC/EN/UL60950-1/62368-1, and has passed CCC, FCC, UL, CB, CE certification, in line with EU RoHS directive.
1. Electrical characteristics
1.1 Input characteristics
1.1.1 Basic input characteristics
Project | unit | Minimum | Typical value | Max | Remarks |
AC input voltage range | Vac | 90 | 110/220 | 300 | In the 290~300Vac input voltage range, derating of the electrolytic capacitor voltage on the input side is not required. It is required that the power supply can withstand long-term AC voltage input with an effective value of 318V without damage. The test shall be accepted for 2 hours (the power supply may not work); |
Safety certification voltage | Vac | 100 | / | 240 | |
AC input voltage frequency | Hz | 47 | 50/60 | 63 | |
Input Current | A | / | 1 | / | 90 Vac input, full load; |
Inrush current | A | / | / | 60 | 220Vac input, cold start, meeting standard requirements: ETSI300132-3 |
AC input system | / | / | / | / | Single phase input |
1.1.2 Input protection features
project | unit | Minimum | Typical value | Max | Remarks |
Input overcurrent protection | / | / | / | / | The AC input lines (L, N) have fuses |
Input undervoltage protection circuit | V | / | / | 75 | Undervoltage protection point<=75Vac, undervoltage protection recovery point<=85Vac, hysteresis is not less than 5Vac |
No overvoltage protection circuit | / | / | / | / | However, it should meet the requirement that long-term input of 318V AC voltage is not damaged; AC input below 90VAC will not be damaged, and it can work normally after returning to the normal grid. |
1.2 Output characteristics
1.2.1 Basic output characteristics
project | unit | Minimum | Typical value | Max | Remarks | |
Output Power | W | / | / | 30 | 90Vac~300Vac | |
Output voltage range | +12V | Vdc | 11.4 | 12.0 | 12.6 | |
Output current range | +12V | A | 0 | / | 2.5 | |
Output efficiency | % | 85 | / | / | 220Vac input/rated output voltage, above 50% Rated load current (heat engine for half an hour when testing efficiency the above) | |
Load loss | W | / | / | 0.5 | ||
Stabilization accuracy | +12V | % | / | / | ±5 | Full voltage input range, full load output |
Linear adjustment rate | % | / | / | ±2 | Rated 10%~100% load output, full voltage range Variety | |
Hello Elena | % | / | / | ±3 | Rated voltage input, 10%~100% load change | |
Noise + ripple (Peak-to-peak value) | +12V | mV | / | / | 120 (240) | In the range of 90~300V input voltage and load OK, and one 0.1μF ceramic or gold film capacitor and one 10μF electrolytic capacitor are connected to the output during the test. The bandwidth of the oscilloscope is 20MHz; 1. Under normal temperature and high temperature: 120mV, 2. -40℃~-10℃ ambient temperature :240mV (5Hz~20MHz) |
Dynamic response overshoot | % | / | / | ±5 | 25%~50%~25% or 50%~75%~50% load Change, current change rate 0.1A/μS, cycle 4mS | |
Switch overshoot | % | / | / | ±5 | ||
Power on time | S | / | / | 3 | T1≤3S, see Figure 1 | |
Output rise time | mS | / | / | 200 | The output voltage rises from 10% to 95%, greater than 20% load, T2≤200 mS | |
Power-down sustaining time | mS | 6 | / | / | T3≥6mS (rated input and output rated load) | |
Capacitive load | +12V | µF | / | / | 2000 | Full input voltage, full load range test |

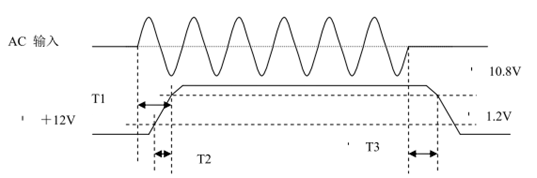

Figure one
1.2.2 Output protection features
project | unit | Minimum | Typical value | Max | Remarks | |
Output overvoltage Protection point | +12V | Vdc | 13.5 | / | 16.5 | The power supply is in hiccup protection |
Output overcurrent Protection point | +12V | A | 3 | / | 5 | The power supply is in hiccup protection, the hiccup period is less than 2s, the start-up time is less than 50ms, and it cannot be damaged by over-current or short-circuit. |
Output short circuit protection | / | / | / | / | When the output terminal of the power supply is short-circuited to the ground, the power supply can be automatically protected; after the short-circuit is removed, the power supply can be automatically restored. | |
Over temperature protection | ℃ | / | / | / | Recoverable after removing the fault |
2. Environment
project | unit | Minimum | Typical value | Max | Remarks |
Operating temperature | ℃ | -25 | 25 | 70 | Start the machine normally in the cold state of -25℃ first, and then lower the temperature to -40℃, the power supply can work normally, and the high temperature will dissipate naturally. |
Storage temperature | ℃ | -40 | 25 | 70 | Humidity: 0%~95% (non-condensing) |
Working humidity | % | 5 | / | 95 | Non-condensing 5%~95%RH (1~29g/m3), long-term 20%~80% |
Altitude | m | 0 | 0 | 5000 | High temperature derating under 3000~5000m operating environment conditions, the maximum working stability is reduced by 1℃ for every increase of 200m |
Storage environment height | m | 0 | 0 | 15250 |
3. Electromagnetic compatibility
ITEM | INDEX REQUIREMENTS | SDANDARD |
Conducted interference (CE) | level B (≥6db) | CISPR 32/ EN55032 |
Radiated interference (RE) | level B (≥6db) | CISPR 32/ EN55032 |
AC port (CS) | 0.15~80MHz: 10V【80%AM(1kHz)】; (criterion A) | IEC61000-4-6 |
Radiation immunity (RS) | 80~1000MHz: 10V/m【80%AM(1kHz)】; 1400~2700MHz: 10V/m【80%AM(1kHz)】 (criterion A) | IEC61000-4-3 |
Whole machine port ESD | Contact discharge: 6kV (Class B); Air discharge: 8kV (Class B); Contact discharge: 8kV (R level); Air discharge: 15kV (R level); (cooperate with the whole machine to meet the requirements) | IEC61000-4-2 |
AC port EFT/B | Index: 2kV (criterion B) | IEC61000-4-4 |
AC port DIP | Drop to 0%, time 10ms; drop to 0%, time 20ms; drop to 70%, time 500ms; drop to 0%, time 5000ms; reference standard IEC61000-4-11, criterion B/B/B/C. In addition to the above standard requirements, considering the online operation situation, the following basic test requirements are added to the power supply unit: (1) Drop to 30%, duration 50ms, 100ms~2000ms (interval 100ms, as test points, such as 100ms, 200ms, 300ms...), 2000ms~5000ms (interval 500ms, as test points, such as 2500ms, 3000ms ...), drop interval 10s, drop 6 times, criterion C (can be restarted, but should be self-healing) (2) Drop to 0%, duration 50ms, 100ms, 300ms, 500ms, 800ms, 1000ms, 2000ms, 3000ms, 4000ms, drop interval 10s, drop 6 times, criterion C (can be restarted, but should be self-healing) The single unit and the complete machine meet the requirements; | IEC61000-4-11 |
AC current harmonics | Rated voltage class A | IEC61000-3-2 |
AC voltage fluctuations, Flashing | Pst value is not greater than 1; Plt value is not greater than 0.65; The relative voltage change dc does not exceed 3.3%; The maximum relative voltage change dmax does not exceed 4%; During the voltage change, the time when the d(t) value exceeds 3.3% is not more than 500ms. | IEC61000-3-3 |
Surge | Differential mode 6kV, 2 ohms; common mode 6kV; 2 ohms, 1.2/50 (8/20) us mixed wave; criterion ITU-A | ITU-T K.44 |
electric shock | Differential mode ±3KA; common mode ±5KA, 8/20us waveform. The breakdown voltage of the selected gas discharge tube requires ≥1500V ITU-B | ITU-T K.44 |
4. Safety regulations
ITEM | GRADE | STANDARD (TEST CONDITIONS) |
Input to output | 3000Vac | Lasts for 1 minute, no breakdown, no flashover phenomenon, leakage current <10mA |
Input to ground | 1800Vac | Lasts for 1 minute, no breakdown, no flashover phenomenon, leakage current <10mA, remove the gas discharge tube |
Insulation resistance | 10MΩ | Under normal temperature and pressure, the relative humidity is 90℅, and the test voltage is DC 500V, the insulation resistance of the AC part and the DC part of the main circuit of the rectifier to the ground, and the insulation resistance of the AC part to the DC part are not less than 10MΩ. |
Leakage current | Class I:≦3.5mA | Input 264VAC/60Hz. |
Note: The gas discharge tube needs to be disconnected during the test.
5. Reliability
MTBF: 300,000 hours, working at an ambient temperature of 25℃ and rated power grid and load
E-CAP: 10 years, working at an ambient temperature of 70°C and the rated power grid and load (tested according to the weighted evaluation method of temperature parameters in various regions provided by Huawei).
6. Special requirements
6.1 The material of the PCB board is at least CEM-1 single-sided board.
6.2 The product should meet the requirements of reaching AC input 318Vac without damage.
6.3 AC input terminal: AC input is an AC standard 2PIN terminal, and it is required to be located on the power board.
6.4 DC output: DC output cable is required to be soldered directly on the power board, and the other end is a DC power connector.
6.5 DFX requirements:
a. ICT test: ICT verification device open circuit and short circuit, the test includes short circuit, open circuit; parts
b. Power-on test: rated input, test above half load, repeated power-on and power-off 4 times, monitor output voltage with display function equipment
c. Aging test: rated input, load above 80%, 50°-/+5, according to our new product aging specification;
d. MTBF test: MTBF is tested according to our company's 300,000 hours demand;
e. ATE test: ATE, the conventional performance test of a single unit needs to be fully covered
f. ORT test: ORT, 168 hours, 1/1000 sampling, temperature and aging are the same
g. Lightning strike sampling test: lightning strike, 3PCS each time, once every 3 months, test according to the required indicators;
h. Surge sampling test: Surge sampling test, 3PCS each time, once every 3 months, test according to the required indicators;
i. The finished power supply needs to be affixed with a bar code to be traceable;
7. Appearance structure
7.1 Power supply size
115mm (length) * 46mm (width), tolerance is ±0.5mm; the height of tin surface pins and SMD components is controlled within 3mm
Inside, the height of all components on the PCB board (including the PCB board) is limited to 30mm. The maximum height does not exceed 31mm (excluding PCB)

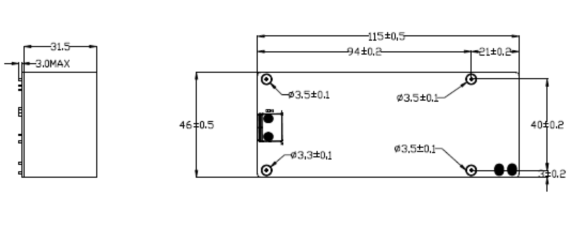

As shown below:

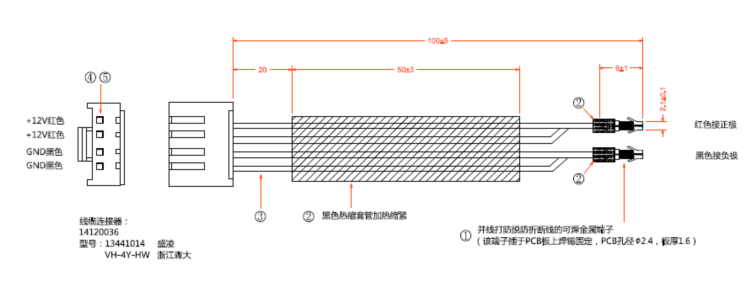

7.2 Output line diagram

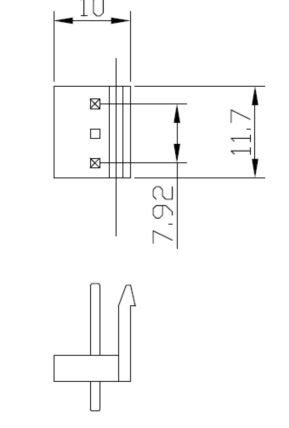

7.3 Input terminal socket

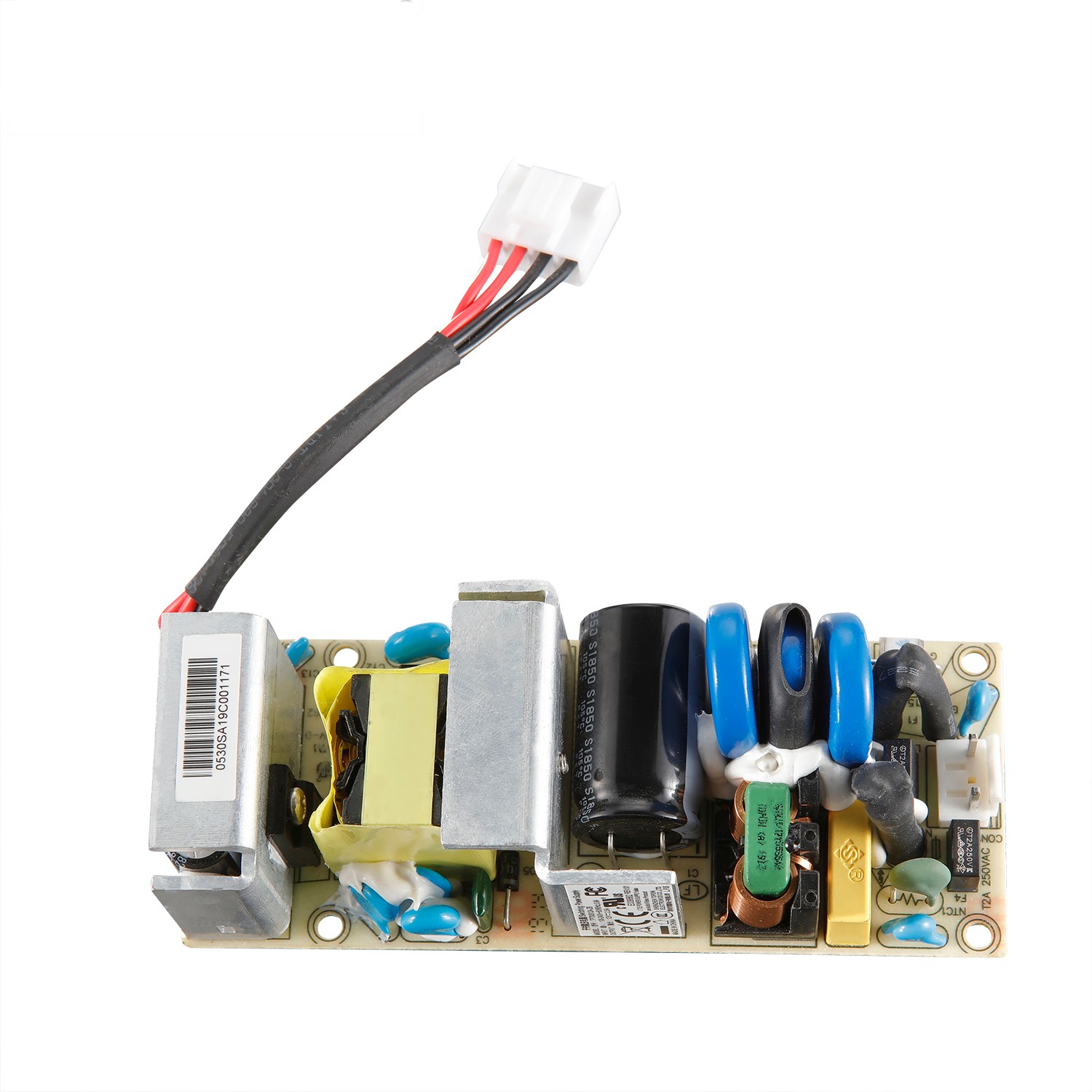

7.4 Appearance of main power supply components
The following is the possible appearance (schematic diagram) of the power supply. The main components may be used alternately, and the bottom pad may be added with plum blossom pad process. The dispensing process (reference) is subject to the actual product.
See attachment 1

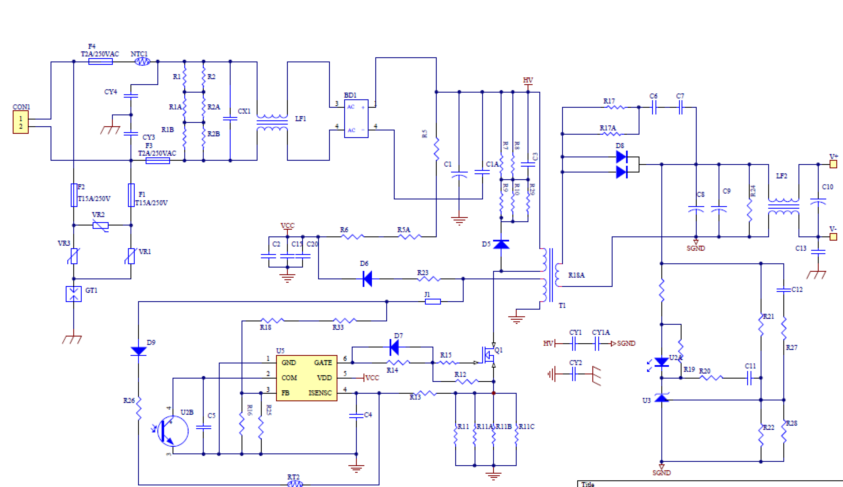

8. Circuit diagram

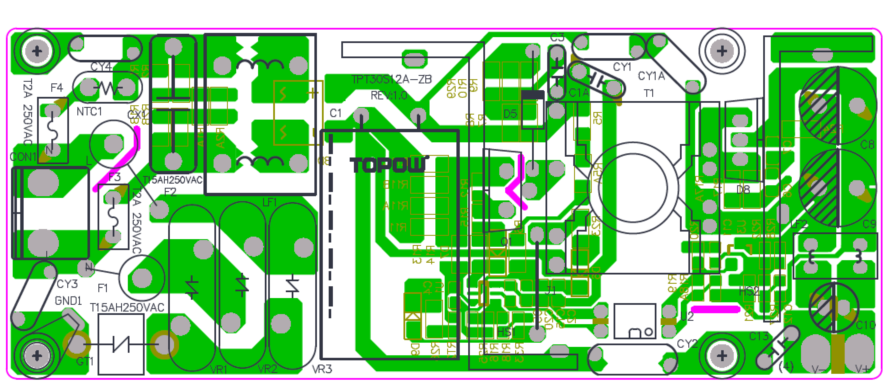

9. PCB diagram
10. Packaging
10.1 Net weight of power supply: 145.3 grams. (Excluding packaging materials, weight deviation ±10%)
10.2 Packing drawing
10.3 Loading and transportation experiment
Pilot projects | Test parameters | judgement standard |
Random vibration | Fixed frequency test conditions: vibration amplitude: 4.5mm, vibration frequency: 35HZ, vibration time 30 minutes. Sweep frequency test conditions: Vibration frequency: 10-50HZ, vibration time 30 minutes. | There should be no mechanical damage, disconnection, falling off of components, etc. in the test of the fixed housing of the module, and all indicators should be normal. |
fall | Surface, corner, edge drop: Drop height: 100cm Drop 1 corner, 3 edges and 6 faces each once | The packaged module should be free of mechanical damage, wire breakage, or parts falling off, etc., and all indicators should be normal. |

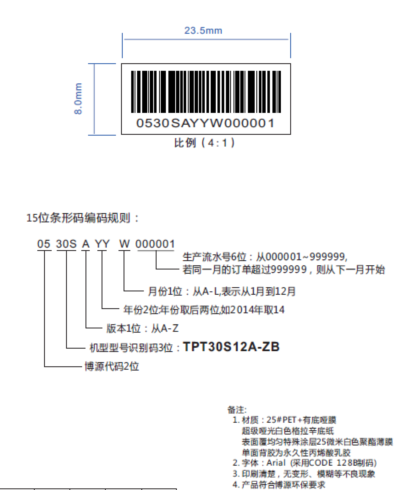

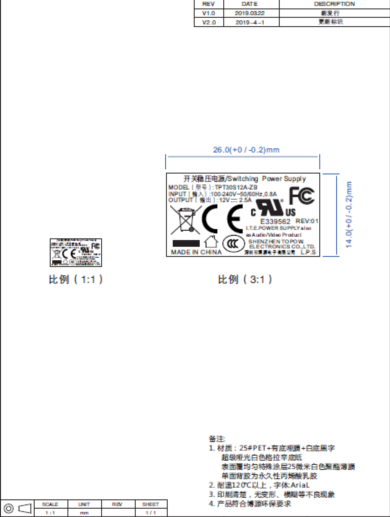

11. Name tags and barcodes
12. Safety certificate
see attached
