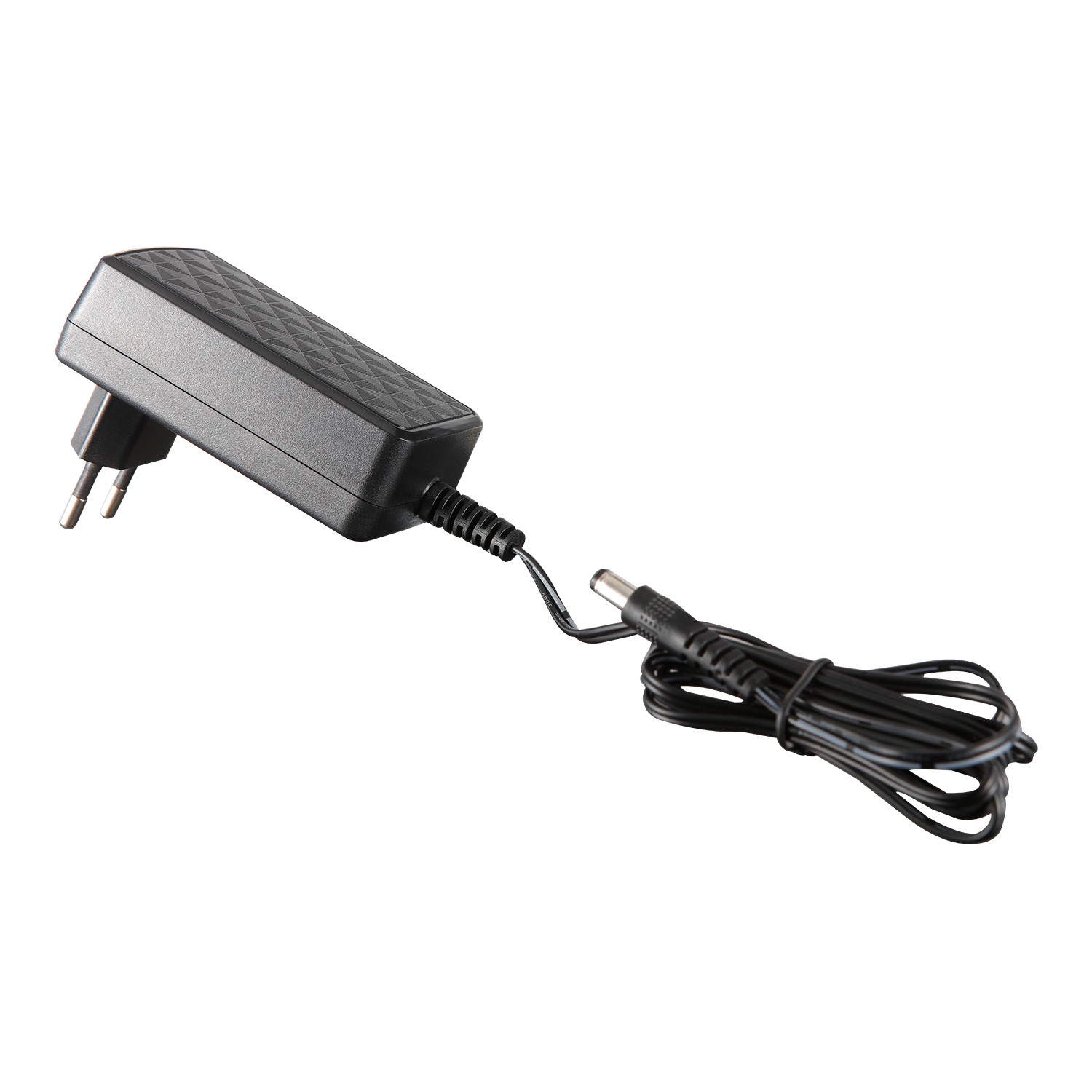

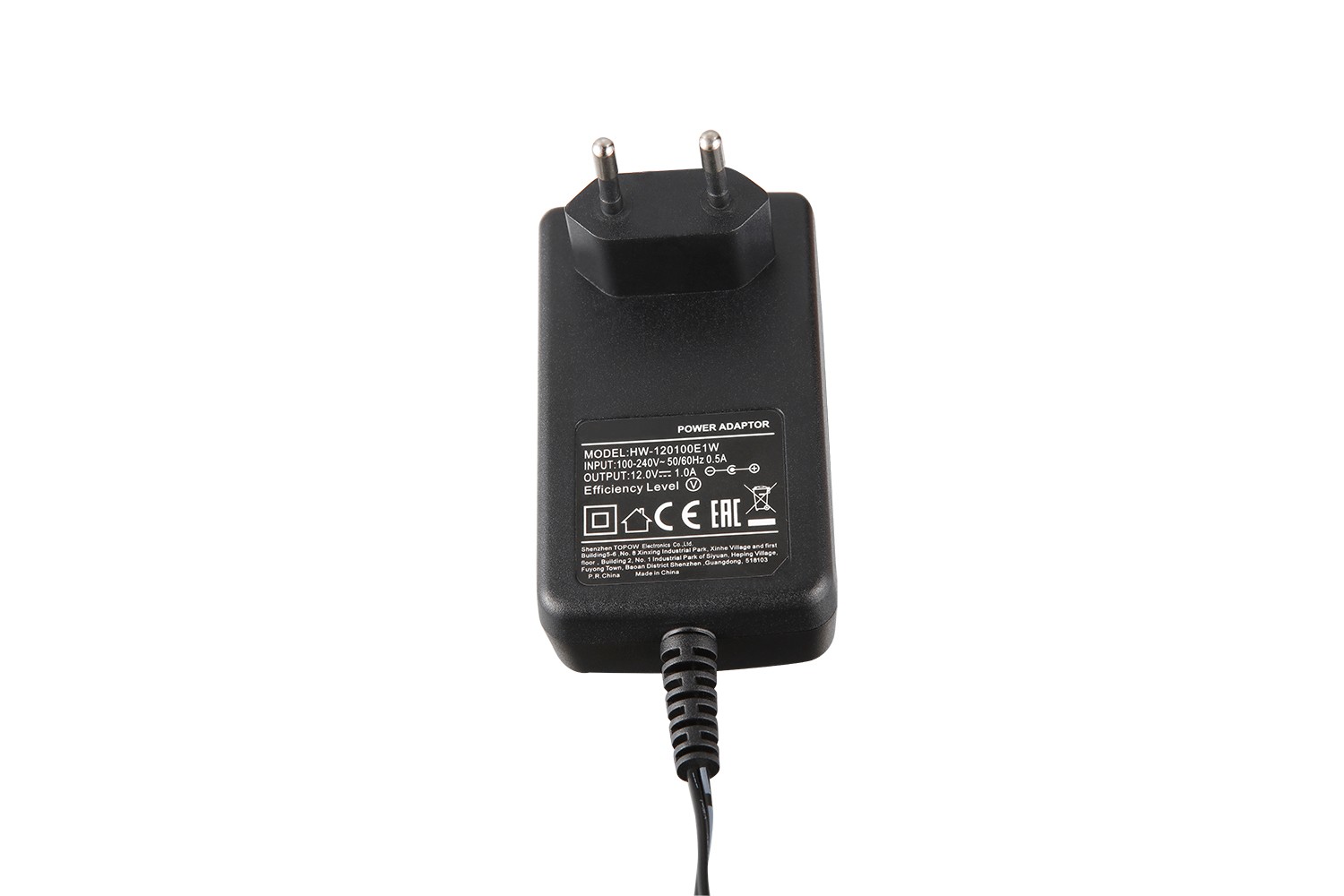

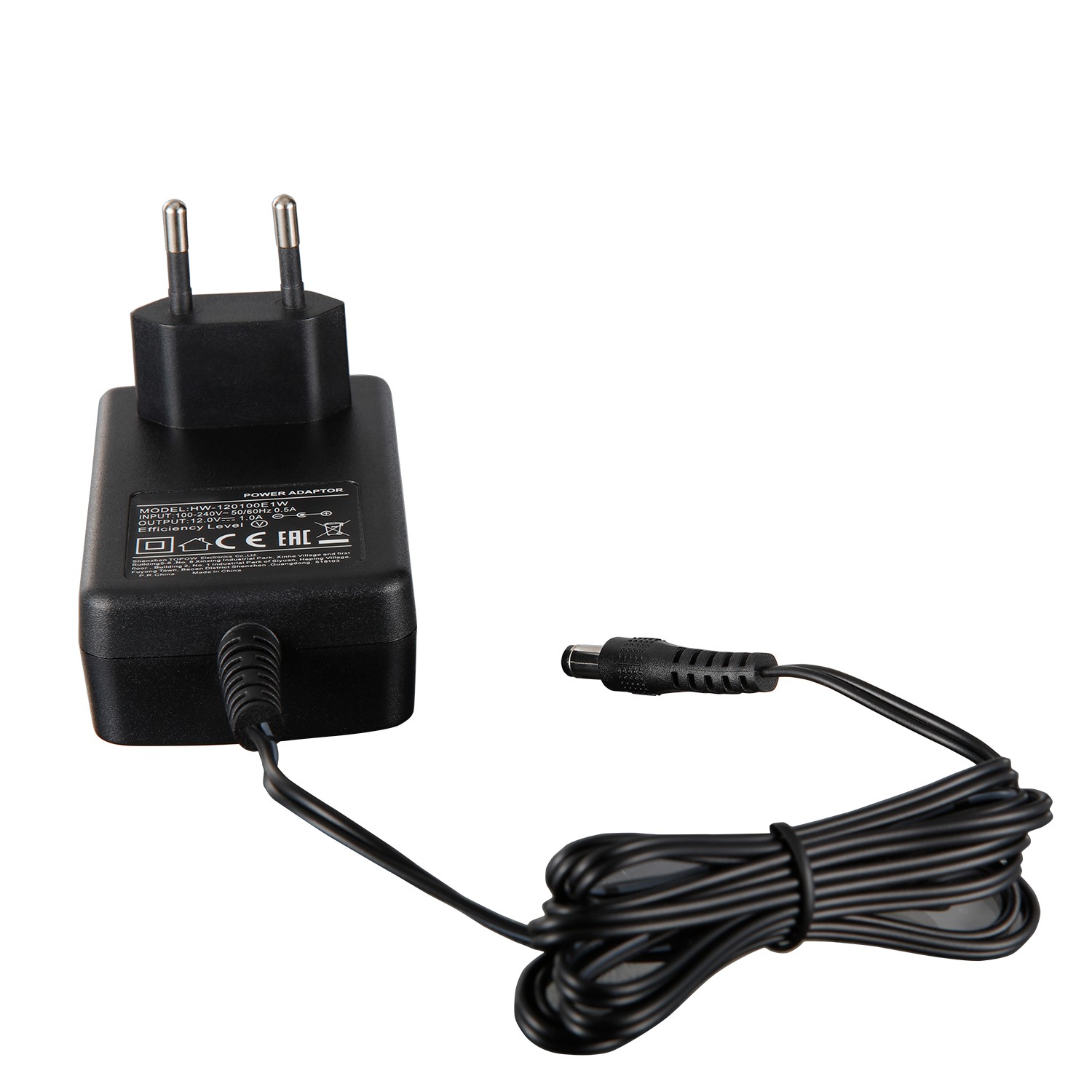

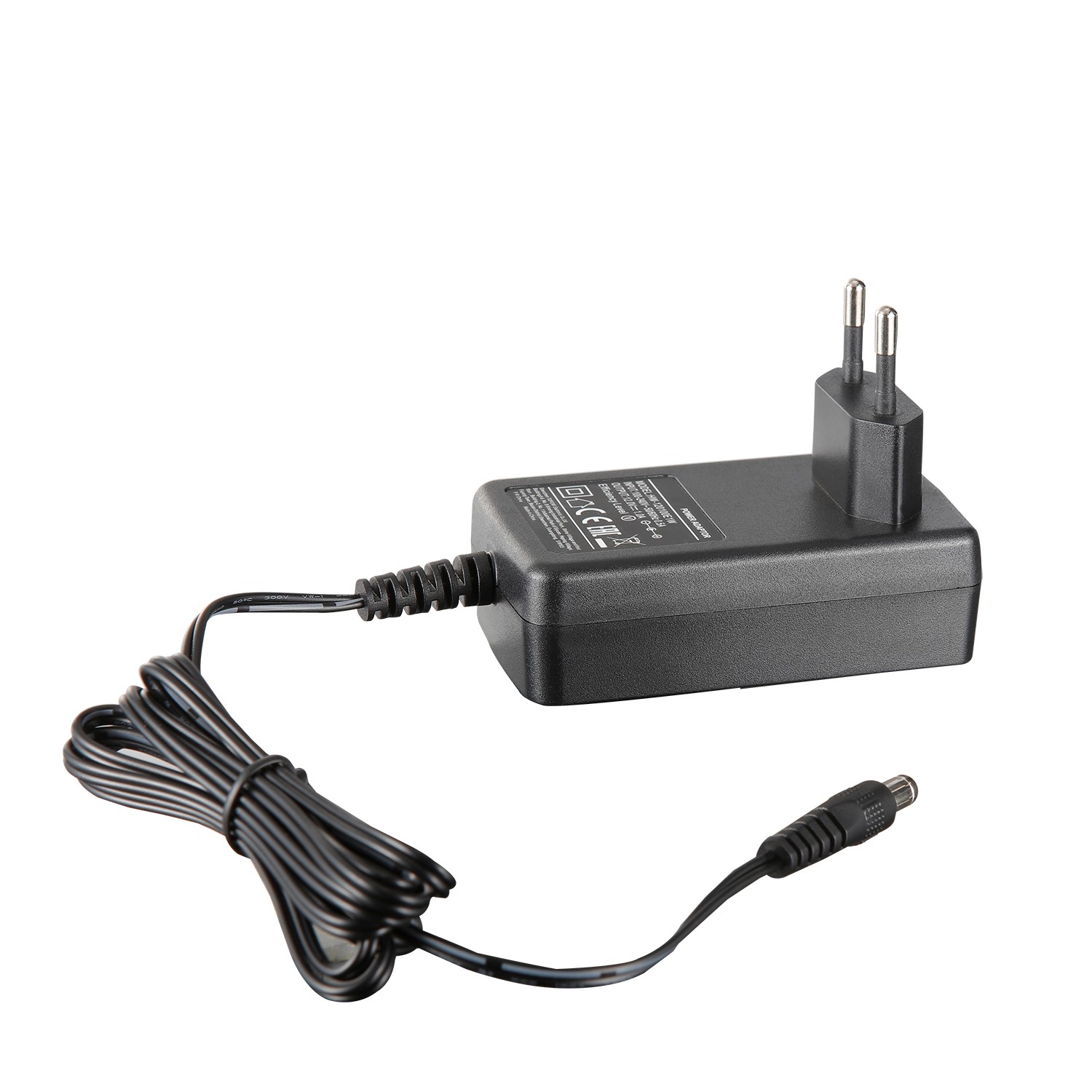

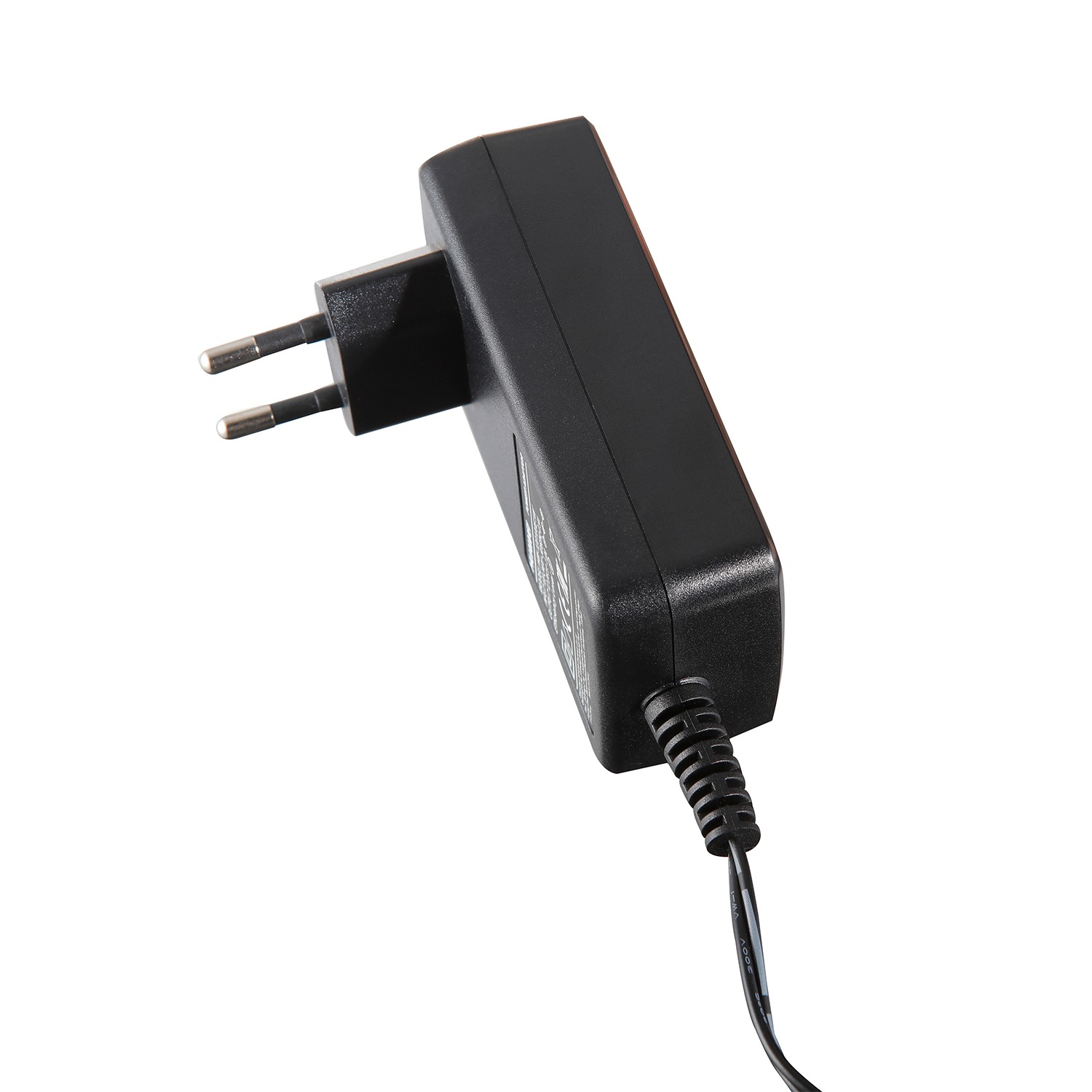

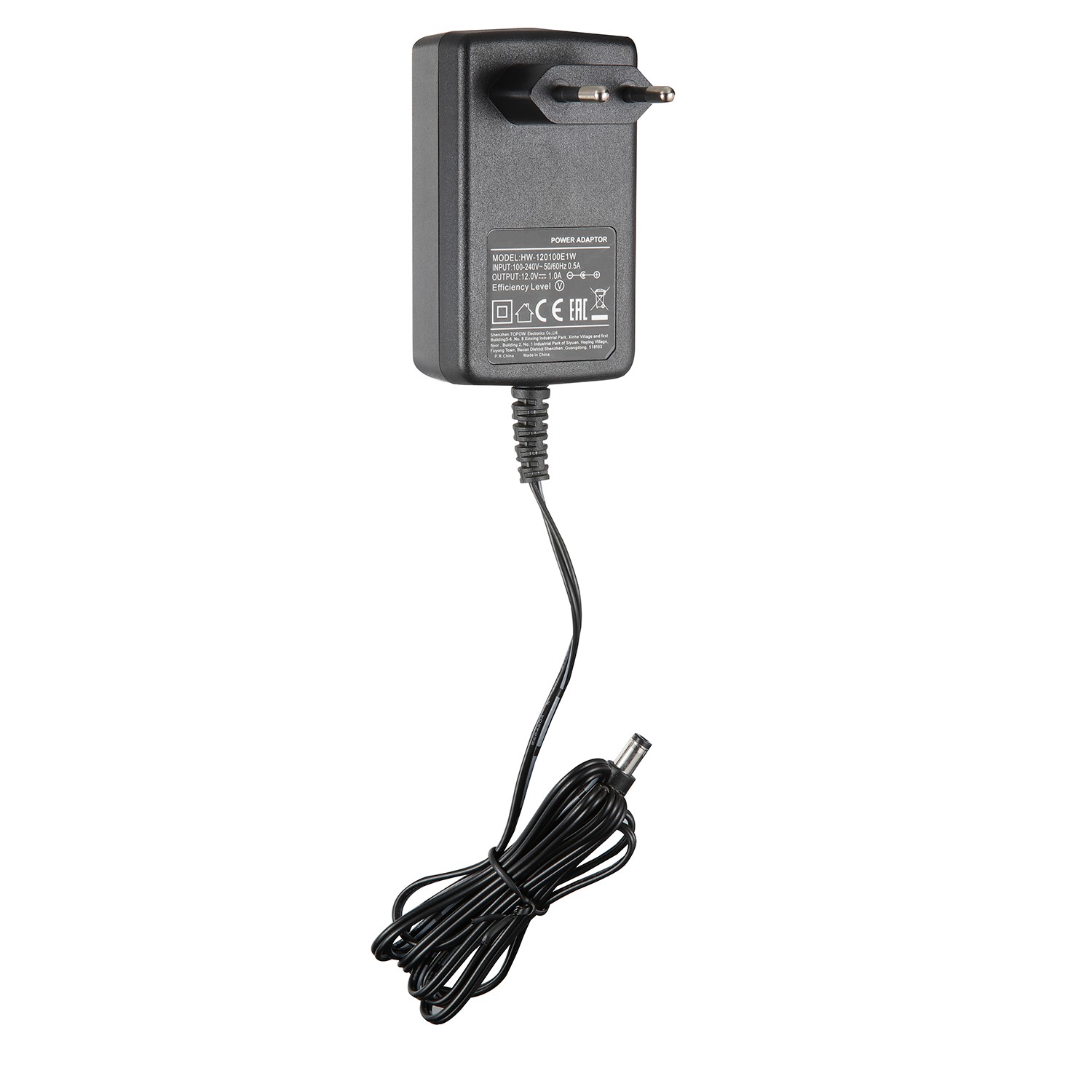

12W European standard Adapter

TPA162B-12120-EU

Color: Black

Plug Type: Wall-mounted horizontal, Eu version

Output Power: 12W

Input Voltage: 90~264VAC

Input Frequency: 47~63Hz

Output Voltage: 12Vdc

Output Voltage Accuracy: 5%

Output Current: 1A

MTBF: At least 300,000 hours

Protection: OCP/OVP/SCP

Efficiency: 73.4%

Inrush Current: Cold start 30A/220VAC

Working Temperature: -5~+45°C

Safety certification: CB, CE, PSB

Packing: 0.11kg, 70pcs/8.5kg

Warranty Period: 2 Years


Product Detail

General

The specification defines the performance characteristics of a 12 W, SINGLEOutputlevelswitching power supply for  IT   . The power supply has designed highly reliable and meet international safety and radiation requirements.


1.0Input Characteristics

 Input voltage range and frequency

Nominal Voltages

Voltage Variation Range

Nominal Frequency

Frequency Variation Range

  100-240VAC

90-270VAC

50-60Hz

47-63Hz

Rated voltage: 100-240VAC

Voltage variation range: 90-270VAC

Rated frequency: 50-60Hz

Frequency change range: 47-63Hz

1.2Input Current

0.5A max

 At AC low line input and DC output full load

At low line AC and full load, the maximum input current is 0.5A

1.3Input protection

1A Fuse

 The power supply shall be protected against power line surges and any abnormal condition.

When the AC input voltage has surges and abnormal conditions, the 1A fuse will protect the power supply

1.4Input surge current

30A max

 At power supply cold start, ambient temperature 25℃220Vac



When the input is 220Vac cold state at 25℃ ambient temperature, the maximum surge current is 30A

1.5Efficiency

1.5.1 70% min.At nominal input voltage,maximum load and measured at end of DC cable

In the case of rated input voltage and full load, the efficiency of the DC line end is 70% minimum

1.5.2 Active mode efficiency:

More than 77.8 %min of average efficiency of 25%,50%,75% and 100% load tested at 230Vac.(Warm up after 30 minutes)

230Vac input, the average efficiency under test 25%, 50%, 75%, 100% load conditions is at least 77.8%

Meet Energy Star level Ⅴ

1.6No Load Power consumption

0.3Wrms max

 At AC nominal inputoutput no load

In the case of rated input AC and output no-load, the maximum no-load loss is 0.3W

Meet Energy Star level Ⅴ

1.7Hold up time

10ms min

 At AC nominal inputoutput full load


(1 half cycle)

Under the condition of rated input AC and output full load, the minimum holding time is 10ms.


2.0Output Characteristics

2.1Turn on delay

3Smax

 At AC low line inputoutput full load

In the case of AC low voltage input and output full load, the boot delay time is up to 3S

*Test on delay is measured from 0 voltage output to the main output regulation.

2.2DC output regulation

Voltage(V)

Loading(A)

ToleranceRange

Total Regulation

Adjustable voltage

Range(V)


Max

Peak




+12.0

1A


±5%

None

11.4~12.6

*Total regulation involved line regulation load regulation cross regulation---etc.

*Line regulation is measured from 90Vac to 132Vac or 185vac to 264vac

*Load regulation is measured all output from min load to max load at 115vac

or 230vac nominal AC input voltage

*The total adjustment rate relates to the cross adjustment rate of linearity and load

*The test condition of linear adjustment rate is 90Vac to 132Vac or 185Vac to 264Vac

*The test condition of load regulation is the change from the minimum load to the maximum load under the input of 115Vac/230Vac.

2.3Ripple/noise

Voltage(V)

Ripple/Noise(pk-pk)(mV)

+12.0

120mV

*The ripple is measured from peak to peak with band width limit of 20MHZ

(By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic diskcapacitor under DC output full Load, AC nominal input 25℃ambient temperature).

*Ripple is obtained by measuring the peak-to-peak value using an oscilloscope bandwidth of 20MHz

(Test conditions: at full DC output, rated AC input, and an ambient temperature of 25°C, a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor are connected in parallel at the output end)


3.0 Protection

3.1 Short protection / Over current protection

The power supply will self-protect any output to ground, And auto recovery when

abnormal circuit faults remove.

The power supply can automatically resume normal operation when the short circuit is removed

*An output short circuit is defined as any output impedance of less than 0.1 ohms.

*When the effective value of output impedance is less than 0.1 ohm, it is defined as output short circuit

*The ripple is measured from peak to peak with band width limit of 20MHZ

(By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic diskcapacitor under DC output full Load, AC nominal input 25℃ambient temperature).

*Ripple is obtained by measuring the peak-to-peak value using an oscilloscope bandwidth of 20MHz

(Test conditions: at full DC output, rated AC input, and an ambient temperature of 25°C, a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor are connected in parallel at the output end)

Voltage(V)

OCP Current(A)

Power in(W)

OCP method




latch off

Current limit

Fold back

+12.0

1.4-2.5

X




3.2Over voltage protection

Voltage(V)

OVP range

OVP Method



Latch off

Auto recovery

Voltage limit

+12.0

18V




Test methods: Short FB Pin to GND

3.3 Over Temperature Protection

No deformation and no discoloration on case and will be shut down. That will be return

To normal state by ac reset, reset≤2 minutes.

When the power supply is turned off, the shell is not damaged or stained. When the AC input is restored, the shell can be restored to a normal state, and the recovery time is less than 2 minutes.

4.0 Leakage current:

Leakage current 0.25 mA max@240VAC

When the input voltage is 240Vac, the maximum leakage current is 0.25mA


5.0 Safety meet of: CB, CE, CU

5.1 EMI/EMS standards EMI/EMS STANDARDS

5.1.1 EMI EN55013 EMS EN55020

5.1.2 EN61000-4-2 ESD immunity requirements

5.1.2.1 Air discharge +/- 15KV (B)

5.1.2.2 Contact discharge +/- 8KV (B)

5.2 EN61000-4-3 radiated disturbance field strength RS

10V/m (r.m.s) 80-1000Mz 80%AM (1KHz) sine-wave (A)

5.3 EN61000-4-4 Electrical Fast Transient Burst BURST

5.3.1 AC input port AC-input coupling 1KV (A)

5.3.2 AC input port AC-input coupling 2KV (B)

5.4 EN61000-4-5 Surge immunity test SCR

5.4.1 Common mode/differential mode +/- 6KV / +/- 6KV

5.5 Induced radio frequency fields conducted disturbances immunity test

10V 0.15-80 MHz 80%AM (1KHz) (A)


6.0HI-POT AND Insulation Resistance

HI-POT: Primary to secondary 3000Vac/10mA/60S.

IR: primary to secondary ≥100M ohm at 500Vdc


7.0Environment

TEMPERATURE AND HUMIDITY

OPERATING TEMPERATURE -5 DEGREES C TO 45 DEGREES C.

OPERATING HUMIDITY 5% TO 95% RH.(RELATIVE HUMIDITY).

STORAGE TEMPERATURE -40 DEGREES C TO 70 DEGREES C.

STORAGE HUMIDITY 5% TO 95% RH. (RELATIVE HUMIDITY).

Working temperature: -5℃-45℃

Working humidity: 5%-95% (relative humidity)

Storage temperature: -40℃-70℃

Storage humidity: 5%-95% (relative humidity)


8.0Vibration

SWEEP AND RESONANCE SEARCH

FREQUENCY DURATION AXIS AMPLITUDE

10~55Hz 30 MINUTES X,Y,Z 1G


9.0M.T.B.F

Shall be 50000power on hours on greater under 25 degrees C of ambient temperatureMTBF

Underevaluated under.

*M.T.B.F. 50000 hours will be affected if the product won’t be used for a long time.


10. Label specification: As Attachment (as an attachment)

11. Mechanical: As Attachment (as an attachment)

12. Appearance: As Attachment

13. Package: As Attachment (as an attachment)
