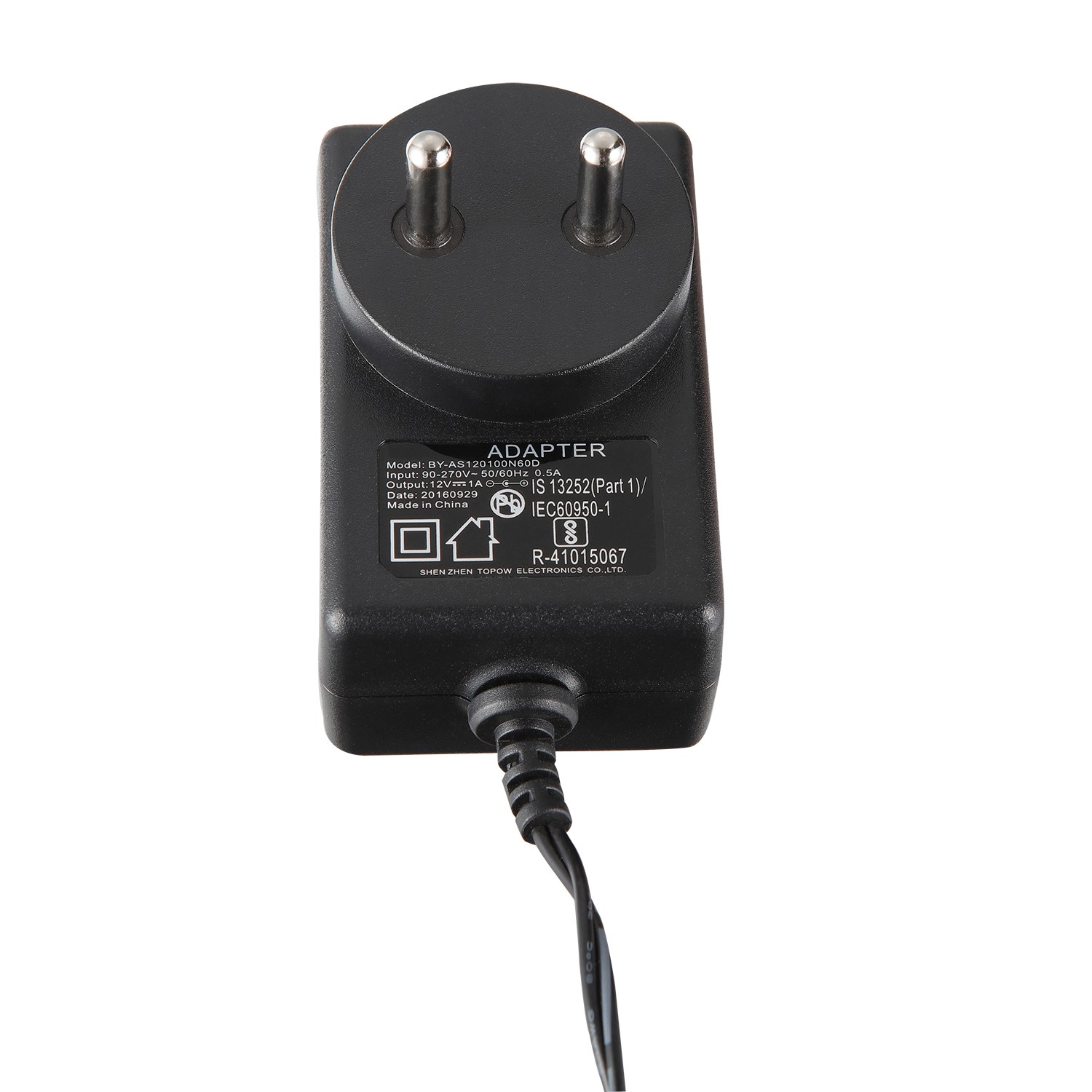

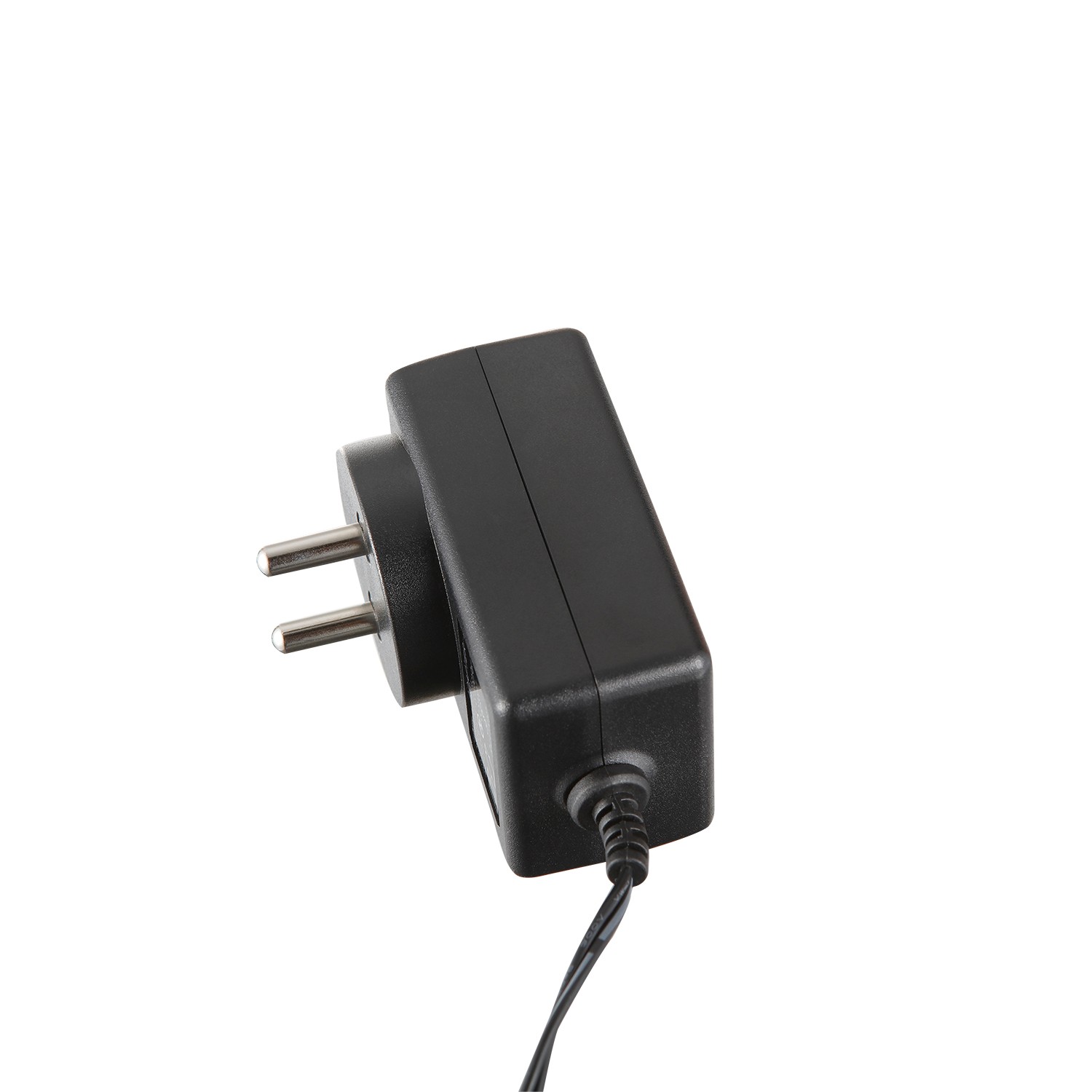

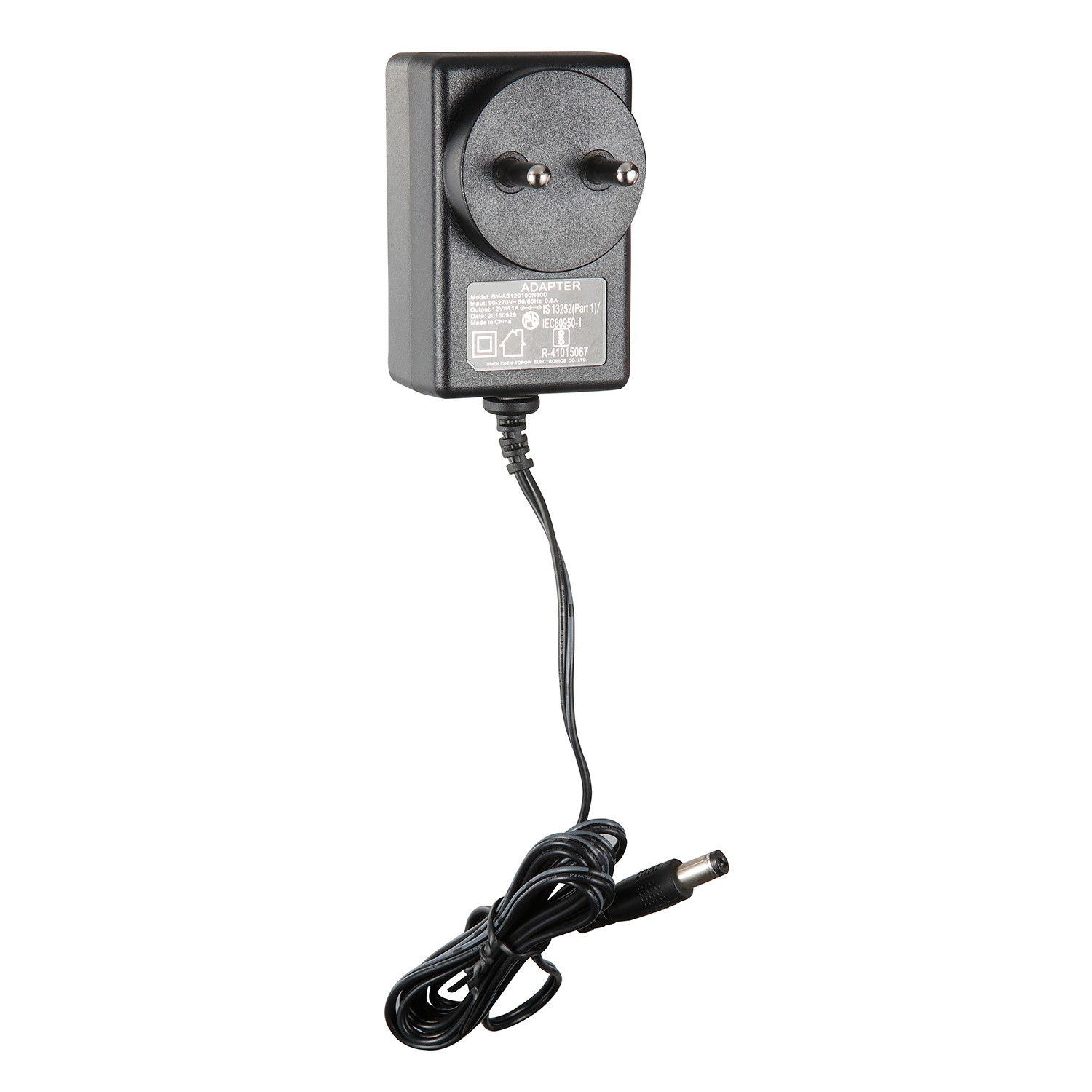

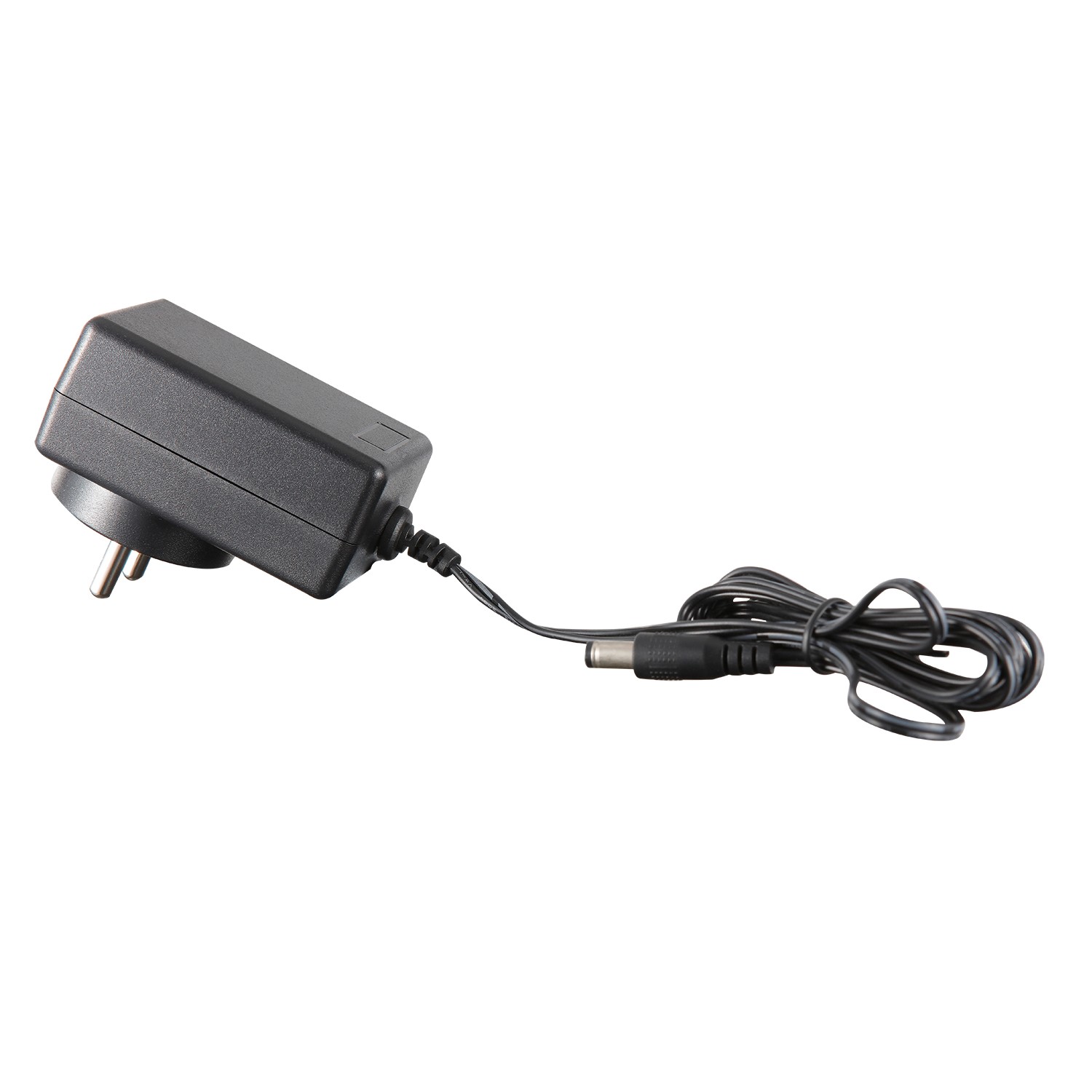

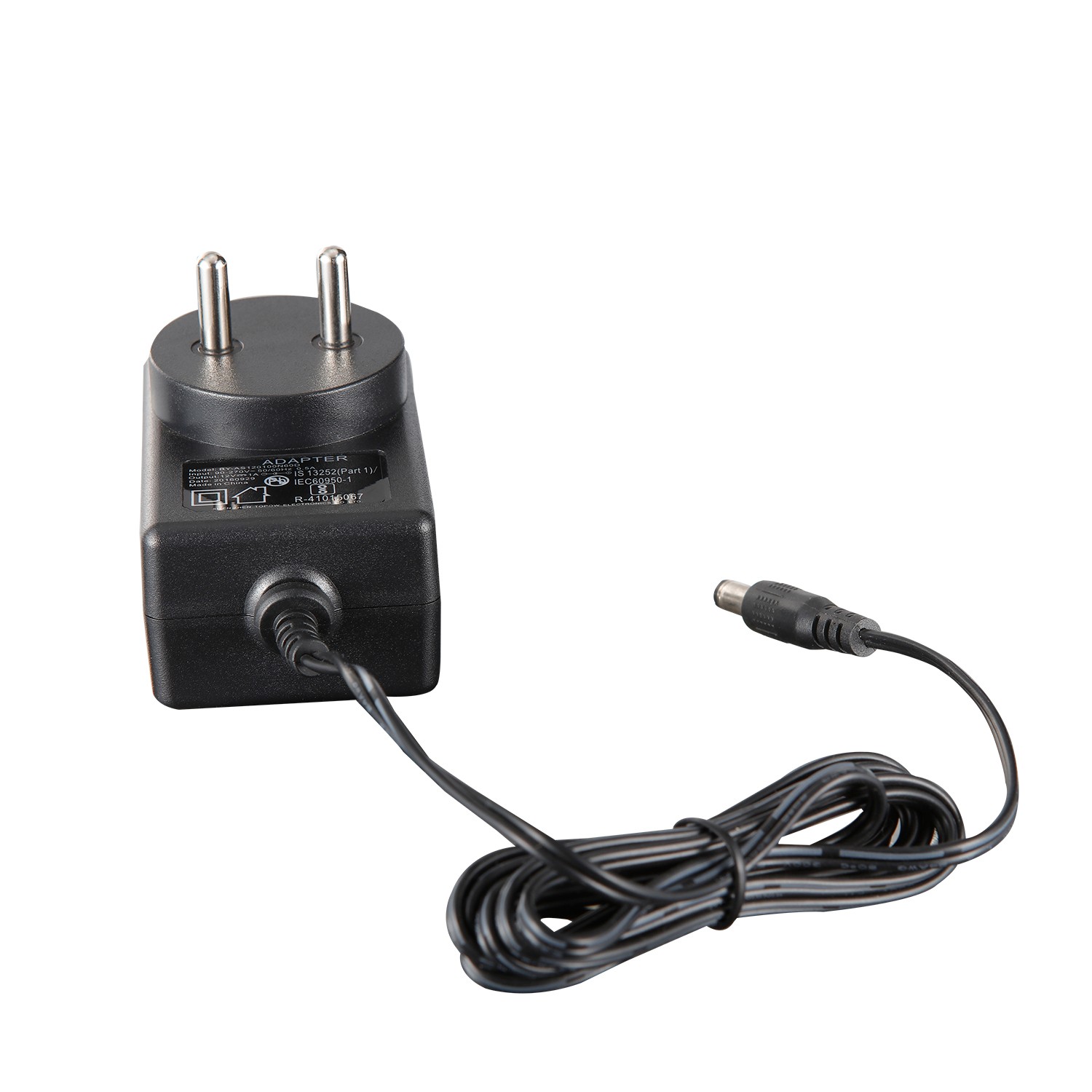

Product model: TPA259B-12120-IN
Color: Black
Plug Type: Wall-mounted horizontal, Indian version
Output Power: 12W
Input Voltage: 90~264V
Input Frequency: 47~63Hz
Output Voltage: 12V
Output Voltage Accuracy: 5%
Output Current: 1A
MTBF: at least 60,000 hours
Protection: OCP/OVP
Efficiency: 78%
Inrush Current: Cold start 60A/220VAC
Working Temperature: -5~+45°C
Packing: 0.096kg /100pcs/11kg
Warranty Period: 2 Years
General
The specification defines the performance characteristics of a 12W, SINGLE Output level switching power supply for IT . The power supply has designed highly reliable and meet international safety and radiation requirements.
1.0 Input Characteristics
1.1Input voltage range and frequency
Nominal Voltages | Voltage Variation Range | Nominal Frequency | Frequency Variation Range |
90-270VAC | 81-297VAC | 50-60Hz | 47-63Hz |
Rated voltage: 90-270VAC
Voltage variation range: 81-297VAC
Rated frequency: 50-60Hz
Frequency change range: 47-63Hz
1.2 Input Current
0.3A max
| At AC low line input and DC output full load |
At low line AC and full load, the maximum input current is 0.3A
1.3 Input protection
5A Fuse
| The power supply shall be protected against power line surges and any abnormal condition. |
When the AC input voltage has surges and abnormal conditions, the 5A fuse will protect the power supply
1.4 Input surge current
30A max | At power supply cold start, ambient temperature 25ć˜230Vac |
When the input is 230Vac cold state at 25℃ ambient temperature, the maximum surge current is 30A
1.5 Efficiency
1.5.1 68 %min. At nominal input voltage,maximum load and measured at end of DC cable
1.5.2Active mode efficiency
More than 68% min of average efficiency of 25%,50%,75% and 100% load tested at115Vac and 230Vac.(Warm up after 30 minutes)
1.6No Load Power consumption
0.3W rms max
| At AC nominal input˜output no load |
In the case of rated input AC and output no-load, the maximum no-load loss is 0.3W
1.7Hold up time
30ms min | At 230VAC nominal input˜ output full load |
(1 half cycle) |
Under the condition of rated input 230V AC and output full load, the minimum holding time is 30ms.
2.0 Output Characteristics
2.1 Turn on delay
2S max
| At 230VAC voltage input˜output full load |
In the case of 230VAC voltage input and output at full load, the maximum power-on delay time is 2S
Test on delay is measured from 0 voltage output to the main output regulation.
2.2 DC output regulation
Voltage(V) | Loading(A) |
Tolerance Range Total Regulation |
Adjustable voltage | Range(V) | |
Min |
Max | ||||
+5.0 | 0 | 1.0 | None | 4.90~5.50 | |
Total regulation involved line regulation load regulation cross regulation---etc.
Line regulation is measured from 90Vac to 132Vac or 185vac to 264vac
Load regulation is measured all output from min load to max load at 115vac or 230vac nominal AC input voltage
2.3 Ripple/noise
Voltage(V) | Ripple/Noise(pk-pk)(mV) |
+5.0 | 100 |
The ripple is measured from peak to peak with band width limit of 20MHz
(By passed at the end of connector with 10uF electrolytic and 0.1uF ceramic disk capacitor under
DC output full Load, 90-264Vac input 25 ambient temperature)
3.0 Protection
3.1 Short protection / Over current protection
The power supply will self-protect any output to ground, And auto recovery when abnormal circuit faults remove.
An output short circuit is defined as any output impedance of less than 0.1 ohms.
Voltage(V) | OCP Current(A) |
Power in(W) |
| ||
latch off | Current limit | Fold back | |||
+5.0 | 2.0A max |
| |||
3.2 Over voltage protection
|
OVP range |
| ||
Latch off | Auto recovery | Voltage limit | ||
+5.0 | ||||
Test methods˖Short FB Pin to GND
3.3 Over Temperature Protection
No deformation and no discoloration on case and will be shut down.That will be return
To normal state by ac reset,reset2 minutes.
4.0 Leakage current
Leakage current 0.25 mA max@240VAC
5.0 Safety meet of
5.1 EMI/EMS standards EMI/EMS STANDARDS
5.1.1 EMIEN55013EMS EN55020
5.1.2 EN61000-4-2 electrostatic immunity requirements ESD
5.1.2.1 Air discharge +/-8KV(B)
5.1.2.2 Contact discharge +/- 6KV(B)
5.2 EN61000-4-3 radiated disturbance field strength RS
3V/m (r.m.s)80-1000Mz 80%AM(1KHz) sine-wave(A)
5.3 EN6100O-4-4 Electrical Fast Transient Burst Burst
5.3.1 AC input port AC-input coupling 0.5KV (A)
5.3.2 AC-input coupling 1KV (B)
5.4 EN61000-4-5 Surge immunity test SCR
5.4.1 Common mode/differential mode +/-4KV /+/-4KV
5.5 Induced radio frequency fields conducted disturbances immunity 3V0.15-80 MHz 80%AM (1KHz) (A)
5.0 HI-POT
HI-POT---A IEC 320 3pin primary to secondary ( FG ) 1500Vac 5mA 3S
HI-POT---B IEC 320 2pin primary to secondary 3000Vac 5mA 60S
6.0 Environment
TEMPERATURE AND HUMIDITY
OPERATING TEMPERATURE -10 DEGREES C TO 50 DEGREES C.
OPERATING HUMIDITY 5ˁ TO 90ˁ RH.(RELATIVE HUMIDITY).
BURN-IN TEMPERATURE 40 DEGREES C TO 45 DEGREES C (FULL LOAD,4 HOURS).
STORAGE TEMPERATURE -20 DEGREES C TO 85 DEGREES C.
STORAGE HUMIDITY 5ˁ TO 90ˁ RH.(RELATIVE HUMIDITY).
7.0 Vibration
SWEEP AND RESONANCE SEARCH
FREQUENCY DURATION AXIS AMPLITUDE
10~55Hz 30 MINUTES X,Y,Z 1G
8.0 M.T.B.F
Shall be 50000 power on hours on greater under 25 degrees C of ambient temperature MTBF
Under evaluated under.
M.T.B.F 50000 hours will be affected if the product won’t be used for a long time
10 Label specification：As Attachment
11 Mechanical：As Attachment
12 Appearance：As Attachment
Connection method of AC lead and plug:
Stamping and crimping
Hook welding connection
13 Package：As Attachment
14 SCH&PCB：：As Attachment
