60W bare board power supply (54V)

TPT60S54A

Model Number: TPT60S54A

Input Voltage: 100~240Vac

Output Voltage and Current: 54V/1.11A

Working Temperature: -10~+50℃

Size: 107mm*64mm*28.0mm

Single Output

Efficiency:>85%

Output Protection: OVP/OCP/OSP/OLP

RoHS Compliant

IEC 60950/62368

EMl Class A

Leakage Current: Less than 3.5mA

Enquiry video

Product Detail

1. POWER SUPPLY OVERVIEW:

1.1 INPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.1.1 Input voltage range: 90Vac to 264Vac

1.1.2 Nominal input Normal voltage range: 100Vac-240Vac

1.1.3 Full load input current Max input ac current: 2Amax at full load condition

1.1.4 Inrush current: MAX80A (Cold start), 230Vac input

1.1.5 Efficiency: 84% at 230Vac, full load condition;

1.1.6 Leakage Current: Less Than 3.5mA,230Vac input

1.1.7 Input Fuse: T3.15A/250Vac

1.2 OUTPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.2.1 OUTPUT VOLTAGE RANGE

Output Voltage

Min value

Normal value

Max value

Requirements

Vout

53V

54V

55V

V_in=100Vac～240Vac

Io=1.1A

1.2.2 OUTPUT CURRENT RANGE

Output Current	Min value	Normal value	Max value	Requirements
Iout	0A	/	1.1A	V_in=100Vac～240Vac

1.2.3 LINE REGULATION

Line Regulation	Min value	Normal value	Max value	Requirements
Vout: 54V	/	±1%	/	V_in=100Vac～240Vac Io=1.1A

1.2.4 LOAD REGULATION

Load Regulation	Min value	Normal value	Max value	Requirements
Vout: 54V	/	±2%	/	Vin=100Vac~240Vac Io=1.1A

1.2.5 OUTPUT VOLTAGE TOLERANCE

Output voltage tolerance	Min value	Normal value	Max value	Requirements
Vout: 54V	/	/	±5%	Vin=100Vac~240Vac Io=1.1A

1.2.6 OUTPUT RIPPLE & NOISE

Output Voltage	Ripple & Noise (Max.)
Vout: 54V	350mVp-p@25℃

Note: 1) Measurements shall be made with an oscilloscope with 20MHz bandwidth.

2) Outputs shall be bypassed at the connector with a 0.1Uf ceramic capacitor and a 10Uf electrolytic capacitor to simulate system loading.

1.2.7 OUTPUT TRANSIENT RESPONSE

Voltage regulation	Slew Rate	Test Condition: Load Changing Scope
54V ±5%;	0.2A/us	25% to 50% load and 50% to 75% load

1.2.8 OUTPUT OVERSHOOT

Output Overshoot	Min value	Normal value	Max value	Requirements
Vout: 54V	/	/	±5%	Iout=0A-1.1A

1.2.9 TURN ON TIME

Turn on time

Min value

Normal value

Max value

Requirements

Vout: 54V

Vin=230Vac

Io=1.1A

1.2.10 OUTPUT HOLD TIME

Output Hold Time	Min value	Normal value	Max value	Requirements
Vout: 54V	/	5mS	/	Vin=100Vac Io=1.1A

1.2.11 OUTPUT RISE TIME

output Rise time	Min value	Normal value	Max value	Requirements
Vout:54V	/	50mS	/	Vo=10%-90% Io=1.1A

1.3 Protection function PROTECTION:

1.3.1 OUTPUT OVER CURRENT PROTECTION

Output over current Protection	Min value	Normal value	Max value	Requirements
Vout: 54V	1.3A	/	2.2A	Hiccup Auto-recovery mode

1.3.2 OUTPUT SHORT CIRCUIT PROTECTION.

Output Short Circuit Protection	Comments
	Hiccup Auto-recovery mode

1.3.3 OUTPUT OVER VOLTAGE PROTECTION

over voltage Protection

Min value

Normal value

Max value

Requirements

Vout: 54V

58V

62V

Locked, can be restored after the fault is removed

2. Insulation performance ISOLATION

2.1 ISOLATION RESISTANCE

Requirements	Parameter value	Note
500VDC/25℃/70%RH	≥50MΩ	I/P-O/P,I/P-FG,O/P-FG

2.2 ISOLATION WITHSTANDING VOLTAGE

Parameter name	Parameter value	Note
Input To Output	3000Vac/10mA/1min	No breakdown or flashover phenomenon
Input To PG	1500Vac/10mA/1min	No breakdown or flashover phenomenon
Output To PG	1500Vac/10mA/1min	No breakdown or flashover phenomenon

3. Safety requirements SAFETY:

The design meets the requirements of UL60950 and EN60950 standards.

Design in accordance with UL60950 and EN60950 the requirements of the standard.

4. Electromagnetic compatibility EMC

4.1 Electromagnetic Interference EMI

The electromagnetic interference of the power supply meets the following rules:

The power supply shall comply with the following Criterion:

1) Conduction Emission: EN55022, CLASS B

2) Radiated Emission: EN55022, CLASS B

3) Harmonics: *GB17625.1/ IEC/EN61000-3-2

4) Voltage flicker Flicker & Fluctuation: *GB17625.2/ IEC/EN 61000-3-3

4.2 Electromagnetic immunity EMS

The electromagnetic immunity of the power supply meets the following rules:

The power supply shall comply with the following Criterion:

1) Electrostatic immunity ESD: *GB17626.2-1998/IEC61000-4-2/ EN 61000-4-2

2) Burst anti-interference EFT: *GB17626.4-1998/IEC61000-4-4 3KV /EN 61000-4-4,

3) Lightning surge Surge: *GB17626.5-1998/IEC61000-4-5 /EN 61000-4-5

Differential mode: 1KV Common mode: 2KV.

4) Voltage Dips: *EN 61000-4-11, IEC 1000-4-11:2001.

5) Radiation immunity RS: *GB17626.3-1998/IEC61000-4-3/ EN 61000-4-3

6) Conducted immunity CS: *GB17626.6-1998/IEC61000-4-6 /EN61000-4-6

7) Power frequency magnetic field immunity PMS: *GB17626.8-1998/IEC61000-4-8 /EN61000-4-8

5. Working environment ENVIRONMENTAL REQUIREMENT

5.1 Products (E-CAP) life calculation MTBF

Lx=Lo*2^((To-Tx)/10) @ 40℃ 3 Year (Over 26400 hours)

5.2 Ambient temperature

5.2.1 Operating temperature Operating: -10℃ to +40℃.

5.2.2 Storage temperature Store: -20℃ to +70℃.

5.3 Humidity

5.3.1 Operating: From 10%to90% relative humidity (non-condensing).

5.3.2 Store: From 5 to 95% relative humidity (non-condensing).

5.4 Altitude

5.4.1 Operating: to10,000 ft.

5.4.2 Store: to 20,000ft.

5.5 Cooling Method:

Natural cooling Ventilation cooling.

5.6 Vibration Testing

10-55Hz, 49.0m/s²(5G), 3minutes period, 60minutes each along X, Y and Z axis.

5.7 Impact Testing

196.1m/s²(20G),11ms, once each X, Y and Z axis.

6. Connector pin definition PIN CONNECTION

7.1.Pin-CN1 AC Connection And Function TYPE: AC power socket 3PIN

NO	Pin Connection	Function
1	L	L-INPUT
2	PGND	/
3	N	N-INPUT

7.2.Pin-V+ & V- Connection And Function TYPE: 20 AWG black/red wire length 80mm

NO	Pin Connection	Function
1	GND	RETURN
2	GND	RETURN
3	+54V	＋54V OUTPUT
4	+54V	＋54V OUTPUT

7. Block schematic diagram

8. Curve

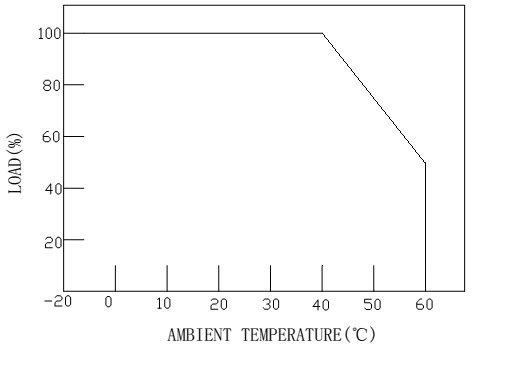

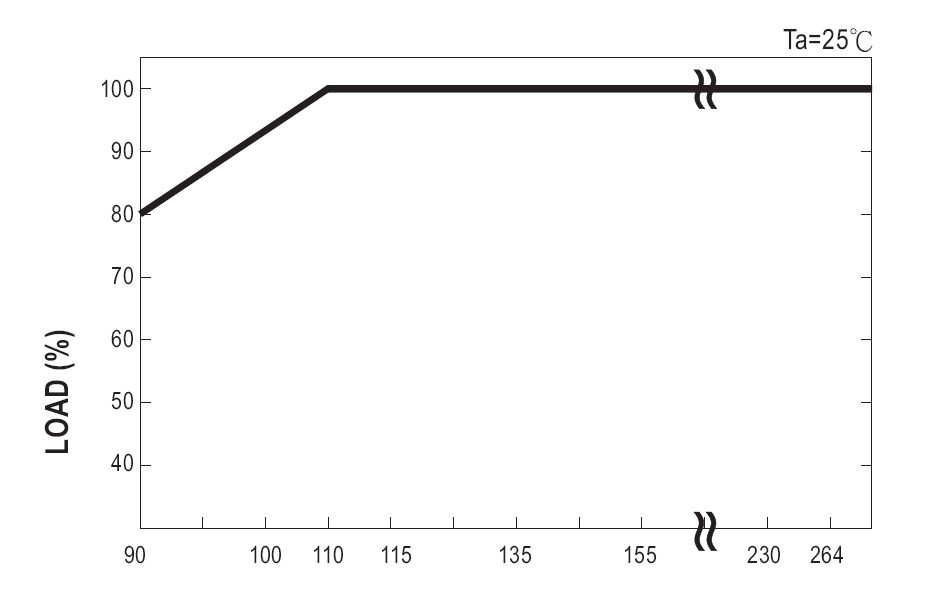

8.1 Derating curve
60W bare board power supply (54V)(图1)
8.2 Temperature graph

9. Weight:

10. Chart(Unit: mm)

10.1 Wire dtawing (wire drawing)

10.1.1 DC Output figure

10.2 Terminal figure

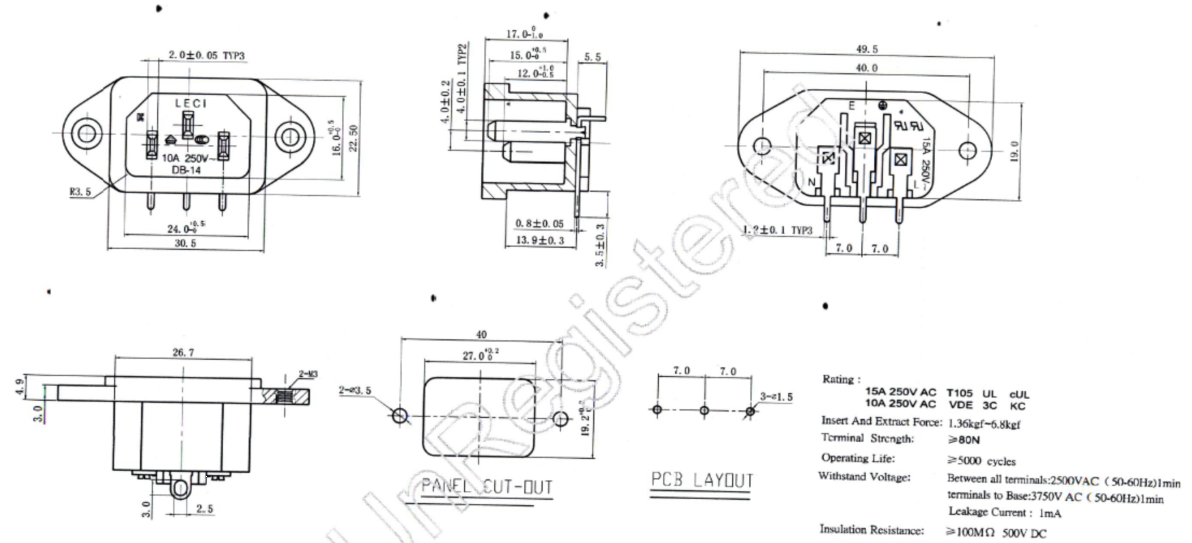

10.2.1 AC Input Terminal figure

60W bare board power supply (54V)(图3)

10.3 Dimension: 107mm X 64 mm X 24mm (length L * width W * height H).

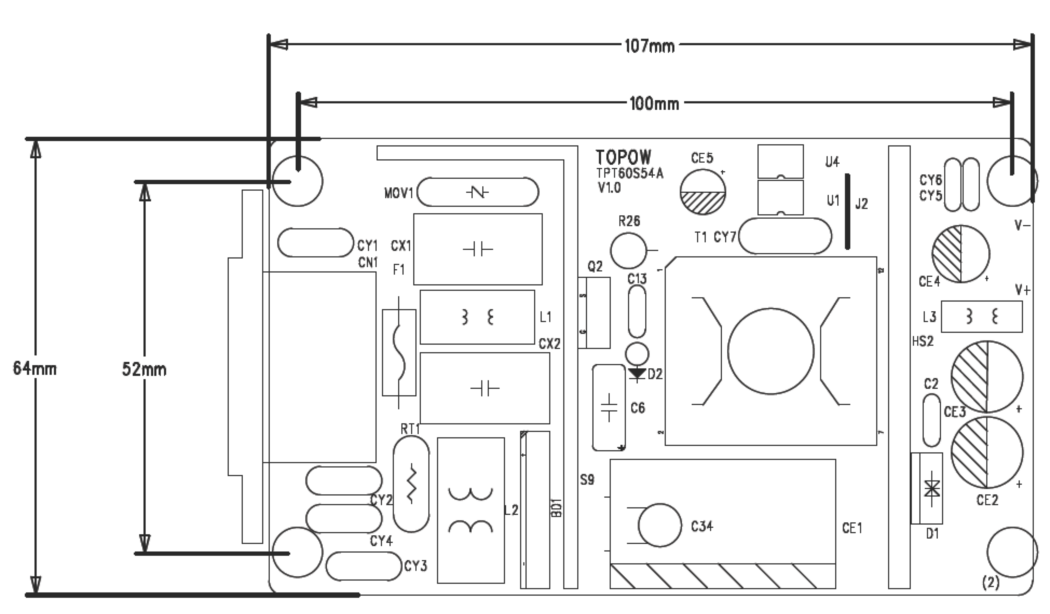

10.4 Outline dimensions (Tolerance: ±0.5mm)

60W bare board power supply (54V)(图4)

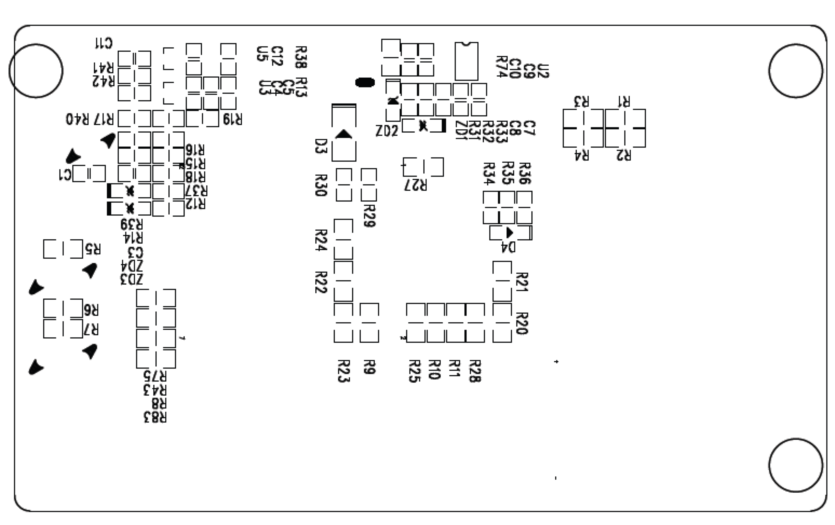

11.Laout diagram

11.1 Bottom Overlay

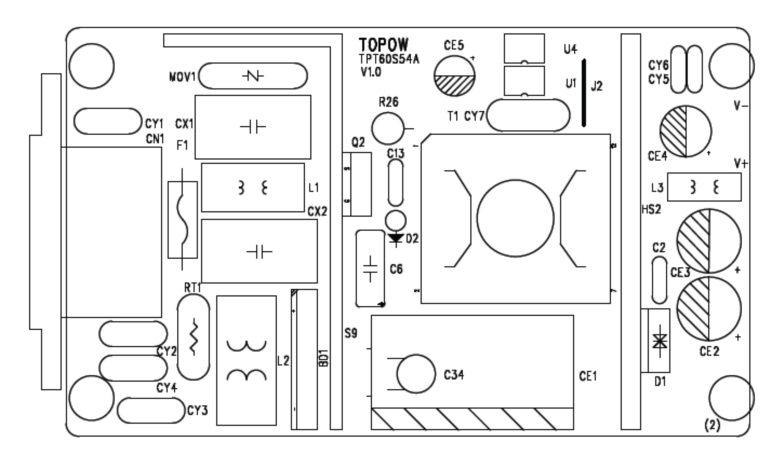

60W bare board power supply (54V)(图5)
11.2 Top Overoay
