165W Open Frame Power Supply

TPT165D5412A


Product model: TPT165D5412A

Input voltage range: 100~240Vac

Output voltage and current: output 1: 54V/2.7A, output 2: 12V/3A

Output power: 165w

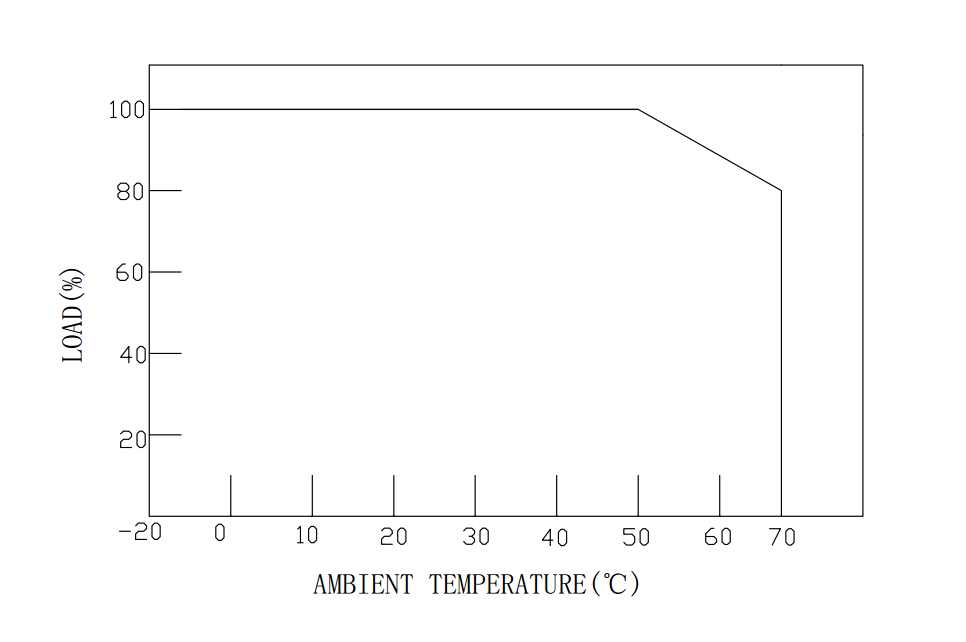

Working temperature: -10~+50℃

Size: 168mm*88mm*32.0mm

Double output efficiency>88%

Output protection: OVP/OSP/OCP/OLP

RoHS compliant

IEC 60950/62368

EMI A Class

Leakage current is less than 3.5mA

Surge: common mode 6KV, differential mode 6KV


Product Detail
