一. SCOPE：

1.  This specification define the performance and characteristics ，This specification define world wide safety requirements and manufactures process test requirements.

2.  Production design philosophy.

3. Overload Latch-Off protection during either (a) specified power threshold requirements or (b) short circuit condition.

4.Reliability level of 50K hours MTBF & 0.5% annual field failure rate @ 25 C.

5.  DC output voltage must be Safe Extra Low Voltage (SELV) & Limited Power

二. POWER SUPPLY OVERVIEW

1.  INPUT CHARACTERISTICS：

(1) Input Voltage

Input Voltage Range：100Vac-264Vac

Nominal Voltage Range：110Vac-240Vac

(2)  Input Frequency  :

Nominal Frequency :   50/60Hz.

Variation Frequency  ： 47/63Hz

(3)  Max. Input Curren：

2.0Arms max At any input voltage and rated. DC output rated load

(4)  Inrush Current:

60 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

(5) Ac Leakage Current:

0.25 mA Max. At 240Vac input.

2. OUTPUT CHARACTERISTICS:

(1) Output Power;

Voltage Max. Load

+5V 20A

+12V 2A

(2) Combined Load/Line Regulation:

Voltage Line Regulation Load Regulation

+5V ±5% ±5%

+12V ±5% ±5%

(3) Ripple And Noise: Input: 100-240Vac 50/60Hz

Voltage Ripple And Noise(Max.)

+5V 300mVp-p

+12V 120mVp-p

The ripple and noise are as follows when measured with Max. Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Test conditions: Under normal working conditions of any load, use an oscilloscope with a bandwidth of 20MHz to connect to the output terminal of the charger, while the output terminal is connected in parallel with a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor.

(4)  Rise Time:

Output Voltage        100Vac&Full Load       240Vac&Full Load

+5V      100ms      100ms

+12V    100ms      100ms

 (5)  Hold Up Time:

Output Voltage        100Vac&Full Load       240Vac&Full Load

+5V        5ms       5ms

+12V      5ms      5ms

(6)  Overshoot<过冲>:

10% Max. When power supply at turn on or turn off.

(7)  Short-Circuit Protection

At normal load short output (±5V或±12V)circuit ,power supply will not be damaged .When shortcircuit is removed , the power supply shall can operate normally

三. SAFETY

1． Insulation resistance：

Input To Output:DC500V 50MQ min(at room temperature)

Input To FG:DC500V 50MQ min(at room temperature)

Output To FG: Non Isolated

2.  Insulation pressure-proof ：

Input To Output:    3000Vac 50Hz 1minute≤10mA

Input To FG: DC500V 50MQ min(at room temperature)

Output To FG: Non Isolated

3. Safety standard:

CE/CB: IEC60065:2001(Seventh Edition)+A1:2005+A2:2010

UL: UL60065

CCC/CQC: GB8898-2011

4. EMC Standard

CE/CB:

EN55013:2001+A1:2003+A2:2006: Limits and methods of measurement of radio disturbance characteristics of broadcast receivers equipment

EN55020:2002+A1:2003+A2:2005: sound and television broadcast receivers and associated equipment-immunity Characteristics-Limits and methods of measurement

UL:

FCC Rules and Regulations Part15 Subpart B classB August 2008 & FCC/ANSIC63.4 -2003

CQC/CCC

GB13837-2012 (IEC/CISPR 13:2009, MOD) "Sound and TV broadcast receivers and related equipment radio disturbance characteristics, limits and measurement methods"

GB17625.1-2012 (IEC 61000-3-2:2009, IDT) "Electromagnetic Compatibility Limit, Harmonic Current Emission Limit (Equipment Input Current ≤16A)"

四. ENVIRONMENTAL REQUIREMET :

1．Temperature:

Operating Temperature： -10℃- 40℃，。

Storage Temperature:    -20℃  to  85℃

2．Relative Humidity:

Operating: From 10% to 90% relative humidity (non-condensing)

Non-operating: From 5% to 95% relative humidity (non-condensing)

3Altitude

Operating:  to 5000m

Non-operating:to5000m

4.  Cooling Method:

Convection air

5.  Burn-in

All power supplies shall be subjected to the burn-in process at 40C  in a temperature controlled environment.

（1）Burn-in criterion shall be as follower :

（2）Input Voltage ：100Vac-240Vac

（3）Temperature condition: 40C

（4）Load condition : （5V/16A,12V/1.6A） ，

（5）Burn-in Time : 4 Hours，

6． Vibration :

(1)  Operating: IEC 721-3-3 3M3

Test standard: International Electrotechnical and Electronics Commission

5~9Hz, A=1.5mm Acceleration: 9~200Hz, Acceleration 5m/s2

(2) Transportation:

Operating: IEC 721-3-2

2M25-9Hz, A=3.5mm

9~200Hz, acceleration: Acceleration=5m/S2

200~500Hz, acceleration: Acceleration=15m/S2

(3) Axes, 10 cycles per axis.

No permanent damage may occur during testing.

The product has to restore to its original situation after power on/off

Five. MECHANICAL:

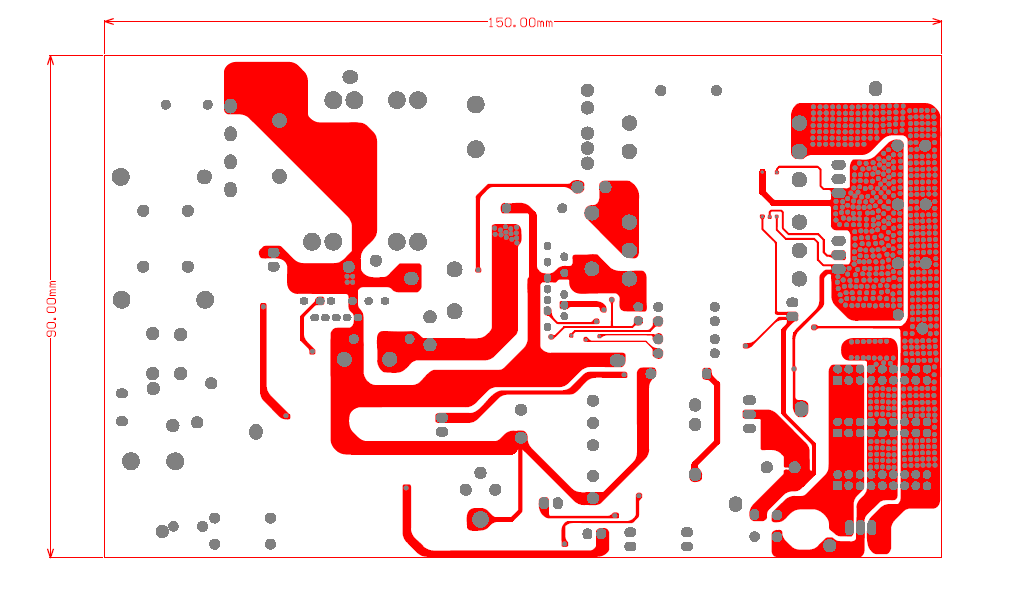

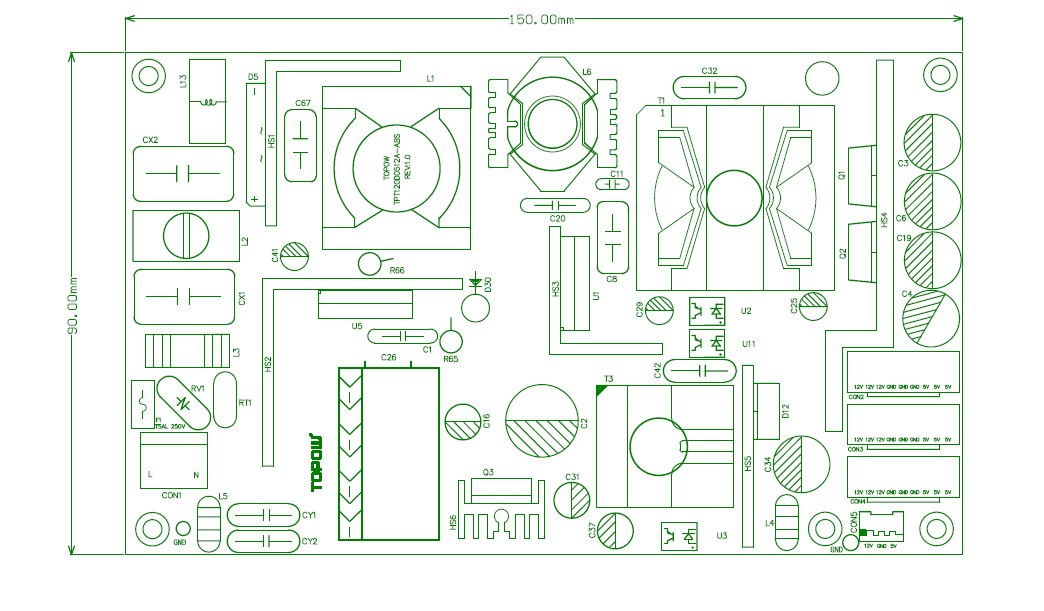

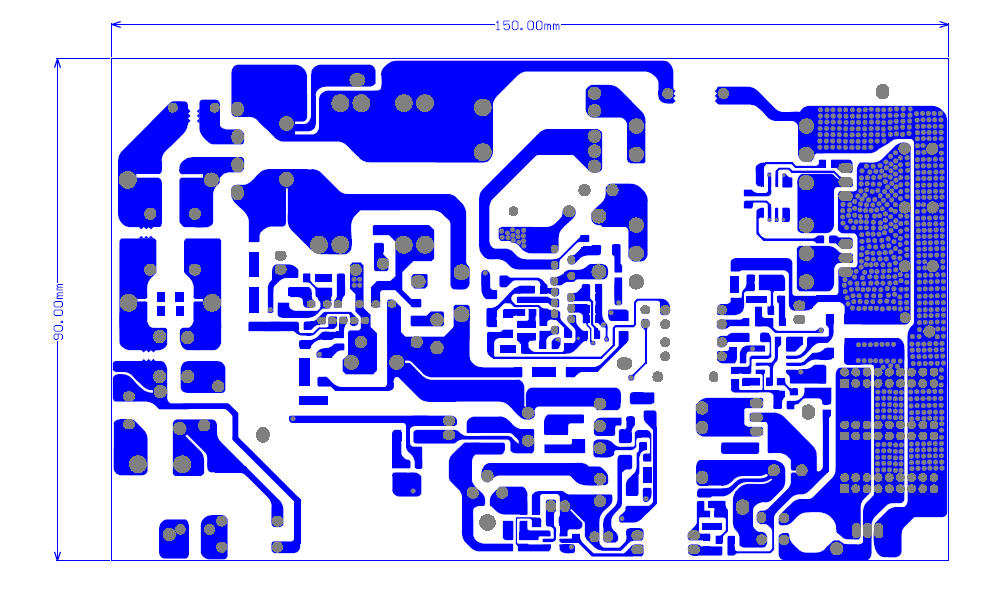

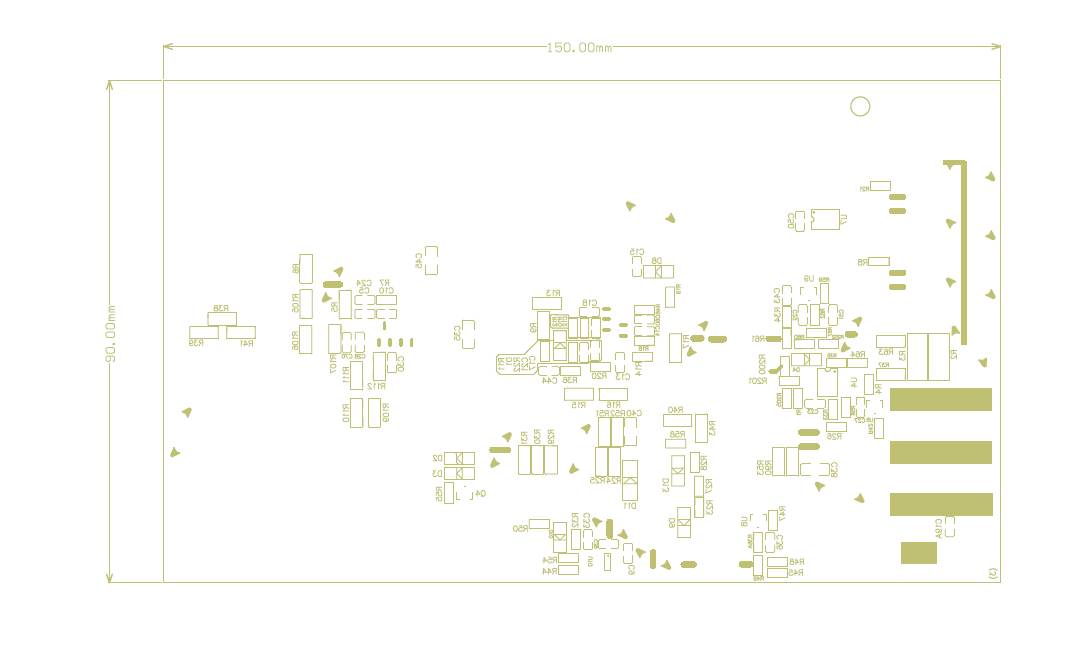

1. Dimension: L:150*W:90

2. Input Connector:

This Input Connector is 2pin/3.96VH

3. Output-jack:

This Output Connector is 2pin*9A

This Output Connector is 3pin

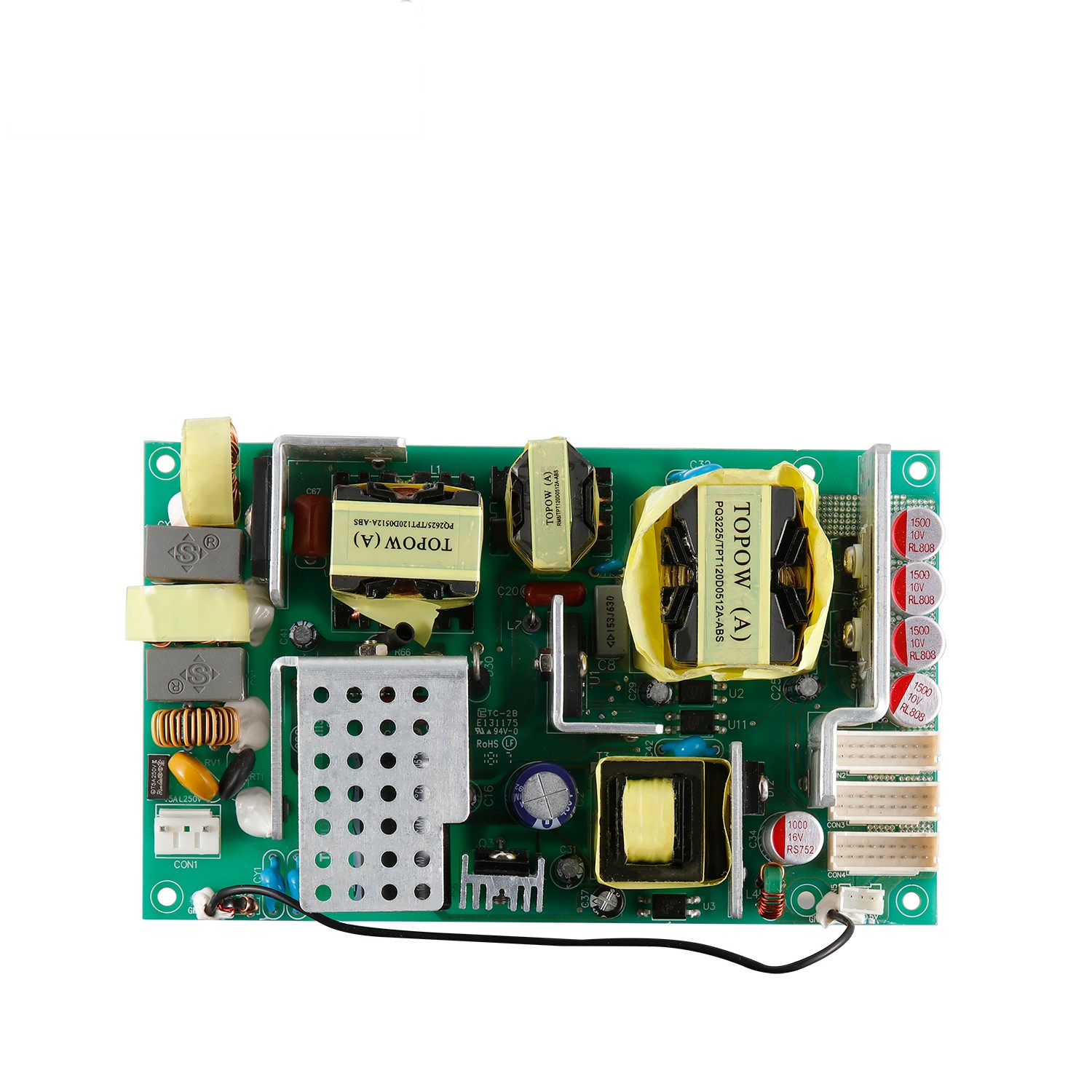

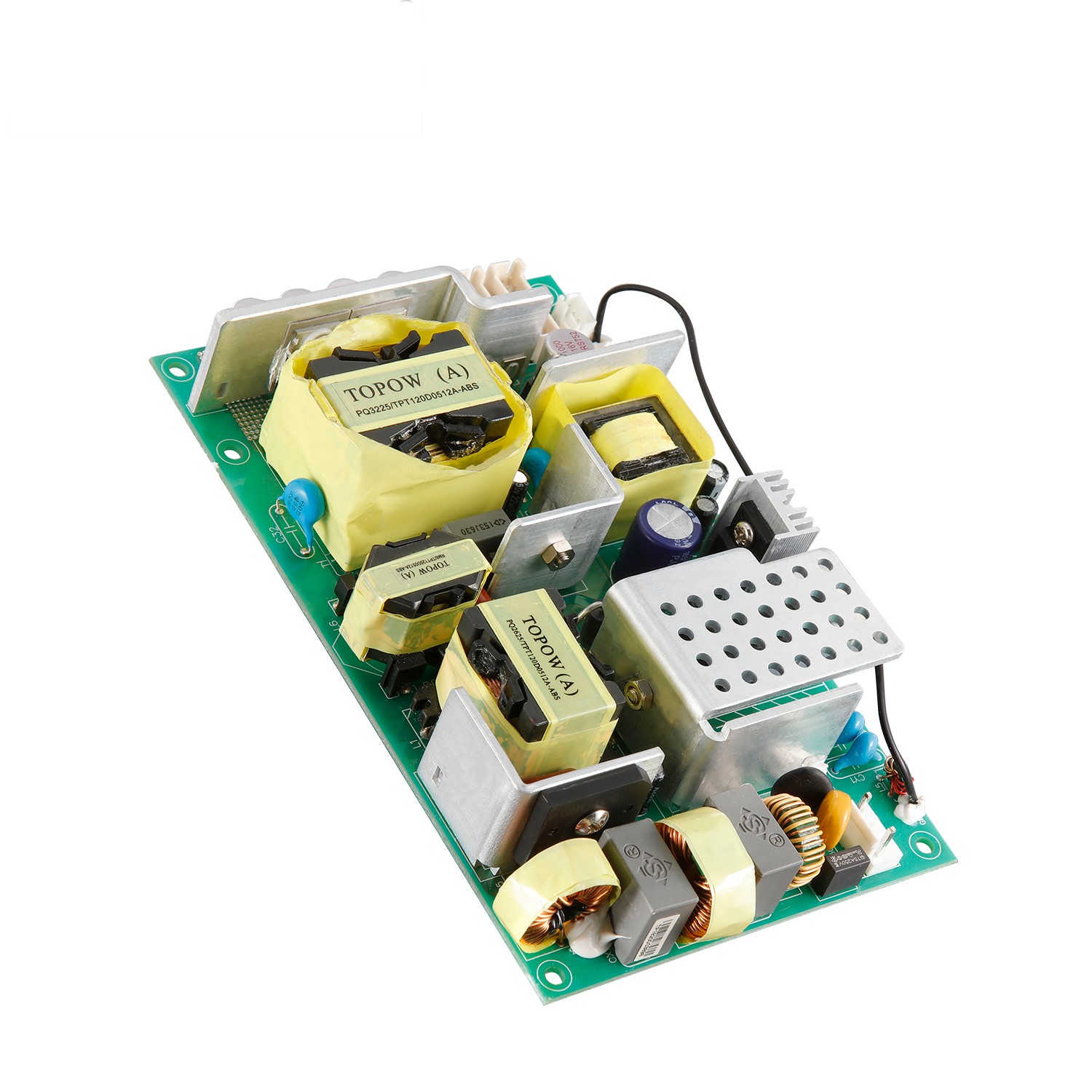

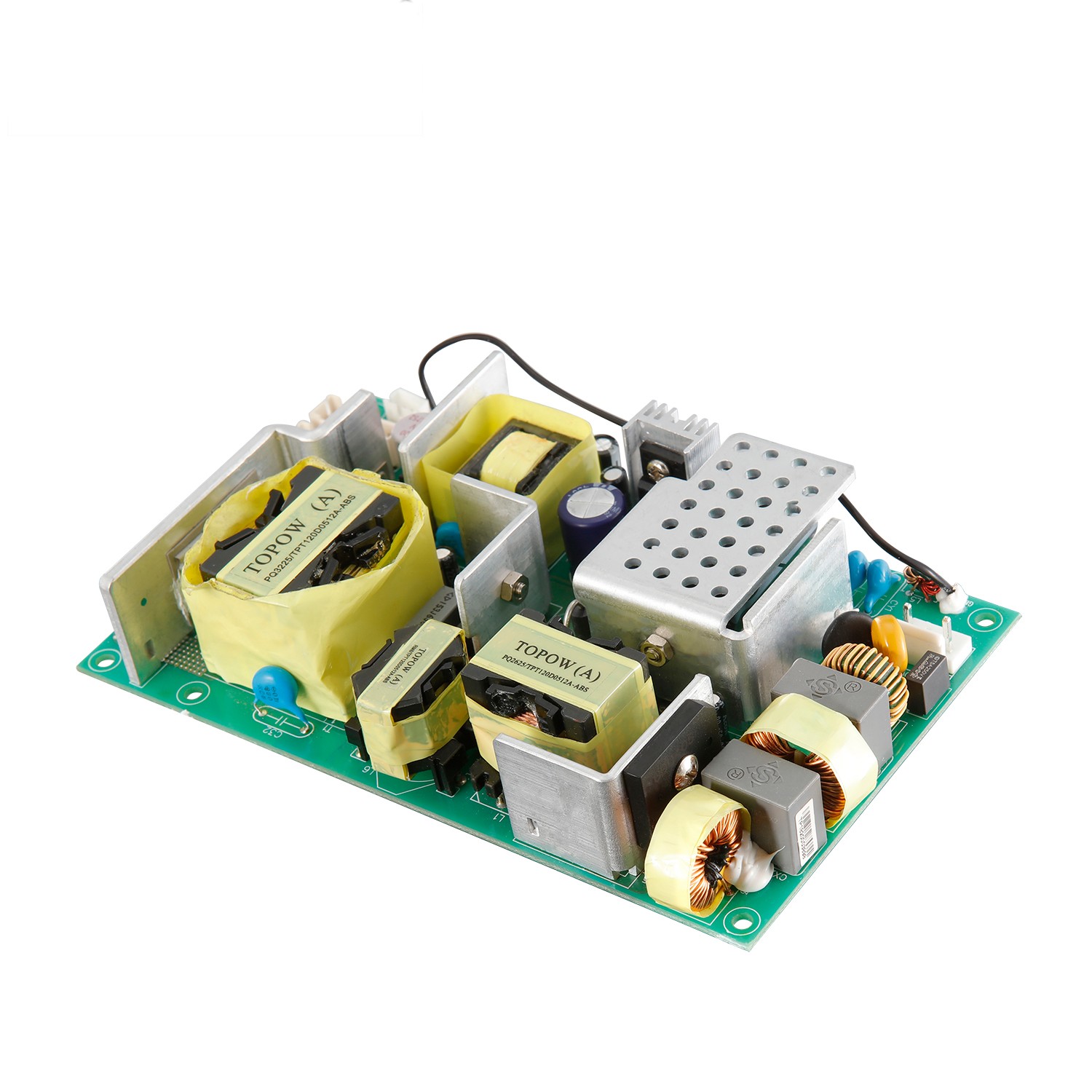

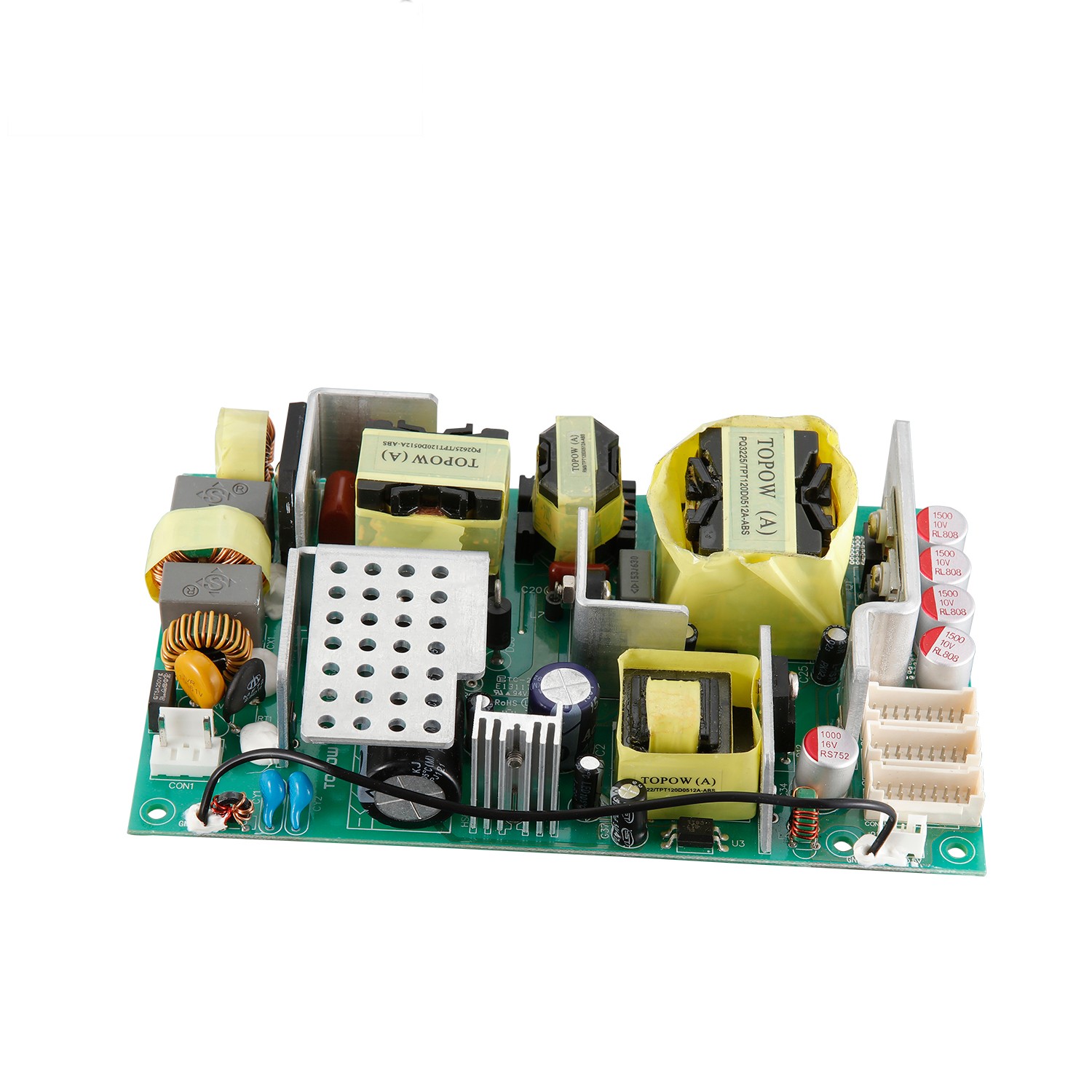

4. Enclosure: Open-Frame
