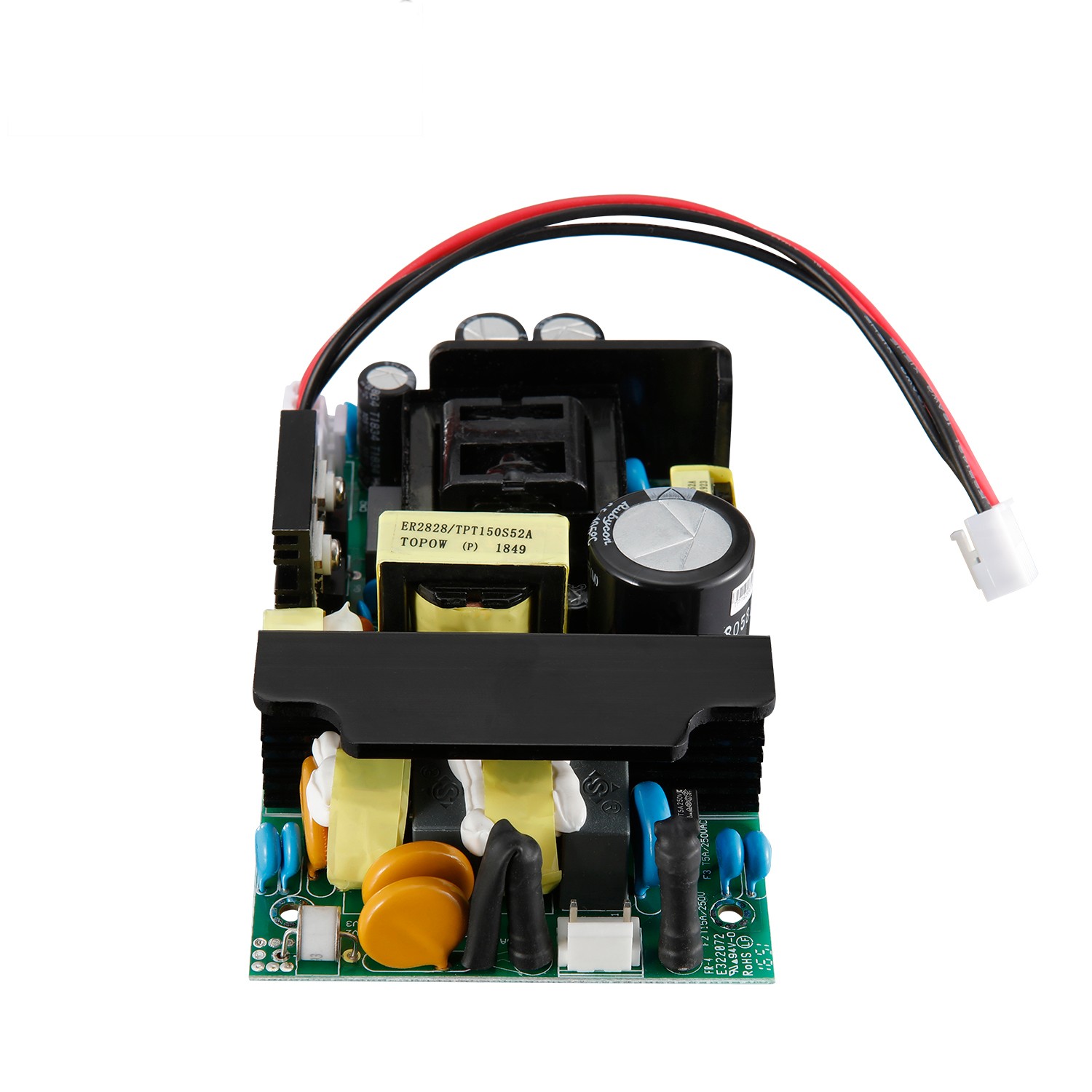

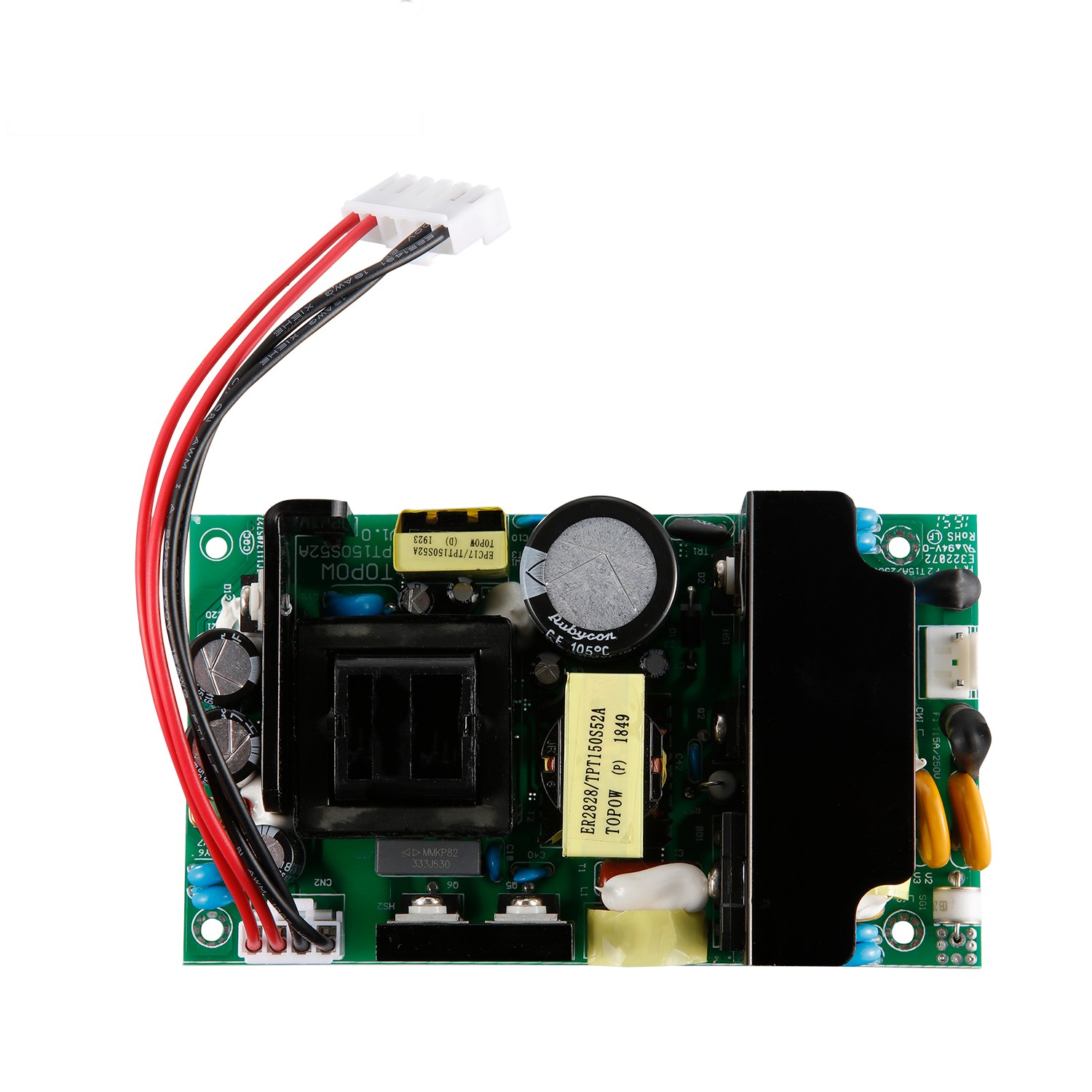

Customize 90 - 264Vac Input To 54V 2.77A Output Constant Voltage Ac To Dc Power Supply

TPT150S52A

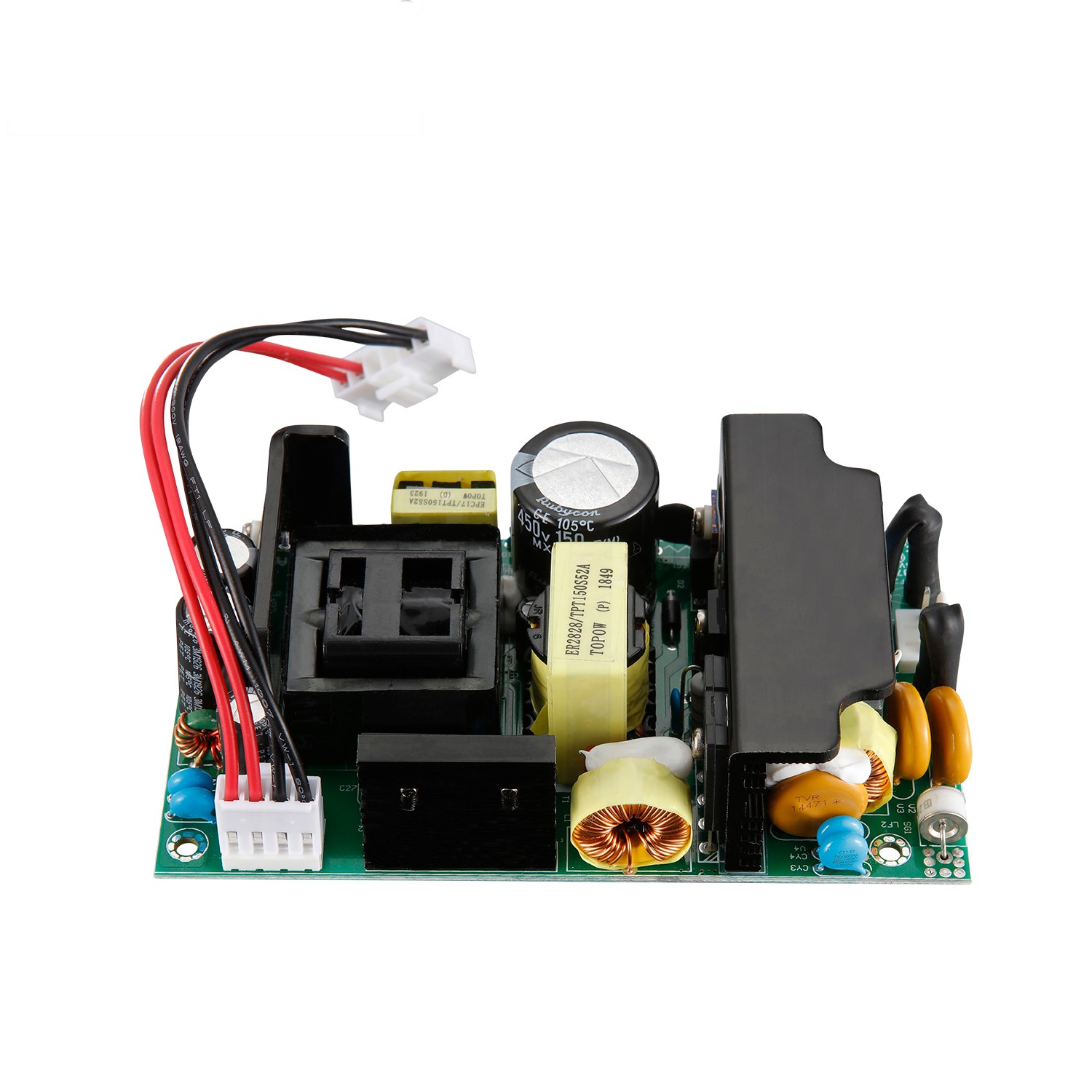

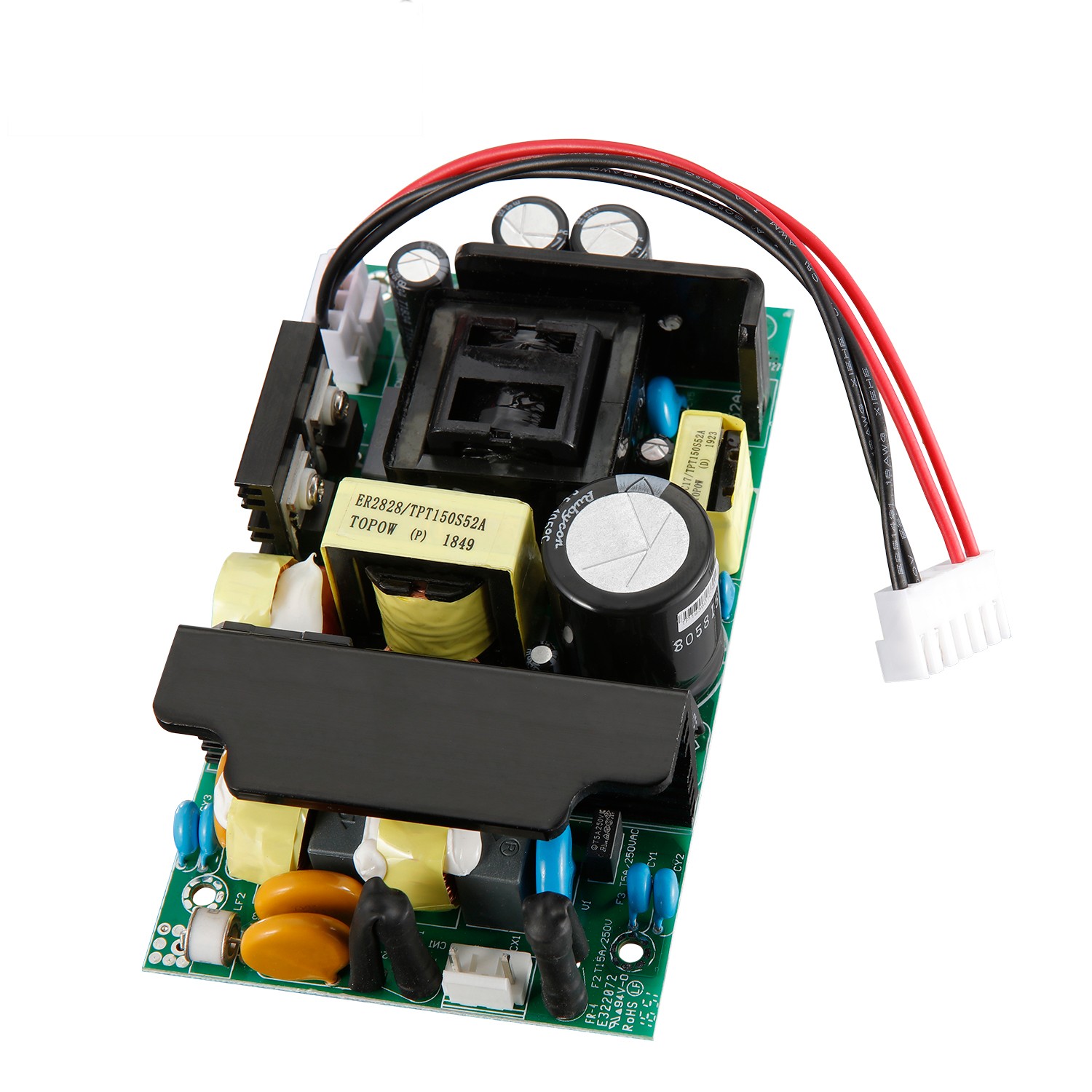

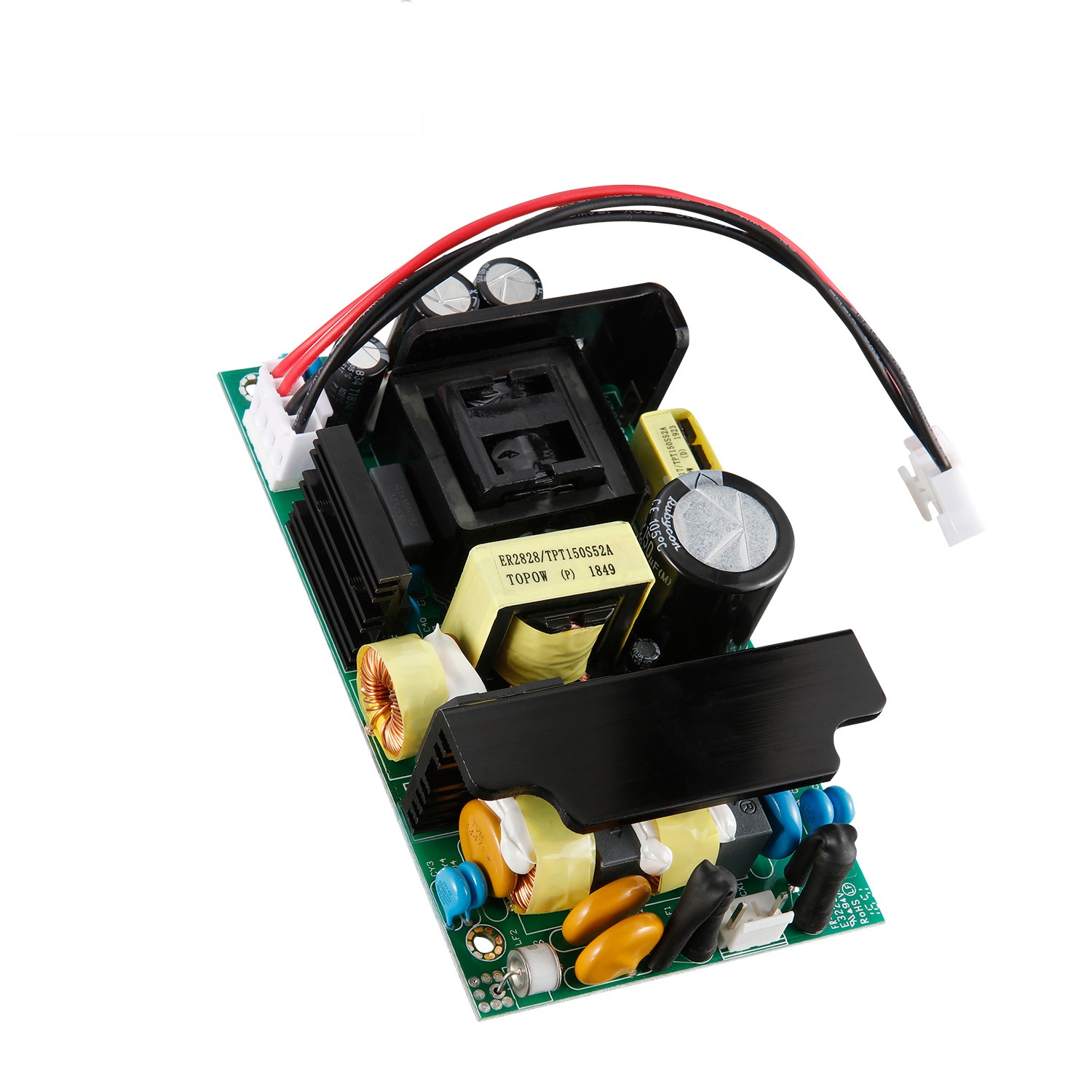

Power supply type: bare board

Output power: 150W

Output type (single or multiple groups?): Single group

Input voltage: 90~264VAC

Input frequency: 47~63Hz

Output voltage/current: 54V/2.77A

Mean time between failures: at least 200,000 hours

Protection: overcurrent and overvoltage

Efficiency: more than 88%

Inrush current: 80A/220VAC

Working temperature: -10~+50°C

Warranty period 2 years


Product Detail

1. POWER SUPPLY OVERVIEW:

1.1 INPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.1.1 Input voltage range: 90Vac to 264Vac

1.1.2 Nominal input Normal voltage range: 100Vac-240Vac

1.1.3 Frequency range: 47Hz/63Hz

1.1.4 Inrush current: MAX80A (Cold start), 230Vac input

1.1.5 Efficiency: 93% at 230Vac, full load condition;

1.1.6 Leakage Current: Less Than 3.5mA,230Vac input

1.1.7 Input Fuse: T5A/250Vac

1.1.8 Power Factor: PF>0.9 (100-240Vac Input ,Full load)

1.2 OUTPUT ELECTRICAL CHARACTERISTICS OVERVIEW

1.2.1 OUTPUT VOLTAGE RANGE

Output Voltage

Min value

Normal value

Max value

Requirements

Vout: 53V

51.41V

53V

54.59V

Vin=100Vac240Vac

Io=2.83A

1.2.2 OUTPUT CURRENT RANGE

Output Current

Min value

Normal value

Max value

Requirements

Iout

0A

/

2.83A

Vin=100Vac240Vac

1.2.3 LINE REGULATION

Line Regulation

Min value

Normal value

Max value

Requirements

Vout: 53V

/

±3%

/

Vin=100Vac240Vac Io=2.83A

1.2.4 LOAD REGULATION

Load Regulation

Min value

Normal value

Max value

Requirements

Vout: 53V

/

±3%

/

Vin=100Vac~240Vac Io=2.83A

1.2.5 OUTPUT VOLTAGE TOLERANCE

Output voltage tolerance

Min value

Normal value

Max value

Requirements

Vout: 53V

/

/

±3%

Vin=100Vac~240Vac Io=2.83A

1.2.6 OUTPUT RIPPLE & NOISE


Output Voltage

Ripple & Noise (Max.)

Vout: 53V

500mVp-p@25


Note: 1) Measurements shall be made with an oscilloscope with 20MHz bandwidth.

2) Outputs shall be bypassed at the connector with a 0.1Uf ceramic capacitor and a 10Uf electrolytic capacitor to simulate system loading.

1.2.7 OUTPUT TRANSIENT RESPONSE

Voltage regulation

Slew Rate

Test Condition: Load Changing Scope

53V ±5%;

0.2A/us

25% to 50% load and 50% to 75% load

1.2.8 OUTPUT OVERSHOOT

Output Overshoot

Min value

Normal value

Max value

Requirements

Vout:53V

/

/

±5%

Iout=0A-2.83A

1.2.9 TURN ON TIME

Turn on time

Min value

Normal value

Max value

Requirements

Vout: 53V

/

/

3S

Vin=230Vac

Io=2.83A

1.2.10 OUTPUT HOLD TIME


Output Hold Time

Min value

Normal value

Max value

Requirements

Vout: 53V

/

10mS

/

Vin=115Vac  Io=2.83A

1.2.11 OUTPUT RISE TIME


output Rise time

Min value

Normal value

Max value

Requirements

Vout: 53V

/

100mS

/

Vo=10%-90% Io=2.83A

1.3 Protection function

1.3.1 Output overcurrent protection

Output over current Protection

Min value

Normal value

Max value

Requirements

Vout: 53V

/

150%

/

Hiccup  Auto-recovery mode

1.3.2 OUTPUT SHORT CIRCUIT PROTECTION.

Output Short Circuit Protection

Comments


Hiccup  Auto-recovery mode

2. Insulation performance

2.1 Insulation resistance

Requirements

Parameter value

Note

500VDC/25/70%RH

100MΩ

I/P-O/P,I/P-FG,O/P-FG

2.2 ISOLATION WITHSTANDING VOLTAGE

Parameter name

Parameter value

Note

Input To 53V

3000Vac/10mA/1min

No breakdown or flashover phenomenon

Input To PG

1500Vac/10mA/1min

No breakdown or flashover phenomenon

53V To PG

500Vdc/10mA/1min

No breakdown or flashover phenomenon

3. Safety requirements SAFETY:

The design meets the requirements of UL60950 and EN60950 standards.

 Design in accordance with UL60950 and EN60950 the requirements of the standard.

4. Electromagnetic compatibility EMC

4.1 Electromagnetic interference EMI

The electromagnetic interference of the power supply meets the following rules:

The power supply shall comply with the following Criterion:

1) Conduction Emission: EN55022, CLASS B

2) Radiated Emission: EN55022, CLASS B

3) Harmonics: *GB17625.1/ IEC/EN61000-3-2

4) Voltage flicker Flicker & Fluctuation: *GB17625.2/ IEC/EN 61000-3-3

4.2 Electromagnetic immunity EMS

The electromagnetic immunity of the power supply meets the following rules:

The power supply shall comply with the following Criterion:

1) Electrostatic immunity ESD: *GB17626.2-1998/IEC61000-4-2/ EN 61000-4-2

2) Burst anti-interference EFT: *GB17626.4-1998/IEC61000-4-4 3KV /EN 61000-4-4,

3) Lightning surge Surge: *GB17626.5-1998/IEC61000-4-5 /EN 61000-4-5

Differential mode 1KV Common mode 2KV

4) Voltage Dips: *EN 61000-4-11, IEC 1000-4-11:2001.

5) Radiation immunity RS: *GB17626.3-1998/IEC61000-4-3/ EN 61000-4-3

6) Conducted immunity CS: *GB17626.6-1998/IEC61000-4-6 /EN61000-4-6

7) Power frequency magnetic field immunity PMS: *GB17626.8-1998/IEC61000-4-8 /EN61000-4-8

5. Working environment

5.1 Products (E-CAP) life calculation MTBF

Lx=Lo*2^((To-Tx)/10) @ 25℃ 5 Year (Over 44000 hours)

5.2 Ambient temperature

5.2.1 Operating temperature: -10℃ to +50℃.

5.2.2 Storage temperature: -45℃ to +85℃.

5.3 Ambient humidity

5.3.1 Operating: From 10%to90% relative humidity (non-condensing).

5.3.2 Store: From 5 to 95% relative humidity (non-condensing).

5.4 Altitude

5.4.1 Operating: to10,000 ft.

5.4.2 Store: to 20,000ft.

5.5 Cooling Method:

Natural cooling Ventilation cooling.

5.6 Vibration Testing

10-55Hz, 49.0m/s²(5G), 3minutes period, 60minutes each along X, Y and Z axis.

5.7 Impact Testing

196.1m/s²(20G),11ms, once each X, Y and Z axis.

6. Connector pin definition

6.1.Pin-CN1 AC Connection And Function TYPE:

NO

Pin Connection

Function

1

L

L-INPUT




3

N

N-INPUT

6.2.Pin-CN2 Connection And Function TYPE: 3.96MM*6PIN

NO

Pin Connection

Function

1

GND

53V RETURN

2

GND

53V RETURN

3

+53V

53V OUTPUT

4

+53V

53V OUTPUT

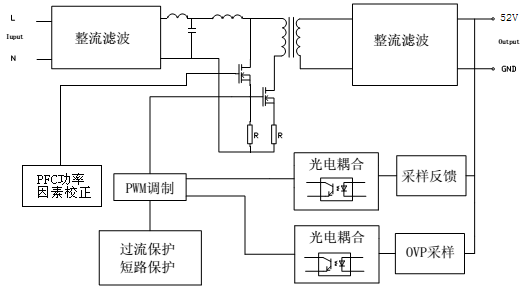

7. Block schematic diagram
Customize 90 - 264Vac Input To 54V 2.77A Output Constant Voltage Ac To Dc Power Supply(图1)

8. Curve chart

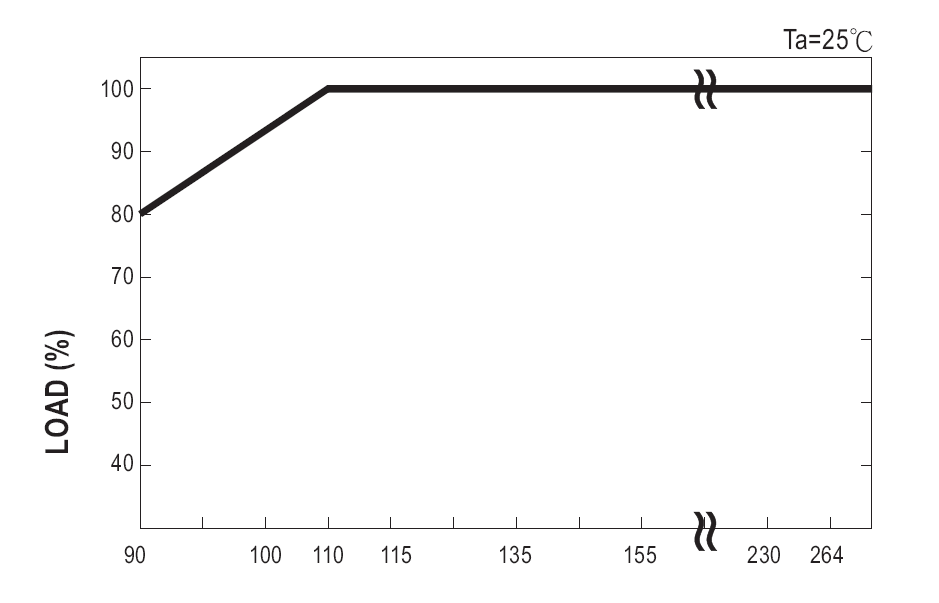

8.1 Derating curve

Customize 90 - 264Vac Input To 54V 2.77A Output Constant Voltage Ac To Dc Power Supply(图2)

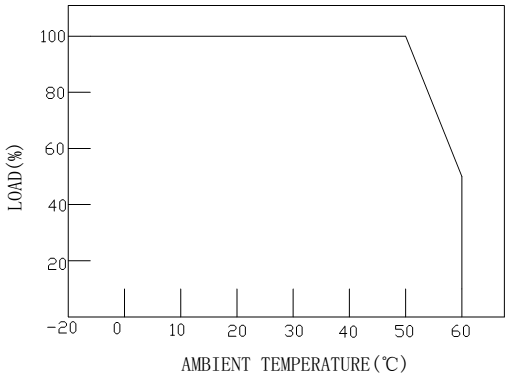

8.2 Temperature graph
Customize 90 - 264Vac Input To 54V 2.77A Output Constant Voltage Ac To Dc Power Supply(图3)

9. Weight:

10. Chart(Unit: mm)

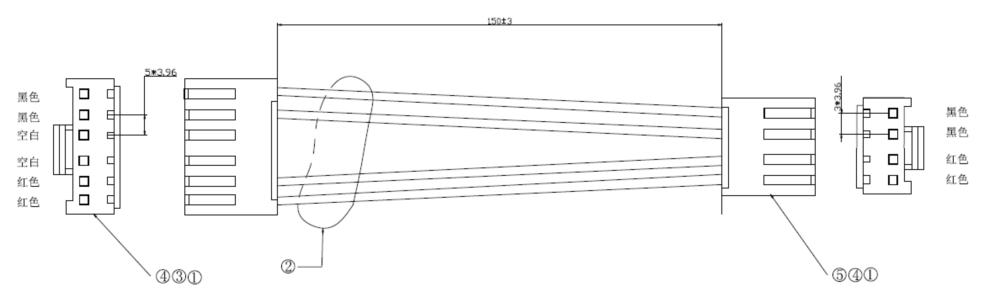

10.1 Wire dtawing (wire drawing)

10.1.1 DC Output figure:

1) 53V Output figure (53V output wire figure):

Customize 90 - 264Vac Input To 54V 2.77A Output Constant Voltage Ac To Dc Power Supply(图4)

10.2 Terminal figure

10.2.1 DC Output Terminal figure:

1) 53V Output Terminal figure:

10.3 Dimension: 133.7mm X 76.2mm X 33mm (length L * width W * height H).

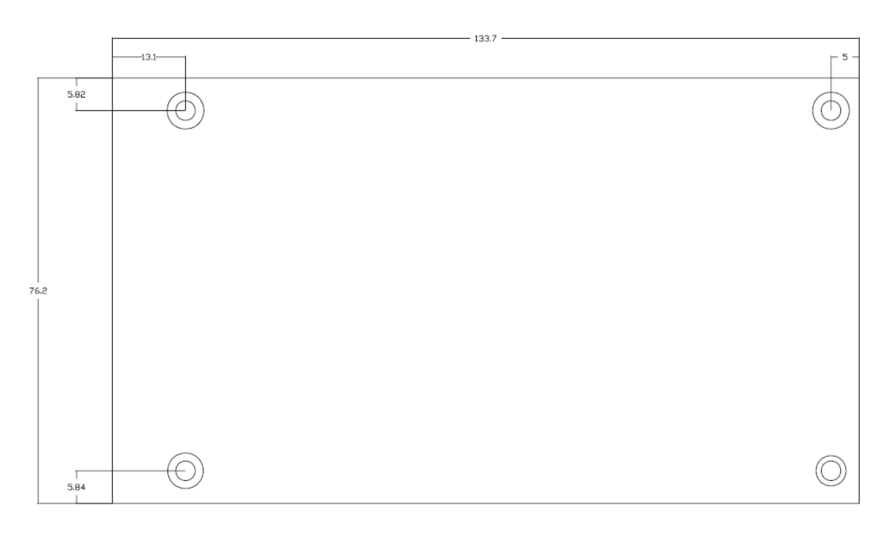

10.4 Outline dimensions (Tolerance: ±0.5mm)

Customize 90 - 264Vac Input To 54V 2.77A Output Constant Voltage Ac To Dc Power Supply(图5)
