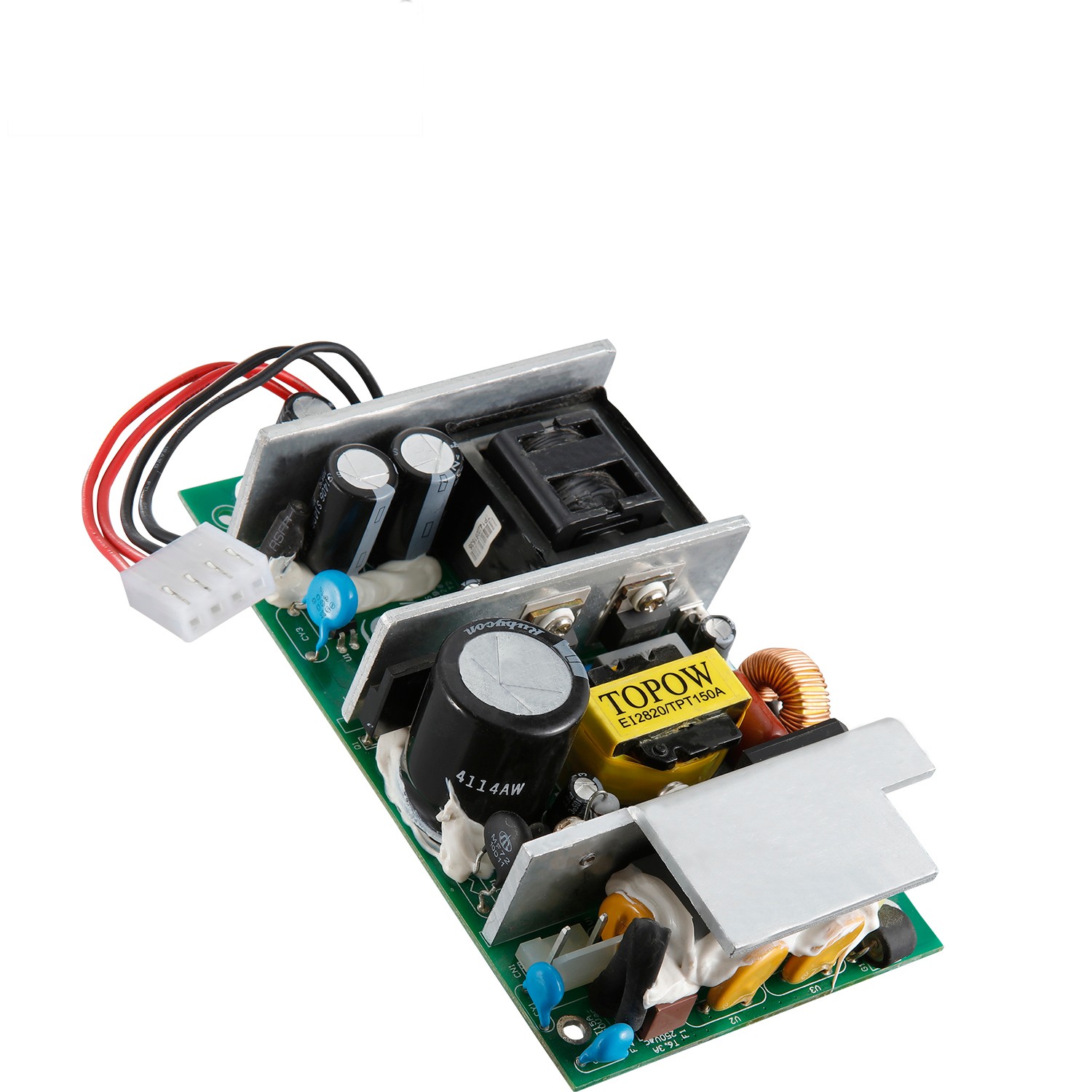

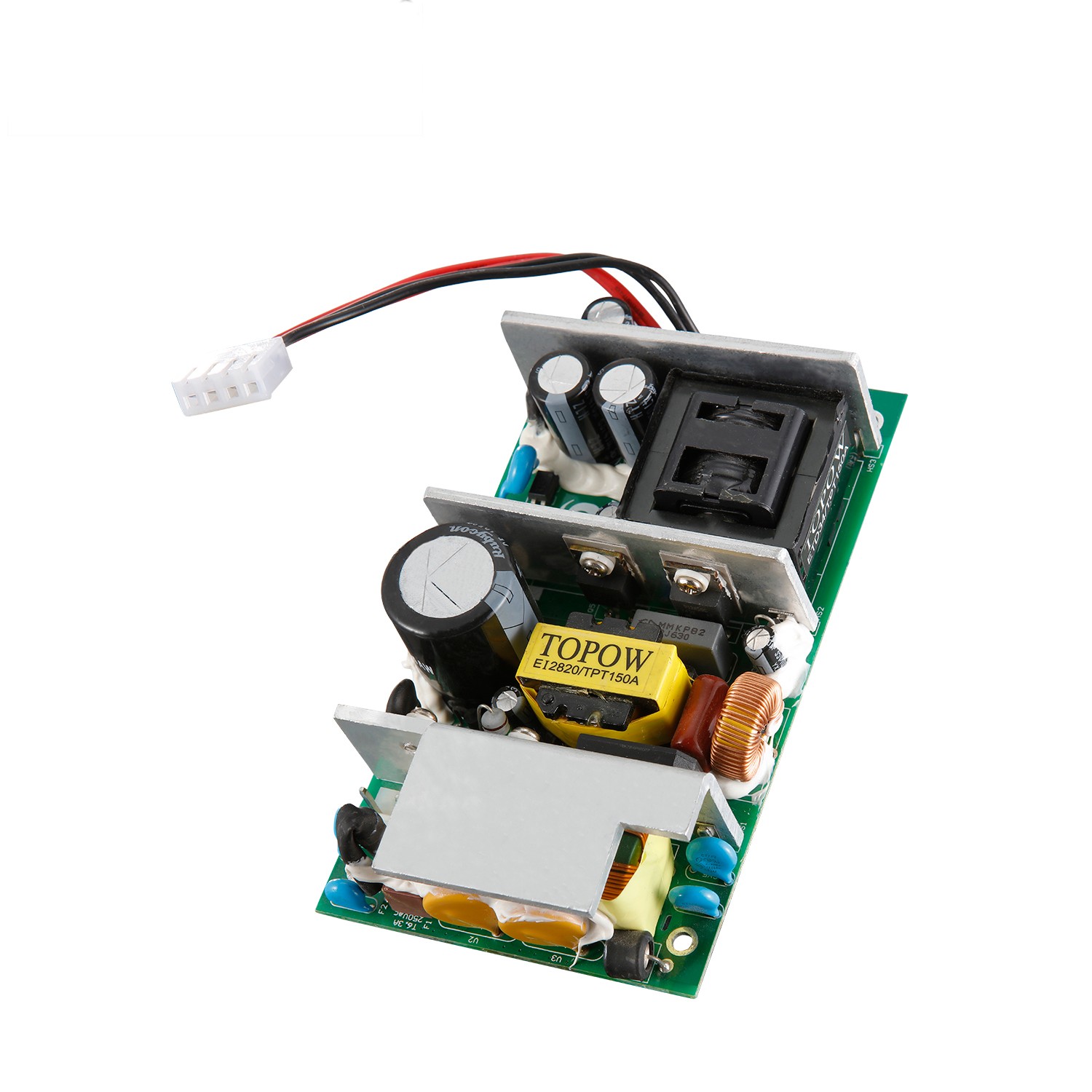

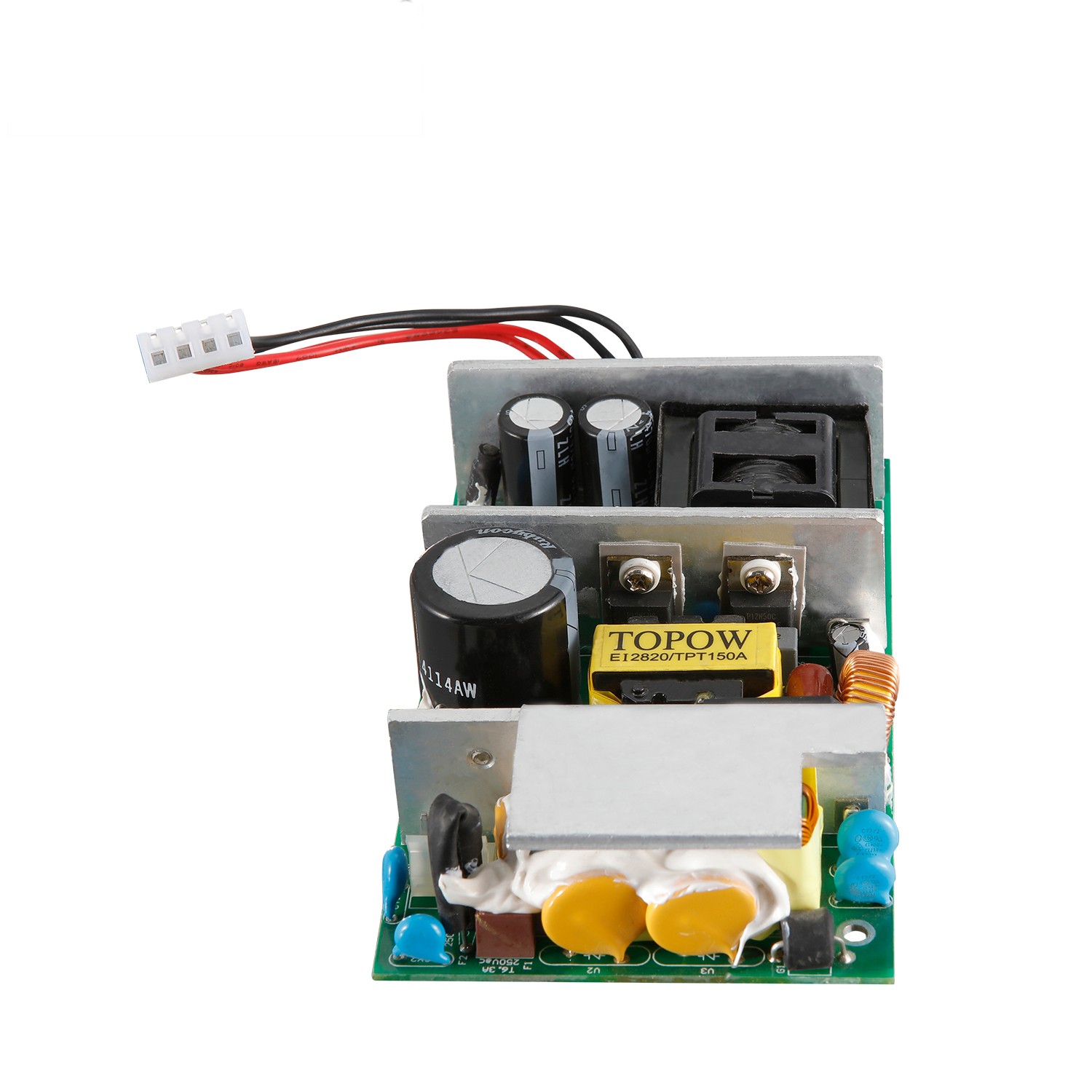

1. Power Supply Overview

1.1 Table 1 Input Electrical Characteristics Overview

1.1.1 Input voltage range: 90Vac to 264Vac

1.1.2 Normal voltage range nominal input: 100Vac to 240Vac

1.1.3 Frequency range: 47Hz/63Hz

1.1.4 Power Factor: PF>0.93 (100-240Vac Input ,Full load)

1.1.5 Max input ac current: 2.2Amax at full load

1.1.6 Inrush current: MAX80A (Cold start), 115V/230Vac input

1.1.7 Efficiency: 92%Typ at 230Vac input ,Full load;

1.1.8 Leakage Current: Less Than 1mA, 230Vac input

1.1.9 Input Fuse: T6.3A/250Vac

1.1.10 Electrolytic capacitor brand: Ruby (Japanese electrolytic)

1.2 Output Electrical Characteristics Overview

1.2.1 Table 1 Output Voltage ,Current & Regulation.

1.2.2 Table 2 DC Output Ripple & Noise.

Note: 1) Measurements shall be made with an oscilloscope with 20MHz bandwidth.

2) Outputs shall be bypassed at the connector with a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to simulate system loading.

1.2.3 Output Transient Response.

Table 3. Test condition.

Note: Dynamic response measurements shall be set with a load changing repetition rate of 50Hz to 10kHz.

Note: The frequency range of load change for dynamic test is 50 Hz to 10 kHz.

1.2.4 Table 4 DC Output Hold-Up Time.

1.2.5 Table 5 DC Output Overshoot At Turn On.

Note: All of DC output current from Min to Max.

Note: Load range during test: minimum to maximum

1.2.6 Table 6 DC output voltage rise time

Note: The output voltage shall rise from10% to 90% of output voltage.

1.3 Protection:

1.3.1 Table 8 DC Output Short Circuit Protection.

2. Isolation

2.1 Isolation Withstanding Voltage

3. Safety

The power supply shall comply with the following Criterion:

Power safety meets the following standards

1) UL60950

 "Safety of Information Technology Equipment including Electrical Business Equipment,

Third Edition." Underwriters Laboratories, Inc., 2000

2) CSA C22.2 no. 950.(CUL):

"Safety of Information Technology Equipment including Electrical Business Equipment,

Third Edition.” Canadian Standards Association, 2000.3) GB4943-1995

3) TUV EN 60950:

"Safety of Information Technology Equipment including Electrical Business Equipment,"

European Standard, 2000.

4) IEC 60950 CB Report:

"Safety of Information Technology Equipment including Electrical Business Equipment,

International Standards, 1999

5) CE Mark:

EMC of European Standard 89/336/EEC, EN 55022-1998, EN55024-1998 and Low

voltage Device of IEC 60950-1999.

4. EMC (Electromagnetic Compatibility)

4.1 EMI (Electromagnetic Interference)

The power supply shall comply with the following Criterion:

The electromagnetic interference of the power supply meets the following rules:

1) Conduction Emission:

 *EN55022, CLASS B

2) Radiated Emission:

*EN55022, CLASS B

4.2 EMS (Electromagnetic Immunity)

The power supply shall comply with the following Criterion:

The electromagnetic immunity of the power supply meets the following rules:

1) ESD (electrostatic immunity)

*GB17626.2-1998/IEC61000-4-2/ EN 61000-4-2,

2) EFT (Pulse Group Anti-interference)

*GB17626.4-1998/IEC61000-4-4 3KV /EN 61000-4-4,

3) Surge (lightning surge) differential mode 2KV, common mode 4KV

*GB17626.5-1998/IEC61000-4-5 /EN 61000-4-5,

4) Voltage Dips:

  *EN 61000-4-11, IEC 1000-4-11:2001.

5. Environmental Requirement

5.1 Temperature

* Operating: -10℃ to +40℃ Operating temperature: -10℃ to +40℃.

* Store: -45℃ to +85℃ Storage temperature: -45℃ to +85℃.

5.2 Humidity

* Operating: From 10%to90% relative humidity (non-condensing).

* Store: From 5 to 95% relative humidity (non-condensing).

5.3 Altitude

* Operating: to10,000 ft.

* Store: to 20,000ft.

5.4 Cooling Method

* The power supply shall be provided with external airflow minimum 20.5CFM.

(Forced air cooling, minimum air volume 20.5CFM)

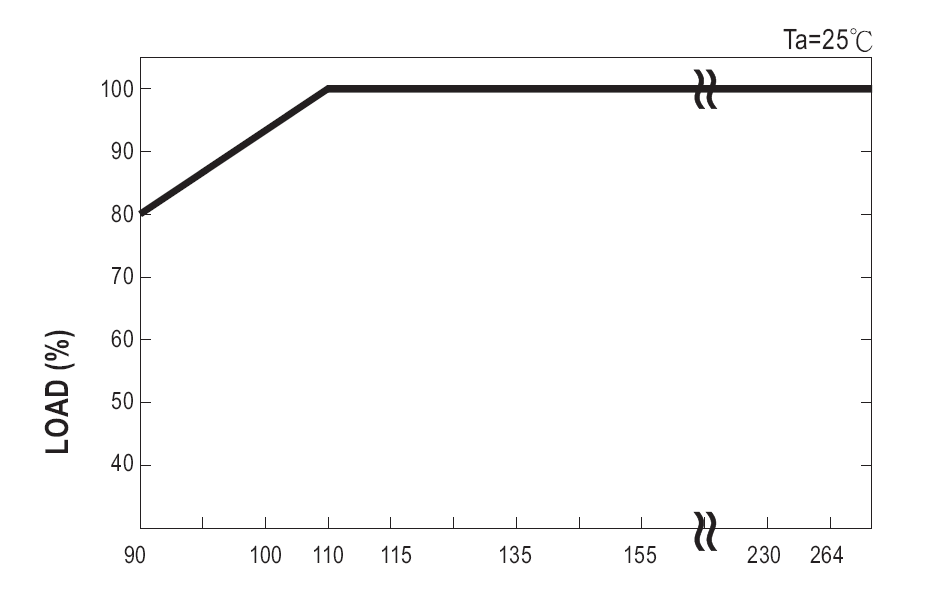

Note: Under the condition of no fan cooling, please refer to the following load derating curve to use the power supply:

5.5 Vibration Testing

* 10-55Hz, 49.0m/s²(5G), 3minutes period, 60minutes each along X, Y and Z axis.

5.6 Impact Testing

* 196.1m/s²(20G),11ms, once each X, Y and Z axis.

6. Weight:

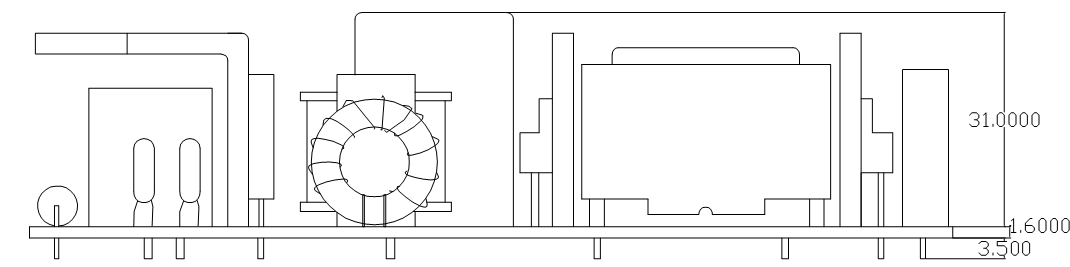

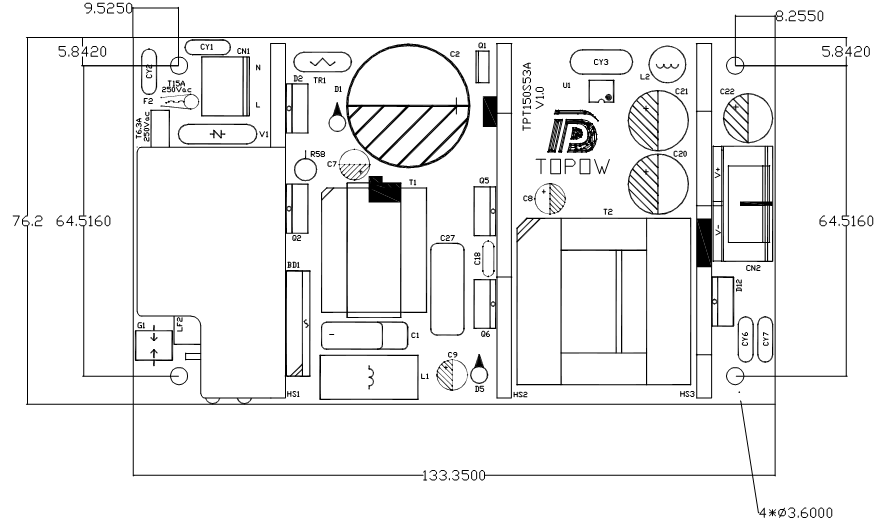

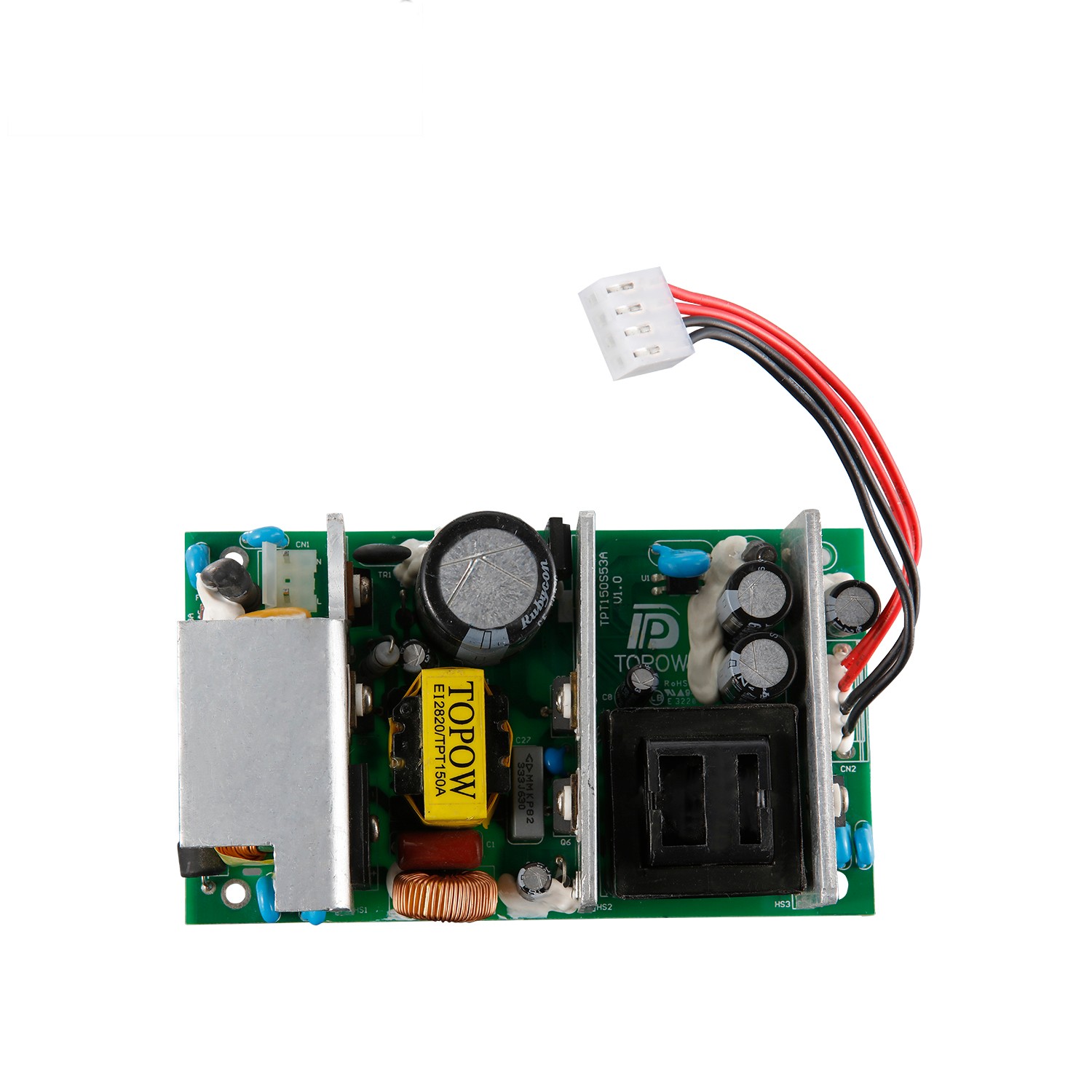

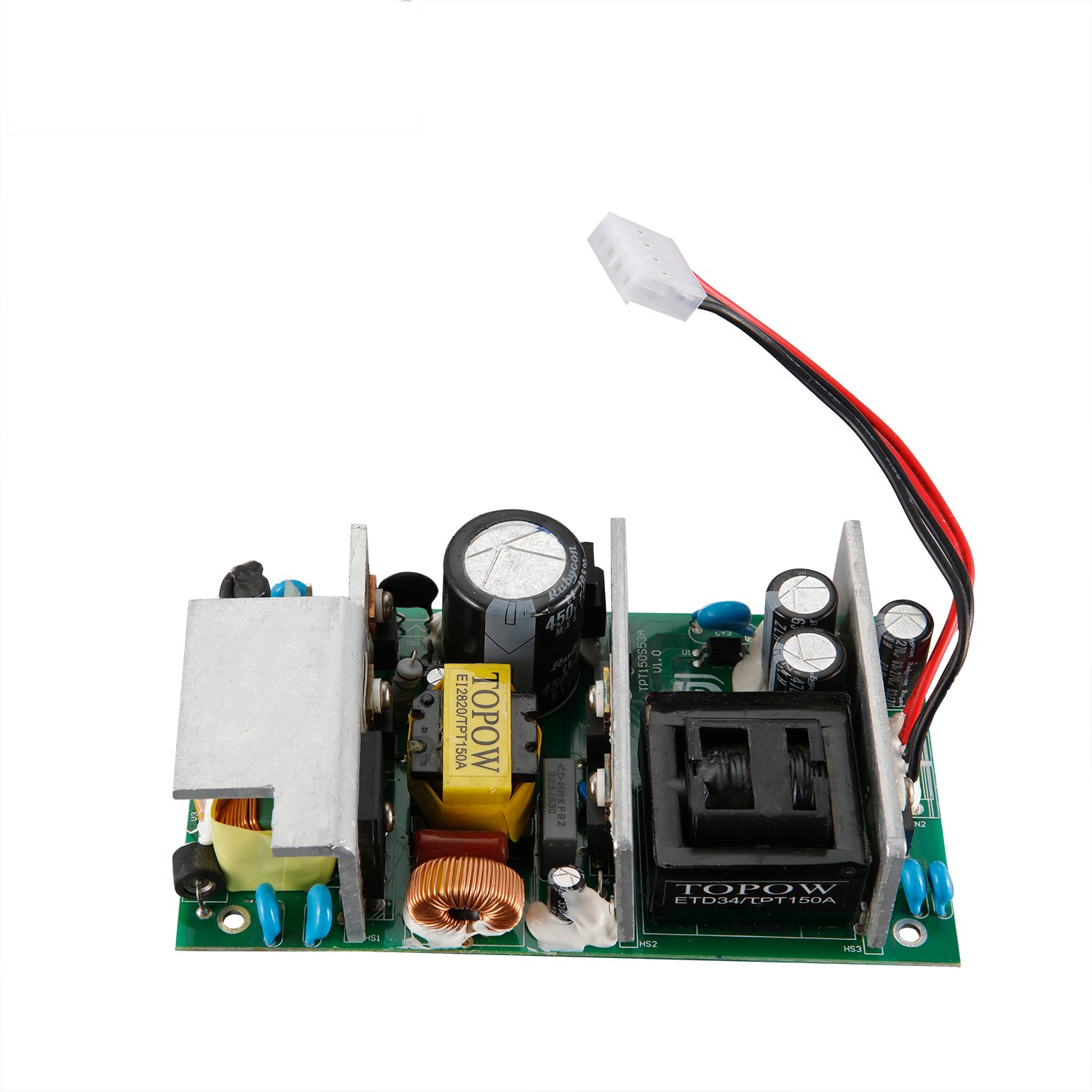

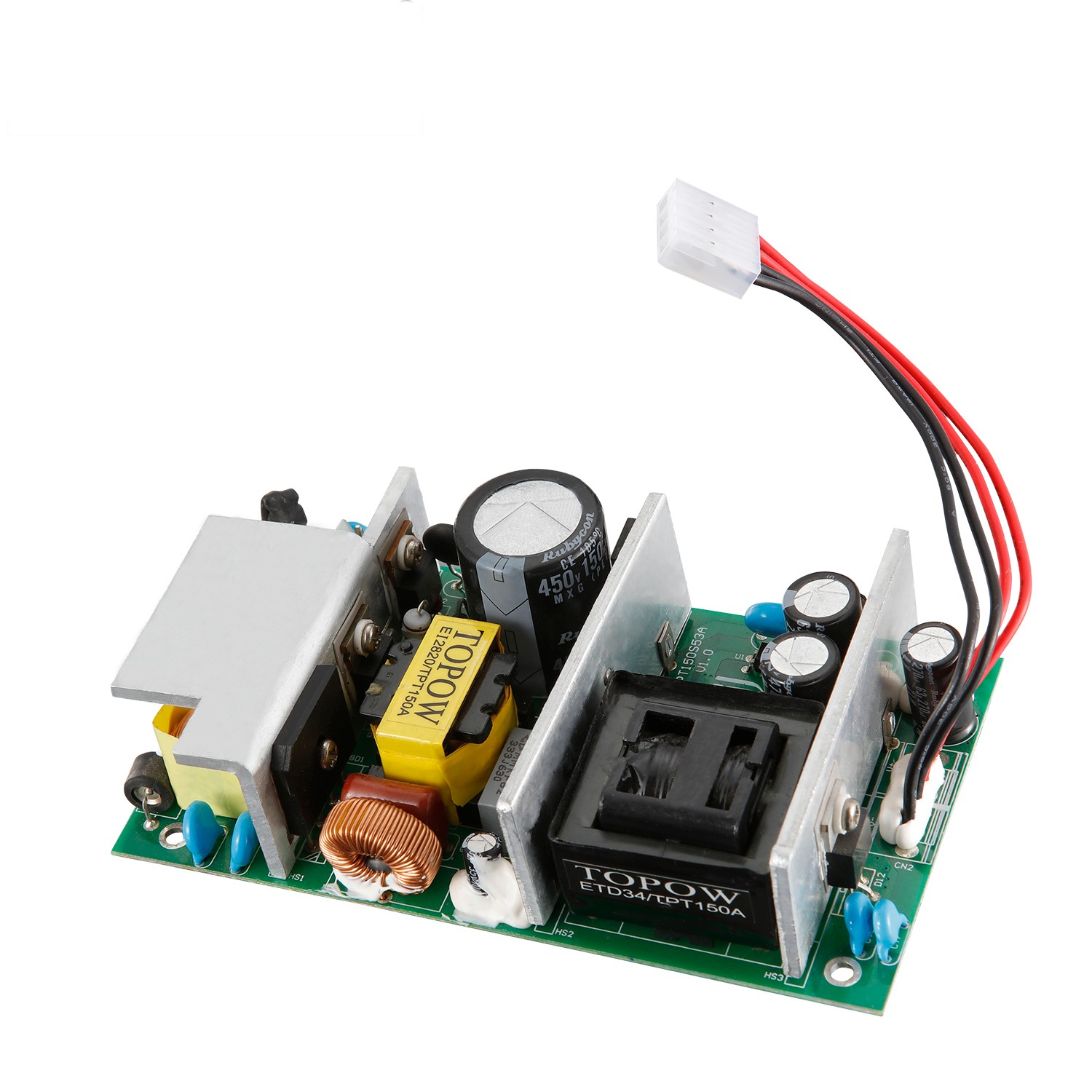

7. Outline dimensions(Unit: mm) (installation dimension unit: mm)

Note:

Dimensions: 127.0mm X 76.2mm X 30.0mm (length L * width W * height H)

Tolerance: ±1.0mm

AC input: CON1

DC output: CON2 3.96mm*6pin
