How to understand the meaning from Topow model name and its label? We can know some basic parameters from the label, such as input voltage, input voltage range, output voltage and current, model name, factory name, country of origin, safety certificates, etc.

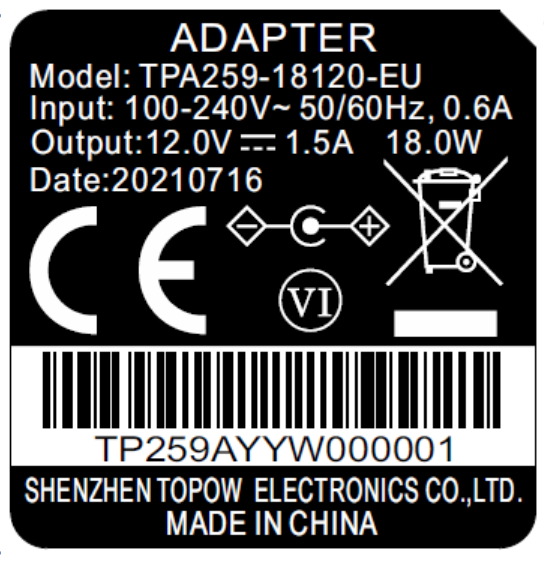

Let's take label of Topow 12V1.5A for example:
ShenZhen Topow Electronics Co.,Ltd: factory name
ADAPTER: product name
Model: TPA259-18120-EU
TPA259: model name
18: output power 18W
120: output voltage 12V
EU: plug variant for Europe
Input:100-240V~50/60Hz 0.6A
100-240V: input voltage range
50/60Hz: AC frequency
0.6A: maximal input current
Output:12V
1.5A,18.0W
12V: output voltage
1.5A: output current
: DC18.0W: output power
Date: 20200311：the production date for year, month and day
: DC jack, positive inside and negative outside
Below you can find explanation for other parts on the label:
A warning sign which inside with electricity
For indoor use
Manual attached
Energy efficiency 6
life span of 10 years
WEEE
EN61558-2-6
KC safety certificate for South Korea
DC cable
TUV
BSMI safety certificate for Taiwan
CE safety certificate for Europe
CCC safety certificate for China
SAA safety certificate for Australia
PSE safety certificate for Japan
GS safety certificate for Germany
RoHSRead recommendations:
